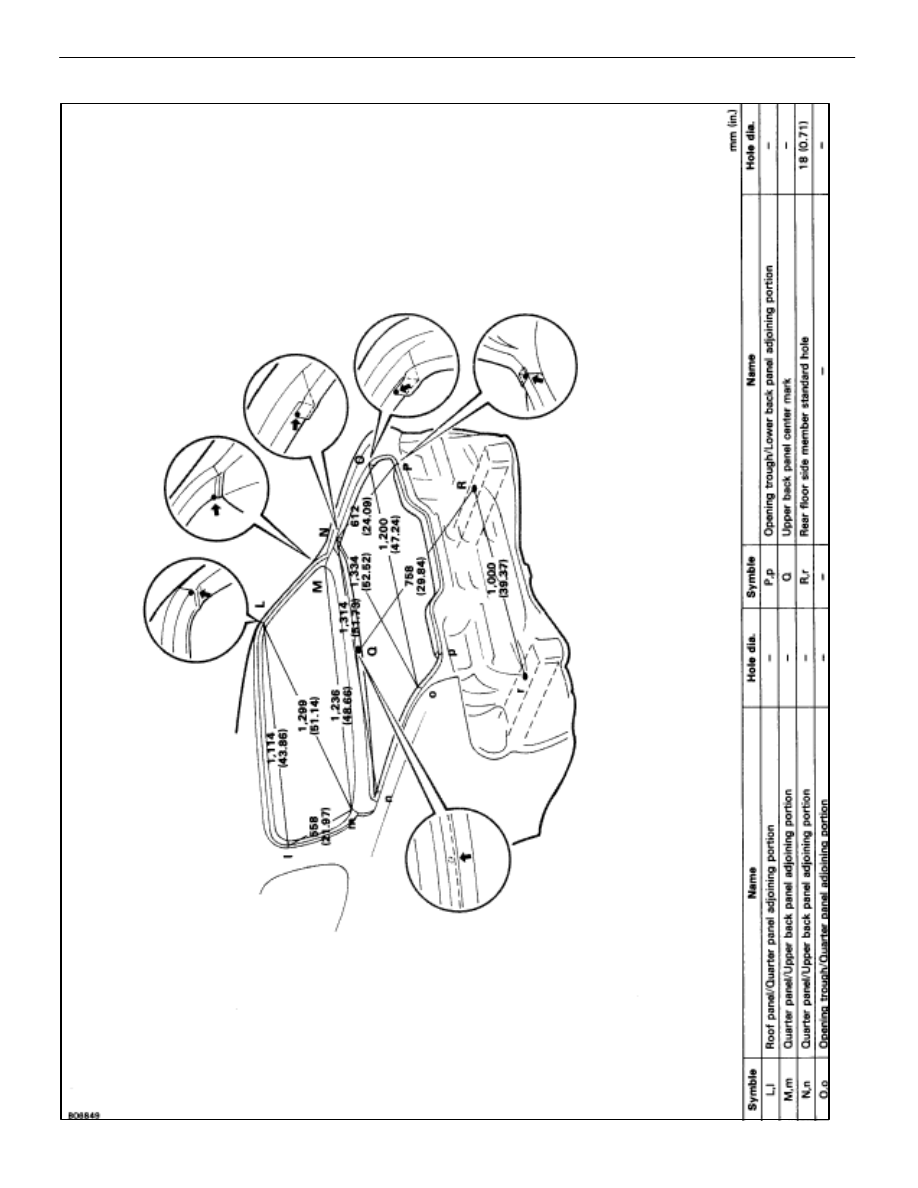

BODY OPENING AREAS (Rear View)

(Three–Dimensional Distance)

BO–134

–

BODY

Body Dimensions (Body Dimension Drawings)

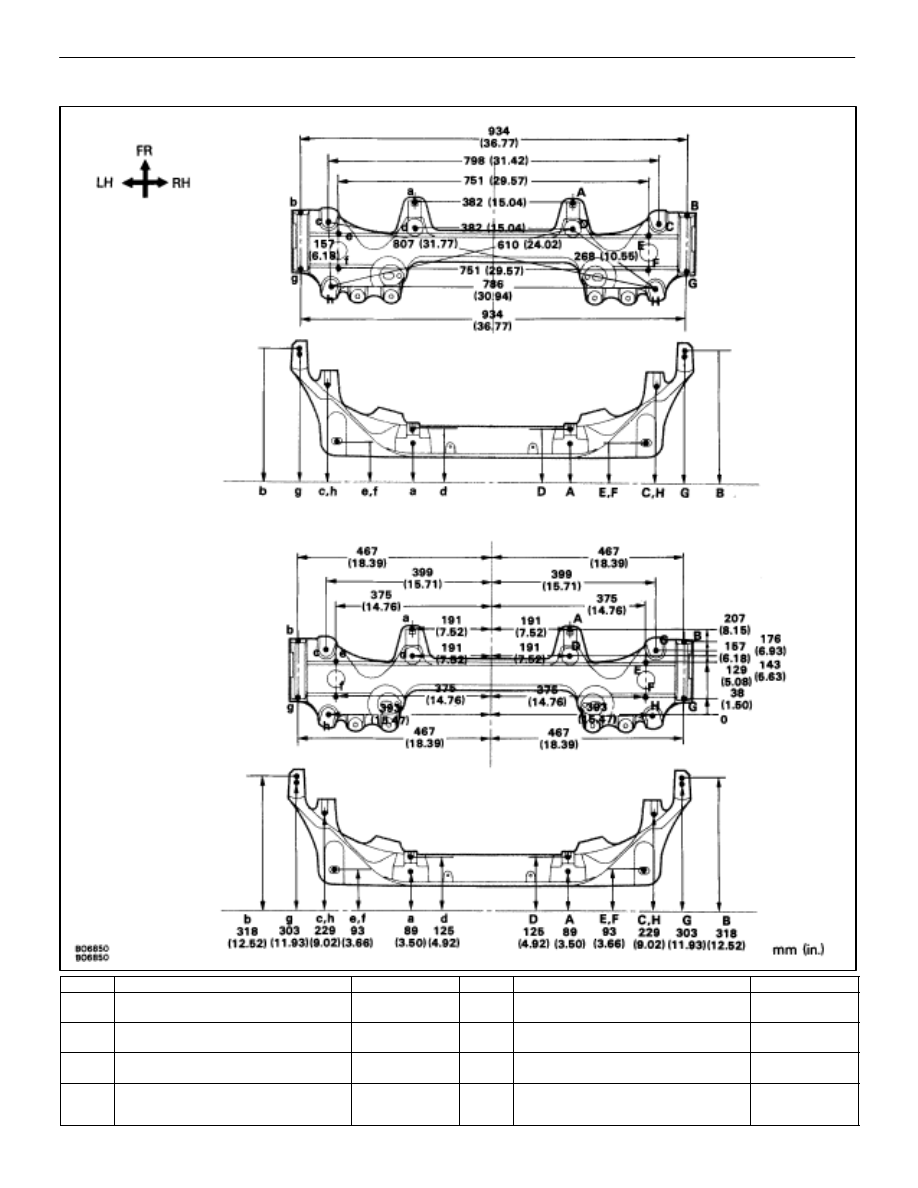

Suspension Crossmember Drawings

(Three–Dimensional Distance)

(Two–Dimensional Distance)

Symble

Name

Hole dia.

Symble

Name

Hole dia.

A,a

Steering gear box installation hole front

12 (0.47)

E,e

Lower arm installation hole – front

25 x 16

(0.98 x 0.63)

B,b

Upper arm installation hole front

14 (0.55)

F,f

Lower arm installation hole rear

25 x 16

(0.98 x 0.63)

C,c

Suspension crossmember installation
hole front – lower

15 (0.59)

G,g

Lower arm installation hole rear

14 (0.55)

D,d

Steering gear box installation
hole – lower

12 (0.47)

H,h

Suspension crossmember installation
hole rear – lower

RH 15 x 13

(0.59 x 0.51)

LH 13 x (0.51)

–

BODY

Body Dimensions (Suspension Crossmember Drawings)

BO–135

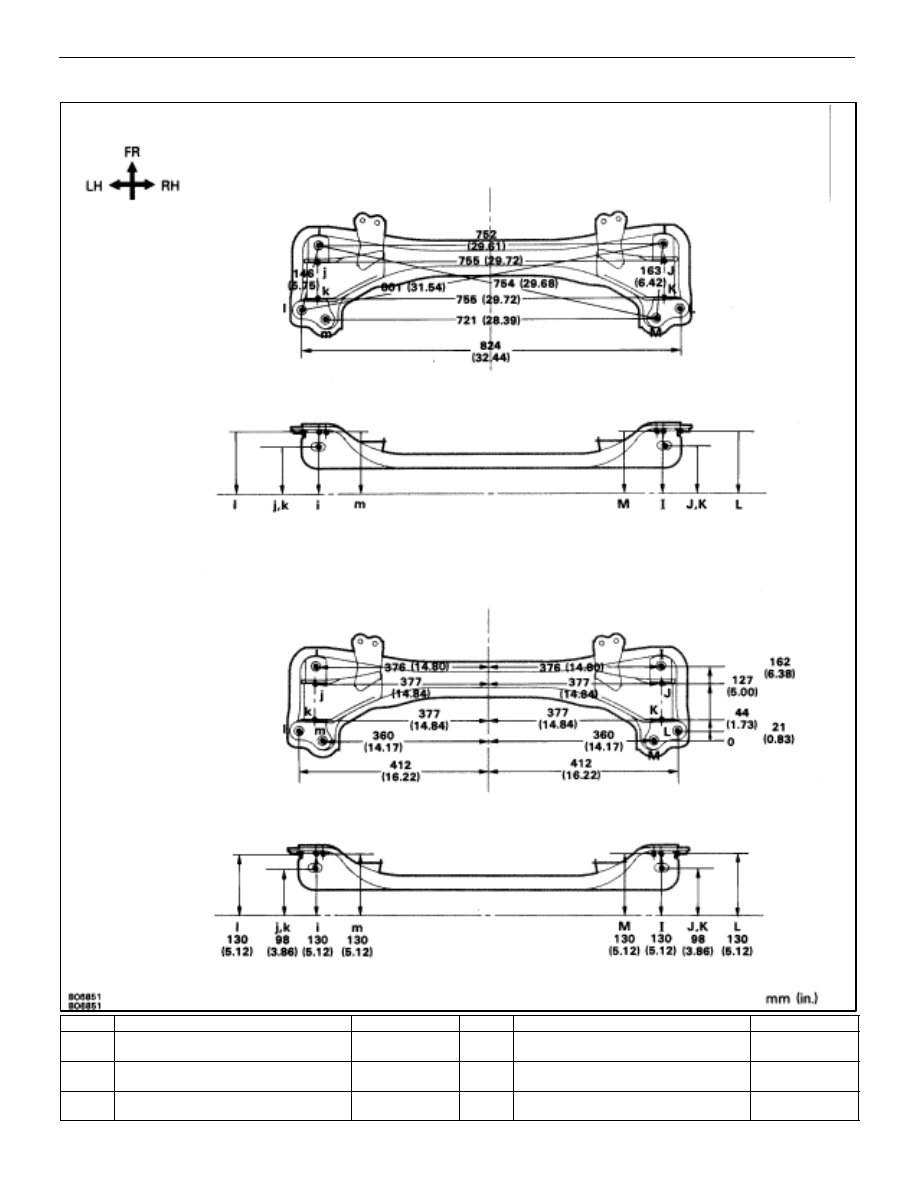

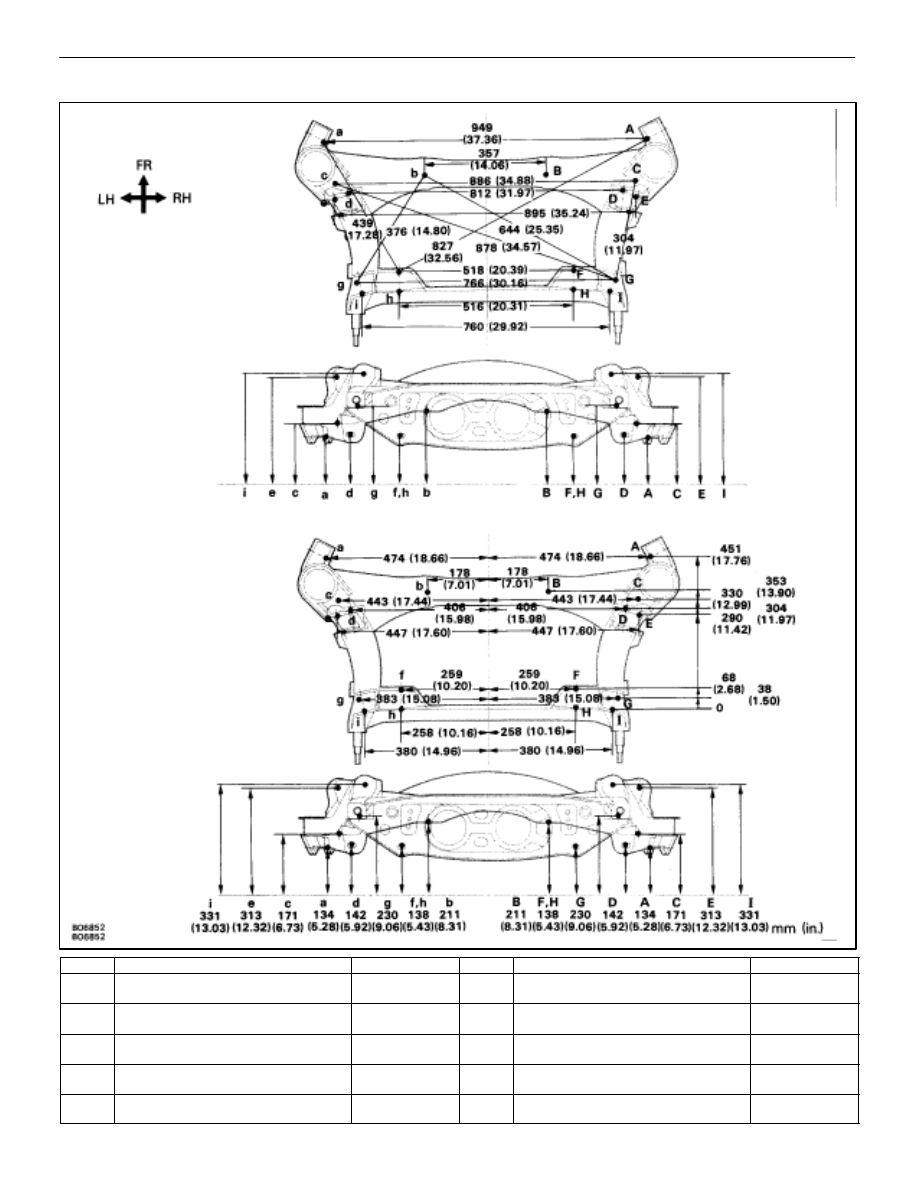

Suspension Crossmember Drawings (Cont’d)

(Three–Dimensional Distance)

(Two–Dimensional Distance)

Symble

Name

Hole dia.

Symble

Name

Hole dia.

I,i

Suspension crossmember installation
hole front – lower

18 (0.71)

L,l

Suspension crossmember installation
hole rear – lower

18 (0.71)

J,j

Lower arm installation hole – front

30 x 16

(1.18 x 0.63)

M,m

Suspension crossmember installation
hole rear – lower

18 (0.71)

K,k

Lower arm installation hole rear

30 x 16

(1.18 x 0.63)







BO–136

–

BODY

Body Dimensions (Suspension Crossmember Drawings)

Suspension Crossmember Drawings (Cont’d)

(Three–Dimensional Distance)

(Two–Dimensional Distance)

Symble

Name

Hole dia.

Symble

Name

Hole dia.

A,a

Strut bar installation hole inner

14 (0.55)

F,f

Lower arm installation hole front

26 x 14

(1.02 x 0.55)

B,b

Differential carrier installation hole

12 (0.47)

screw

G,g

Rear suspension member standard hole

20 (0.78)

C,c

Rear suspension member standard hole

20 (0.78)

H,h

Lower arm installation hole rear

26 x 14

(1.02 x 0.55)

D,d

Lower arm installation hole front

26 x 14

(1.02 x 0.55)

I,i

Upper arm installation hole rear

14 (0.55)

E,e

Upper arm installation hole front

14 (0.55)







–

BODY

Body Dimensions (Suspension Crossmember Drawings)

BO–137
