11.  INSTALL FRONT PILLAR GARNISH

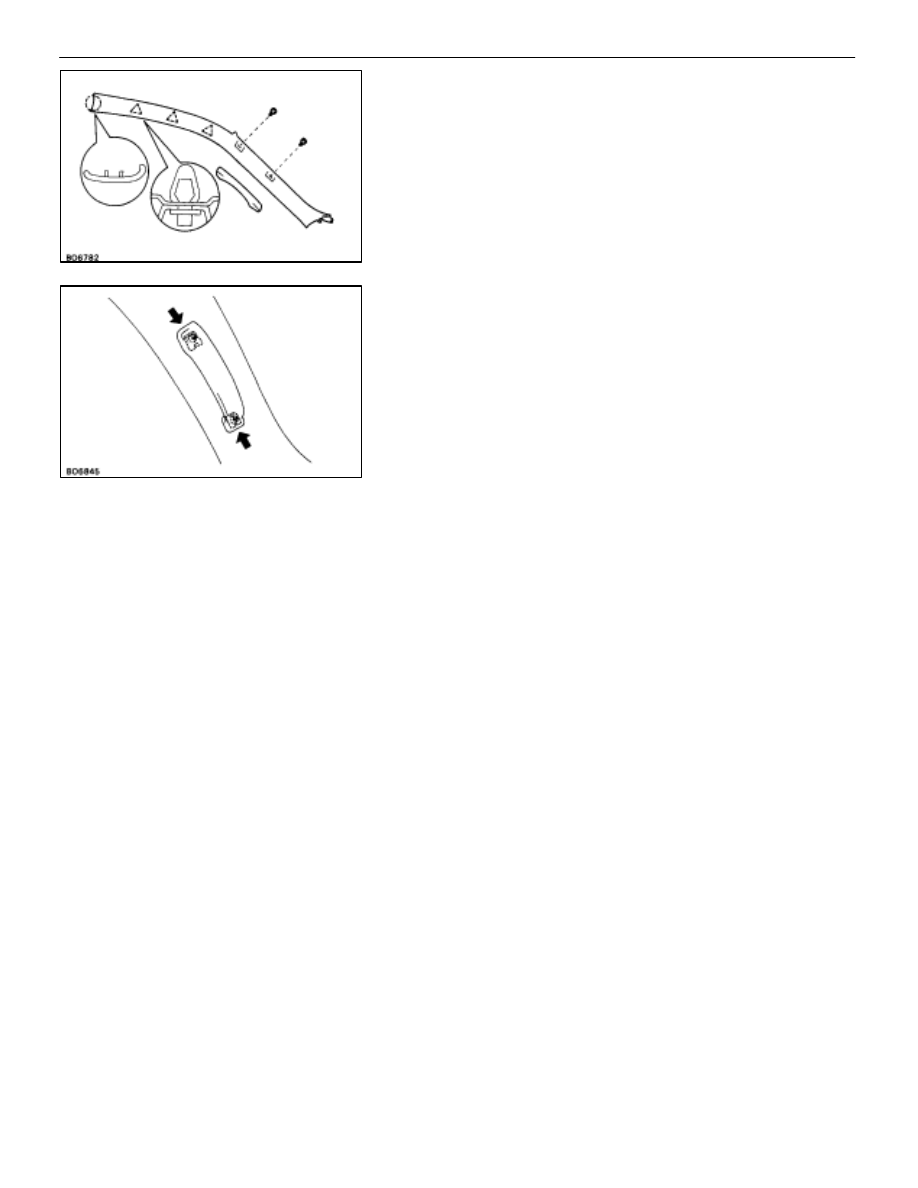

(a)  Insert front side of the garnish to the pillar to install the

clip.

(b)  Install the garnish by tapping.
(c)  Install two screws and the assist grip.

12.  INSTALL ASSIST GRIP

BO–126

–

BODY

Trim, Assist Grip and Visor

BODY DIMENSIONS
Description

1. BASIC

DIMENSIONS

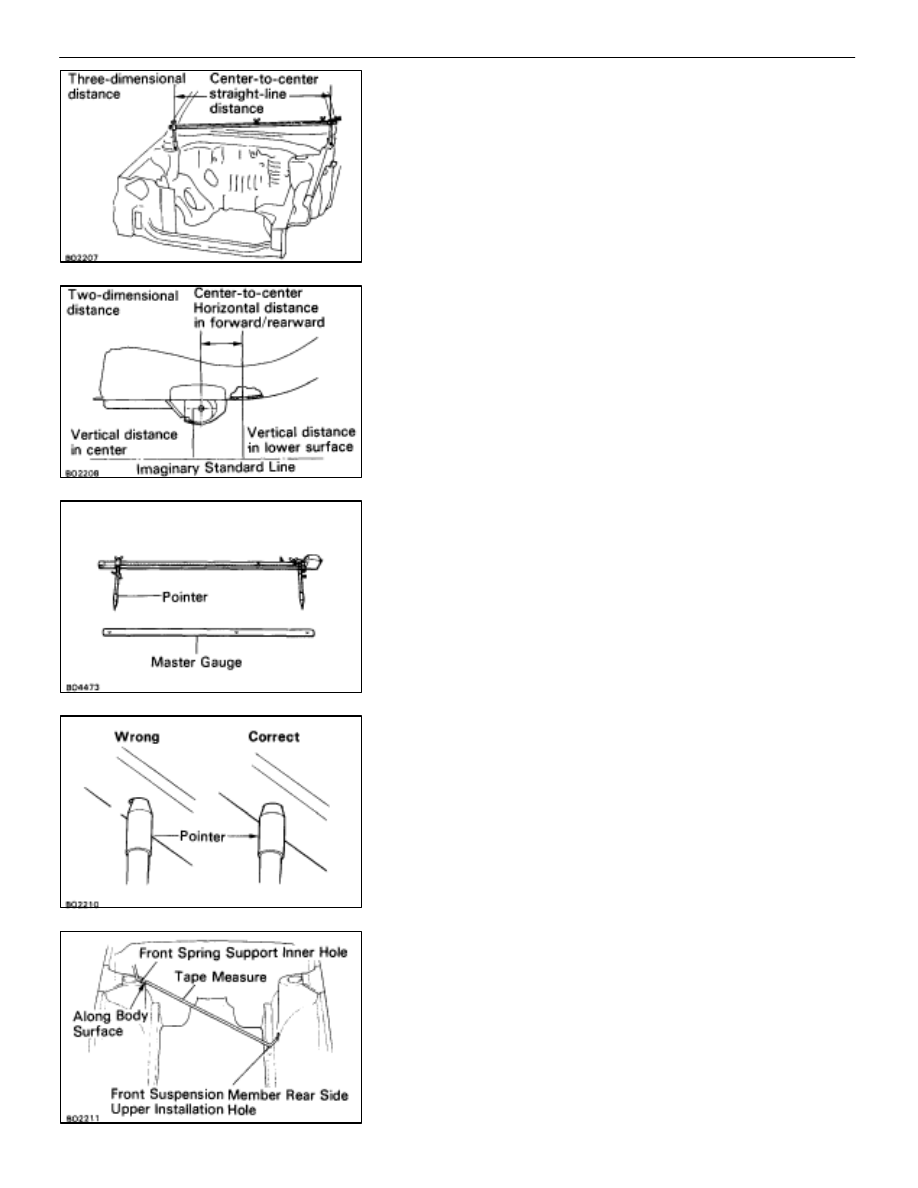

(a)  There are two types of dimensions in the diagram.

(Three–dimensional distance)

•

Straight–line distance between the centers of two

measuring points.

(Two–dimensional distance)

•

Horizontal distance in forward/rearward between the

centers of two measuring points.

•

The height from an imaginary standard line.

(b)  In cases in which only one dimension is given, left and

right are symmetrical.

(c)  The dimensions in the following drawing indicate actual

distance. Therefore, please use the dimensions as a
reference.

2. MEASURING

(a)  Basically, all measurements are to be done with a

tracking gauge. For portions where it is not possible to
use a tracking gauge, a tape measure should be used.

(b)  Use only a tracking gauge that has no looseness in the

body, measuring plate, or pointers.

HINT:
1.

The height of the left and right pointers must be equal.

2.

Always calibrate the tracking gauge before measuring
or after adjusting the pointer height.

3.

Take care not to drop the tracking gauge or otherwise
shock it.

4.

Confirm that the pointers are securely in the holes.

(c)  When using a tape measure, avoid twists and bends in

the tape.

(d)  When tracking a diagonal measurement from the front

spring support inner hole to the suspension member
upper rear installation hole, measure along the front
spring support panel surface.

–

BODY

Body Dimensions (Description)

BO–127

Body Dimension Drawings

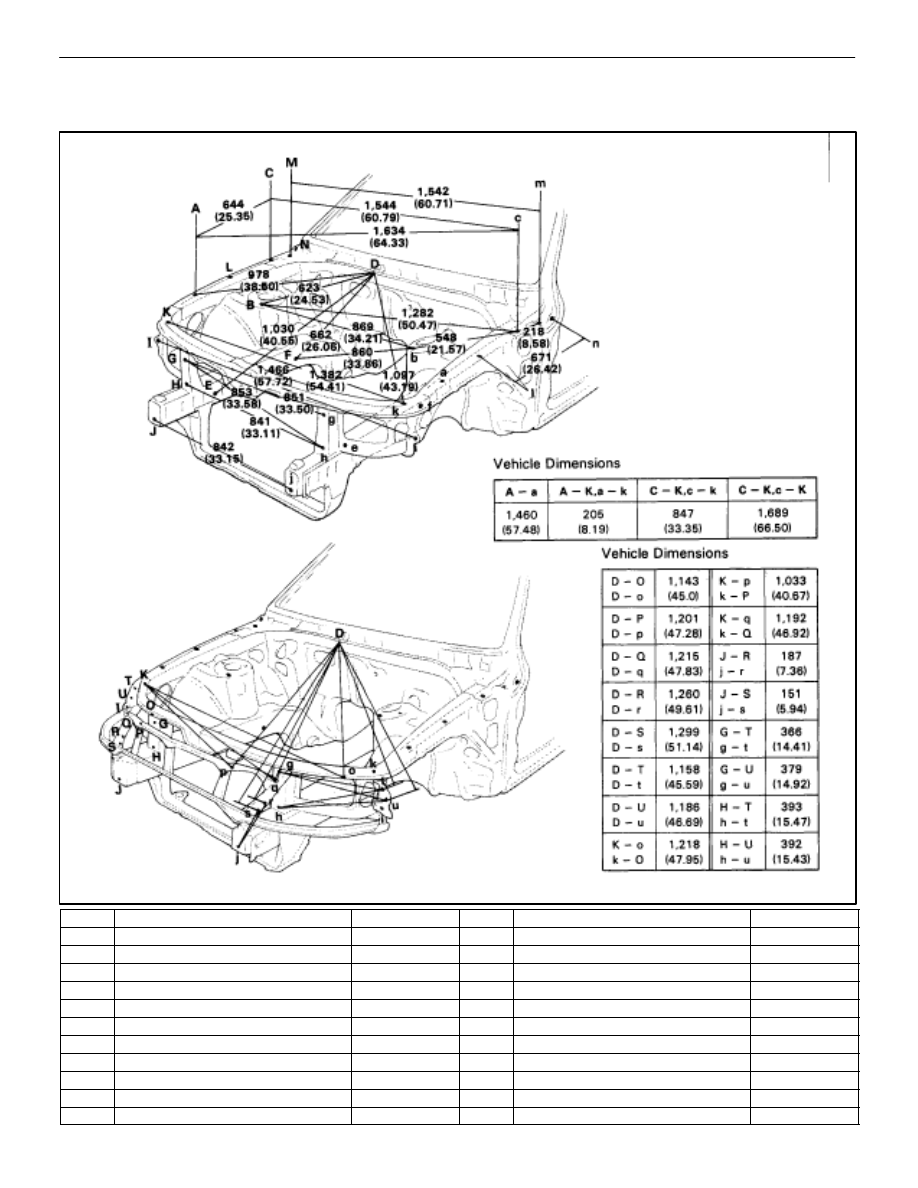

ENGINE COMPARTMENT

(Three–Dimensional Distance)

mm (in.)

B06846
B06860

Symble

Name

Hole dia.

Symble

Name

Hole dia.

A,a

Front fender apron standard hole

10 (0.39)

L,l

Front fender installation nut

6 (0.24) screw

B,b

Front spring support hole – front

11 (0.43)

M,n

Hood hinge installation nut – rear

8 (0.31) screw

C,c

Cowl side panel standard hole

10 (0.39)

N,n

Front fender installation nut – rear

6 (0.24) screw

D

Cowl top panel center mark



O,o

Headlight installation nut

6 (0.24) screw

E,e

Front side member working hole

18 (0.71)

P,p

Headlight installation nut

6 (0.24) screw

F,f

Front side member working hole

18 (0.71)

Q,q

Headlight installation nut

6 (0.24) screw

G,g

Radiator support standard hole

10 (0.39)

R,r

Headlight installation nut

6 (0.24) screw

H,h

Radiator support standard hole

10 (0.39)

S,s

Headlight installation hole

11 (0.43)

I,i

Front fender apron standard hole

10 (0.39)

T,t

Headlight installation hole

10 (0.39)

J,j

Front side member standard hole

8 (0.31)

U,u

Headlight installation hole

10 (0.39)

K,k

Front fender installation nut – front

6 (0.24) screw







BO–128

–

BODY

Body Dimensions (Body Dimension Drawings)

UNDER BODY

(Three–Dimensional Distance)

–

BODY

Body Dimensions (Body Dimension Drawings)

BO–129
