Lexus SC300 / Lexus SC400. Manual - part 119

INSTALLATION OF FLOOR CARPET

(See page

BO–117

)

INSTALL FLOOR CARPET PARTS BY FOLLOWING REMOVAL
SEQUENCE IN REVERSE

HINT:

Torque following parts.

(a)  Front seat belt lower anchor bolt

Torque:

43 N

⋅

m (440 kgf

⋅

cm, 32 ft

⋅

lbf)

(b) Front

Seat

Torque:

37 N

⋅

m (375 kgf

⋅

cm, 27 ft

⋅

lbf)

BO–118

–

BODY

Floor Carpet

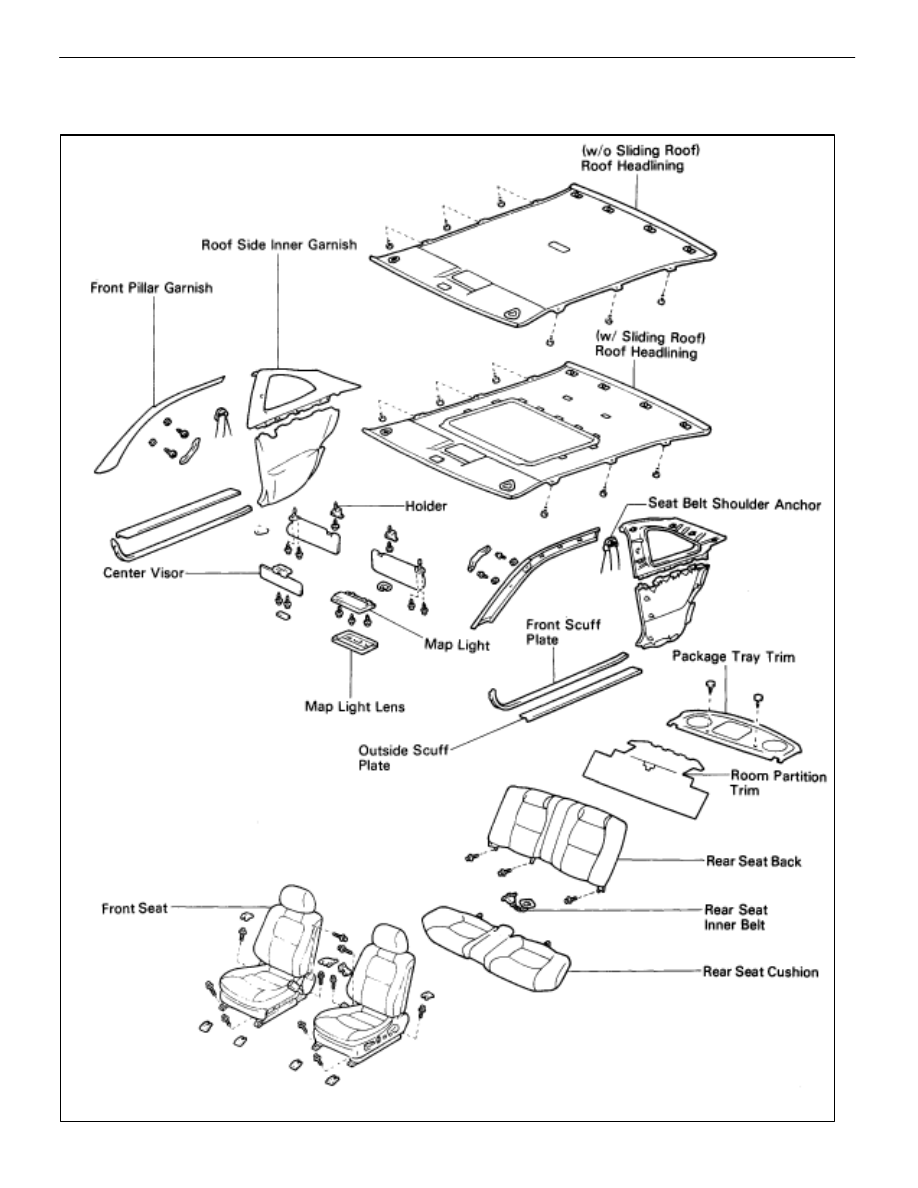

ROOF HEADLINING

COMPONENTS

–

BODY

Roof Headlining

BO–119

REMOVAL OF ROOF HEADLINING

(See page

BO–119

)

1.

REMOVE FOLLOWING PARTS:

•

Front pillar garnish

•

Sun visor

•

Rear seat back and cushion

•

Roof side inner garnish

•

Quarter trim

•

Interior Light

•

Center visor

2.

REMOVE ROOF HEADLINING
(a)  Disconnect four clips from the roof panel rear end.
(b)  Using a clip remover, remove six clips.
(c) Release the fastener tapes, then remove the

headlining.

(d)  Fully recline the front seat back.
(e)  Bring out the headlining as shown.
NOTICE: Do not fold down the headlining.

INSTALLATION OF ROOF HEADLINING

(See page

BO–119

)

INSTALL ROOF HEADLINING PARTS BY FOLLOWING RE-
MOVAL SEQUENCE IN REVERSE

HINT:

Torque following parts:

(a)  Rear seat back

Torque: 18

N

⋅

m (185 kgf

⋅

cm, 13 ft

⋅

lbf)

(b)  Rear seat belt inner belt

Torque: 43

N

⋅

m (440 kgf

⋅

cm, 32 ft

⋅

lbf)

(c)  Front seat belt shoulder anchor bolt

Torque: 43

N

⋅

m (440 kgf

⋅

cm, 32 ft

⋅

lbf)

BO–120

–

BODY

Roof Headlining

TRIM, ASSIST GRIP AND VISOR

COMPONENTS

B06803

–

BODY

Trim, Assist Grip and Visor

BO–121
