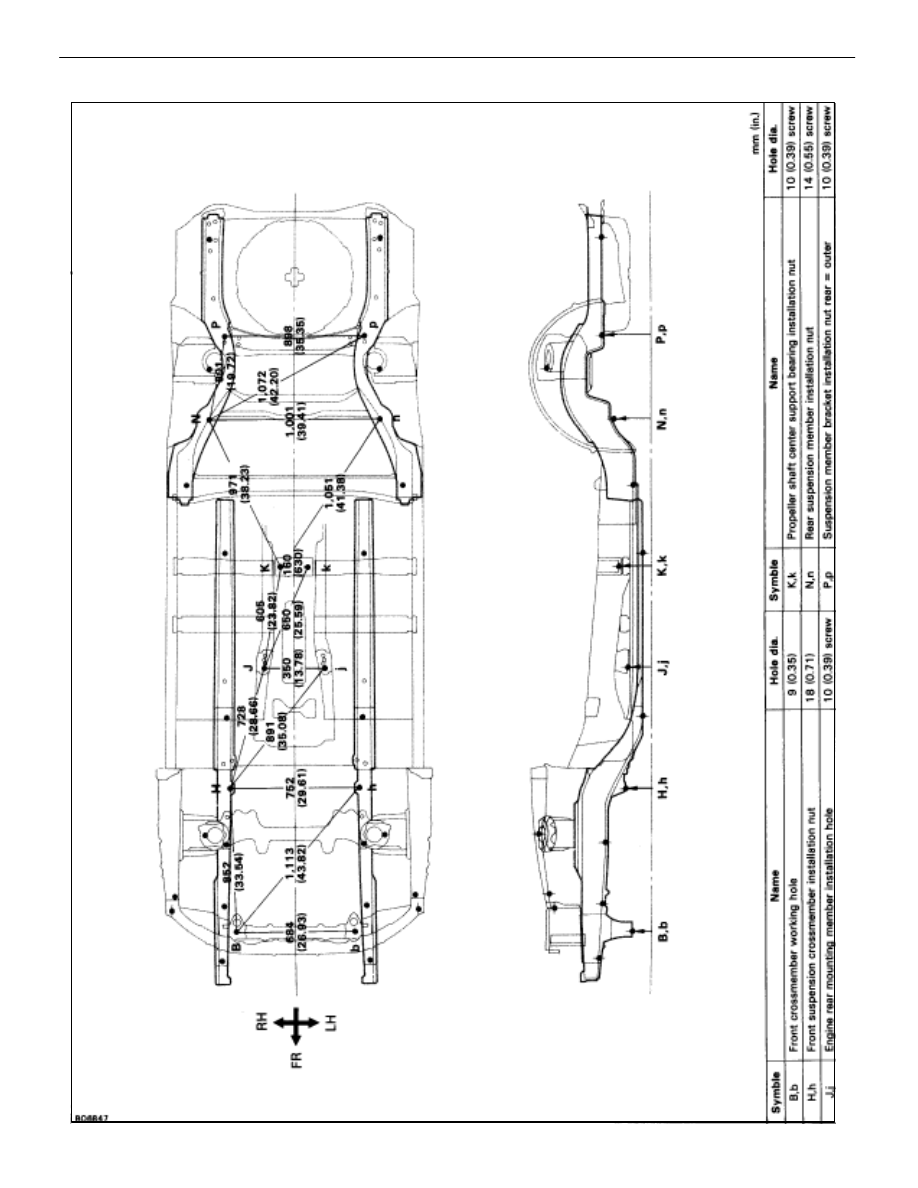

UNDER BODY (Cont’d)

(Three–Dimensional Distance)

BO–130

–

BODY

Body Dimensions (Body Dimension Drawings)

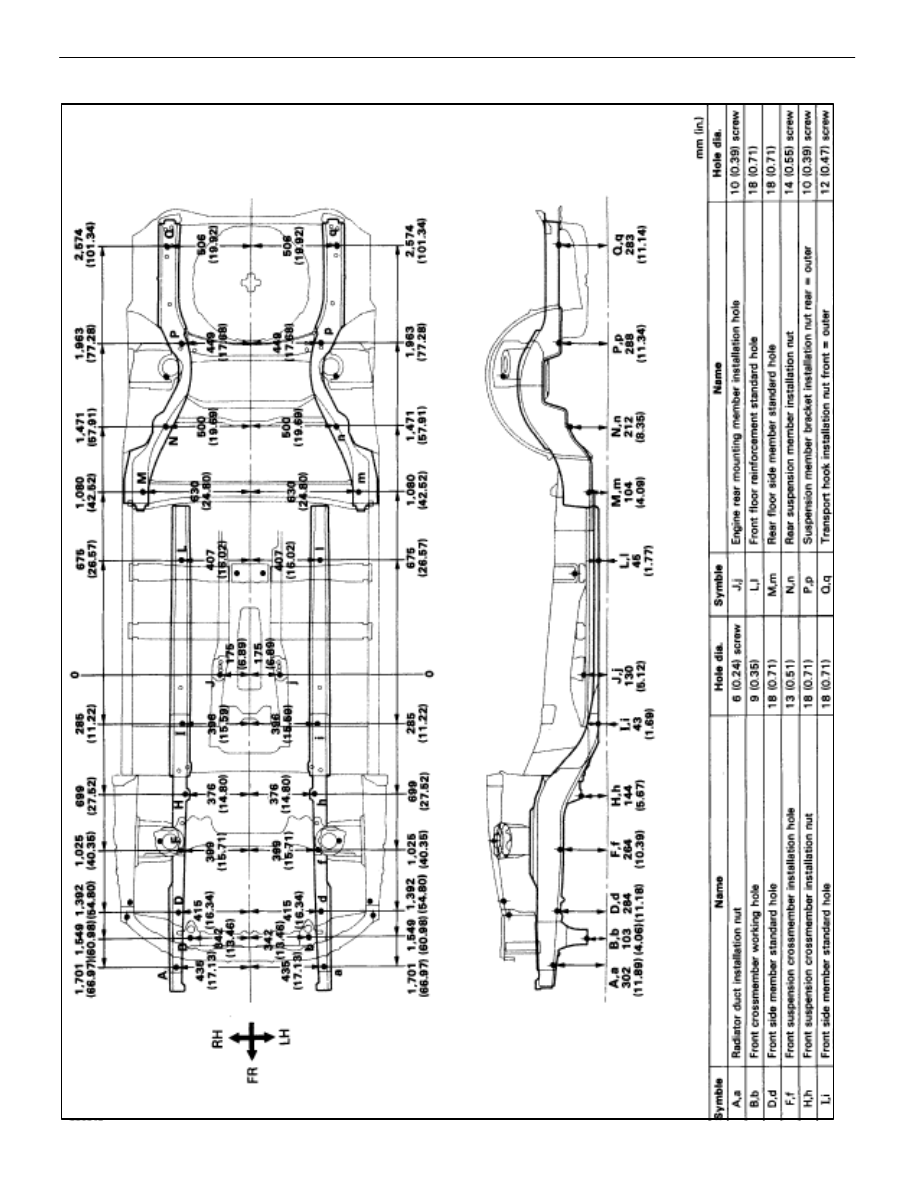

UNDER BODY (Cont’d)

(Two–Dimensional Distance)

B06847

–

BODY

Body Dimensions (Body Dimension Drawings)

BO–131

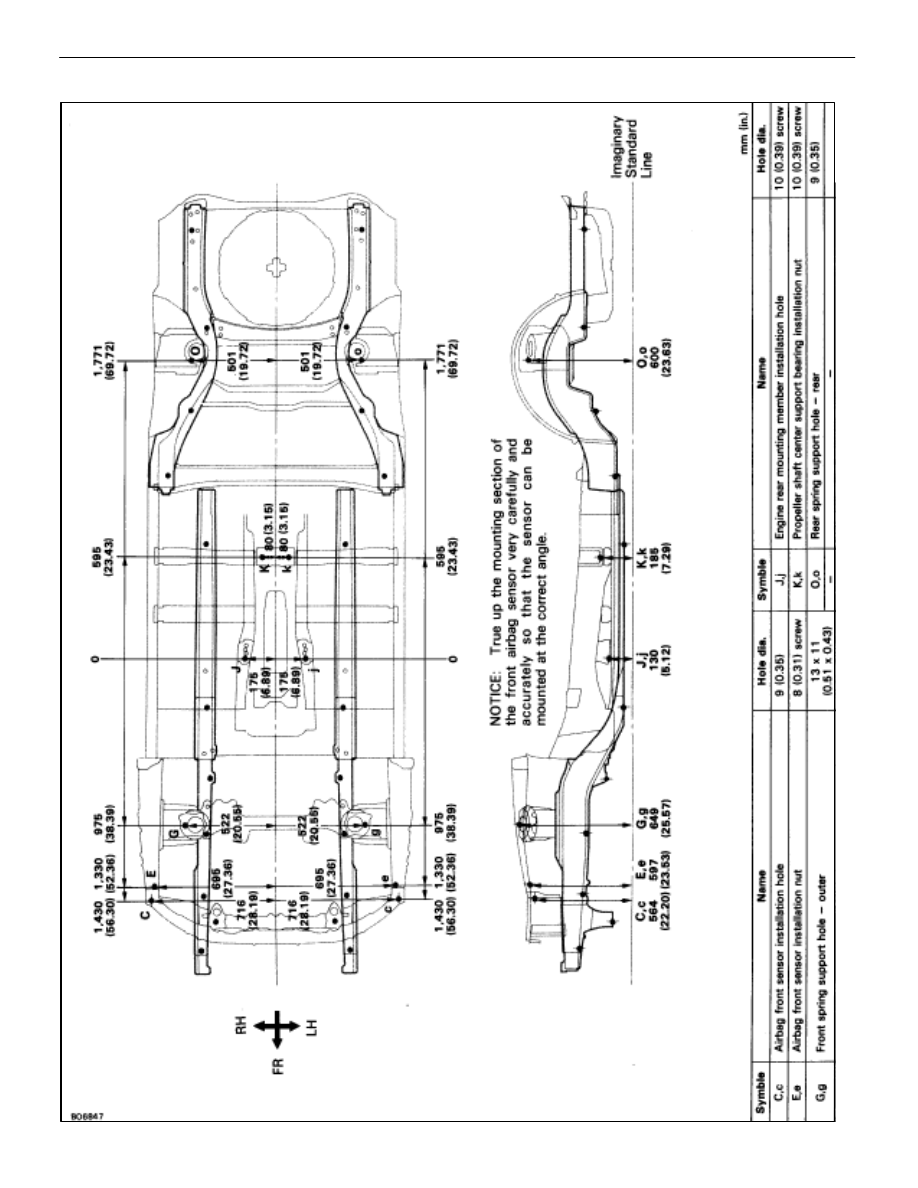

UNDER BODY (Cont’d)

(Two–Dimensional Distance)

BO–132

–

BODY

Body Dimensions (Body Dimension Drawings)

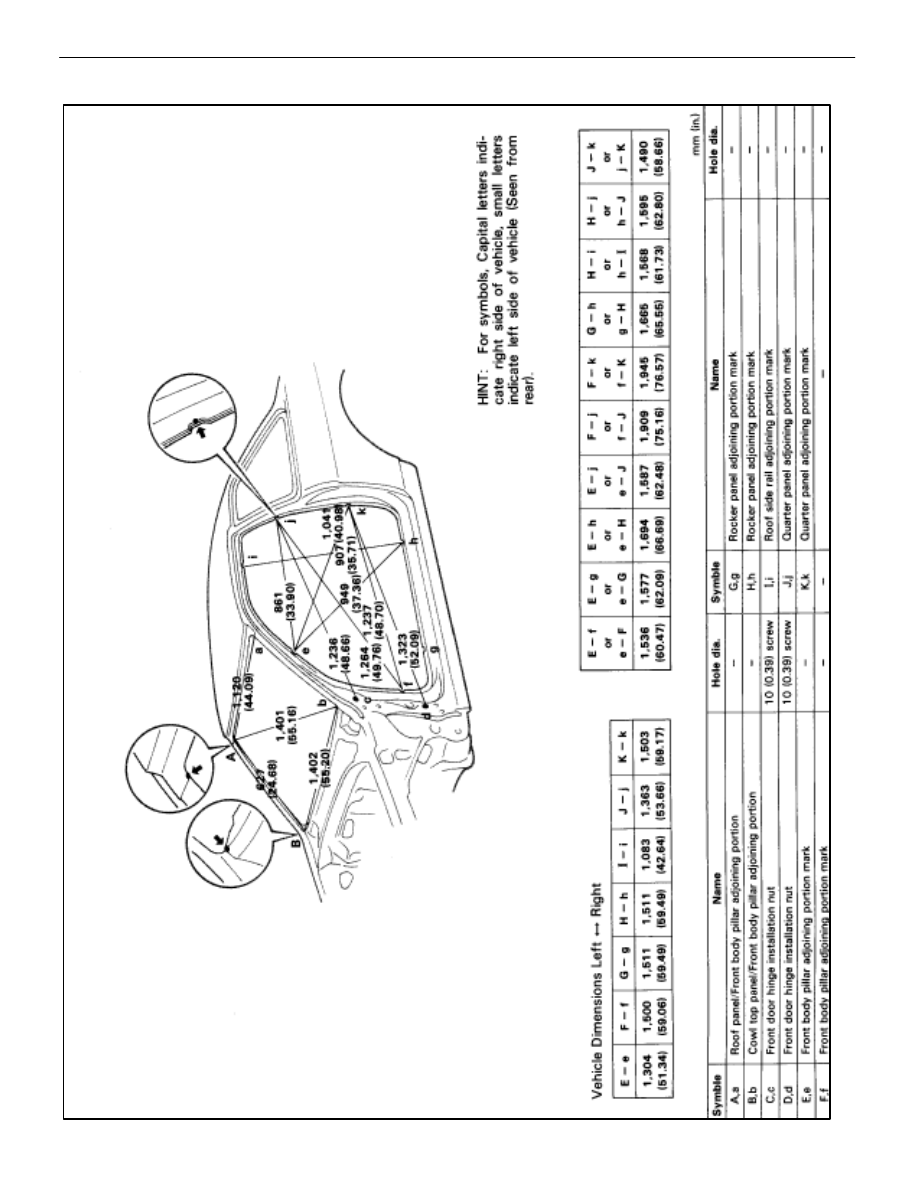

BODY OPENING AREAS (Side View)

(Three–Dimensional Distance)

B06848

–

BODY

Body Dimensions (Body Dimension Drawings)

BO–133
