SERVICE SPECIFICATIONS

TORQUE SPECIFICATIONS

Part tightened

N

⋅

m

kgf

⋅

cm

ft

⋅

lbf

HOOD
    Hood support X Hood

22

225

16

    Hood support X Body

22

225

16

TRANSPORT HOOK
Front Transport Hook
    Front transport hook X Body

64

650

47

Rear Transport Hook
    Rear transport hook X Body

64

650

47

SEAT
Front seat
    Power seat regulator X Body

37

375

27

    Seat back assembly X Seat cushion assembly

26

260

19

    Power seat regulator X Seat cushion assembly

26

260

19

Rear seat
    Rear seat back X Body

18

185

13

SEAT BELT
Front Seat Belt
    Front seat outer belt anchor X Body

43

440

32

    Front seat outer belt lower side X Body

43

440

32

    ELR X Body

43

440

32

    Front seat inner belt X Power seat regulator

43

440

32

Rear Seat Belt
    Rear seat outer belt anchor X Body

43

440

32

    ELR X Body

43

440

32

    Rear seat inner belt X Body

43

440

32

BUMPER
Front Bumper
    Front bumper reinforcement X Body

13

130

9.4

Rear Bumper
    Rear bumper reinforcement X Body

13

130

9.4

BO–138

–

BODY

Service Specifications

Specifications

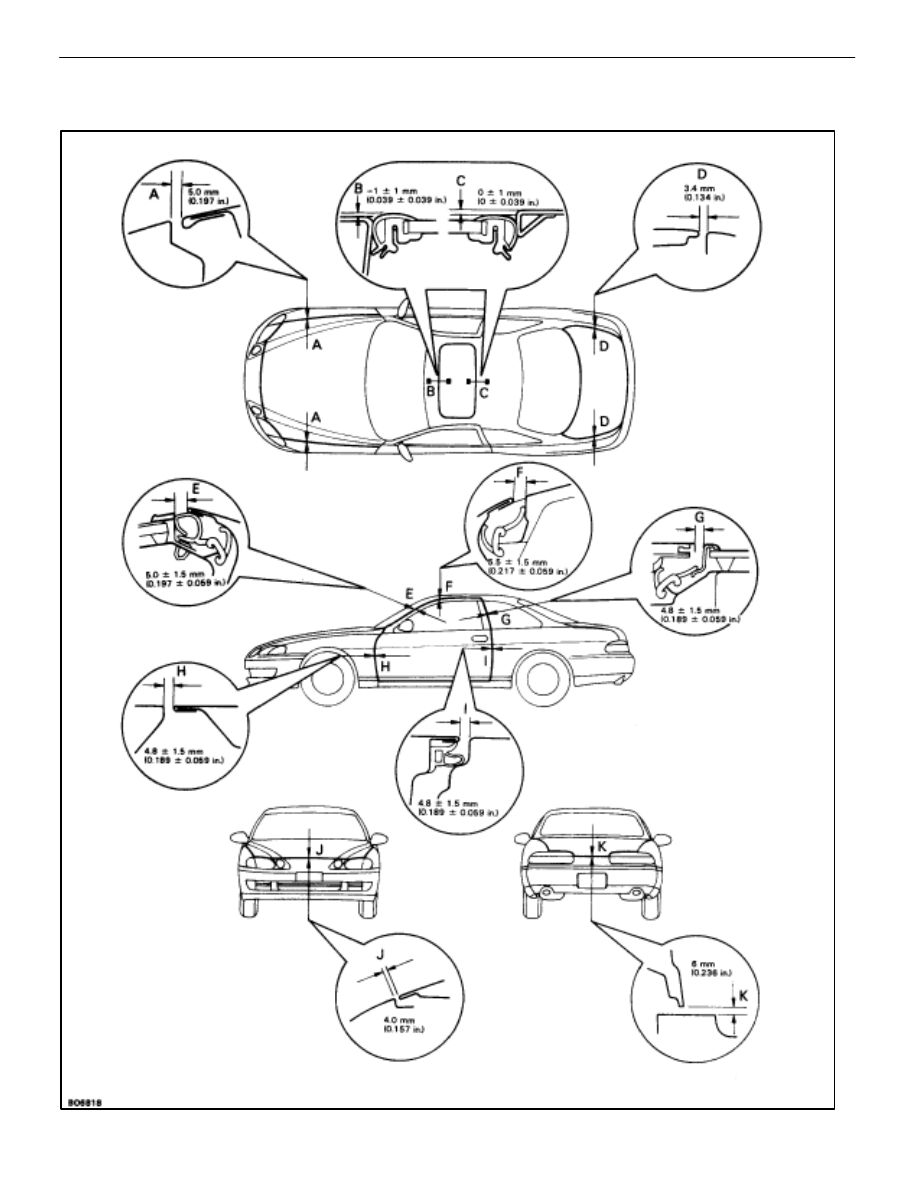

(Fitting Adjustments)

–

BODY

Service Specifications

BO–139

BODY

BO–1

Example

GENERAL INFORMATION

HANDLING PRECAUTIONS

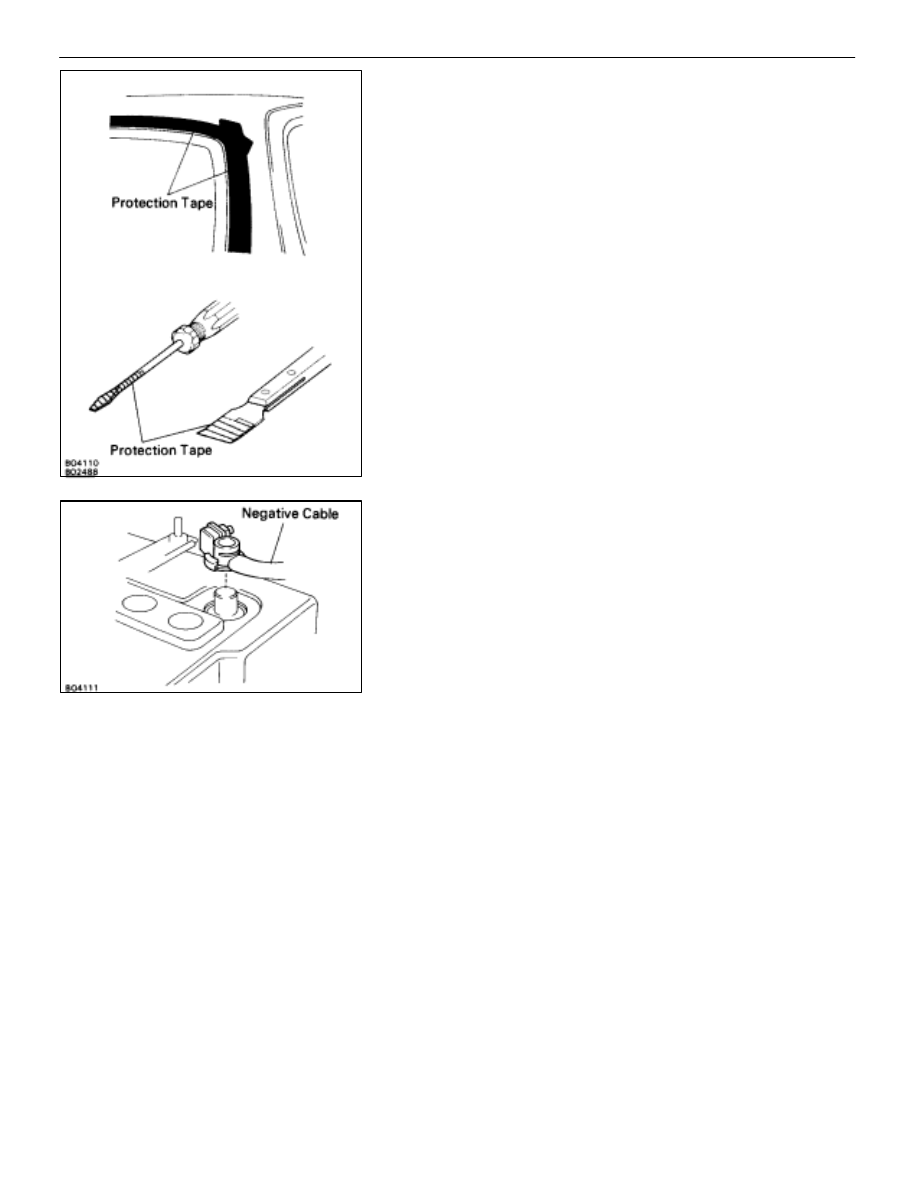

Taping
When it is possible that the body or parts may be scratched
during the operation, apply protection tape before starting
work.
Example:
1.  Before starting work, apply protection tape to body

surfaces around parts to be removed and installed.

2.

Before prying parts loose with a screwdriver or scraper
etc., apply protection tape to the tip of the tool to avoid
scratching parts or painted surfaces of the body.

Battery
In order to prevent a short circuit while doing work on the elec-
trical circuit such as disconnecting a connector, first turn off
the ignition switch and disconnect the negative cable from
the battery terminal before starting work.
HINT:

When battery voltage is required for operation of a

functioning part, connect the cable to the battery when need-
ed, and promptly disconnect it when no longer necessary.
CAUTION:

•

Work must be started after approx. 20 seconds or longer

from the time the ignition switch is turned to the ”LOCK”

position and the negative (–) terminal cable is

disconnected from the battery.

•

To avoid erasing the memory of each memory system,

never use a back–up power supply from outside the

vehicle.

Fitting Adjustments
When removing and installing body panels which have a pre-
load value, after the installation refer to the page containing
the installation adjustment methods, and make adjustments
according to the required specifications.
HINT:

When making adjustments, do not completely loos-

en the bolts and nuts of the part being adjusted. Tighten them
appropriately, and move the panels by hand to align them.

BO–2

–

BODY

General Information
