BLOWER RESISTOR

REMOVAL OF BLOWER RESISTOR

1.

REMOVE GLOVE BOX
See page

BO–112

2. REMOVE

RESISTOR

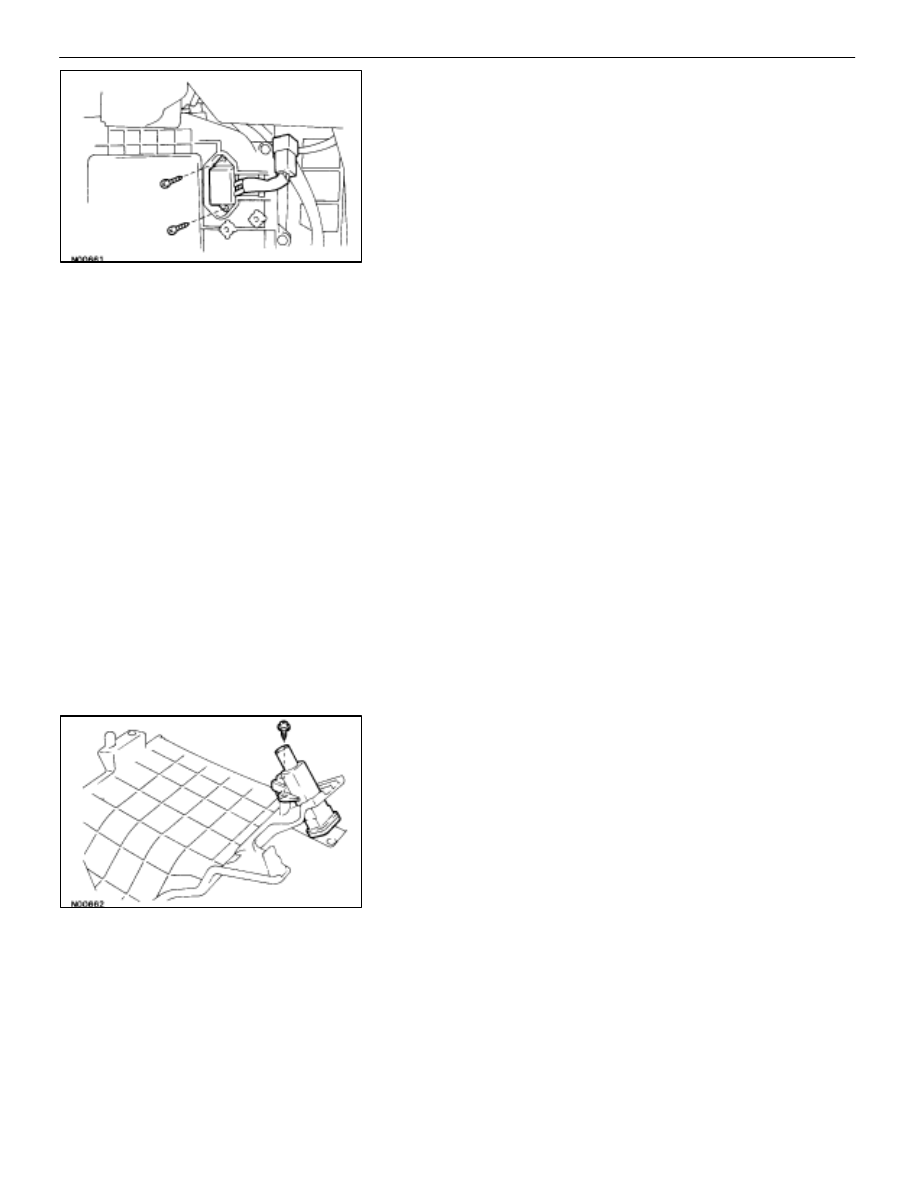

(a)  Disconnect the connector.
(b)  Remove the two screws and the resistor.

INSPECTION OF BLOWER RESISTOR

See page

AC–80

INSTALLATION OF BLOWER RESISTOR

1. INSTALL

RESISTOR

(a)  Install the resistor with two screws.
(b)  Connect the connector.
2.

INSTALL GLOVE BOX
See page

BO–112

ROOM TEMPERATURE SENSOR

REMOVAL OF ROOM TEMPERATURE
SENSOR

1.

REMOVE NO. 1 LOWER FINISH PANEL
See page

BO–112

2. REMOVE

SENSOR

Remove the screw and the sensor.

INSPECTION OF ROOM TEMPERATURE
SENSOR

See page

AC–44

INSTALLATION OF ROOM
TEMPERATURE SENSOR

1. INSTALL

SENSOR

Install the sensor with one screw.

2.

INSTALL NO. 1 LOWER FINISH PANEL
See page

BO–112

AC–132

–

AIR CONDITIONING SYSTEM

Blower Resistor, Room Temperature Sensor

AMBIENT TEMPERATURE SENSOR

REMOVAL OF AMBIENT TEMPERATURE
SENSOR

1.

REMOVE ENGINE UNDER COVER

2. REMOVE

SENSOR

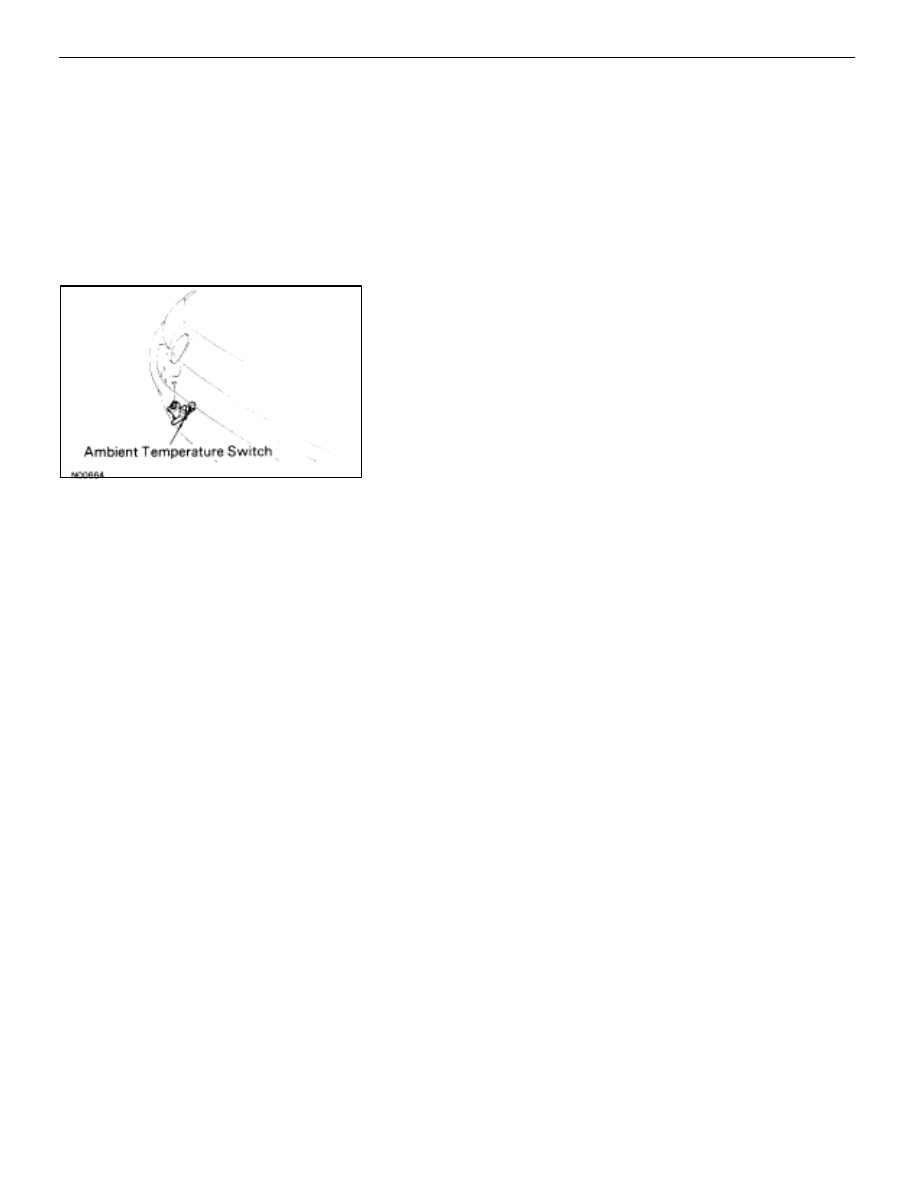

(a)  Remove the clip and the sensor.
(b)  Disconnect the connector.

INSPECTION OF AMBIENT
TEMPERATURE SENSOR

See page

AC–46

INSTALLATION OF AMBIENT
TEMPERATURE SENSOR

1. INSTALL

SENSOR

(a)  Connect the connector.
(b)  Install the sensor with the clip.

2.

INSTALL ENGINE UNDER COVER

–

AIR CONDITIONING SYSTEM

Ambient Temperature Sensor

AC–133

SOLAR SENSOR

REMOVAL OF SOLAR SENSOR

1.

REMOVE NO. 1 DEFROSTER GARNISH
See page

BO–109

2. REMOVE

SENSOR

Push out the sensor from the garnish.

INSPECTION OF SOLAR SENSOR

See page

AC–52

INSTALLATION OF SOLAR SENSOR

1.

INSTALL SENSOR TO NO. 1 DEFROSTER GARNISH

2.

INSTALL NO. 2 DEFROSTER GARNISH
See page

BO–109

EVAPORATOR TEMPERATURE
SENSOR

REMOVAL OF EVAPORATOR
TEMPERATURE SENSOR

1. REMOVE

EVAPORATOR

See page

AC–122

2.

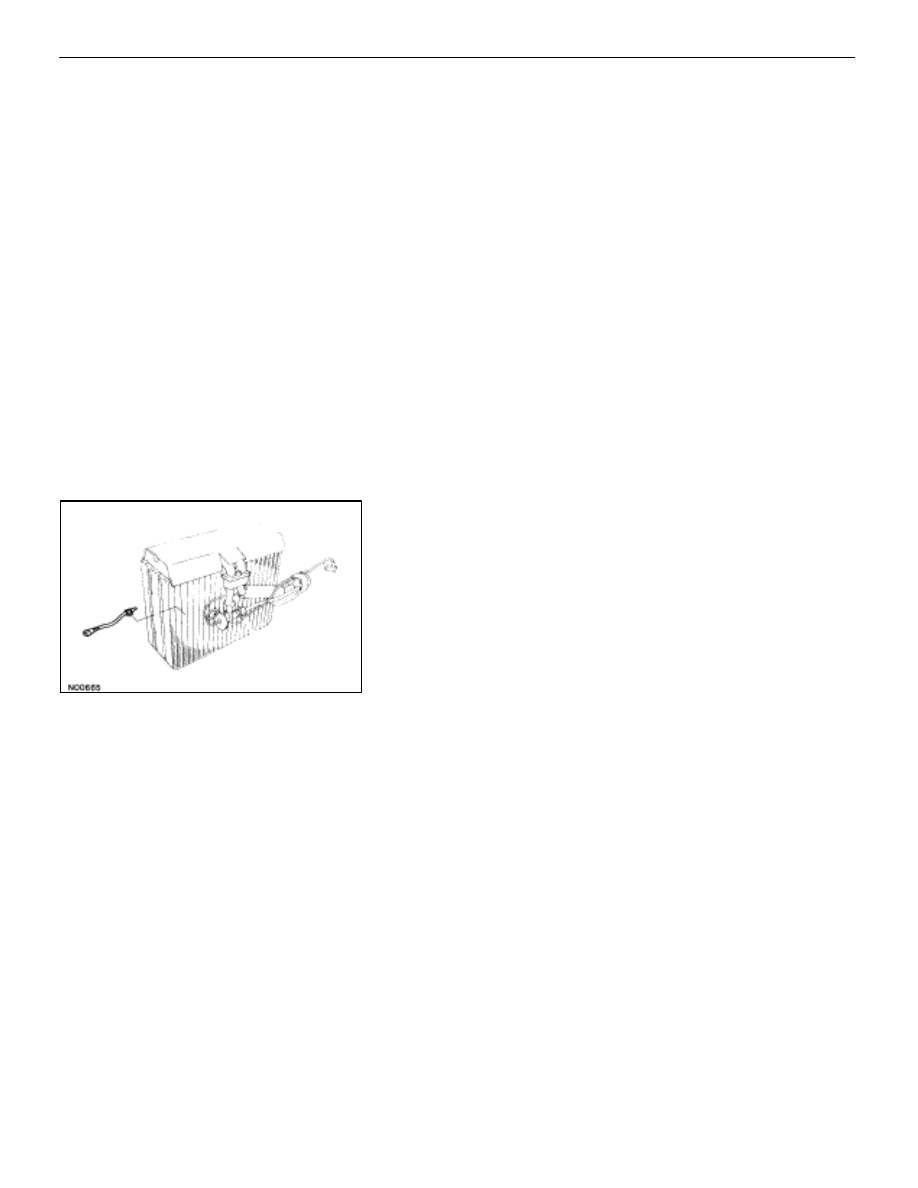

REMOVE SENSOR FROM EVAPORATOR

INSPECTION OF EVAPORATOR
TEMPERATURE SENSOR

See page

AC–48

INSTATION OF EVAPORATOR
TEMPERATURE SENSOR

1.

INSTALL SENSOR TO EVAPORATOR

2. INSTALL

EVAPORATOR

See page

AC–124

AC–134

–

AIR CONDITIONING SYSTEM

Solar Sensor, Evaporator Temperature Sensor

REVOLUTION DETECTING SENSOR

INSPECTION OF REVOLUTION
DETECTING SENSOR

See page

AC–55

REMOVAL OF REVOLUTION DETECTING
SENSOR

1. REMOVE

COMPRESSOR

See page

AC–111

2. REMOVE

SENSOR

Remove the two bolts and the sensor.

INSTALLATION OF REVOLUTION
DETECTING SENSOR

1. INSTALL

SENSOR

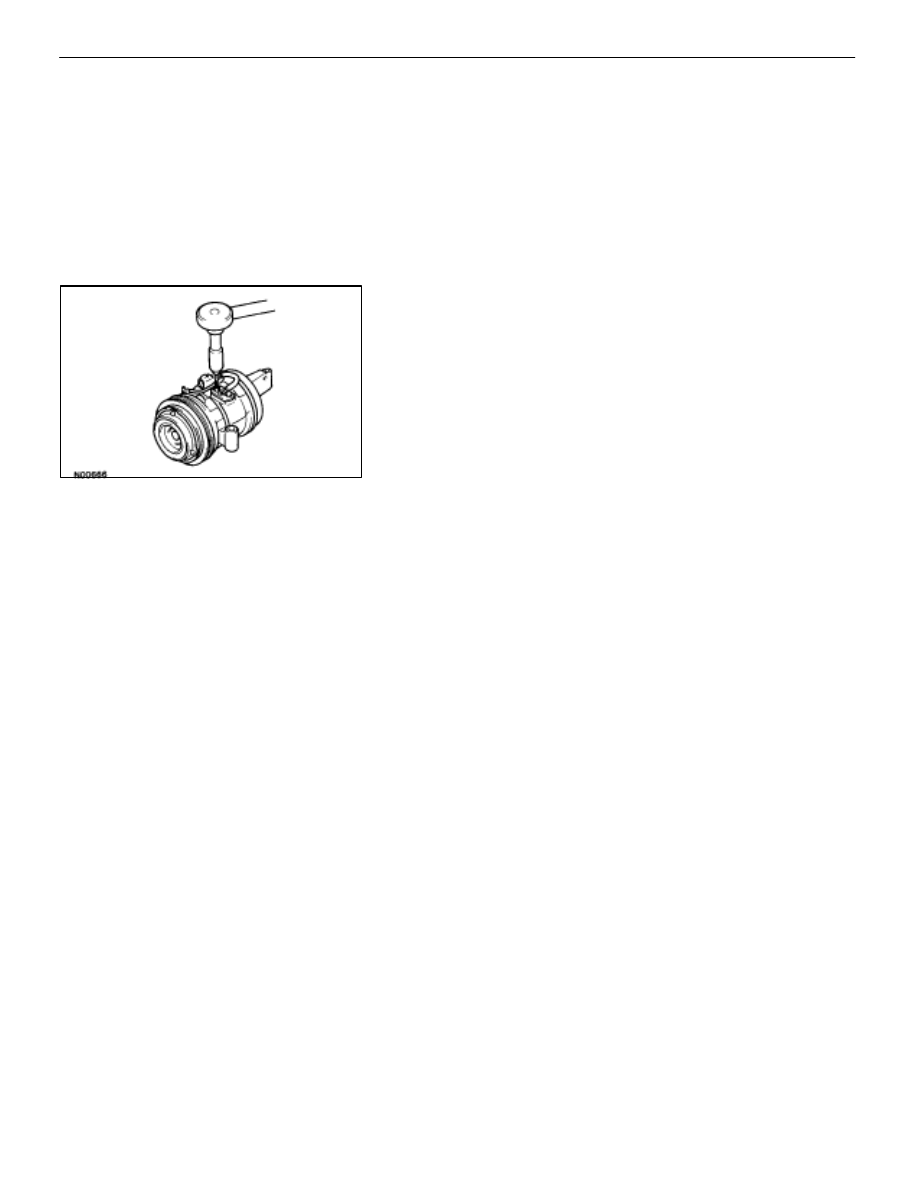

Using a torque wrench, tighten the bolts.

Specified Torque: 6 N

⋅

m (60 kgf

⋅

cm, 4 ft

⋅

lbf)

2. INSTALL

COMPRESSOR

See page

AC–117

–

AIR CONDITIONING SYSTEM

Revolution Detecting Sensor

AC–135
