Lexus SC300 / Lexus SC400. Manual - part 42

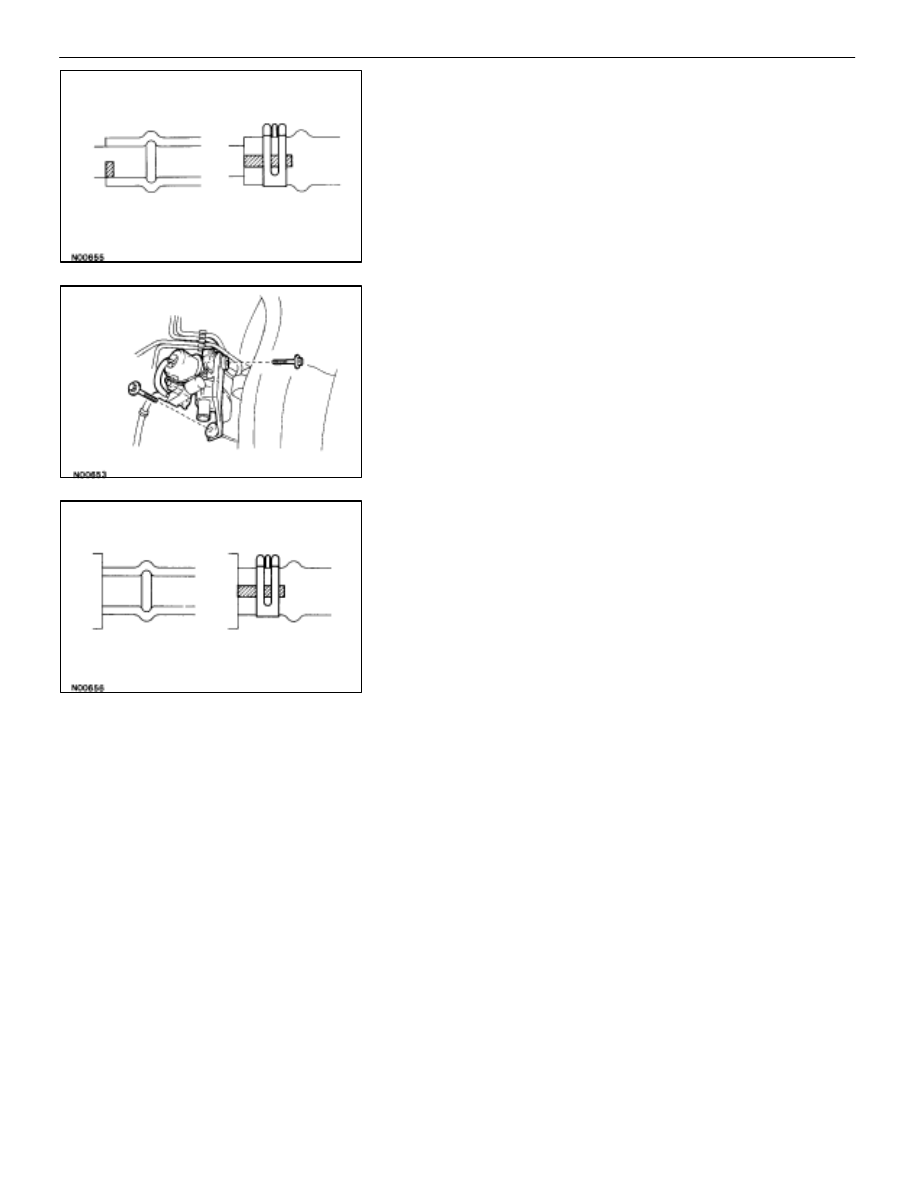

INSTALLATION OF WATER VALVE

1. INSTALL

WATER

VALVE

(a)  Push the water hose for the heater unit onto the pipe

until the pipe’s markings are hidden.

(b)  Install the hose clip in a position where about 1 mm

(0.039 in.) of the marking on the hose can bee seen.

(c)  Install the water valve with two screws.

2.

INSTALL FOLLOWING PARTS TO WATER VALVE

•

Connector

•

Vacuum hose

•

Water hose

HINT:

•

Push the water hose onto the water valve pipe until the
pipe is completely hidden.

•

Install the hose clip in a position where about 1 mm
(0.039 in.) of the marking on the hose can bee seen.

AC–128

–

AIR CONDITIONING SYSTEM

Water Valve

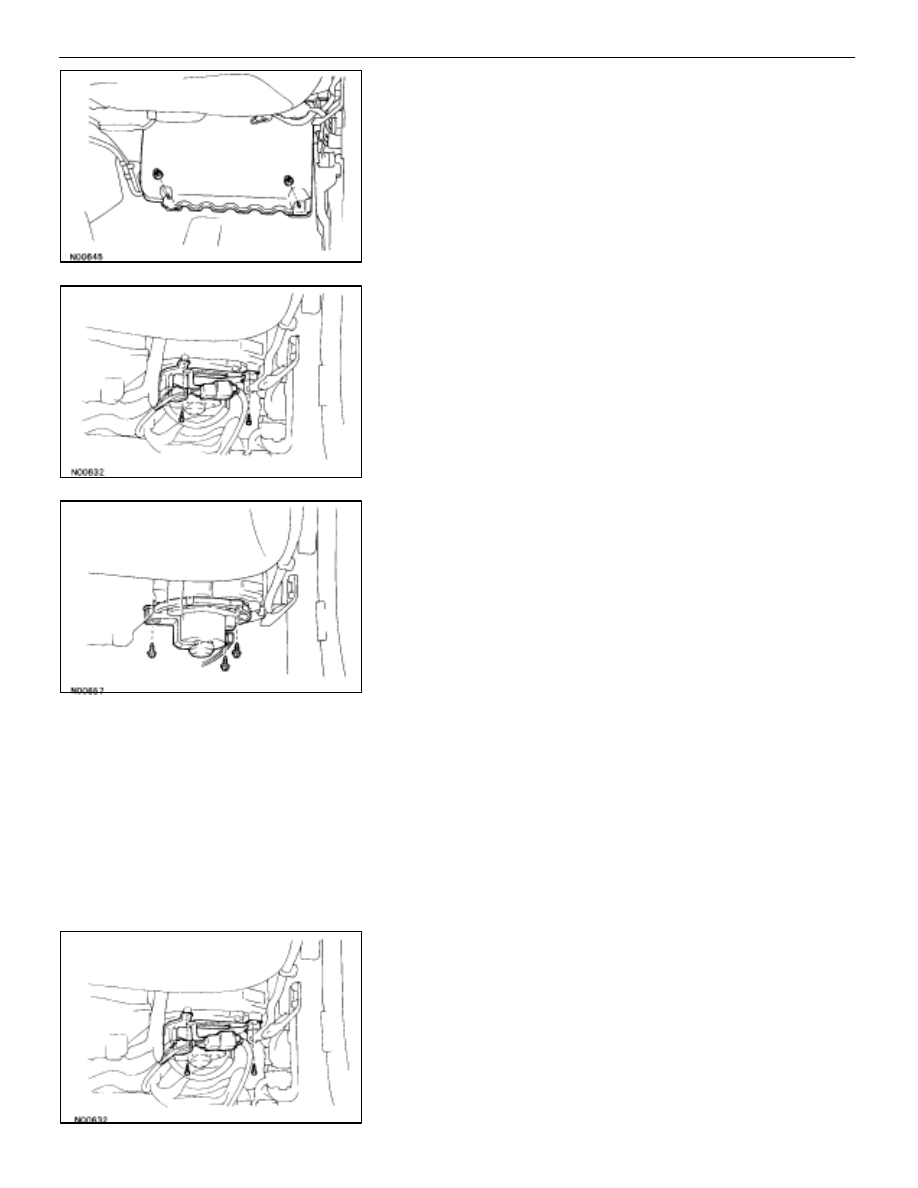

BLOWER MOTOR

REMOVAL OF BLOWER MOTOR

1.

REMOVE GLOVE BOX
See page

BO–112

2.

REMOVE ECU COVER
(a) Lift

up

the front end of the carpet on the passenger side.

(b)  Remove the two nuts and the cover.

3. REMOVE

CONNECTOR

BRACKET

Remove the two screws and the bracket.

4. REMOVE

MOTOR

(a)  Disconnect the connector.
(b)  Remove the three screws and the motor.

INSPECTION OF BLOWER MOTOR

See page

AC–81

INSTALLATION OF BLOWER MOTOR

1. INSTALL

MOTOR

(a)  Install the motor with three screws.
(b)  Connect the connector.

2. INSTALL

CONNECTOR

BRACKET

3.

INSTALL ECU COVER

4.

INSTALL GLOVE BOX

–

AIR CONDITIONING SYSTEM

Blower Motor

AC–129

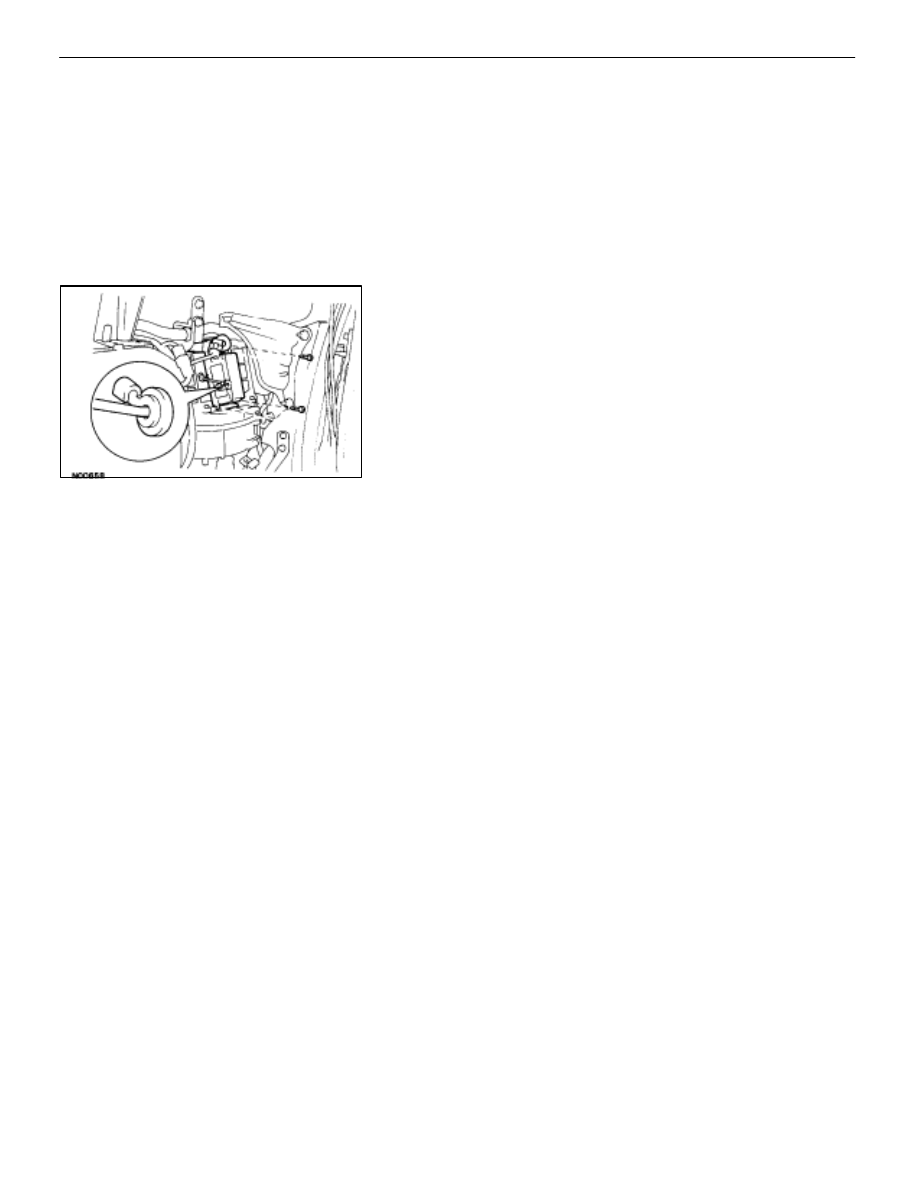

AIR INLET SERVOMOTOR

REMOVAL OF AIR INLET SERVOMOTOR

1.

REMOVE INSTRUMENT PANEL REINFORCEMENT
See page

BO–109

2. REMOVE

SERVOMOTOR

(a)  Disconnect the connector.
(b)  Disconnect the control link.
(c)  Remove the three screws and the servomotor.

INSPECTION OF AIR INLET
SERVOMOTOR

See page

AC–64

AIR INLET SERVOMOTOR
INSTALLATION

1. INSTALL

SERVOMOTOR

(a)  Install the servomotor with three screws.
(b)  Connect the control link.
(c)  Connect the connector.

2.

INSTALL INSTRUMENT PANEL REIFORCEMENT
See page

BO–109

AC–130

–

AIR CONDITIONING SYSTEM

Air Inlet Servomotor

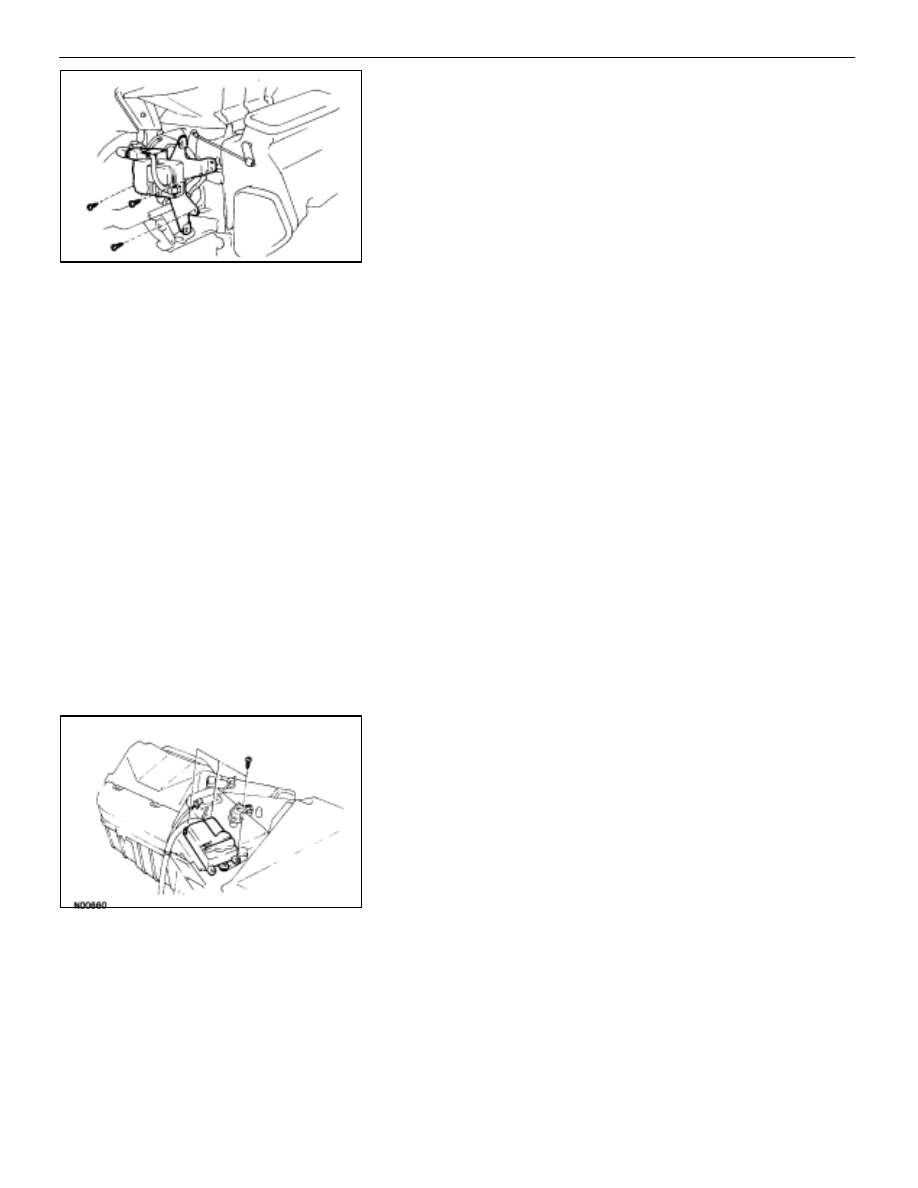

AIR OUTLET SERVOMOTOR

REMOVAL OF AIR OUTLET
SERVOMOTOR

1.

REMOVE INSTRUMENT PANEL REINFORCEMENT
See page

BO–109

2. REMOVE

SERVOMOTOR

(a)  Disconnect the connector.
(b)  Remove the four screws and the servomotor.

INSPECTION OF AIR OUTLET
SERVOMOTOR

See page

AC–68

INSTALLATION OF AIR OUTLET
SERVOMOTOR

1. INSTALL

SERVOMOTOR

(a)  Install the servomotor with four screws.
(b)  Connect the connector.
2.

INSTALL INSTRUMENT PANEL REINFORCEMENT
See page

BO–109

AIR MIX SERVOMOTOR

REMOVAL OF AIR MIX SERVOMOTOR

1.

REMOVE A/C UNIT
See page

AC–107

2. REMOVE

SERVOMOTOR

(a)  Disconnect the connector.
(b)  Remove the three screws and the servomotor.

INSPECTION OF AIR MIX SERVOMOTOR

See page

AC–60

INSTALLATION OF AIR MIX
SERVOMOTOR

1. INSTALL

SERVOMOTOR

(a)  Install the servomotor with three screws.
(b)  Connect the connector.
2.

INSTALL A/C UNIT
See page

AC–108

–

AIR CONDITIONING SYSTEM

Air Outlet Servomotor, Air Mix Servomotor

AC–131
