G  ELECTRICAL WIRING ROUTING

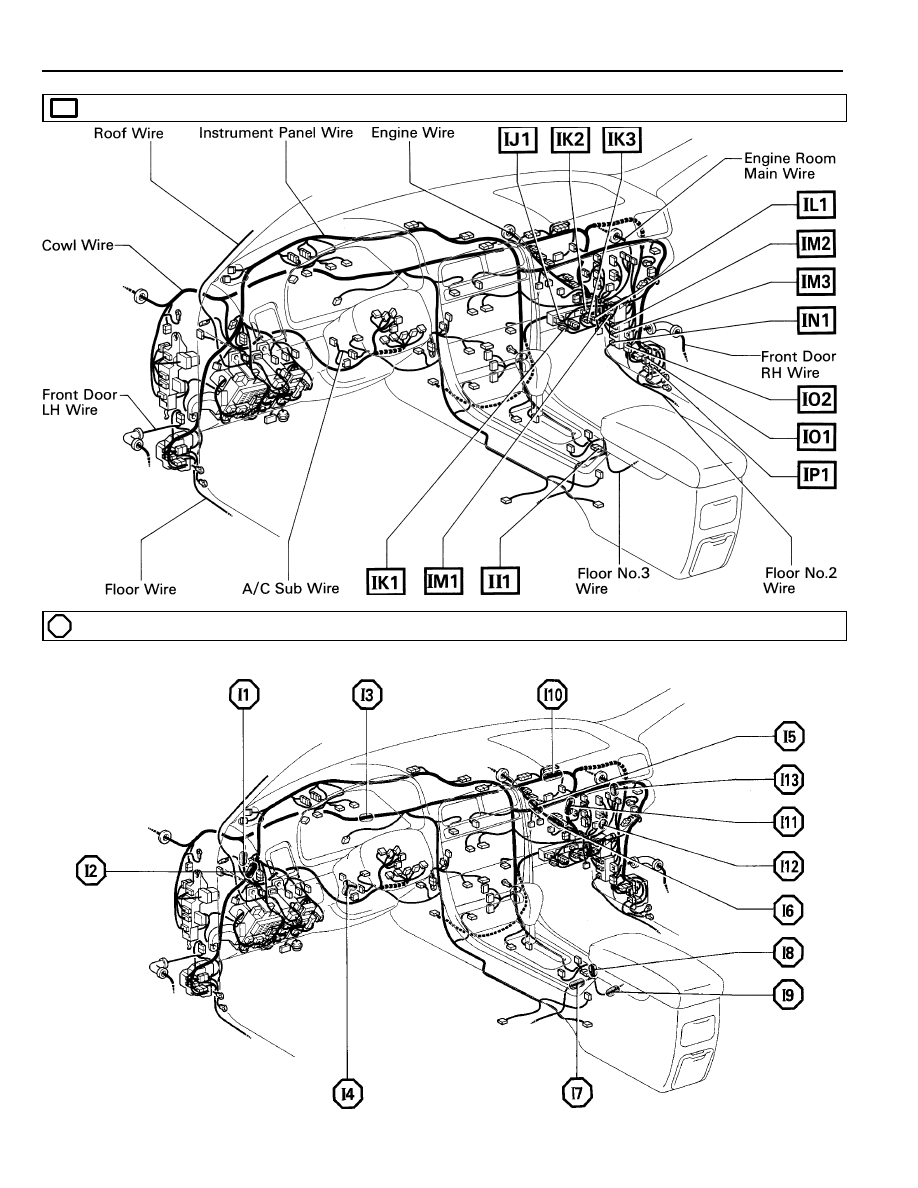

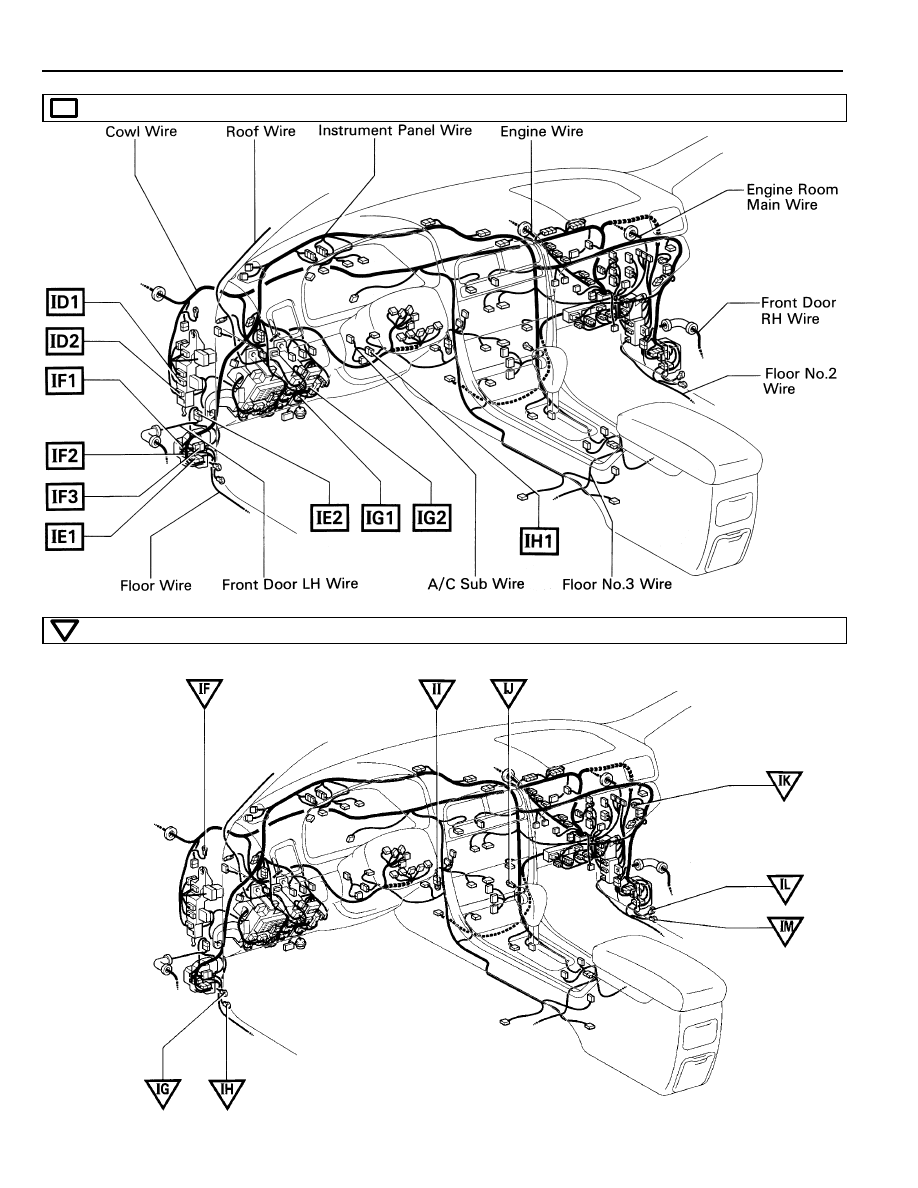

: Location of Connector Joining Wire Harness and Wire Harness

: Location of Ground Points

31

G

Connector Joining Wire Harness and Wire Harness

CODE

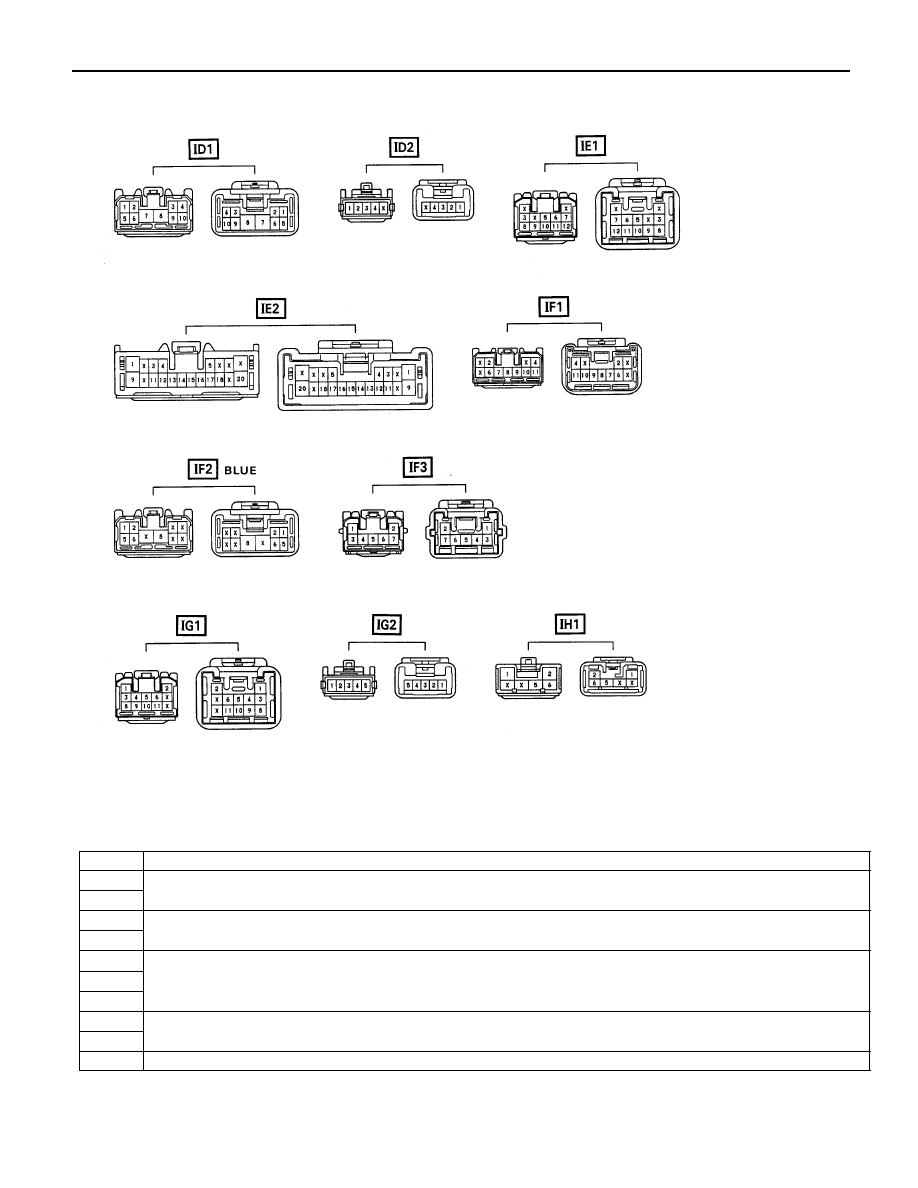

JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

ID1

FLOOR WIRE AND COWL WIRE (LEFT KICK PANEL)

ID2

FLOOR WIRE AND COWL WIRE (LEFT KICK PANEL)

IE1

FRONT DOOR LH WIRE AND INSTRUMENT PANEL WIRE (LEFT KICK PANEL)

IE2

FRONT DOOR LH WIRE AND INSTRUMENT PANEL WIRE (LEFT KICK PANEL)

IF1

IF2

FLOOR WIRE AND INSTRUMENT PANEL WIRE (LEFT KICK PANEL)

IF3

(

)

IG1

INSTRUMENT PANEL WIRE AND COWL WIRE (RIGHT SIDE OF INSTRUMENT PANEL J/B)

IG2

INSTRUMENT PANEL WIRE AND COWL WIRE (RIGHT SIDE OF INSTRUMENT PANEL J/B)

IH1

COWL WIRE AND A/C SUB WIRE (BEHIND RADIO AND PLAYER)

32

G  ELECTRICAL WIRING ROUTING

: Location of Connector Joining Wire Harness and Wire Harness

: Location of Splice Points

33

G

Connector Joining Wire Harness and Wire Harness

CODE

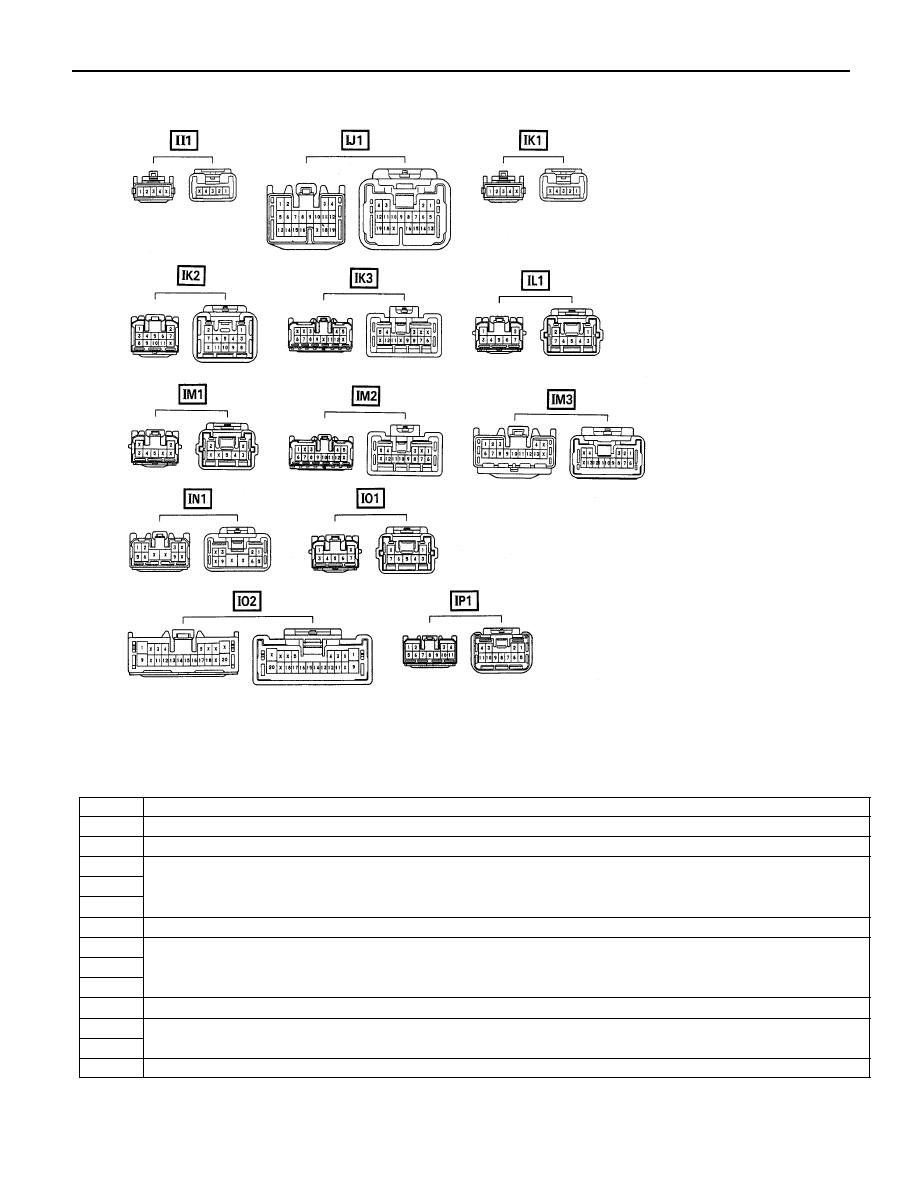

JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

II1

FLOOR NO.3 WIRE AND INSTRUMENT PANEL WIRE (UNDER THE CONSOLE BOX)

IJ1

INSTRUMENT PANEL WIRE AND COWL WIRE (UNDER THE GLOVE BOX)

IK1

IK2

EWNGINE WIRE AND COWL WIRE (UNDER THE GLOVE BOX)

IK3

(

)

IL1

ENGINE WIRE AND INSTRUMENT PANEL WIRE (UNDER THE GLOVE BOX)

IM1

IM2

ENGINE ROOM MAIN WIRE AND COWL WIRE (RIGHT KICK PANEL)

IM3

(

)

IN1

FLOOR NO. 2 WIRE AND COWL WIRE (RIGHT KICK PANEL)

IO1

FRONT DOOR RH WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)

IO2

FRONT DOOR RH WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)

IP1

FRONT NO. 2 WIRE AND INSTRUMENT PANEL WIRE (RIGHT KICK PANEL)
