27

G

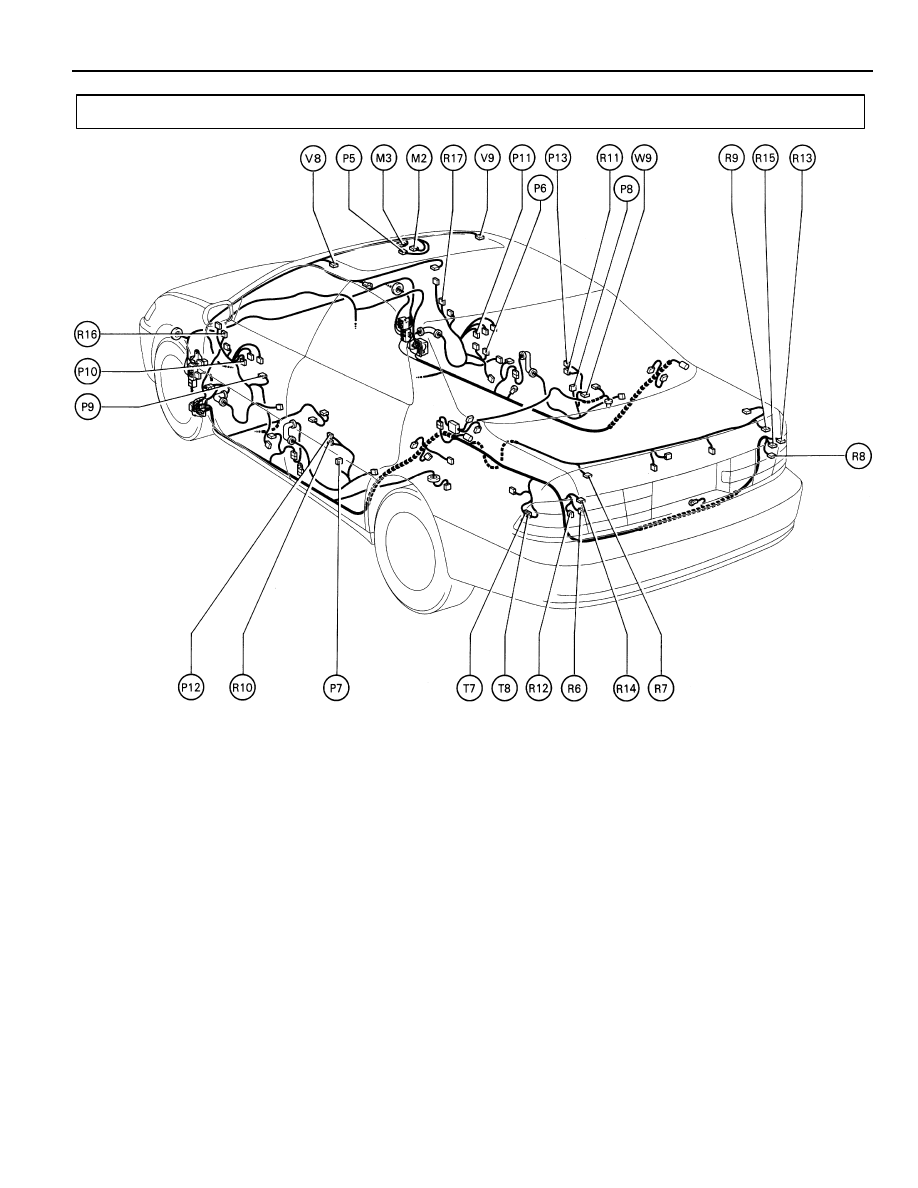

Position of Parts in Body

M

2

Moon Roof Control SW and Moon Roof Control Relay

M

3

Moon Roof Moon and Limit SW

P 5

Personal

Light

P 5

Personal

Light

P  6

Power Window Control SW Front RH

P  7

Power Window Control SW Rear LH

P  8

Power Window Control SW Rear RH

P  9

Power Window Master SW and
Door Lock Control SW Front LH

P  10

Power Window Motor Front LH

P  11

Power Window Motor Front RH

P  12

Power Window Motor Rear LH

P  13

Power Window Motor Rear RH

R  6

Rear Combination Light LH

R  7

Rear Combination Light LH

R  8

Rear Combination Light RH

R  9

Rear Combination Light RH

R  10

Rear Door Speaker LH

R  11

Rear Door Speaker RH

R  12

Rear Side Marker Light LH

R  13

Rear Side Marker Light RH

R  14

Rear Turn Signal Light LH

R  15

Rear Turn Signal Light RH

R  16

Remote Control Mirror and Mirror Heater LH

R  17

Remote Control Mirror and Mirror Heater RH

T  7

Telephone Transceiver and Speaker Relay

T  8

Telephone Transceiver and Speaker Relay

V  8

Vanity Light LH

V  9

Vanity Light RH

W 9

Woofer Speaker

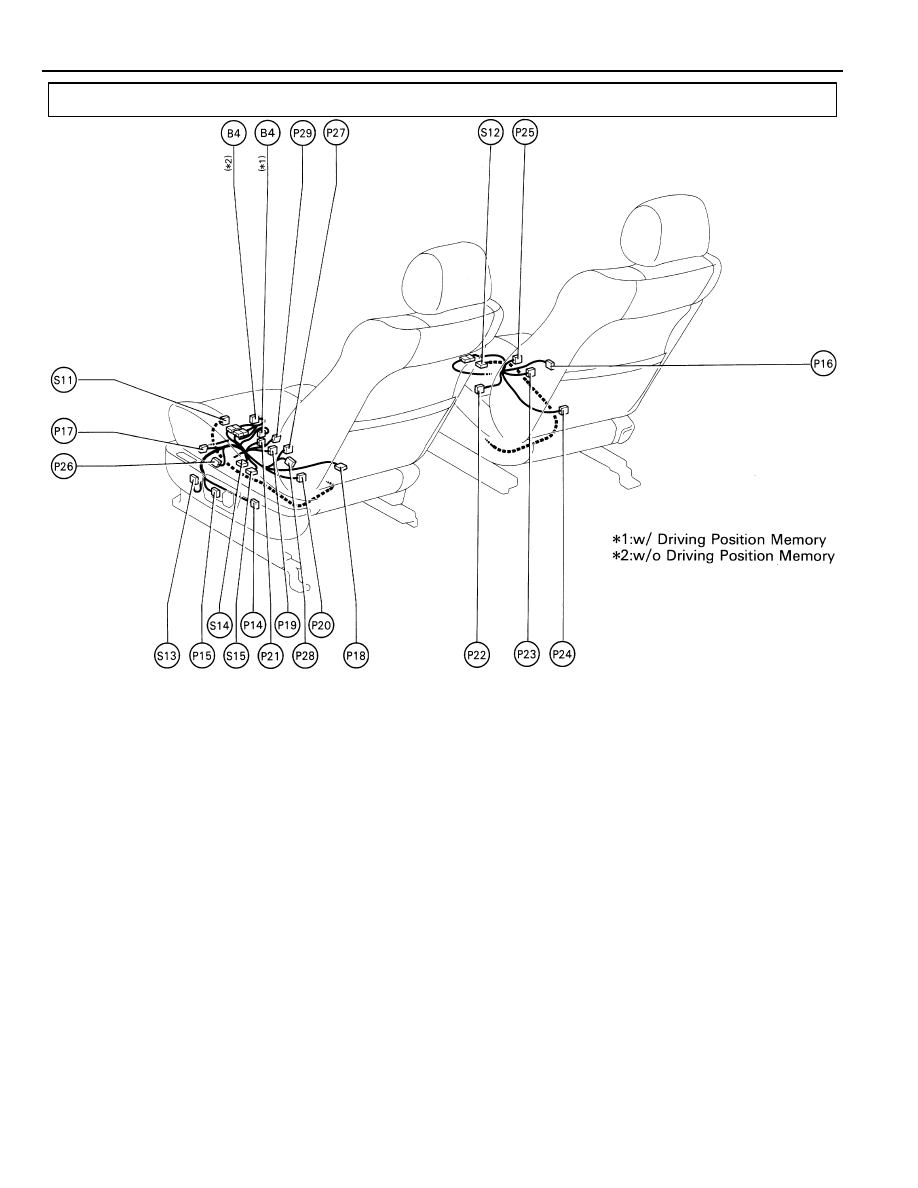

Position of Parts in Seat

B   4

Buckle SW

P  14   Power Seat Control SW

(Driver’s Seat Lumber Support Control)

P  15   Power Seat Control SW

(Driver’s Seat )

P  16   Power Seat Control SW

(Front Passenger’s Seat))

P  17   Power Seat Motor

(Driver’s Seat Front Vertical Control)

P  18   Power Seat Motor

(Driver’s Seat Lumber Support Control)

P  19   Power Seat Motor

(Driver’s Seat Rear Vertical Control)

P  20   Power Seat Motor

(Driver’s Seat Reclining Control)

P  21   Power Seat Motor

(Driver’s Seat Slide Control)

P  22   Power Seat Motor

(Front Passenger’s Seat Front Vertical Control)

P  23   Power Seat Motor

(Front Passenger’s Seat Rear Vertical Control)

P  24   Power Seat Motor

(Front Passenger’s Seat Reclining Control)

P  25   Power Seat Motor

(Front Passenger’s Seat Slide Control)

P  26

Power Seat Position Sensor
(Driver’s Seat Front Vertical Control)

P  27   Power Seat Position Sensor

(Driver’s Seat Rear Vertical Control)

P  28   Power Seat Position Sensor

(Driver’s Seat Reclining Control)

P  29

Power Seat Position Sensor
(Driver’s Seat Slide Control)

S  11

Seat Heater (Driver’s Seat)

S  12

Seat Heater (Front Passenger’s Seat)

S  13

Seat Memory SW

S  14

Seat Position Control ECU

S  15

Seat Position Control ECU

26

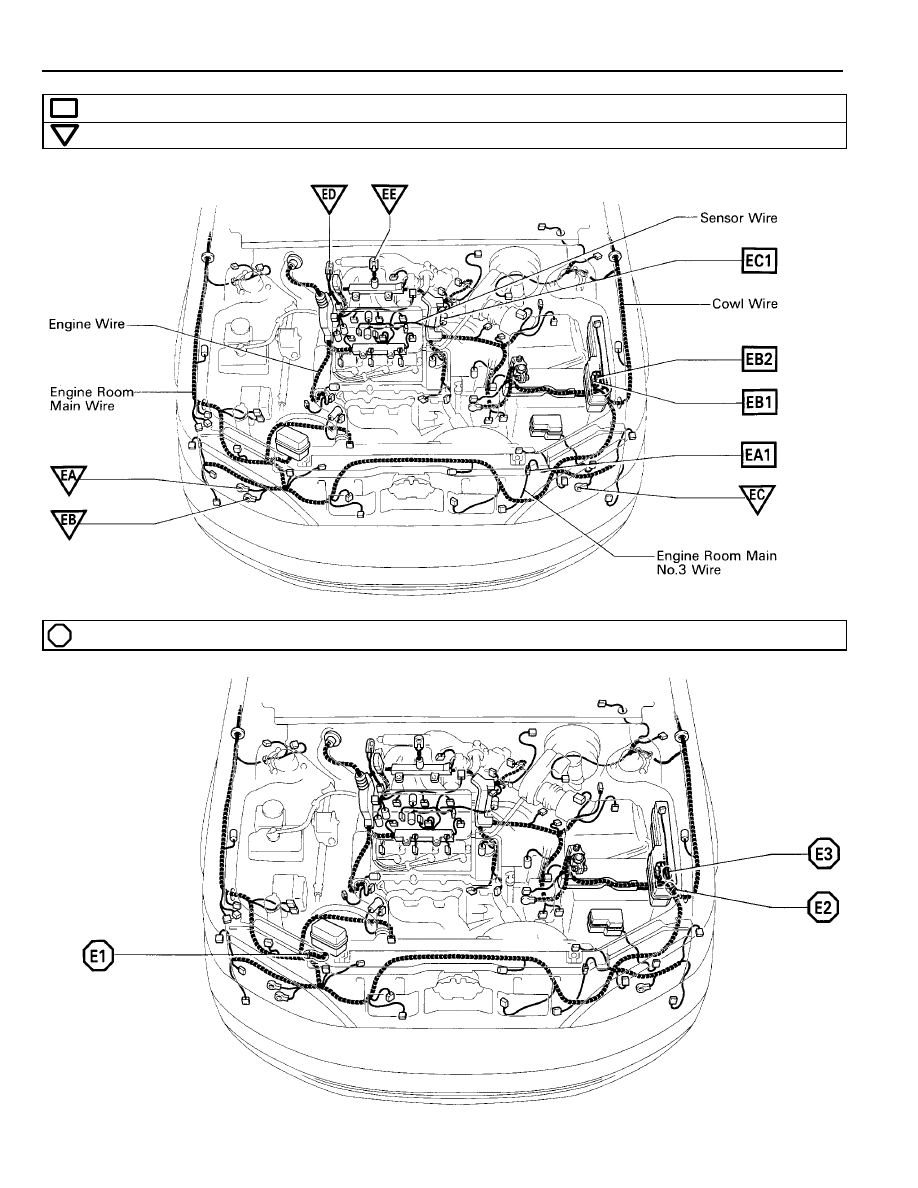

G  ELECTRICAL WIRING ROUTING

28

G  ELECTRICAL WIRING ROUTING

: Location of Connector Joining Wire Harness and Wire Harness
: Location of Ground Points

: Location of Splice Points

29

G

CODE

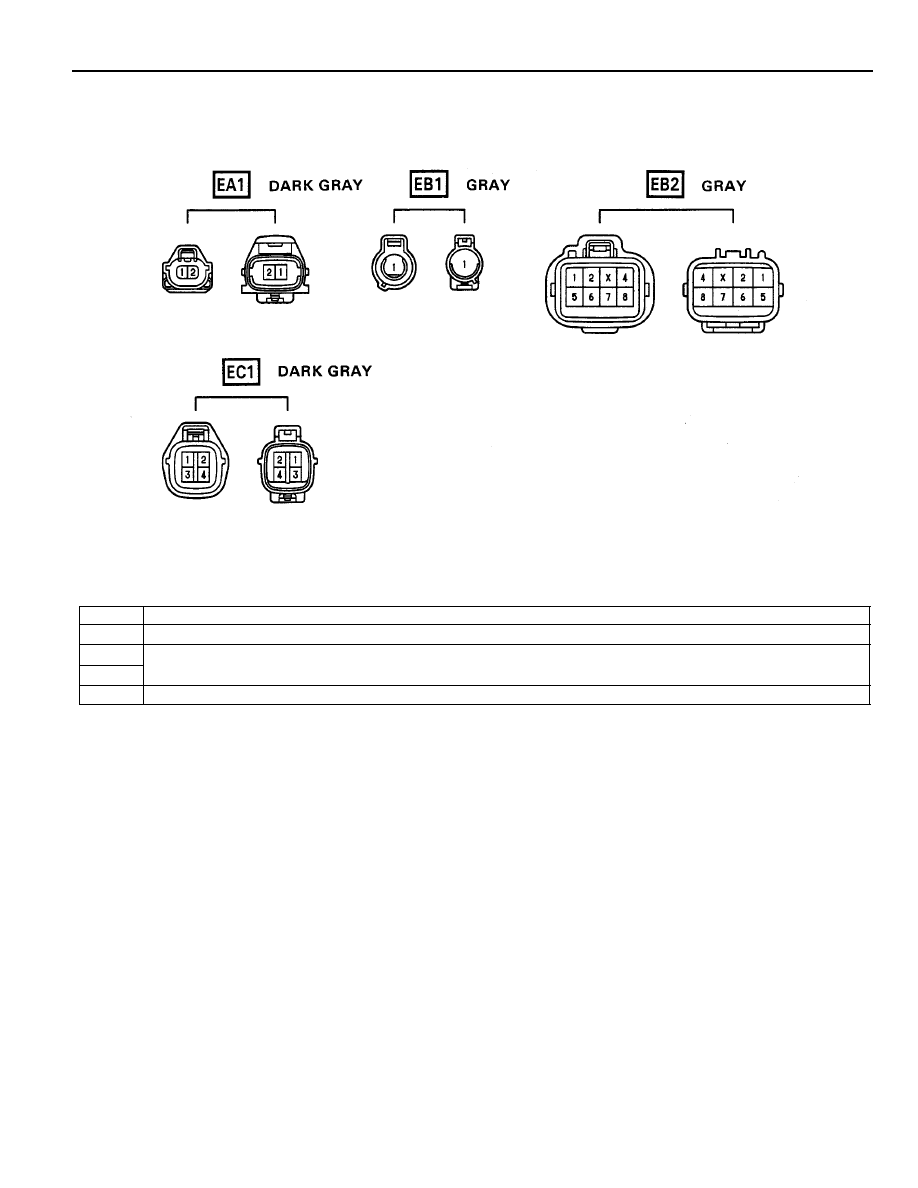

JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

EA1

ENGINE ROOM MAIN WIRE AND ENGINE ROOM MAIN NO. 3 WIRE (BEHIND HEADLIGHT LH)

EB1

COWL WIRE AND ENGINE ROOM MAIN WIRE (UNDER THE ENGINE ROOM J/B)

EB2

COWL WIRE AND ENGINE ROOM MAIN WIRE (UNDER THE ENGINE ROOM J/B)

EC1

ENGINE WIRE AND SENSOR WIRE (LEFT BANK OF THE CYLINDER HEAD)
