23

F

2

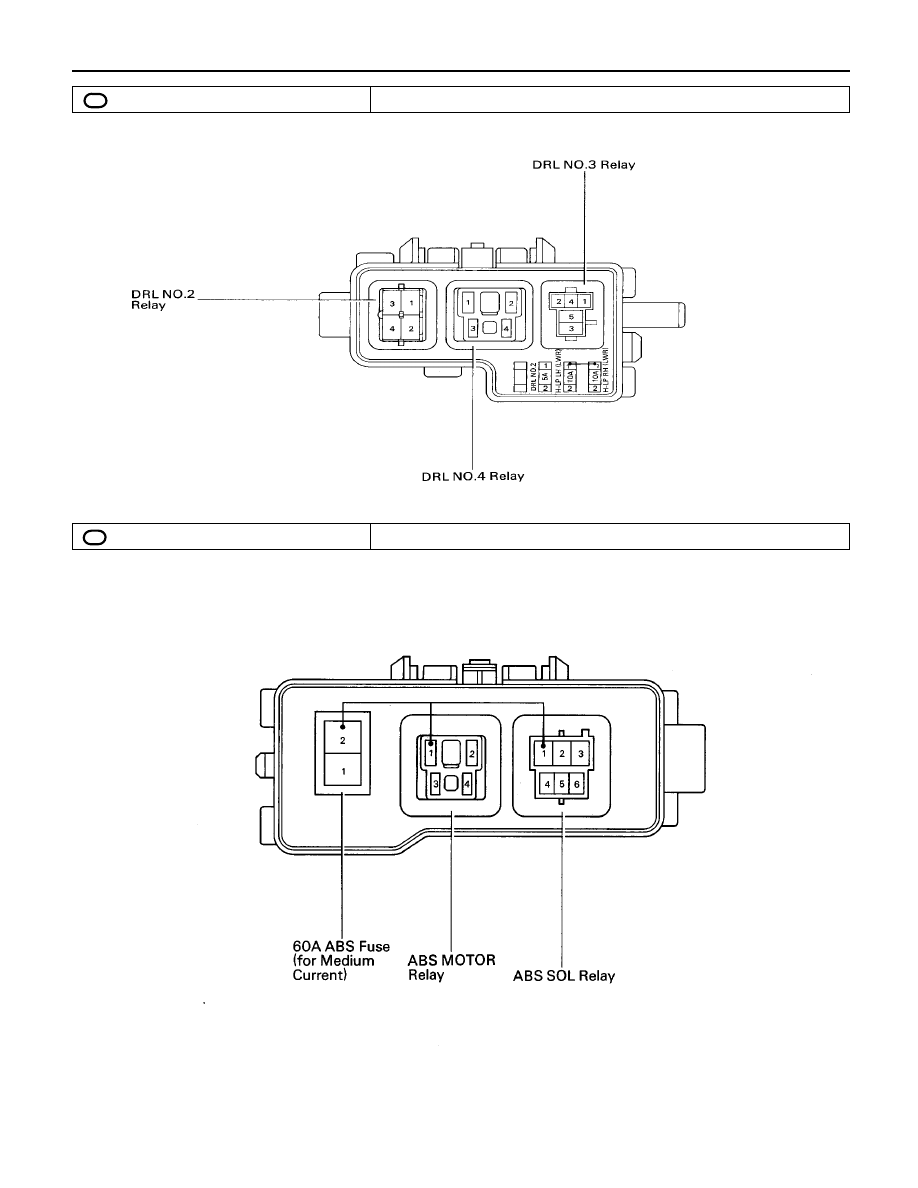

: Engine Room No. 2 R/B Engine Compartment Left (See Page 18)

(Canada)

3

: Engine Room No.3 R/B Radiator Upper Support RH (See Page 18)

24

F  RELAY LOCATIONS

,,,

,,,

,,,

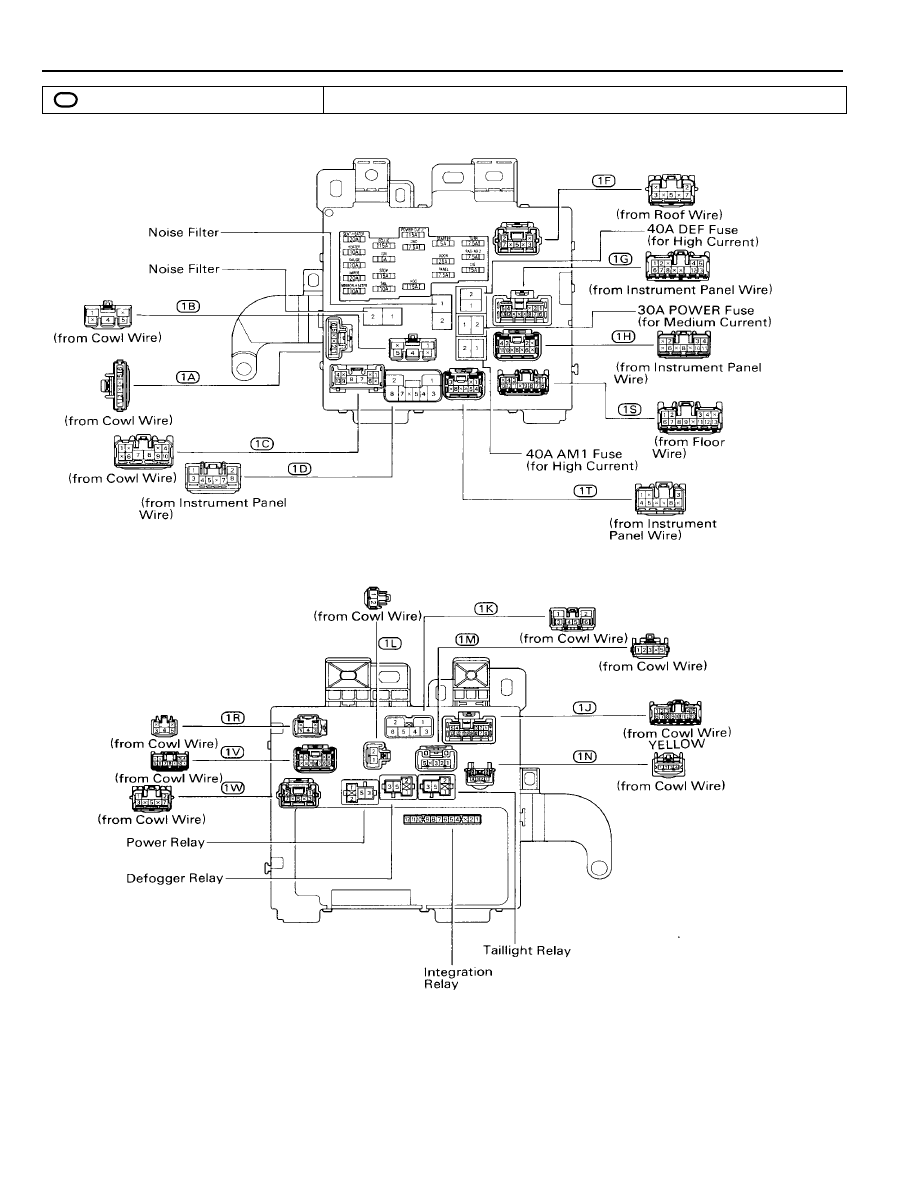

:  Instrument Panel J/B Lower Finish Panel (See Page 18)

25

F

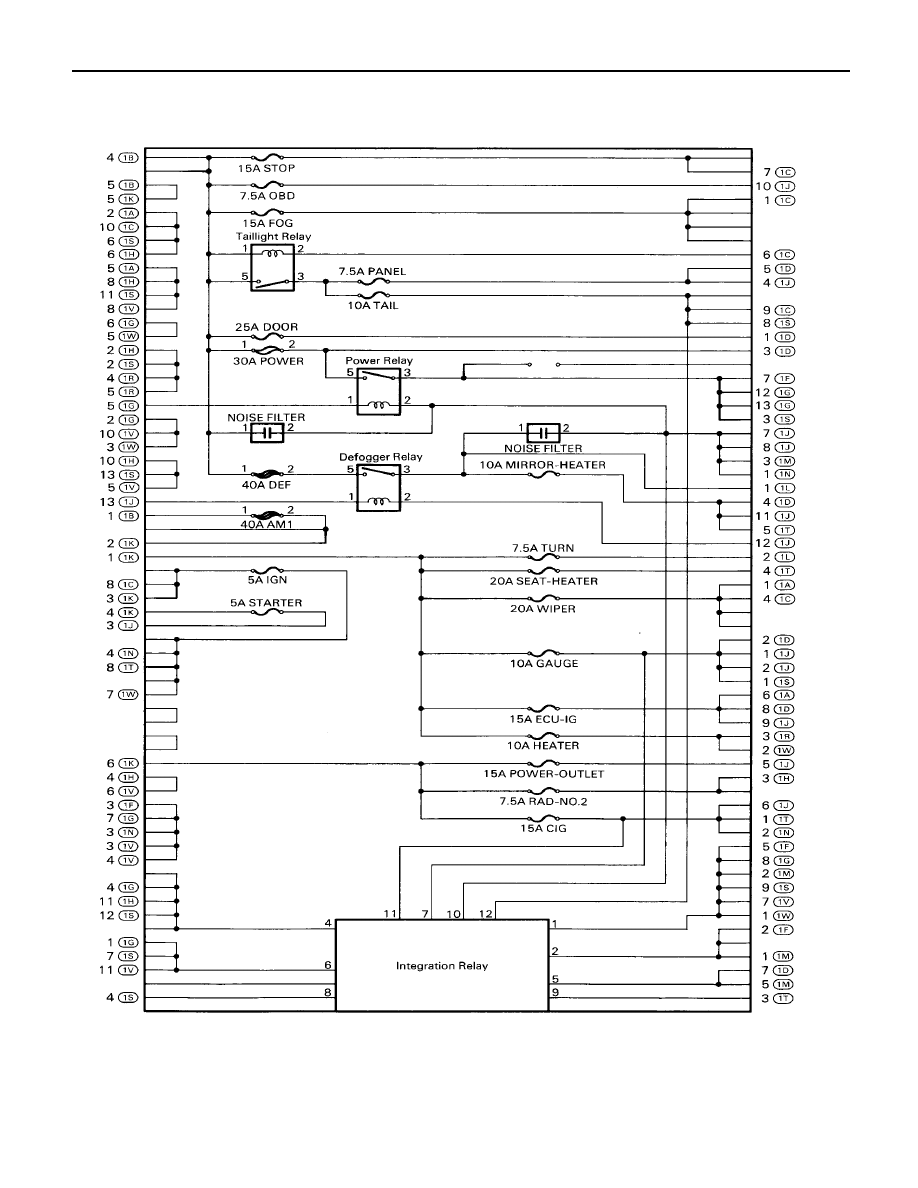

(Instrument Panel J/B Inner Circuit)

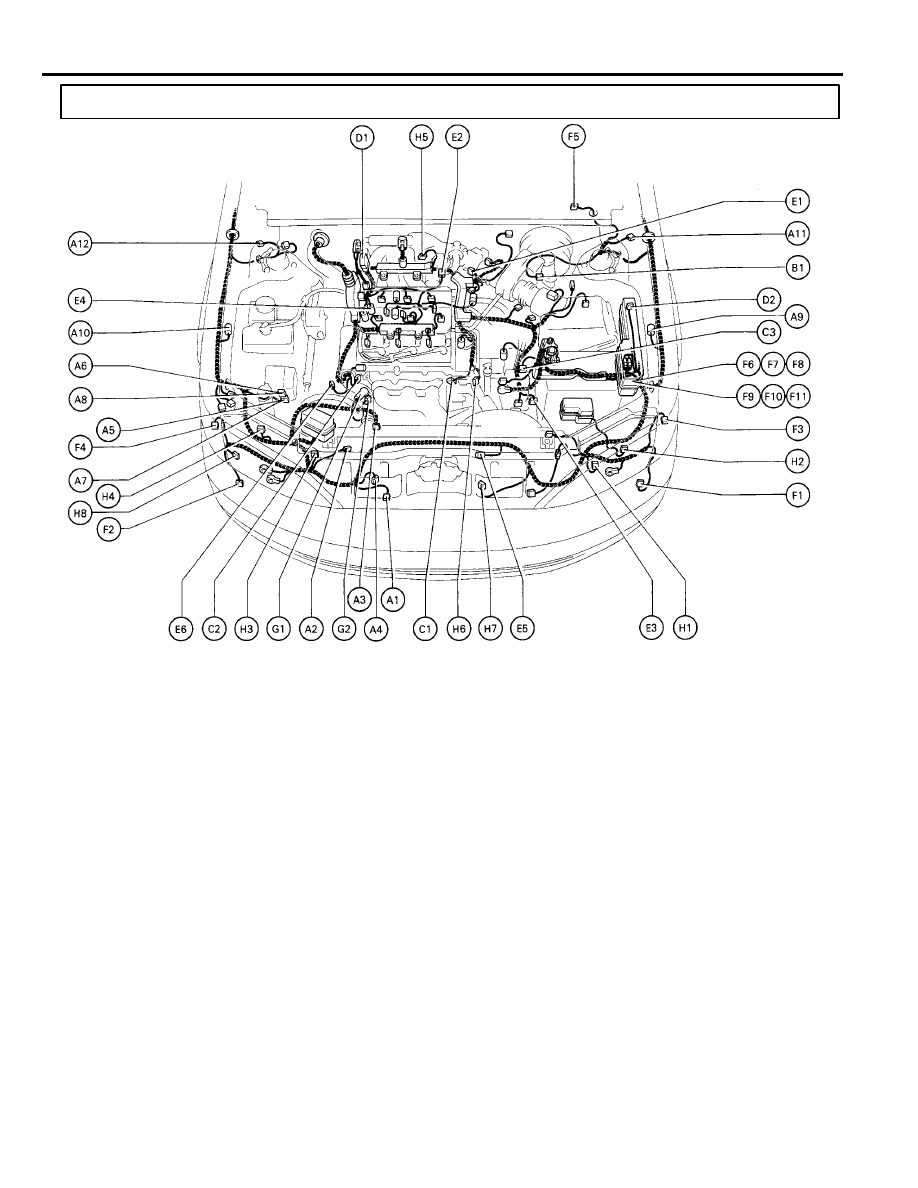

Position of Parts in Engine Compartment

A

1

Ambient Temp. Sensor

A  2

A/C Condenser Fan Motor

A  3

A/C Magnetic Clutch and Lock Sensor

A  4

A/C Triple Pressure SW (A/C Dual and
Single Pressure SW)

A  5

ABS  Actuator

A  6

ABS  Actuator

A  7

ABS and Traction Actuator

A  8

ABS and Traction Actuator

A  9

ABS Speed Sensor Front LH

A  10

ABS Speed Sensor Front RH

A  11

Absorber Control Acuator Front LH

A  12

Absorber Control Acuator Front RH

B

1

Brake Fluid Level Warning SW

C  1

Camshaft Position Sensor

C  2

Crankshaft Position Sensor

C

3

Cruise Control Actuator

D  1

Data Link Connector 1

D 2

Diode

(A/C)

E  1

EGR Gas Temp. Sensor

E  2

EGR Valve Position Sensor

E  3

Electronically Controlled Transmission
Solenoid

E  4

Engine Coolant Temp. Sensor

E  5

Engine Hood Courtesy SW

E  6

Engine Oil Level Warning SW

F  1

Front Fog Light LH

F  2

Front Fog Light RH

F  3

Front Turn Signal and Front Parking Light LH

F  4

Front Turn Signal and Front Parking Light RH

F

5

Front Wiper Motor

F

6

Fusible Link Block

F

7

Fusible Link Block

F

8

Fusible Link Block

F

9

Fusible Link Block

F  10

Fusible Link Block

F  11

Fusible Link Block

G 1

Generator

G 2

Generator

H  1

Headlight LH (HI)

H  2

Headlight LH (LO)

H  3

Headlight RH (HI)

H  4

Headlight RH (LO)

H  5

Heated Oxygen Sensor (Bank 1 Sensor 1)

H  6

Heated Oxygen Sensor (Bank 2 Sensor 1)

H 7

Horn

LH

H 8

Horn

RH

26

2

6

G  ELECTRICAL WIRING ROUTING
