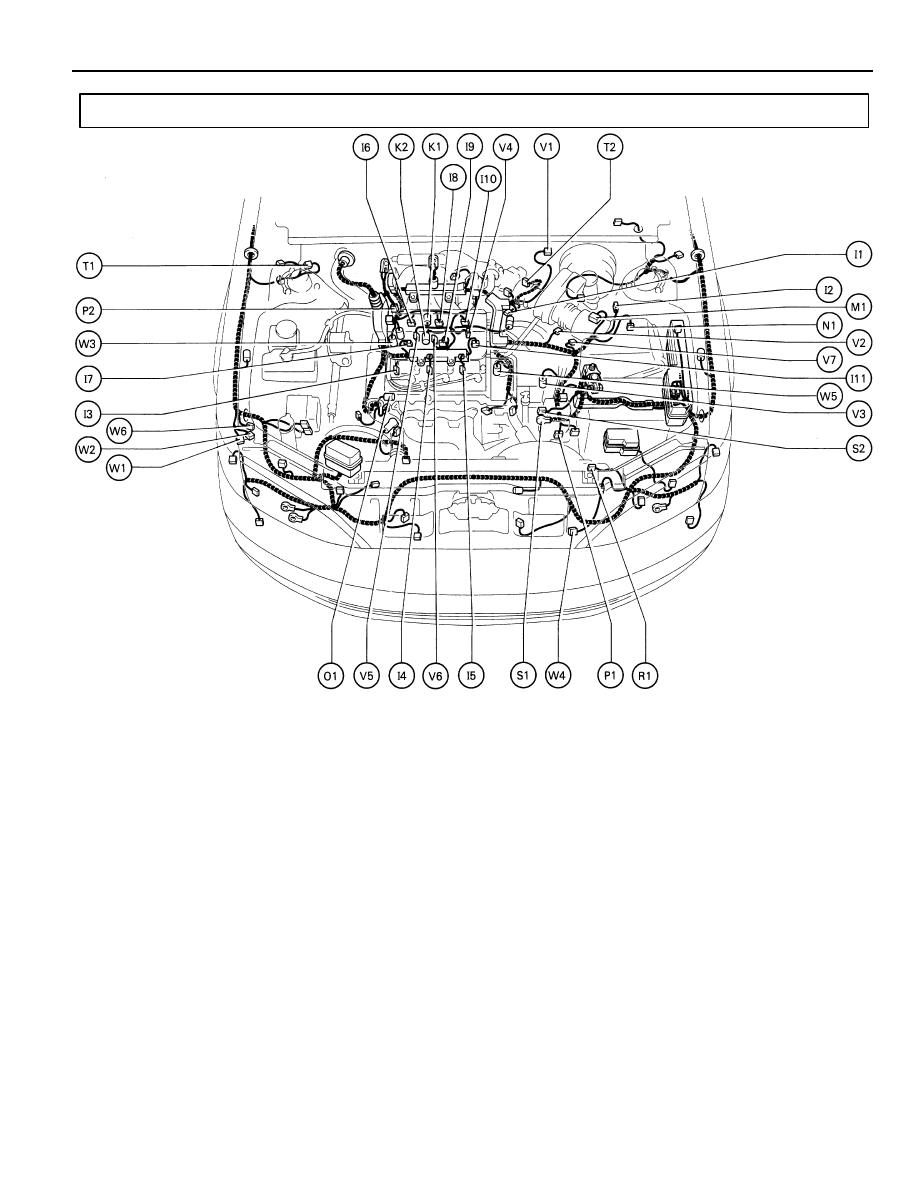

Position of Parts in Engine Compartment

I

1

Idle Air Control Valve

I

2

Igniter

I

3

Ignition Coil No. 1

I

4

Ignition Coil No. 2

I

5

Ignition Coil No. 3

I

6

Injector No. 1

I

7

Injector No. 2

I

8

Injector No. 3

I

9

Injector No. 4

I   10

Injector No. 5

I   11

Injector No. 6

K   1

Knock Sensor 1

K   2

Knock Sensor 2

M   1

Mass Air Flow Meter

N   1

Noise Filter (Ignition)

O   1

Oil Pressure SW

P

1

Park/Neutral Position SW,A/T Indicator
Light SW and Back–Up Light SW

P

2

Power Steering Oil Pressure SW

R

1

Radiator Fan Motor

S

1

Starter

S

2

Starter

T

1

Theft Deterrent Horn

T

2

Throttle Position Sensor

V

1

Vapor Pressure Sensor

V

2

Vehicle Speed Sensor (Combination Meter)

V

3

Vehicle Speed Sensor
(Electronically Controlled Transmission)

V

4

VSV (EGR)

V

5

VSV (EVAP)

V

6

VSV (Intake Air Control)

V

7

VSV (Vapor Pressure Sensor)

W 1

Water Level Warning SW

W 2

Washer Motor

W 3

Water Temp. Sender

W 4

Water Temp. SW No.1

W 5

Water Temp. SW No.2

W 6

Wireless Door Lock Buzzer

27

G

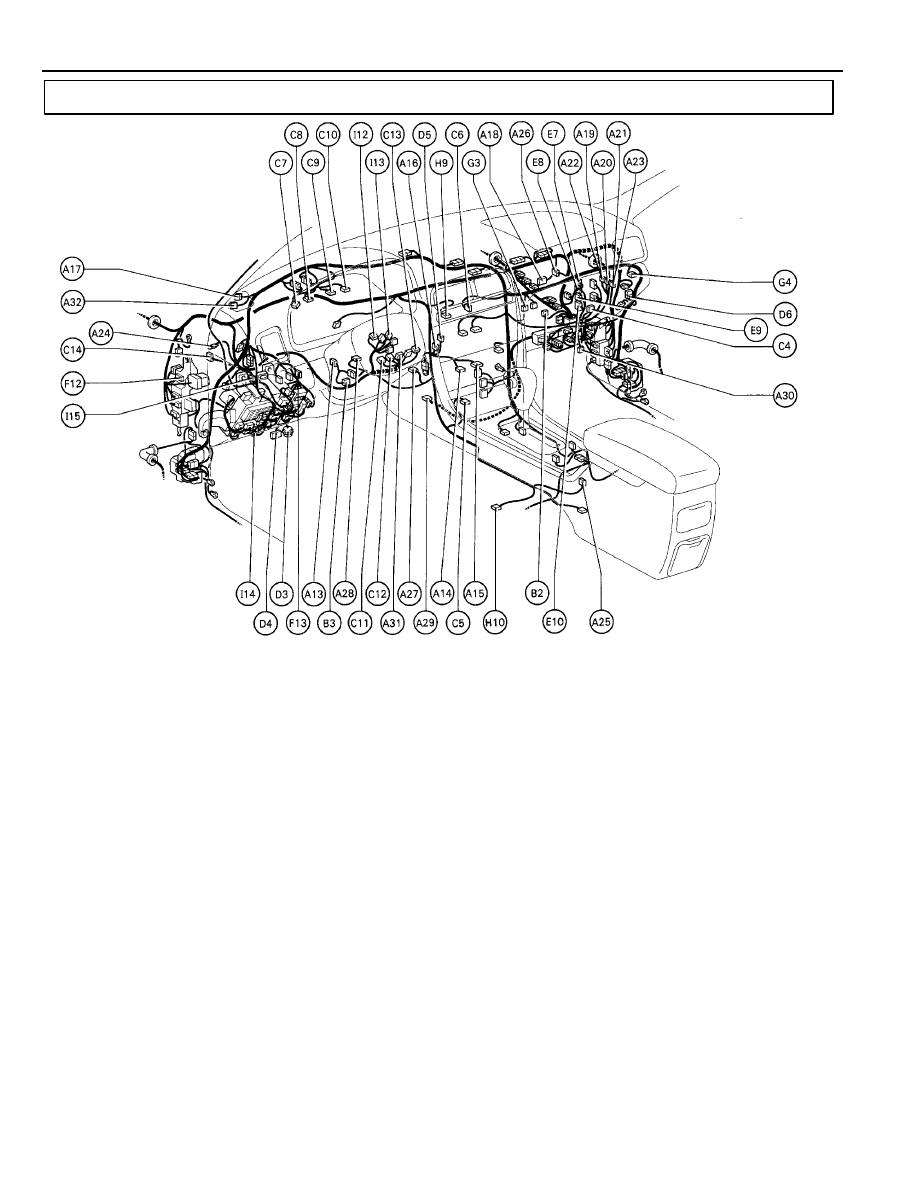

Position of Parts in Instrument Panel

A  13

A/C Blower Motor Linear Controller

A  14

A/C Control Assembly

A  15

A/C Control Assembly

A  16

A/C Room Temp. Sensor

A  17

A/C Solar Sensor

A  18

A/C Thermistor

A  19

ABS  and Traction ECU

A  20

ABS  and Traction ECU

A  21

ABS  and Traction ECU

A  22

ABS  ECU

A  23

ABS  ECU

A  24

Absorber Control ECU

A  25

Absorber Control SW

A  26

Air Inlet Control Servo Motor

A  27

Air Mix Control Servo Motor

A  28

Air Vent Mode Control Servo Motor

A  29

Airbag Sensor Assembly

A  30

Airbag Squib (Front Passenger Airbag Assembly)

A  31

Airbag Squib (Steering Wheel Pad)

A  32

Automatic Light Control Sensor

B

2

Blower Motor

B

3

Blower Resistor

C  4

CD Automatic Changer

C 5

Cigarette

Lighter

C 6

Clock

C 7

Combination

Meter

C

8 Combination

Meter

C 9

Combination

Meter

C  10  Combination Meter

C  11

Combination SW

C  12

Combination SW

C  13

Combination SW

C  14

Cruise Control ECU

D  3

Data Link Connector 2

D  4

Data Link Connector 3

D  5

Daytime Running Light Relay (Main)

D 6  Diode

(Courtesy)

E

7

Engine Control Module

E

8

Engine Control Module

E

9

Engine Control Module

E  10

Engine Control Module

F  12

Front Fog Light Relay

F  13

Fuel Lid and Luggage Compartment
Door Opener SW

G  3

Generator Box Light

G  4

Generator Box Light SW

H

9

Hazard SW

H  10

Heated Oxygen Sensor (Bank 1 Sensor 2)

I   12

Ignition Key Cylinder Light

I   13

Ignition SW

I   14

Integration Relay

I   15

Integration Relay

26

G  ELECTRICAL WIRING ROUTING

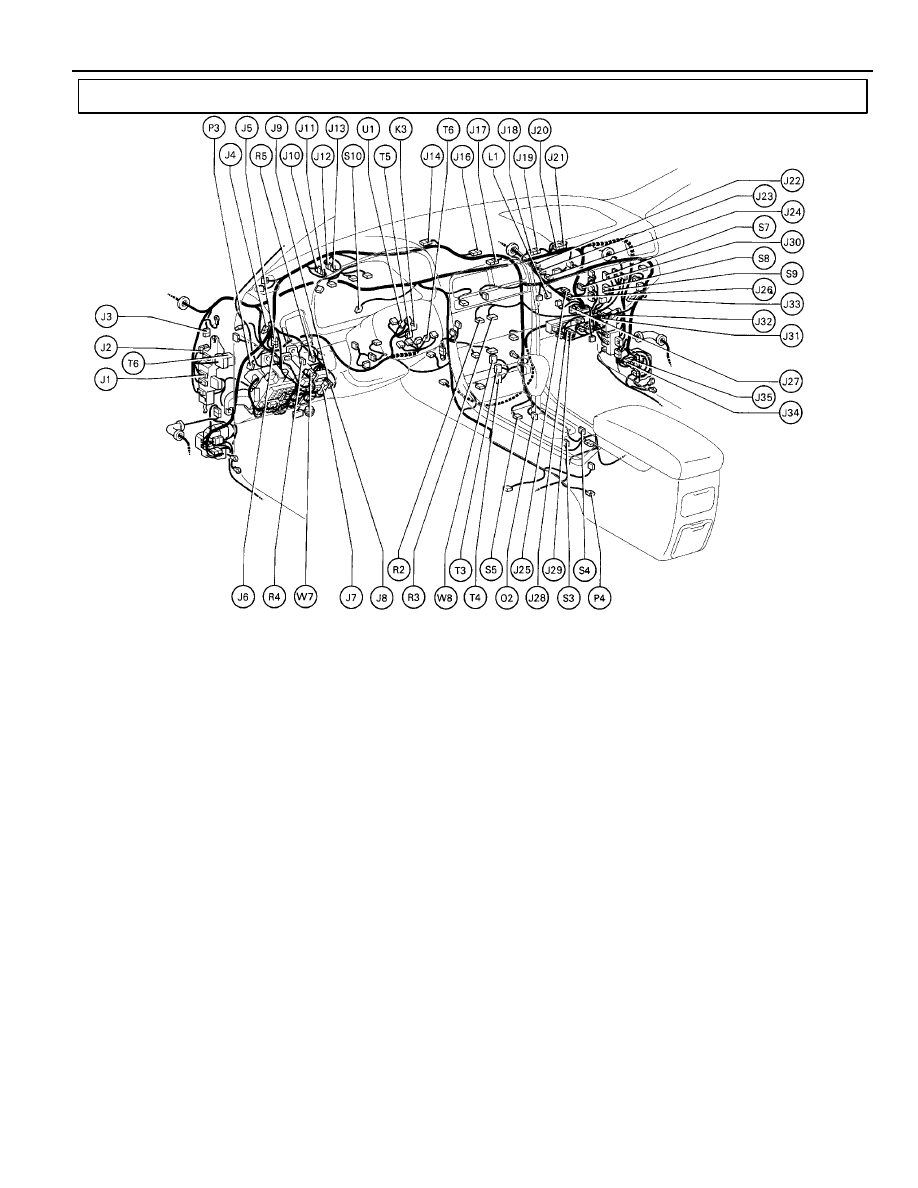

Position of Parts in Instrument Panel

J

1

Junction Connector

J

2

Junction Connector

J

3

Junction Connector

J

4

Junction Connector

J

5

Junction Connector

J

6

Junction Connector

J

7

Junction Connector

J

8

Junction Connector

J

9

Junction Connector

J   10

Junction Connector

J   11

Junction Connector

J   12

Junction Connector

J   13

Junction Connector

J   14

Junction Connector

J   15

Junction Connector

J   16

Junction Connector

J   17

Junction Connector

J   18

Junction Connector

J   19

Junction Connector

J   20

Junction Connector

J   21

Junction Connector

J   22

Junction Connector

J   23

Junction Connector

J   24

Junction Connector

J   25

Junction Connector

J   26

Junction Connector

J   27

Junction Connector

J   28

Junction Connector

J   29

Junction Connector

J   30

Junction Connector

J   31

Junction Connector

J   32

Junction Connector

J   33

Junction Connector

J   34

Junction Connector

J   35

Junction Connector

K

3

Key Interlock Solenoid

L

1

Luggage Compartment Door Opener Main SW

O

2

O/D Main SW and A/T Shift Lever Illumination

P

3

Parking Brake SW

P

4

Power Outlet

R

2

Radio and Player

R

3

Radio and Player

R

4

Remote Control Morror SW

R

5

Rheostat

S

3

Seat Heater SW (Driver’s Seat)

S

4

Seat Heater SW (Front Passenger’s Seat)

S

5

Shift Lock Control ECU

S

6

Steering Sensor

S

7

Stereo Component Amplifier

S

8

Stereo Component Amplifier

S

9

Stereo Component Amplifier

S  10

Stop Light SW

T

3

Theft Deterrent ECU

T

4

Theft Deterrent ECU

T

5

TRAC OFF SW

T

6

Turn Signal Flasher Relay

U

1

Unlock Warning SW (Ignition Key)

W 7

Wireless Door Lock Buzzer Volume SW

W 8

Wireless Door Lock ECU

27

G

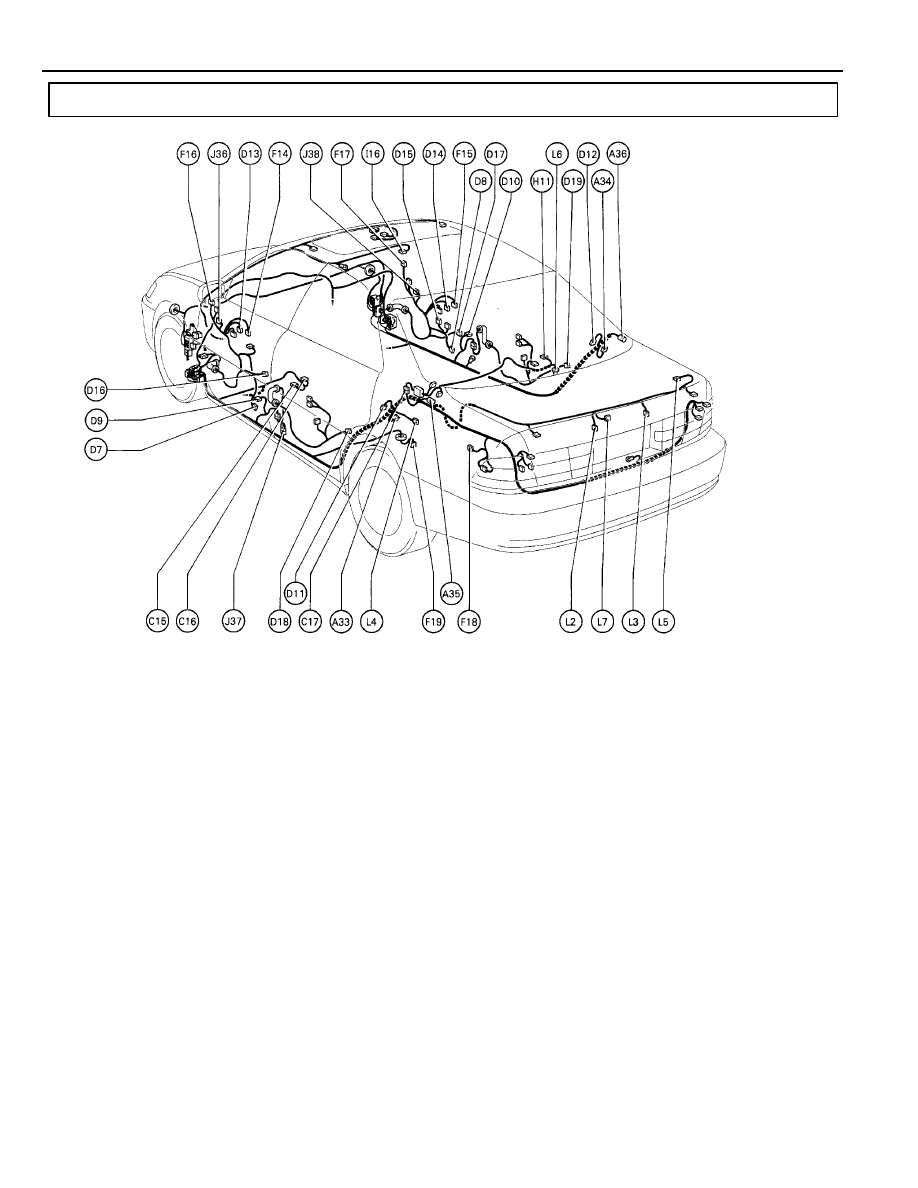

Position of Parts in Body

A  33

ABS Speed Sensor Rear LH

A  34

ABS Speed Sensor Rear RH

A  35

Absorber Control Actuator Rear LH

A  36

Absorber Control Actuator Rear RH

C  15

Cellular Phone (Hand Set)

C  16

Cellular Phone (Hand Set)

C  17  Choke Coil

D  7

Door Courtesy Light Front LH

D  8

Door Courtesy Light Front RH

D  9

Door Courtesy SW Front LH

D  10  Door Courtesy SW Front RH
D  11

Door Courtesy SW Rear LH

D  12

Door Courtesy SW Rear RH

D  13  Door Key Lock and Unlock SW Front LH
D  14  Door Key Lock and Unlock SW Front RH
D  15  Door Lock Control SW Front RH
D  16  Door Lock Motor and Door Unlock

Detection SW Front LH

D  17  Door Lock Motor and Door Unlock

Detection SW Front RH

D  18  Door Lock Motor and Door Unlock

Detection SW Rear LH

D  19

Door Lock Motor and Door Unlock
Detection SW Rear RH

F  14

Front Door Speaker LH

F  15

Front Door Speaker RH

F  16

Front Tweeter Speaker LH

F  17

Front Tweeter Speaker RH

F  18

Fuel Lid Opener Motor

F  19

Fuel Pump and Fuel Sender

H  11

High Mounted Stop Light

I   16

Interior Light

J   36

Junction Connector

J   37

Junction Connector

J   38

Junction Connector

L

2

License Plate Light LH

L

3

License Plate Light RH

L

4

Light Failure Sensor

L

5

Luggage Compartment Key Unlock SW

L

6

Luggage Compartment Light

L

7

Luggage Compartment Light SW
and Luggage Compartment Door Opener Motor
