G  ELECTRICAL WIRING ROUTING

: Location of Connector Joining Wire Harness and Wire Harness
: Location of Ground Points

: Location of Splice Points

35

G

Connector Joining Wire Harness and Wire Harness

CODE

JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

BQ1

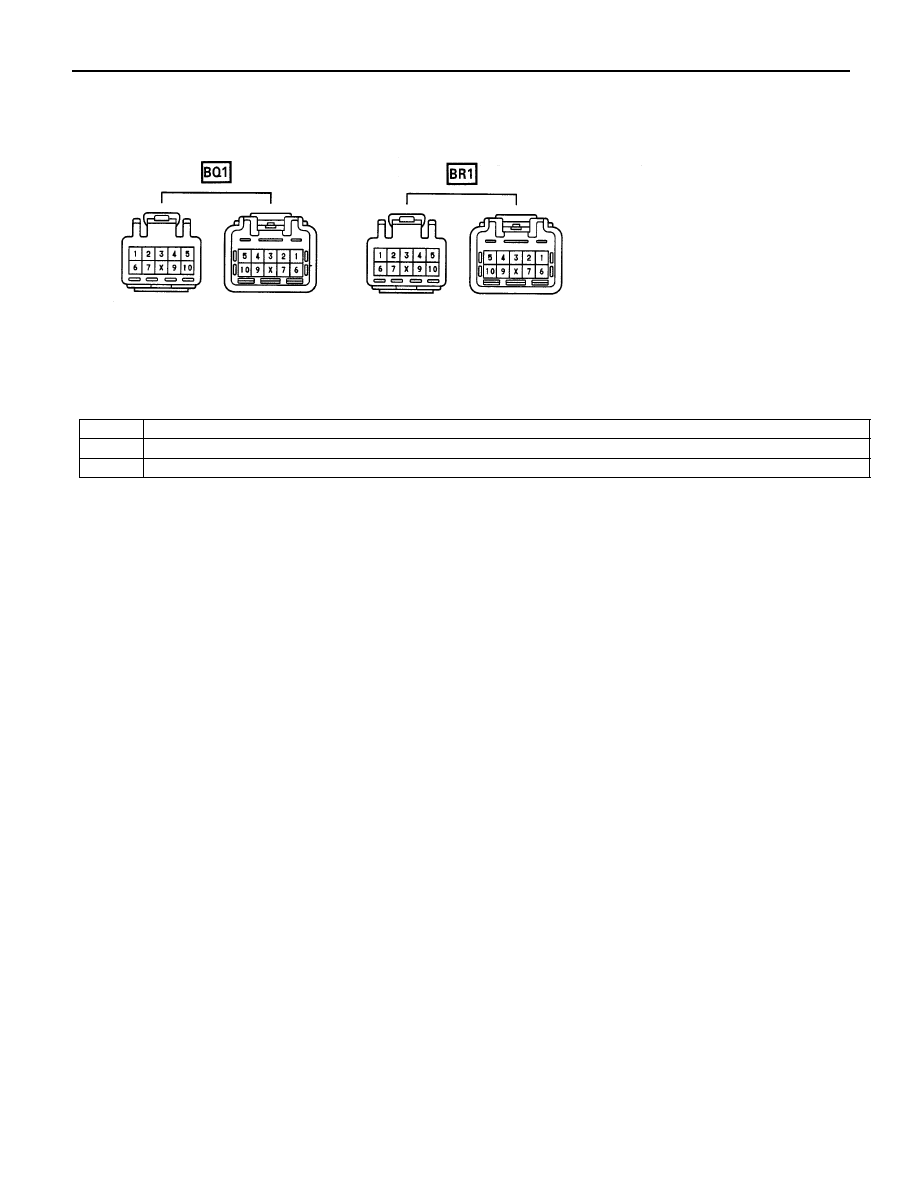

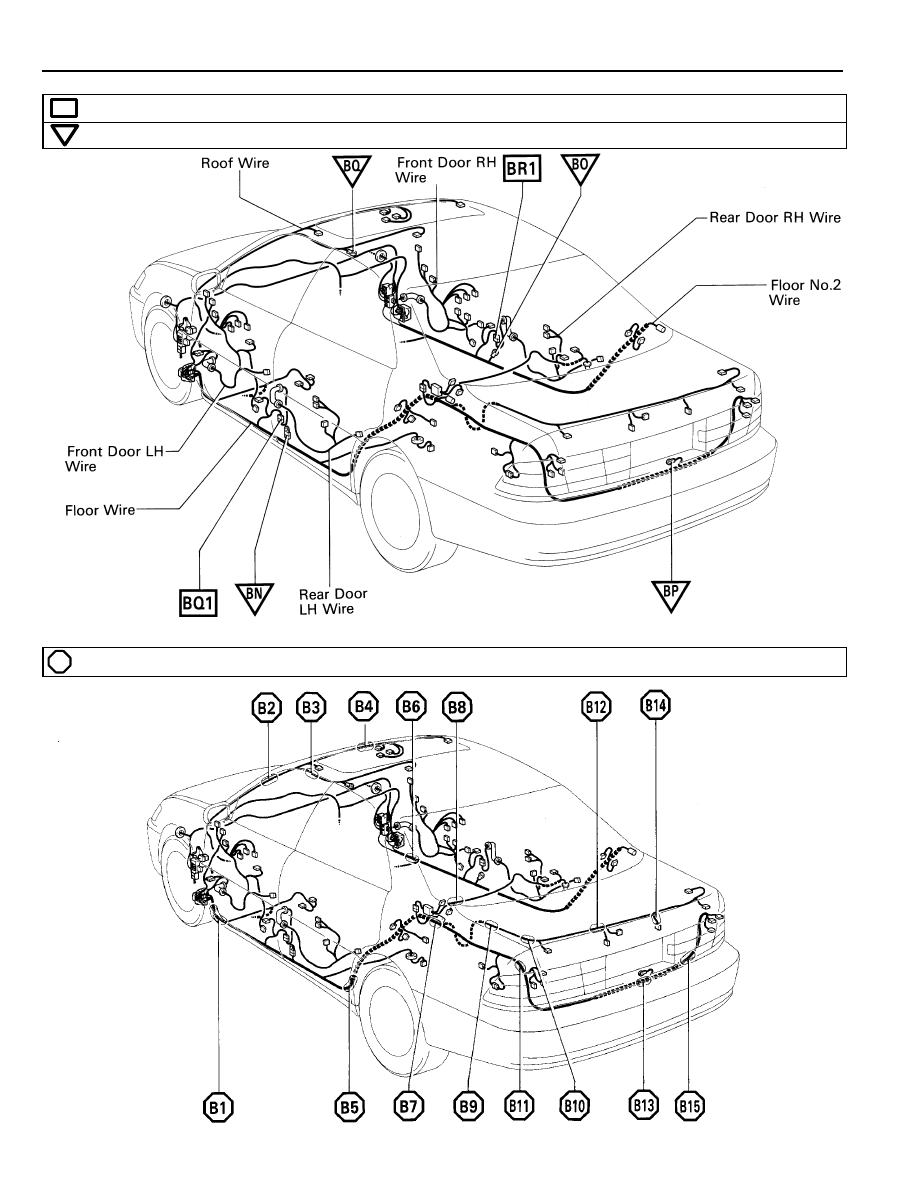

REAR DOOR LH WIRE AND FLOOR WIRE (LEFT CENTER PILLAR)

BR1

REAR DOOR RH WIRE AND FLOOR NO. 2 WIRE  (RIGHT CENTER PILLAR)

36

G  ELECTRICAL WIRING ROUTING

: Location of Connector Joining Wire Harness and Wire Harness

: Location of Splice Point

37

G

Connector Joining Wire Harness and Wire Harness

CODE

JOINING WIRE HARNESS AND WIRE HARNESS (CONNECTOR LOCATION)

BS1

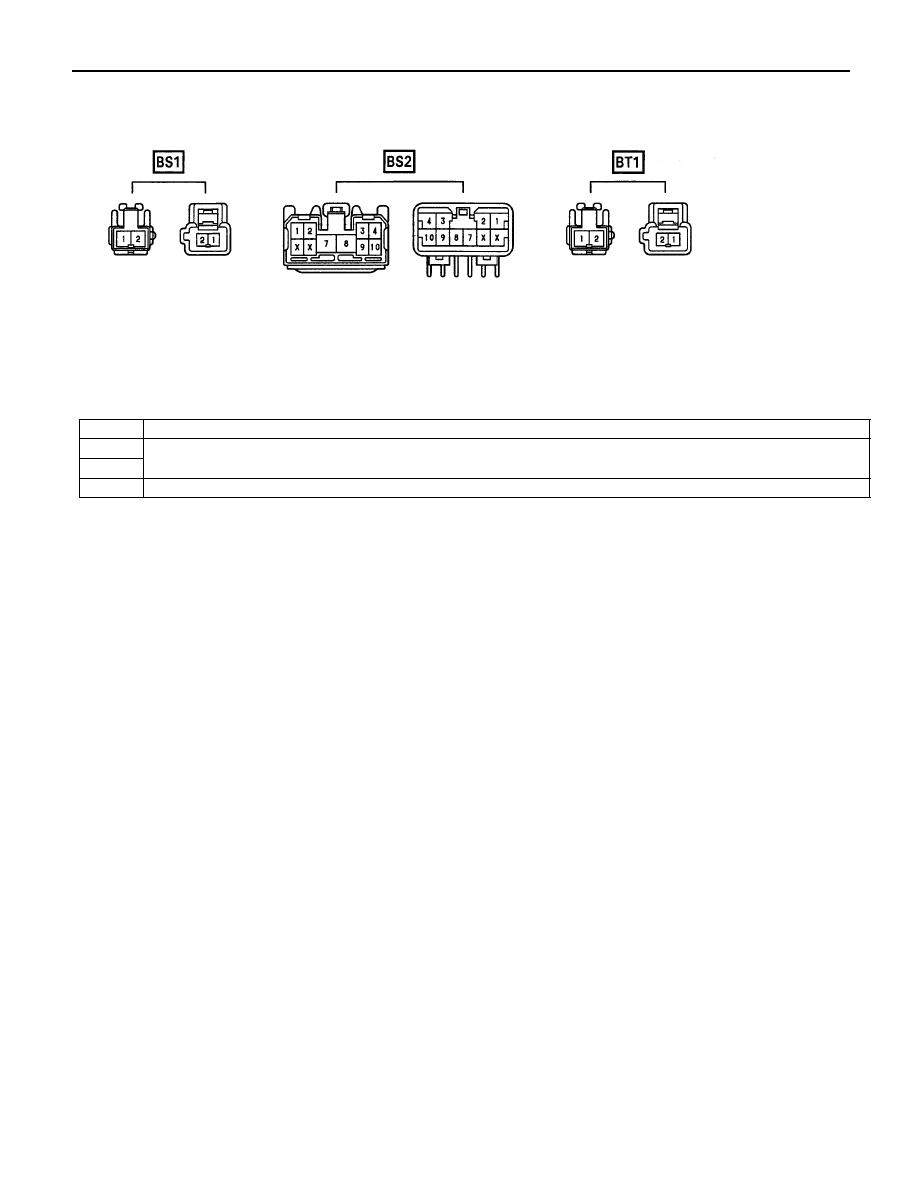

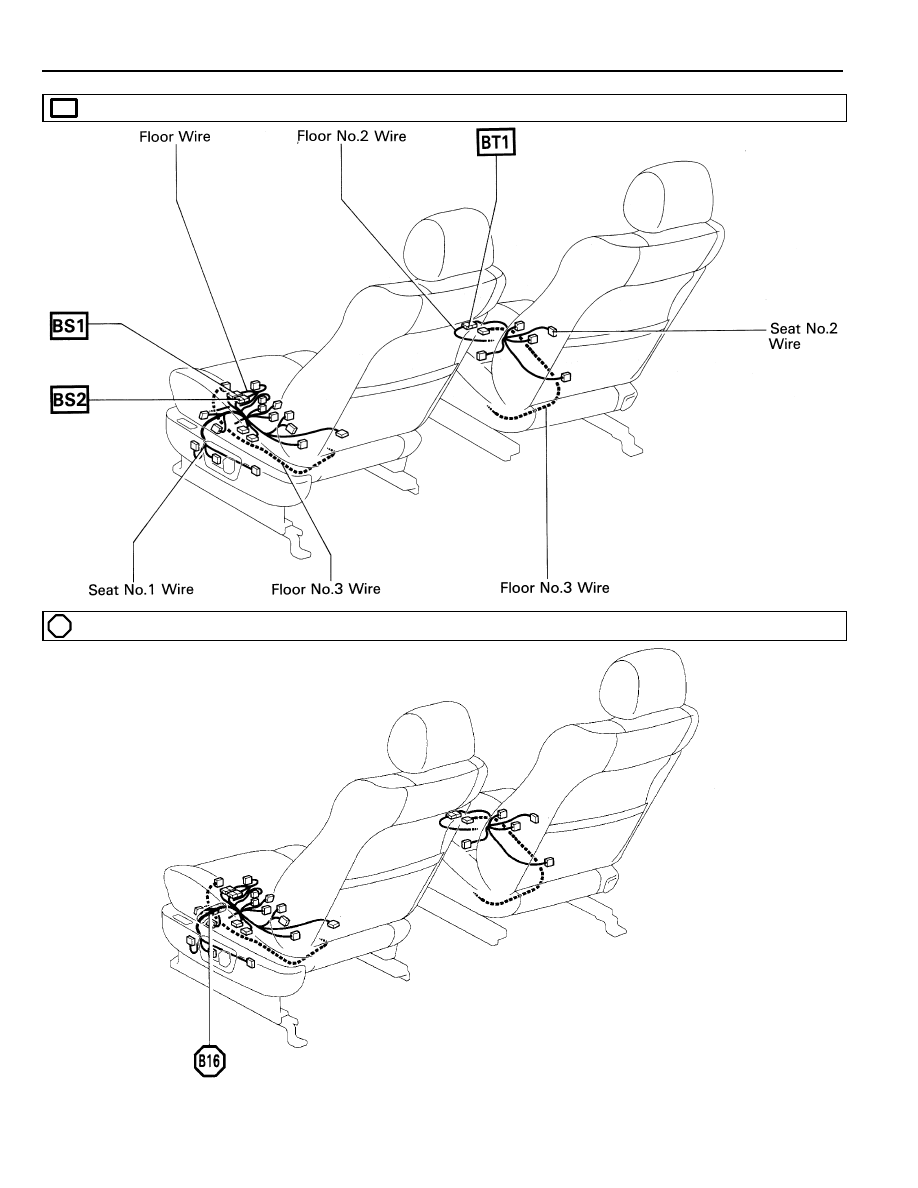

FLOOR WIRE AND SEAT NO 1 WIRE (UNDER THE DRIVER’S SEAT)

BS2

FLOOR WIRE AND SEAT NO.1 WIRE (UNDER THE DRIVER’S SEAT)

BT1

FLOOR NO.2 WIRE AND SEAT NO. 2 WIRE (UNDER THE FRONT PASSENGER’S SEAT)
