Lexus ES300 (1997 year). Manual - part 48

AC0B2–02

N21059

AC–76

–

AIR CONDITIONING

AIR OUTLET SERVOMOTOR

1633

1997 LEXUS ES300   (RM511U)

AIR OUTLET SERVOMOTOR

REMOVAL

1.

REMOVE THESE PARTS:

(a)

No. 1 instrument lower panel

(b)

Instrument lower panel LH

2.

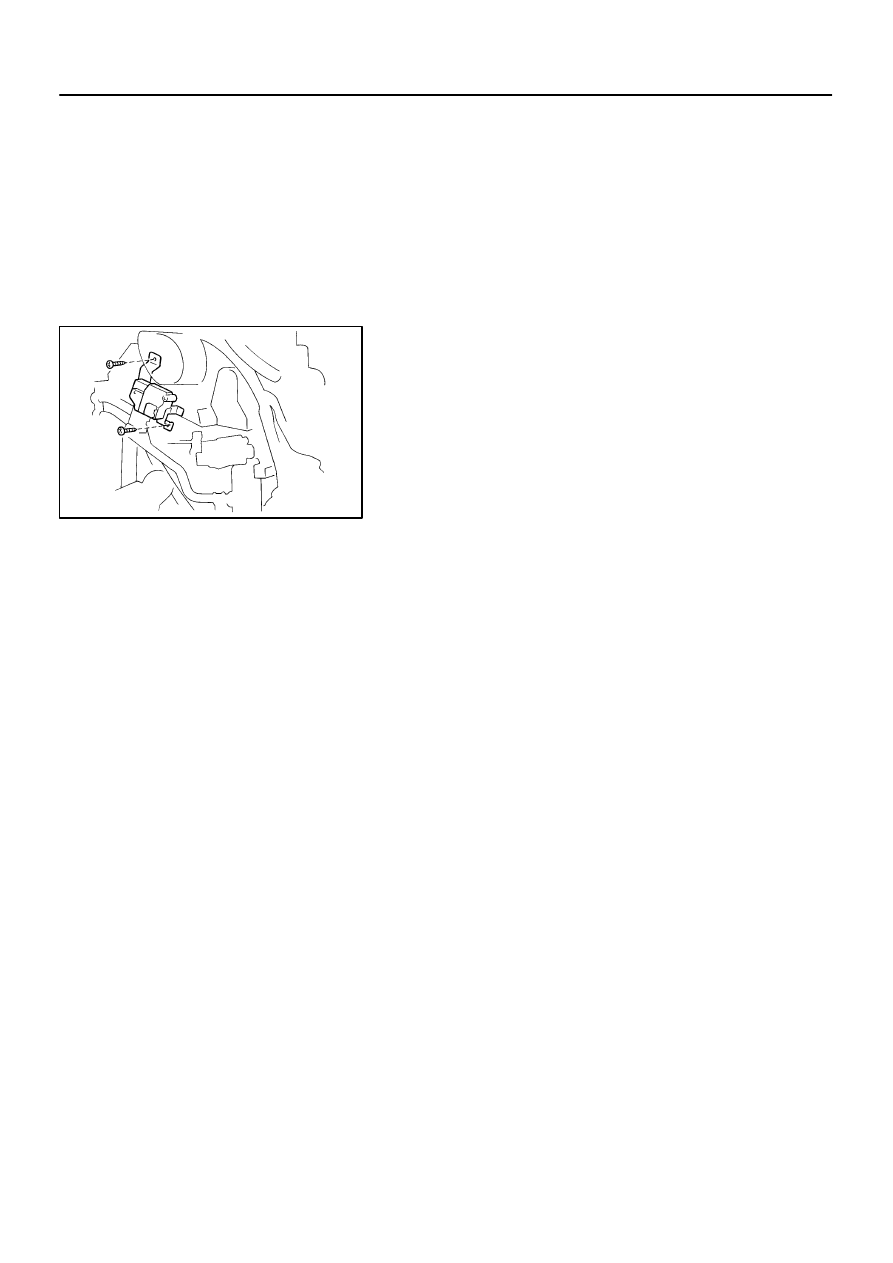

REMOVE AIR OUTLET SERVOMOTOR

(a)

Disconnect the connector.

(b)

Remove the 2 screws and servomotor.

AC0B3–02

–

AIR CONDITIONING

AIR OUTLET SERVOMOTOR

AC–77

1634

1997 LEXUS ES300   (RM511U)

INSPECTION

INSPECT AIR OUTLET SERVOMOTOR CIRCUIT
(See page

DI–574

)

AC0B4–01

AC–78

–

AIR CONDITIONING

AIR OUTLET SERVOMOTOR

1635

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

AC–76

).

N21083

AC0B5–01

–

AIR CONDITIONING

SOLAR SENSOR

AC–79

1636

1997 LEXUS ES300   (RM511U)

SOLAR SENSOR

REMOVAL

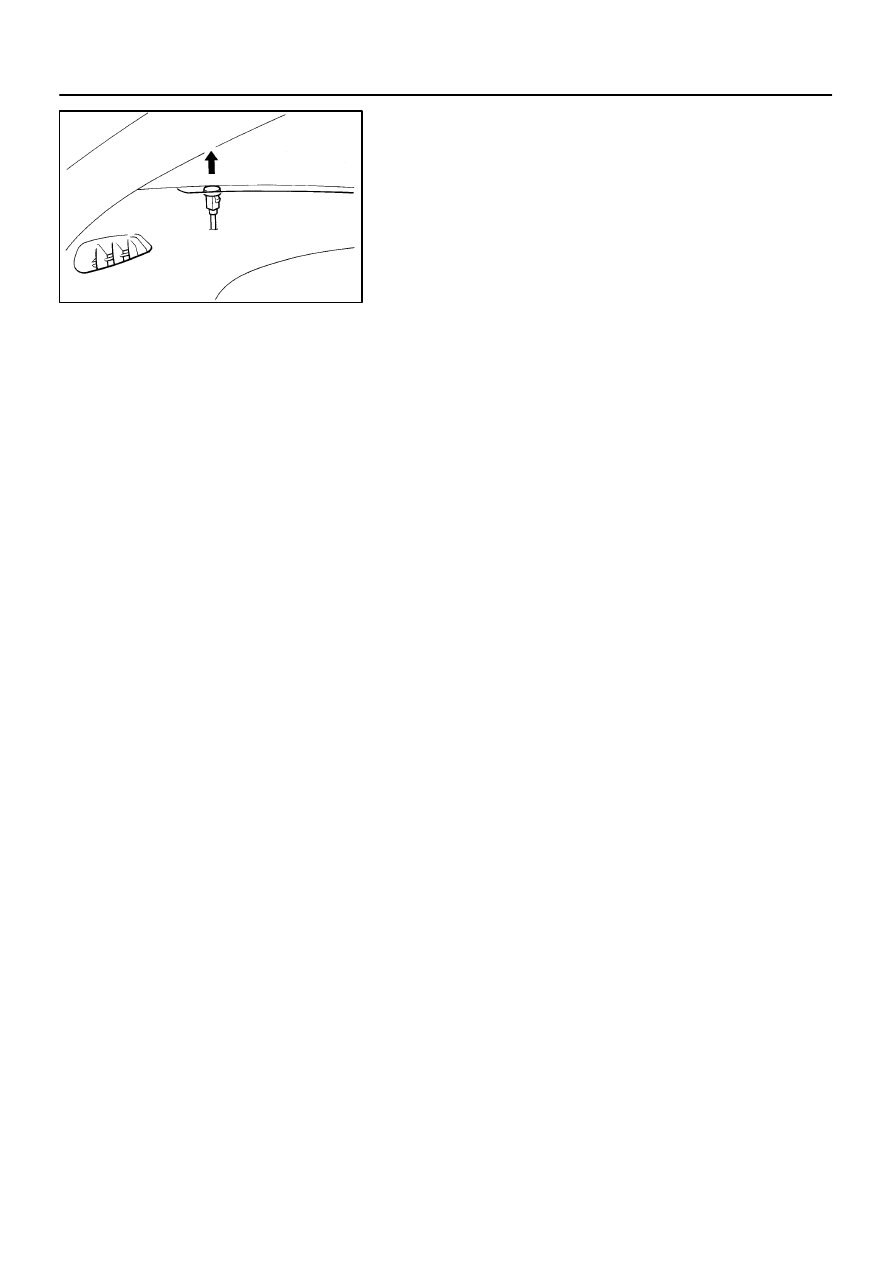

REMOVE SOLAR SENSOR
Using a screwdriver, pull out the sensor, then disconnect the
connector.
HINT:
Tape the screwdriver tip before use.
