AIR CONDITIONING

BLOWER MOTOR LINEAR CONTROLLER

1625

1997 LEXUS ES300   (RM511U)

INSPECTION

INSPECT BLOWER MOTOR LINEAR CONTROLLER CIRCUIT
(See page

DI–583

)

AC0AV–01

–

AIR CONDITIONING

BLOWER MOTOR LINEAR CONTROLLER

AC–69

1626

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

AC–67

).

AC0AW–02

N21073

N21074

AC–70

–

AIR CONDITIONING

AIR INLET SERVOMOTOR

1627

1997 LEXUS ES300   (RM511U)

AIR INLET SERVOMOTOR

REMOVAL

1.

REMOVE THESE PARTS:

(a)

Cowl side trim RH

(b)

Front door scuff plate RH

(c)

No. 2 instrument panel under cover

(d)

Glove compartment

2.

REMOVE ECM

(a)

Disconnect the connectors.

(b)

Remove the 2 nuts and ECM.

3.

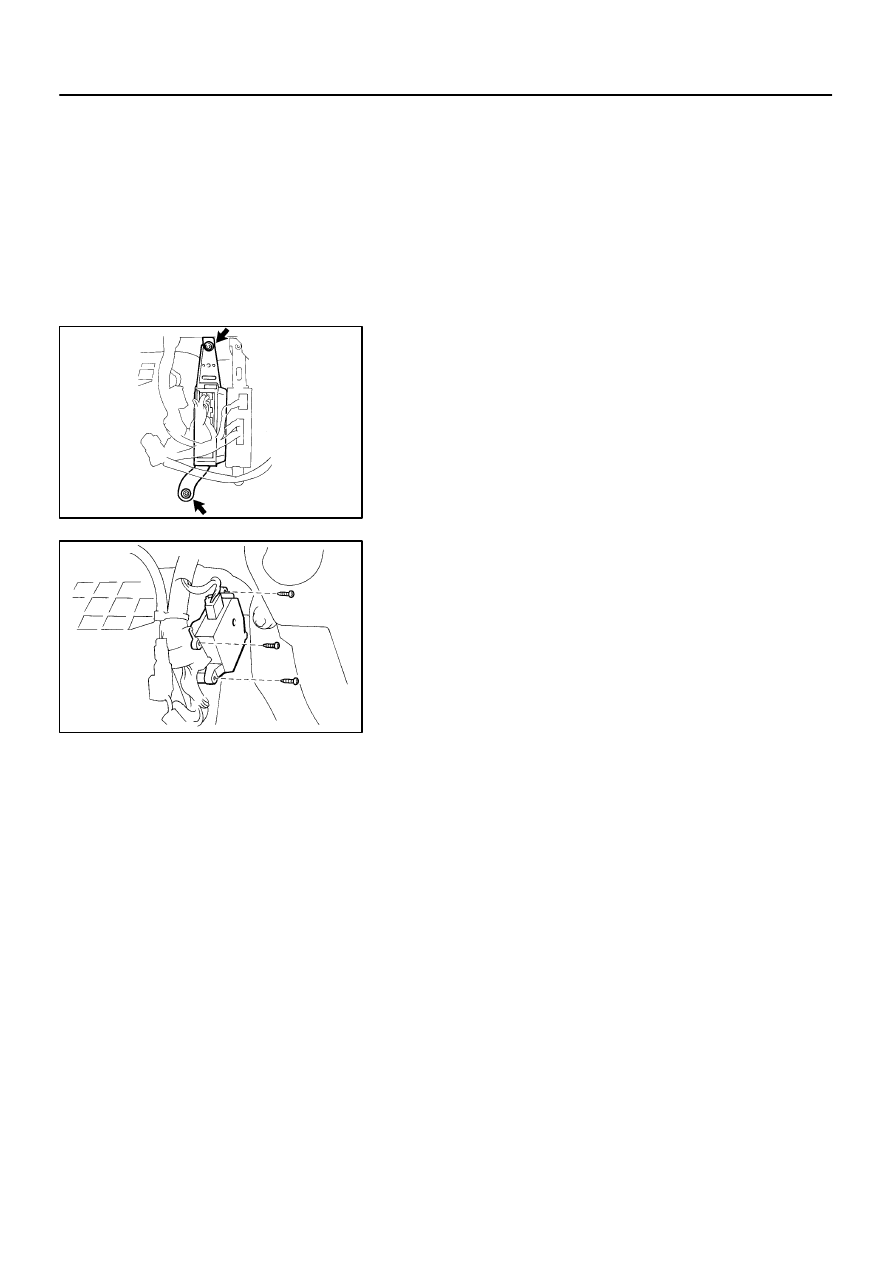

REMOVE AIR INLET SERVOMOTOR

(a)

Disconnect the connector.

(b)

Remove the 3 screws and servomotor.

AC0AX–01

–

AIR CONDITIONING

AIR INLET SERVOMOTOR

AC–71

1628

1997 LEXUS ES300   (RM511U)

INSPECTION

1.

INSPECT AIR INLET SERVOMOTOR CIRCUIT
(See page

DI–566

)

2.

INSPECT AIR INLET DAMPER POSITION SENSOR CIRCUIT
(See page

DI–560

)
