AC0AM–02

N01181

Clamp

To COOL

AC–60

–

AIR CONDITIONING

WATER VALVE

1617

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

AC–59

).

HINT:
After installation, adjust water valve control cable.

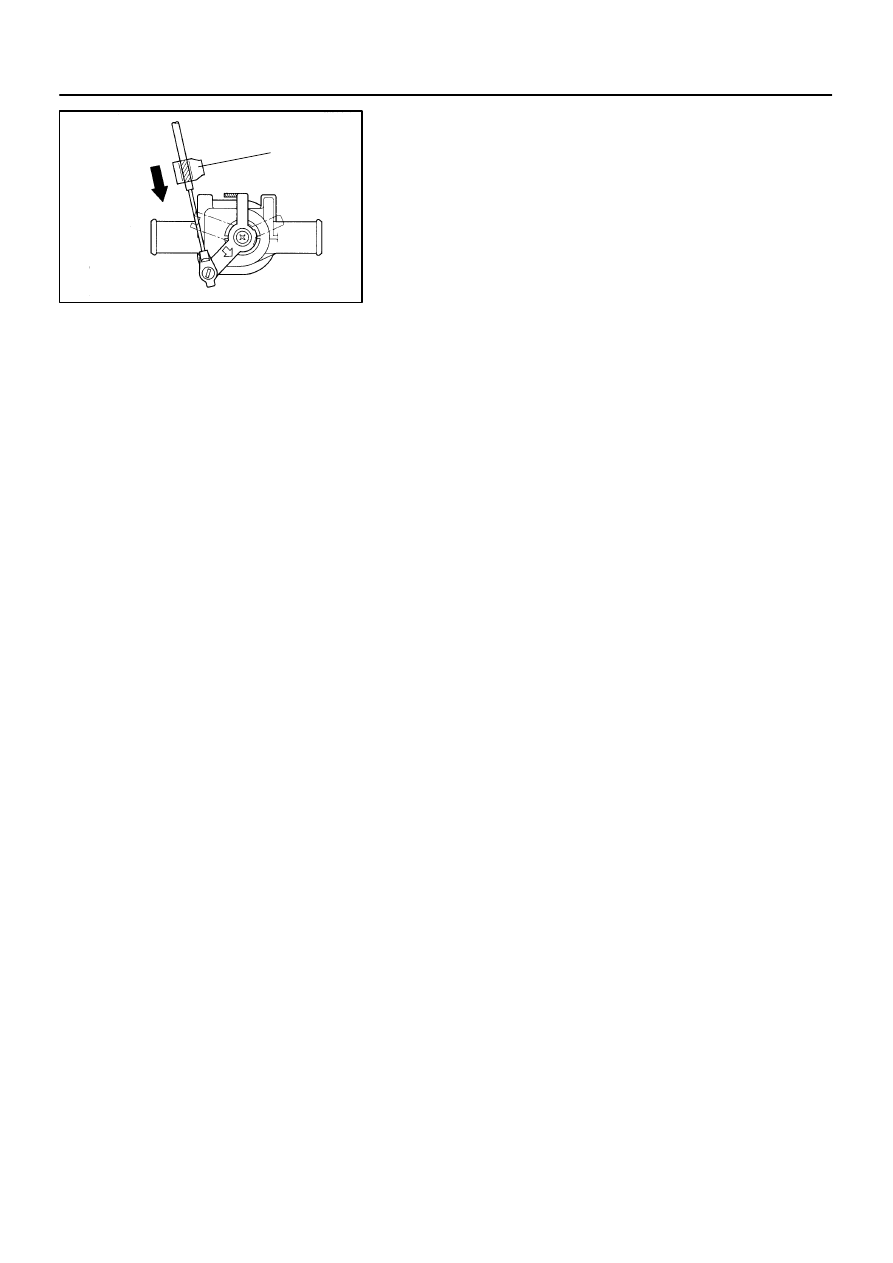

ADJUST WATER VALVE CONTROL CABLE
(a)

Turn ignition switch to ON.

(b)

Set temperature control switch at ”COOL”.

(c)

Set the water valve control lever on the ”COOL” position
and install the control cable and lock the clamp.

HINT:
Lock the clamp while lightly pushing the outer cable in the direc-
tion shown by arrow.

AC0AN–02

N21089

N21064

–

AIR CONDITIONING

BLOWER MOTOR

AC–61

1618

1997 LEXUS ES300   (RM511U)

BLOWER MOTOR

REMOVAL

1.

REMOVE THESE PARTS:

(a)

Cowl side trim RH

(b)

Front door scuff plate RH

(c)

No. 2 instrument panel under cover

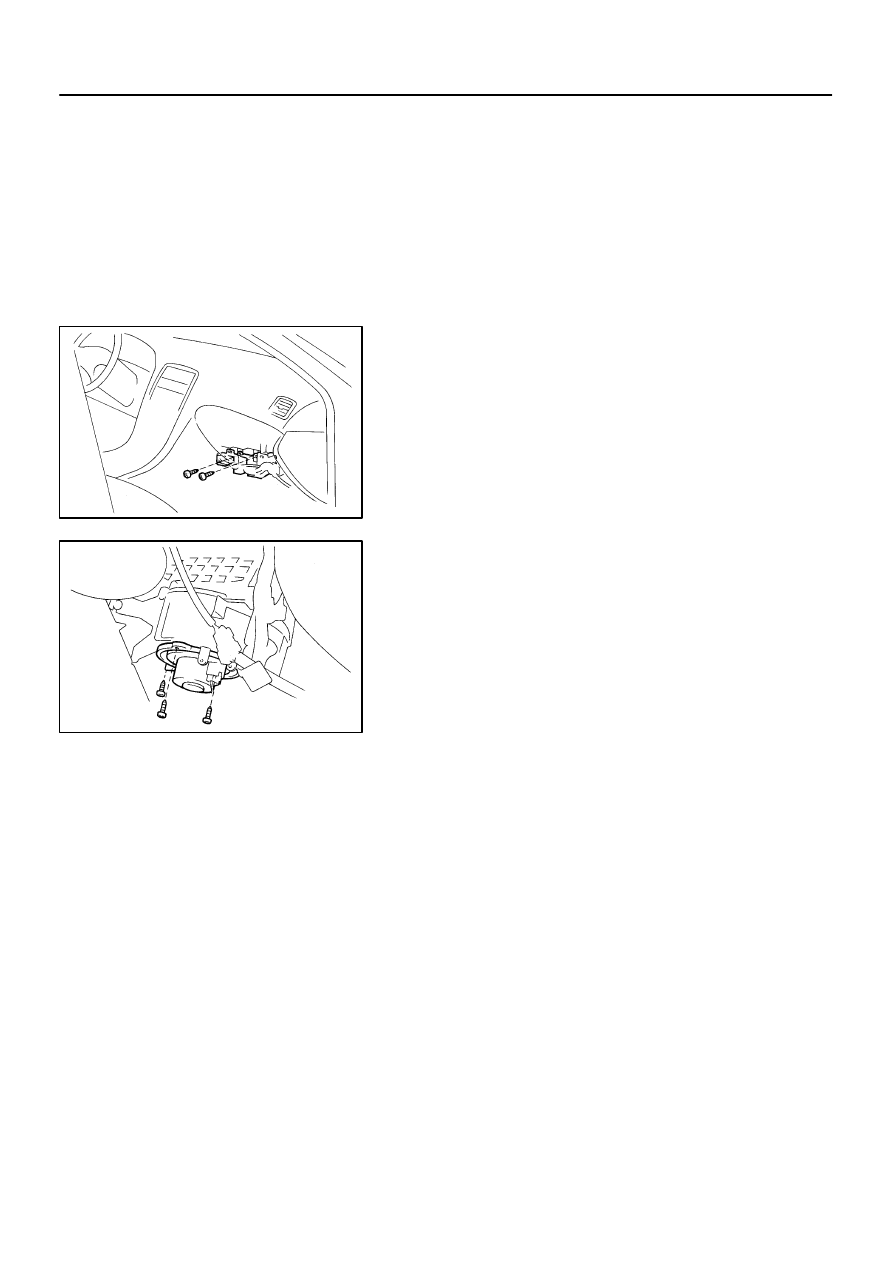

2.

REMOVE 2 CONNECTOR BRACKET SET SCREWS

3.

REMOVE BLOWER MOTOR

(a)

Disconnect the connector.

(b)

Remove the 3 screws and blower motor.

AC0AO–02

AC–62

–

AIR CONDITIONING

BLOWER MOTOR

1619

1997 LEXUS ES300   (RM511U)

INSPECTION

INSPECT BLOWER MOTOR CIRCUIT
(See page

DI–583

)

AC0AP–01

–

AIR CONDITIONING

BLOWER MOTOR

AC–63

1620

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

AC–61

).
