Lexus ES300 (1997 year). Manual - part 45

AC0AQ–02

N12077

AC–64

–

AIR CONDITIONING

BLOWER RESISTOR

1621

1997 LEXUS ES300   (RM511U)

BLOWER RESISTOR

REMOVAL

1.

REMOVE THESE PARTS:

(a)

No. 1 instrument lower panel

(b)

Instrument lower panel LH

2.

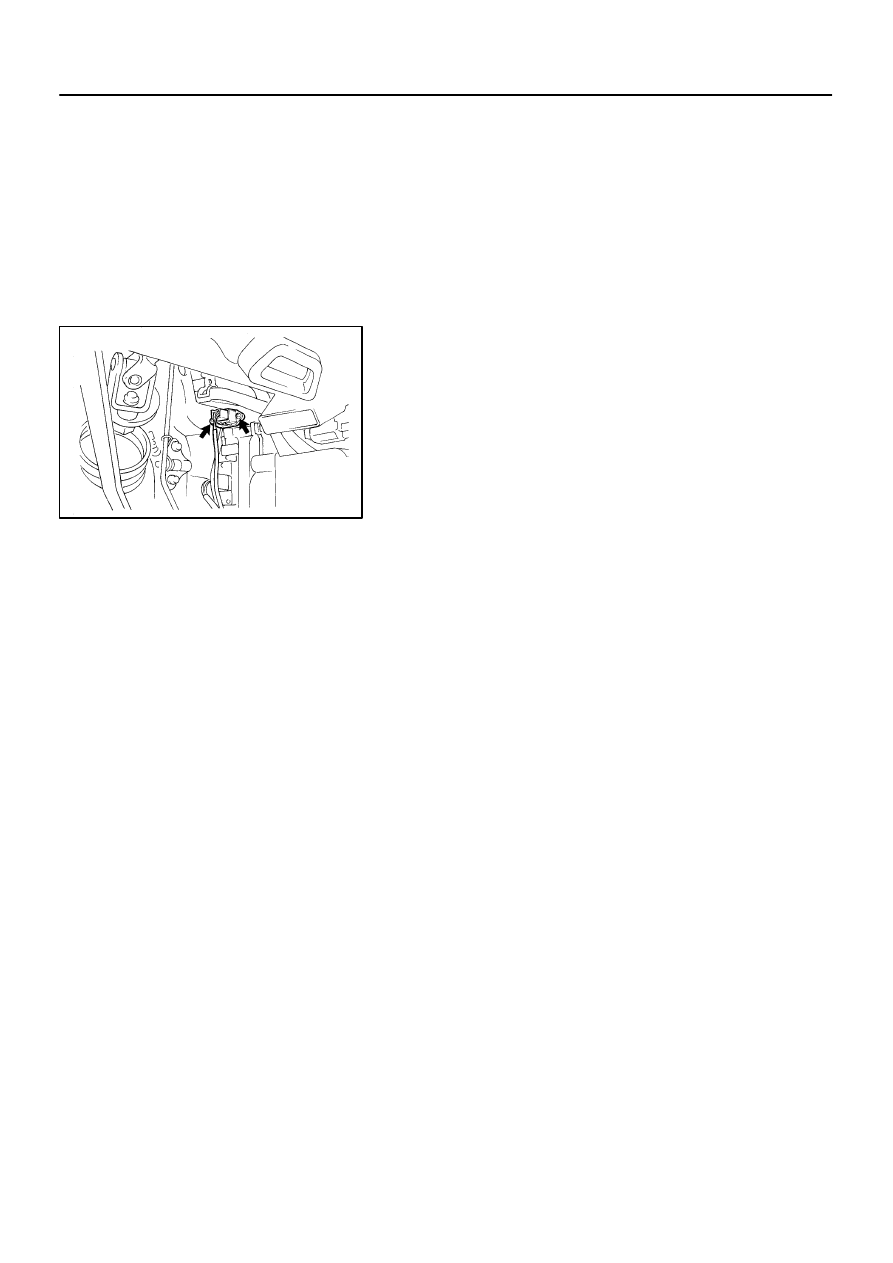

REMOVE BLOWER RESISTOR

(a)

Disconnect the connector.

(b)

Remove the 2 screws and blower resistor.

AC2SZ–01

Z14433

1

2

–

AIR CONDITIONING

BLOWER RESISTOR

AC–65

1622

1997 LEXUS ES300   (RM511U)

INSPECTION

INSPECT BLOWER RESISTOR RESISTANCE
Measure resistance between terminals.

Standard resistance:
1.8 – 2.2

Ω

If resistance is not as specified, replace the blower resistor.

AC0AS–01

AC–66

–

AIR CONDITIONING

BLOWER RESISTOR

1623

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

AC–64

).

AC0AT–02

N12820

–

AIR CONDITIONING

BLOWER MOTOR LINEAR CONTROLLER

AC–67

1624

1997 LEXUS ES300   (RM511U)

BLOWER MOTOR LINEAR
CONTROLLER

REMOVAL

1.

REMOVE THESE PARTS:

(a)

No. 1 instrument lower panel

(b)

Instrument lower panel LH

2.

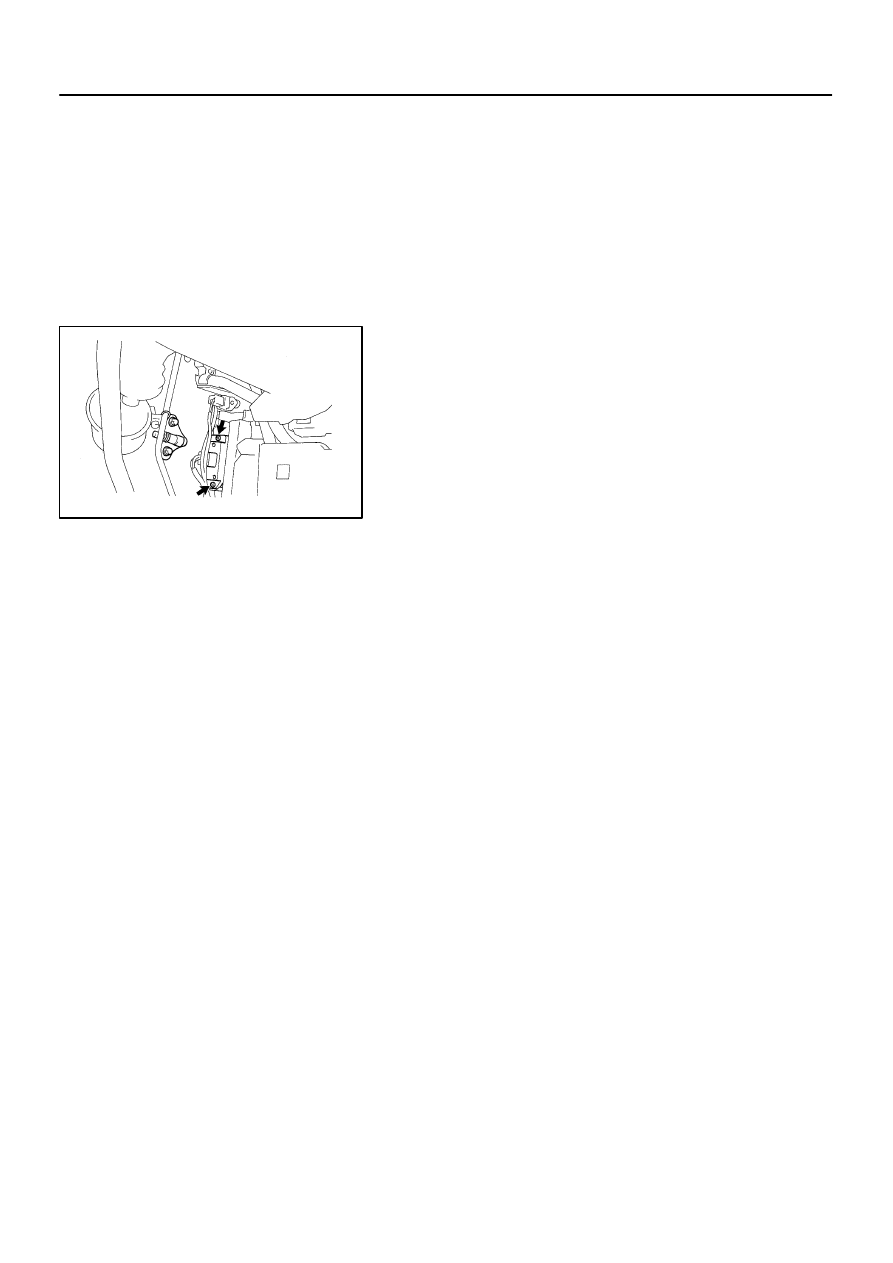

REMOVE BLOWER MOTOR LINEAR CONTROLLER

(a)

Disconnect the connector.

(b)

Remove the 2 screws and controller.
