Lexus ES300 (1997 year). Manual - part 47

AC0AY–01

AC–72

–

AIR CONDITIONING

AIR INLET SERVOMOTOR

1629

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

AC–70

).

AC0AZ–02

N21060

–

AIR CONDITIONING

AIR MIX SERVOMOTOR

AC–73

1630

1997 LEXUS ES300   (RM511U)

AIR MIX SERVOMOTOR

REMOVAL

1.

REMOVE THESE PARTS:

(a)

No. 1 instrument lower panel

(b)

Instrument lower panel LH

2.

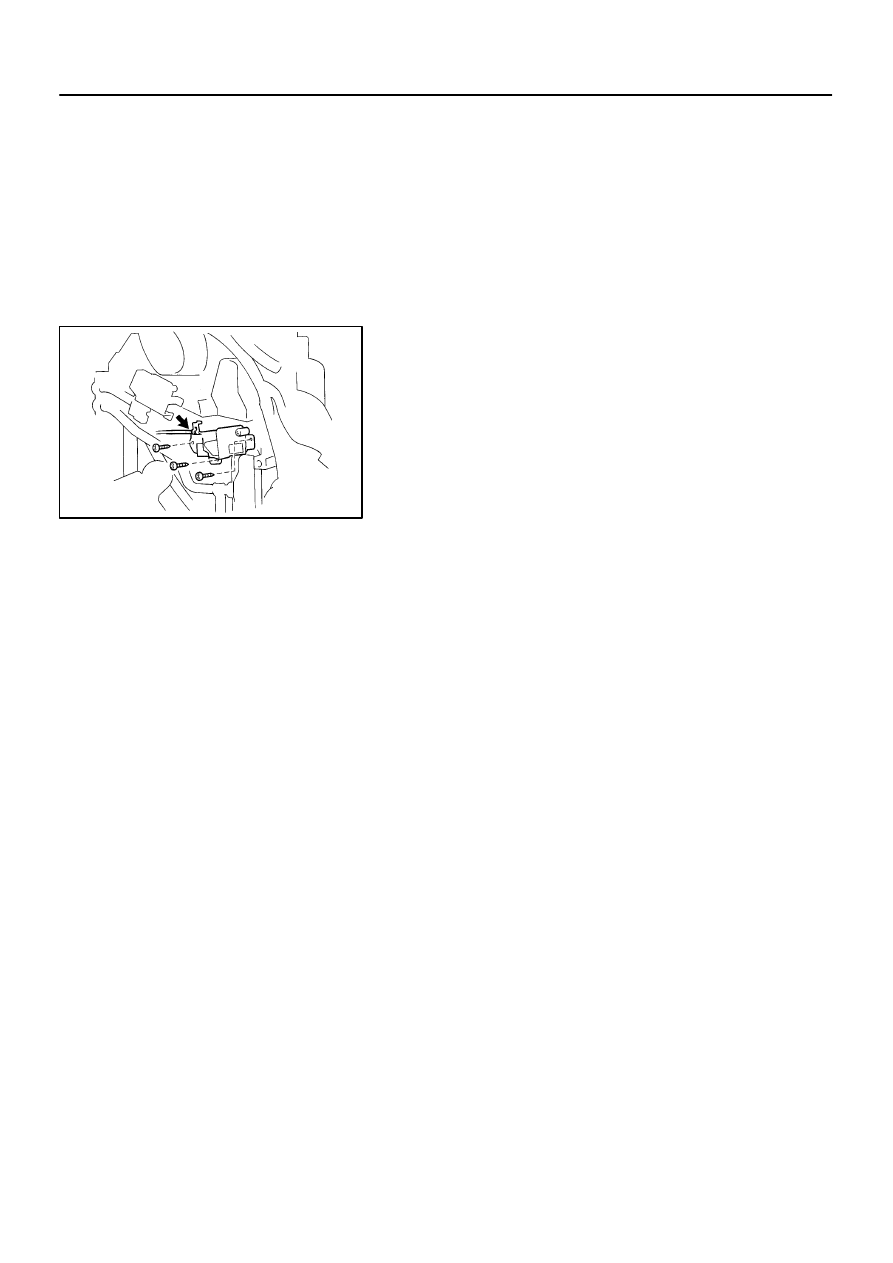

REMOVE AIR MIX SERVOMOTOR

(a)

Disconnect the connector.

(b)

Remove the 3 screws and servomotor, then disconnect
the control cable.

AC0B0–01

AC–74

–

AIR CONDITIONING

AIR MIX SERVOMOTOR

1631

1997 LEXUS ES300   (RM511U)

INSPECTION

1.

INSPECT AIR MIX SERVOMOTOR CIRCUIT
(See page

DI–563

)

2.

INSPECT AIR MIX DAMPER POSITION SENSOR CIRCUIT
(See page

DI–557

)

AC0B1–01

–

AIR CONDITIONING

AIR MIX SERVOMOTOR

AC–75

1632

1997 LEXUS ES300   (RM511U)

INSTALLATION

Installation is in the reverse order of removal (See page

AC–73

).
