CHASSIS AND BODY

11

REPAIR

HEADLINING

Service repair no - 76.64.01

Remove

1. Remove spare wheel.
2. Remove rear seat belt upper guide brackets and

inertia reel assemblies.

3. Fold rear seat backrest forward. Recline front

seats.

4. Disconnect battery negative lead.
5. Remove two roof lamp assemblies. Remove

interior lamp mounting panel if sunroof is fitted.

6. Remove rear view mirror.
7. Remove two sun visors and centre retaining

bracket.

8. Remove passenger grab handles.

Sunroof vehicles: Remove edge trim and clips
from roof opening.

9. With assistance support front of headlining.

Remove two plastic retaining clips above rear
door.

10. Remove two plastic retaining clips securing rear

end of headlining near upper tailgate hinges.

11. Pull headlining forward to clear rear quarter trim.

Lower headlining,disconnect electrical leads
from speakers.

12. Remove headlining through tailgate.

CAUTION: To assist removal tilt headlining
at an angle. DO NOT flex headlining as
damage may occur.

Refit

13. Reverse removal procedure.

Sunroof vehicles: Secure headlining around
roof opening with edging finisher.

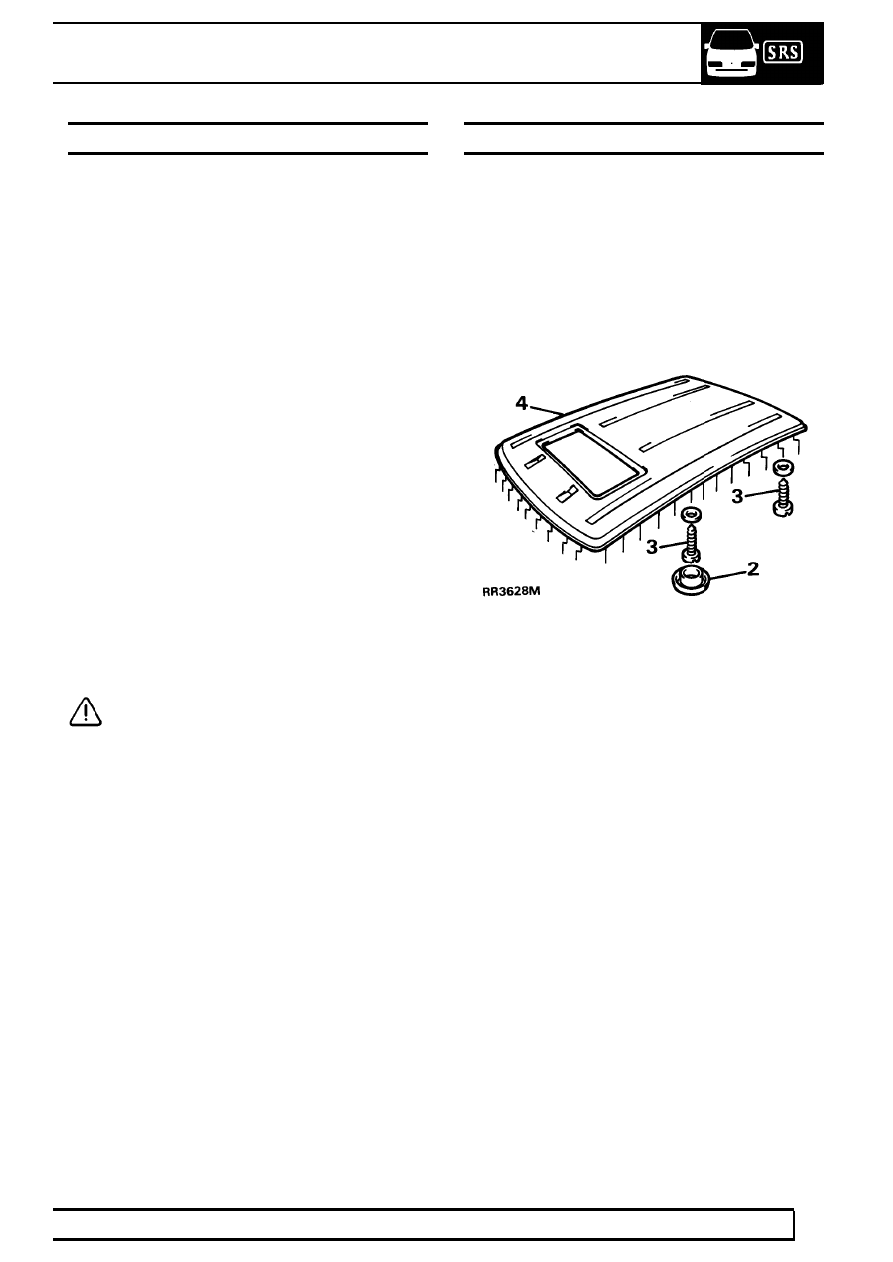

ROOF PANEL

Service repair no - 76.10.13

Remove

1. Remove headlining.

See Headlining

2. Remove blanking plugs from rail above door

frames to access screws.

3. Remove the screws washers from around inner

edge of roof panel.

4. With assistance lift roof panel from body.

Remove sealant from roof and body mating
faces.

Refit

5. Apply sealant to roof and body mating faces.
6. Reverse removal procedure.

76

CHASSIS AND BODY

12

REPAIR

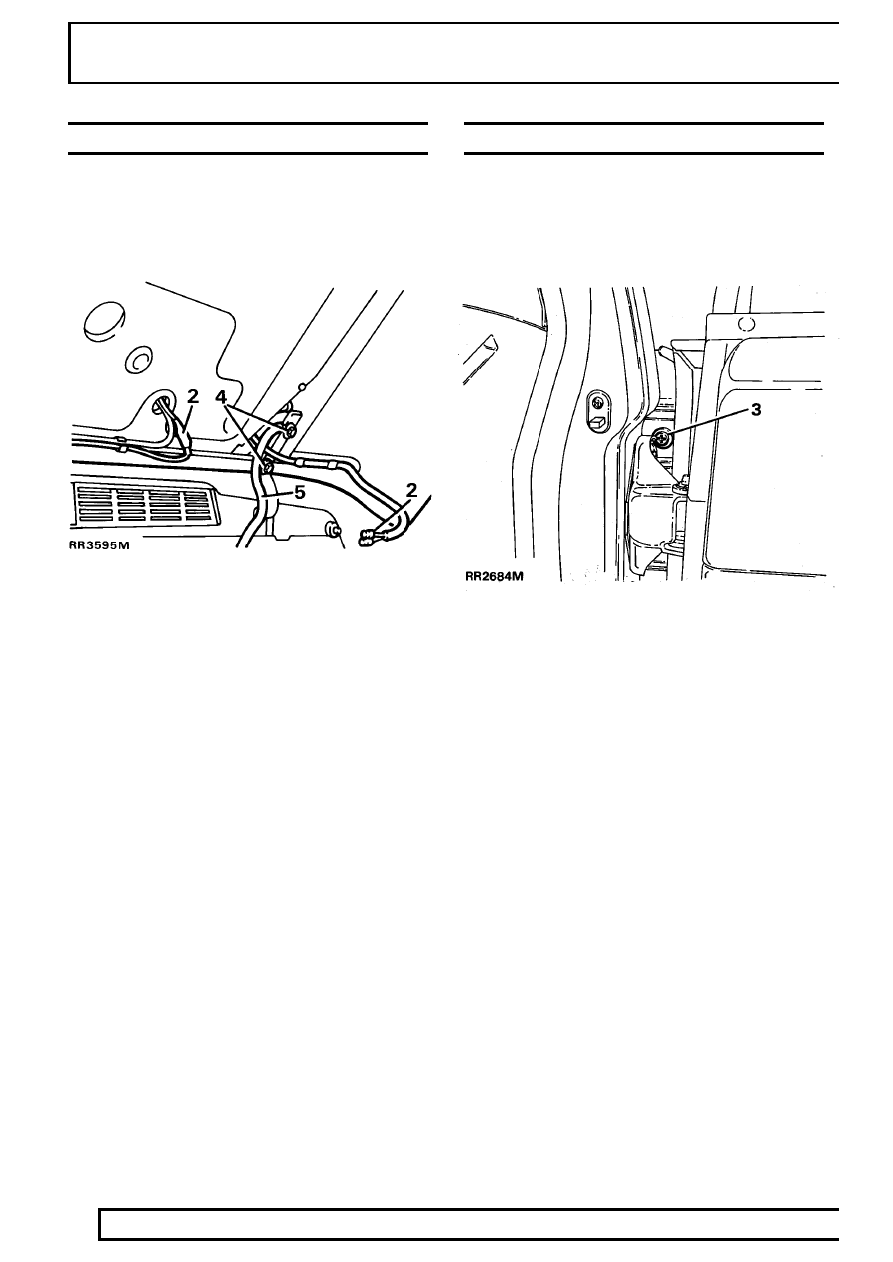

BONNET

Service repair no - 76.16.01

Remove

1. Disconnect battery negative lead.

2. Disconnect electrical leads to under

bonnet[hood] lamp and heated washer jets.

3. Disconnect windscreen washer tube at ’T’ joint.
4. With assistance release four bolts securing

bonnet[hood] to hinges. Note ground strap
located onto left hinge for reassembly. Lift
bonnet[hood] clear of vehicle.

Refit

5. Fit bonnet[hood] ensure ground strap is refitted.

Before final tightening of bolts align bonnet[hood]
with decker[cowl] panel, wing[fender] and front
grille.

6. Reverse removal procedure.

DECKER PANEL

Service repair no - 76.10.35

Remove

1. Disconnect battery negative lead.
2. Remove bonnet[hood].

See Bonnet

3. Remove wiper arms and two nuts securing

wheel boxes to decker[cowl] panel. Remove two
exterior sealing rubbers.

4. Remove nine screws securing front of

decker[cowl] panel.

CHASSIS AND BODY

13

REPAIR

5. Remove four bolts,spring and plain washers

retaining decker[cowl] panel to wing[fender]s.

6. With assistance place a tube over each hinge

and lower to enable decker[cowl] panel to be
removed. Slowly return hinges to upright
position.

WARNING: Gradually let hinges return to
upright position to prevent possibility of
personal injury or damage.

Refit

7. Reverse removal procedure.
8. Using a soft blunt implement ease windscreen

rubber onto top of decker[cowl] panel.

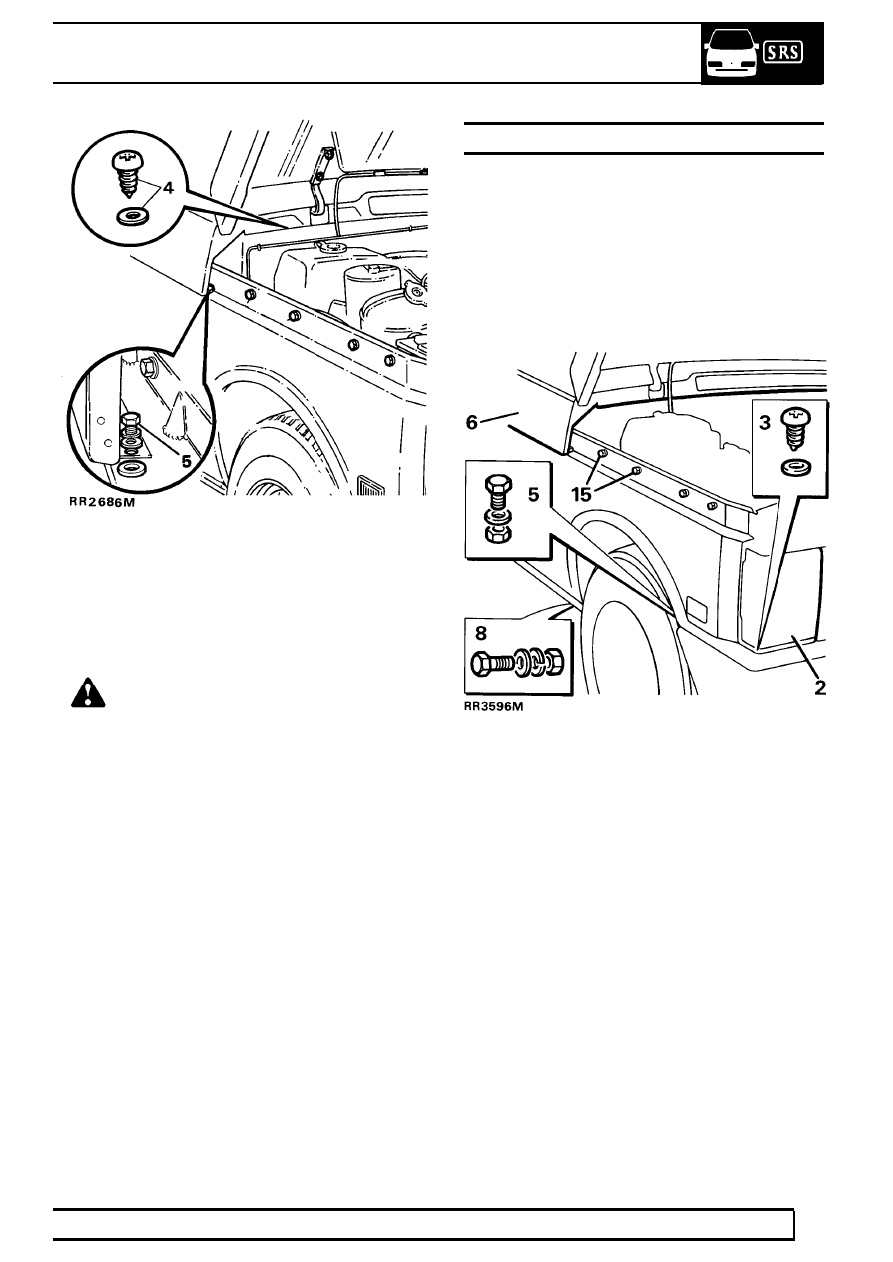

FRONT WING

Service repair no - 76.10.24

Remove

1. Remove wheel arch liner.

See Front Wheel

Arch Liner

2. Remove side light and flash lamp assembly.

See ELECTRICAL, Repair, Side Light and
Flash Lamp Assembly and bulb

3. Remove screws, plain washers from bottom of

side light recess.

4. Remove fixings securing bumper end cap.

Remove moulding from bumper.

5. Remove bolt which secures spoiler to front

wheel arch.

6. Release decker[cowl] panel.

See Decker Panel

7. Remove five nuts, bolts, plain and spring

washers securing wing[fender] to valance.

8. Remove two bolts, plain washers, securing sill

finisher to bottom of wing[fender].

76

CHASSIS AND BODY

14

REPAIR

9. Remove two screws securing wing[fender] to ’A’

post. Located near door hinges.

Refit

10. Apply suitable protection to wing[fender] inner.

Apply sealant to mating faces.

11. Before tightening wing[fender] bolts ensure

wing[fender] aligns with edge of front door.

12. Reverse removal procedure.

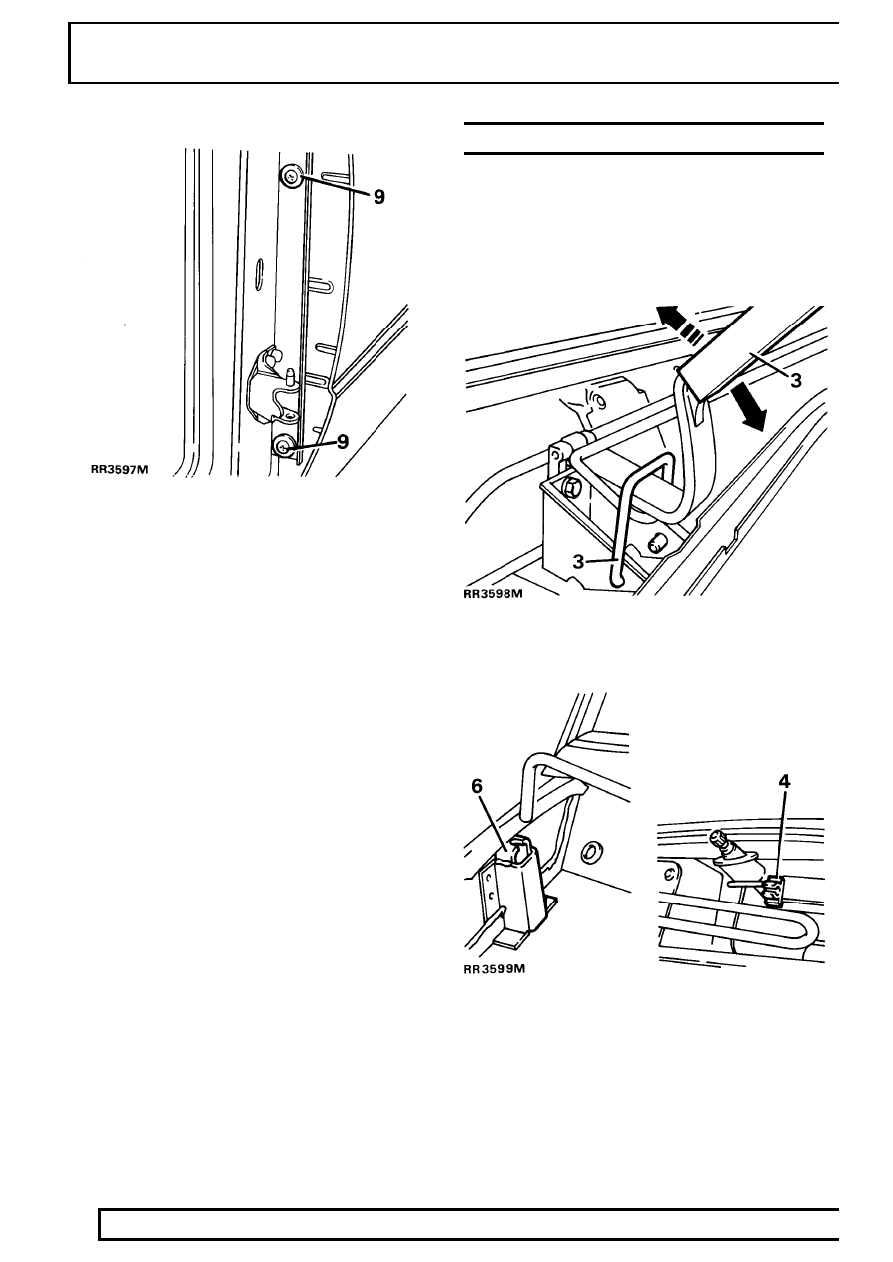

ASSISTED BONNET LIFT

Service repair no - 76.16.11

Remove

1. Remove bonnet[hood].

See Bonnet

2. Remove decker[cowl] panel.

See Decker

Panel

3. Place a tube over each hinge and lower to

remove stop bracket. Slowly return hinges to
upright position.

4. Release torsion bar from retaining clip.
5. Move torsion bar so it releases from hinge.
6. Release torsion bar from retaining bracket.
