CLUTCH

3

REPAIR

Refit

7. Fit the master cylinder and fixings.
8. Fit push-rod to pedal and retain with clevis pin

and washer.

9. Raise fasica fuse box panel.

10. Fit fluid pipe to master cylinder.
11. Bleed system.

See Bleed Hydraulic System

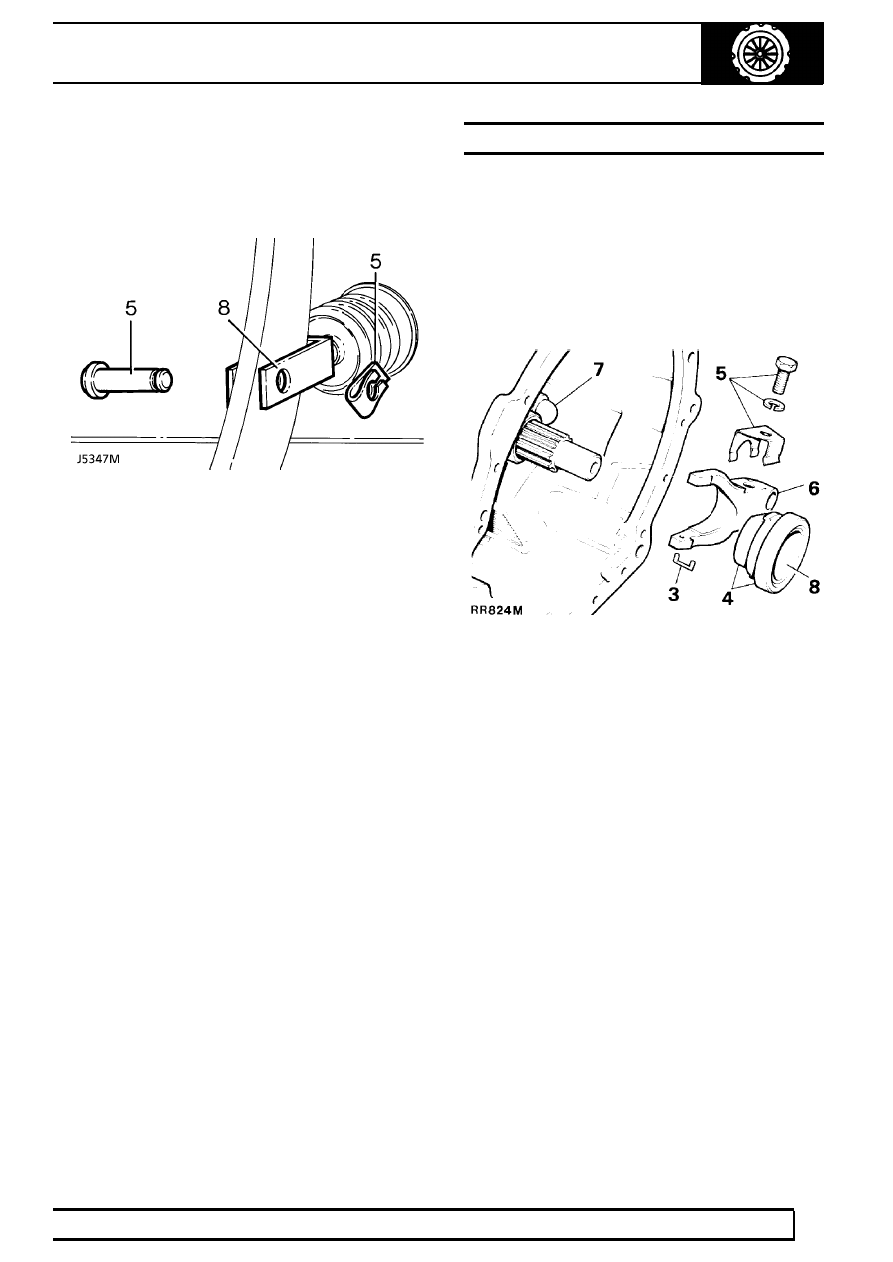

RELEASE BEARING ASSEMBLY

Service repair no - 33.10.07

Remove

1. Remove gearbox.

See MANUAL GEARBOX,

Repair, R380 Manual Gearbox

2. Remove clutch slave cylinder.

See Slave

Cylinder

3. Withdraw retainer staple.

4. Withdraw bearing and sleeve. If required, press

bearing off sleeve. Fit replacement bearing with
domed face outwards from sleeve.

5. Remove spring clip and fixings.
6. Withdraw release lever assembly.

Refit

7. Smear pivot with grease and fit release lever and

retain with spring clip and bolt.

8. Smear release bearing sleeve inner diameter

with molybdenum disulphide base grease.

9. Reverse removal procedure. 1 to 4.

33

CLUTCH

4

REPAIR

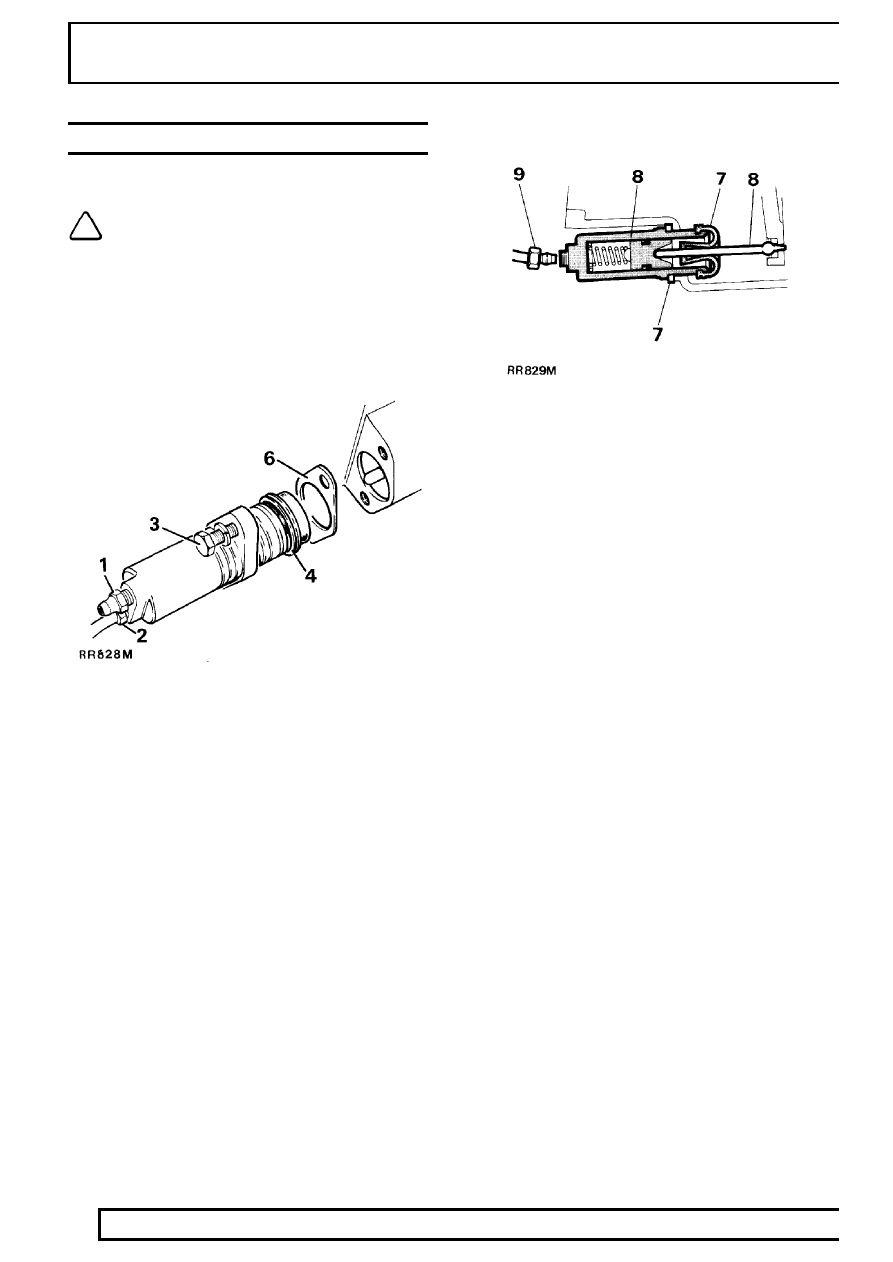

SLAVE CYLINDER

Service repair no - 33.35.01

NOTE: All flexible and pipe connections
and joints should be tightened to

15 Nm.

Remove

1. Evacuate clutch system fluid at slave cylinder

bleed valve.

2. Disconnect fluid pipe.
3. Remove two securing bolts and withdraw slave

cylinder and backing plate.

4. If dust cover is not withdrawn with slave cylinder,

withdraw it from bell housing.

Refit

5. Withdraw dust cover and backing plate from

slave cylinder.

6. Coat both sides of backing plate with Hylomar

P232M waterproof jointing compound.

7. Locate backing plate and dust cover in position

on slave cylinder.

8. Fit slave cylinder, engaging push-rod through

centre of dust cover and with bleed screw
uppermost.

9. Reconnect fluid pipe.

10. Replenish and bleed clutch hydraulic system.
11. Check for fluid leaks with pedal depressed and

also with system at rest.

CLUTCH

5

REPAIR

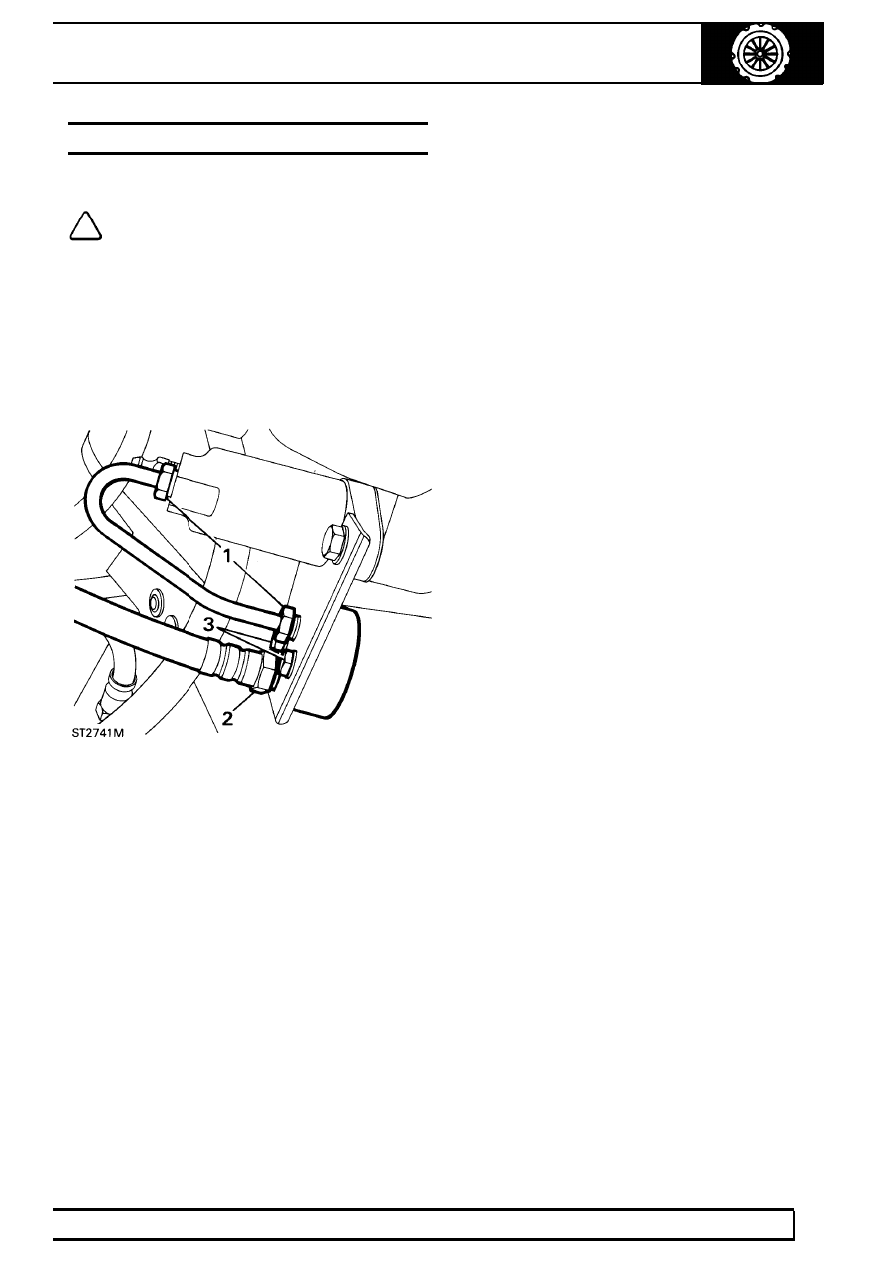

RENEWING HYDRAULIC DAMPER - Tdi

Service repair no - 33.15.05

NOTE: All flexible and pipe connections
and joints should be tightened to

15 Nm.

Remove

1. Remove the pipe between the slave cylinder and

damper.

2. Disconnect the hydraulic hose from the damper.
3. Remove the two bolts securing the damper to

the bracket and remove the damper.

Refit

4. Fit the damper to the bracket and tighten the two

bolts.

5. Connect the flexible hose to the damper.
6. Fit the pipe to the slave cylinder and to the

damper and tighten the unions.

7. Bleed the hydraulic system.

CLUTCH

1

OVERHAUL

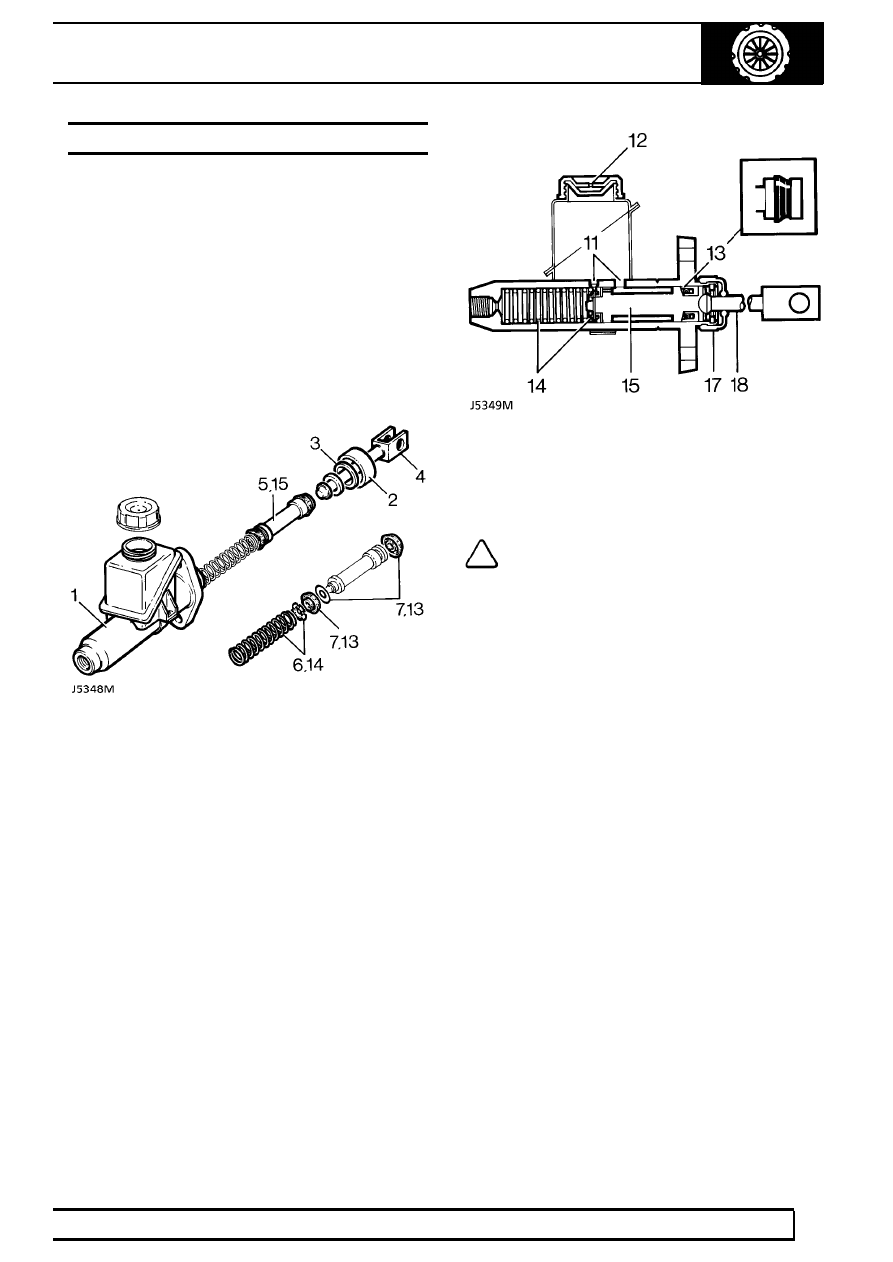

MASTER CYLINDER

Service repair no - 30.20.07

1. Remove master cylinder.

See Repair, Master

Cylinder

Disassemble

2. Pull back and remove rubber sealing boot from

pushrod.

3. Depress push-rod and extract circlip.
4. Withdraw push-rod assembly.
5. Withdraw piston assembly.
6. Withdraw retainer and spring.

7. Remove two piston seals and piston washer.

Inspecting

8. Clean all components thoroughly using new

hydraulic fluid. Dry, using a lint-free cloth.

9. Examine cylinder bore and piston, ensure they

are smooth to touch with no corrosion, score
marks or ridges. If in doubt, fit new components.

10. Fit new seals and rubber boot. These items are

all included in master cylinder overhaul kit.

11. Ensure that feed and by-pass ports are not

obstructed.

12. Ensure reservoir cap vent is clear.

Assemble

NOTE: Cleanliness is essential, ensure
hands are free of grease or dirt. Lubricate
cylinder bore and rubber seals with new

hydraulic fluid before assembly.

13. Fit a new piston washer and thinner of two piston

seals, lip last, over piston nose, up against
drilled piston head. Fit thicker seal into piston
groove with lip facing towards seal at opposite
end.

14. Insert spring and retainer into master cylinder

bore.

15. Insert piston and seal assembly, ensuring that

seal lips do not bend back.

16. Reverse 3 and 4, correctly locating circlip.
17. Stretch new rubber boot over push-rod, pack

with rubber grease. Fit securely into locating
groove.

18. Operate push-rod several times to ensure free

movement of internal components.

19. Fit master cylinder.
