PANEL REPAIRS
1
BODY DIMENSIONS

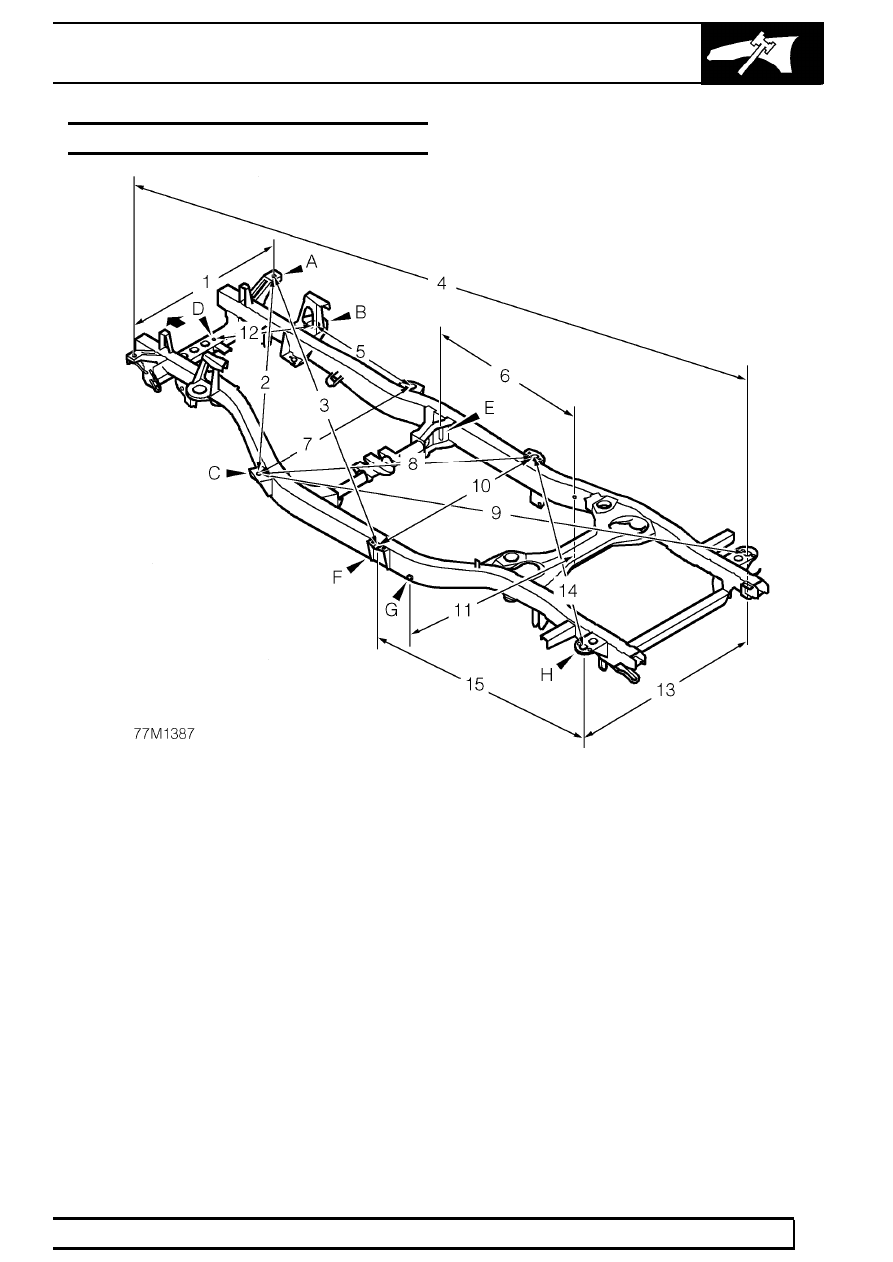

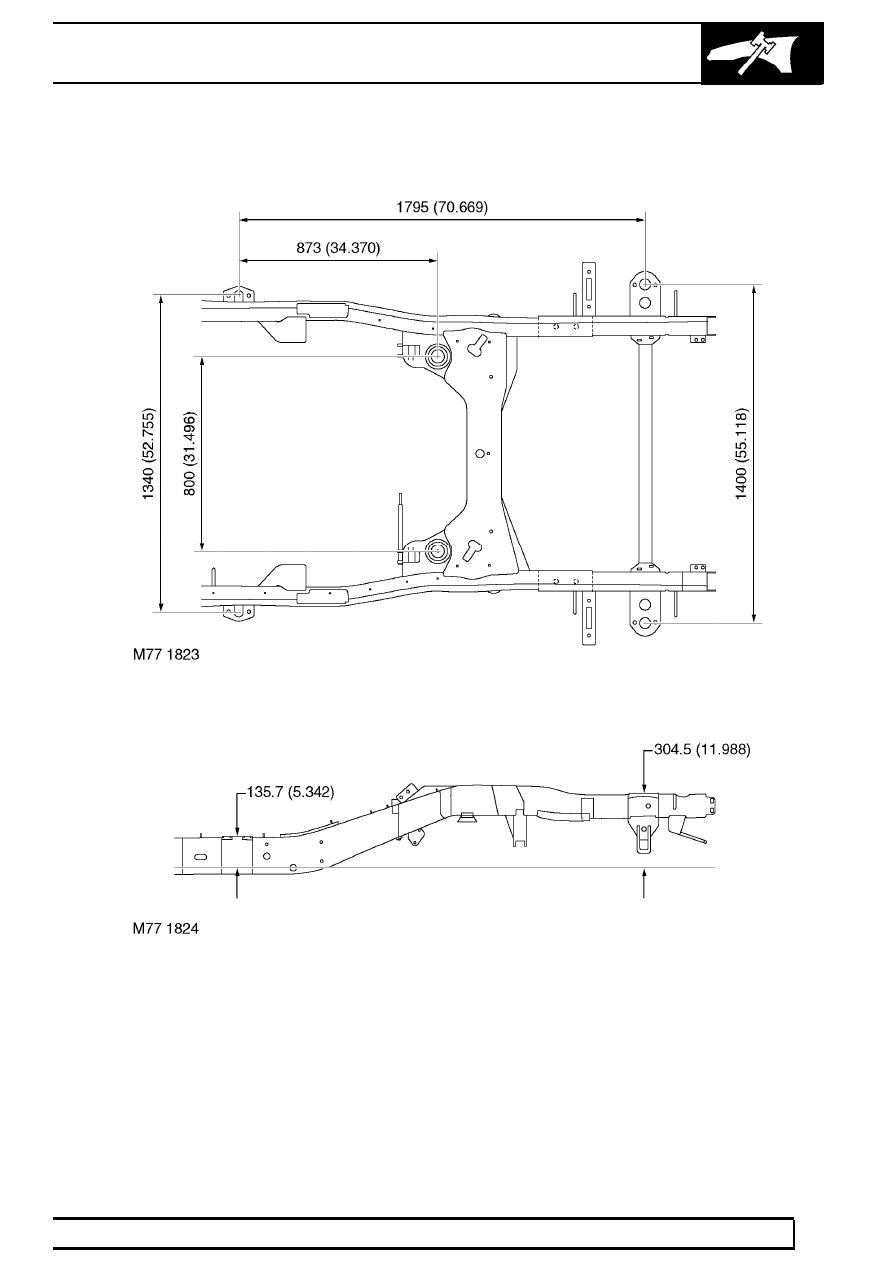

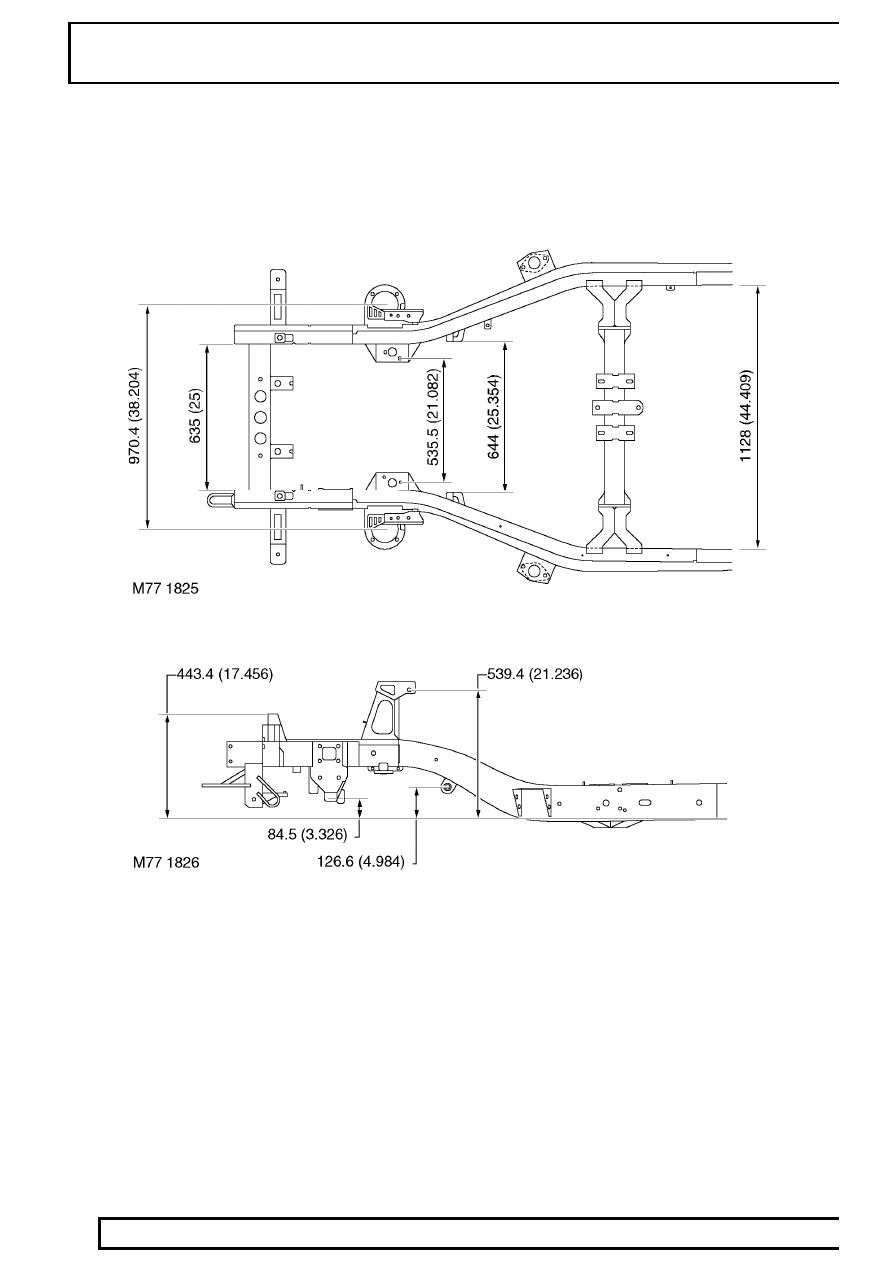

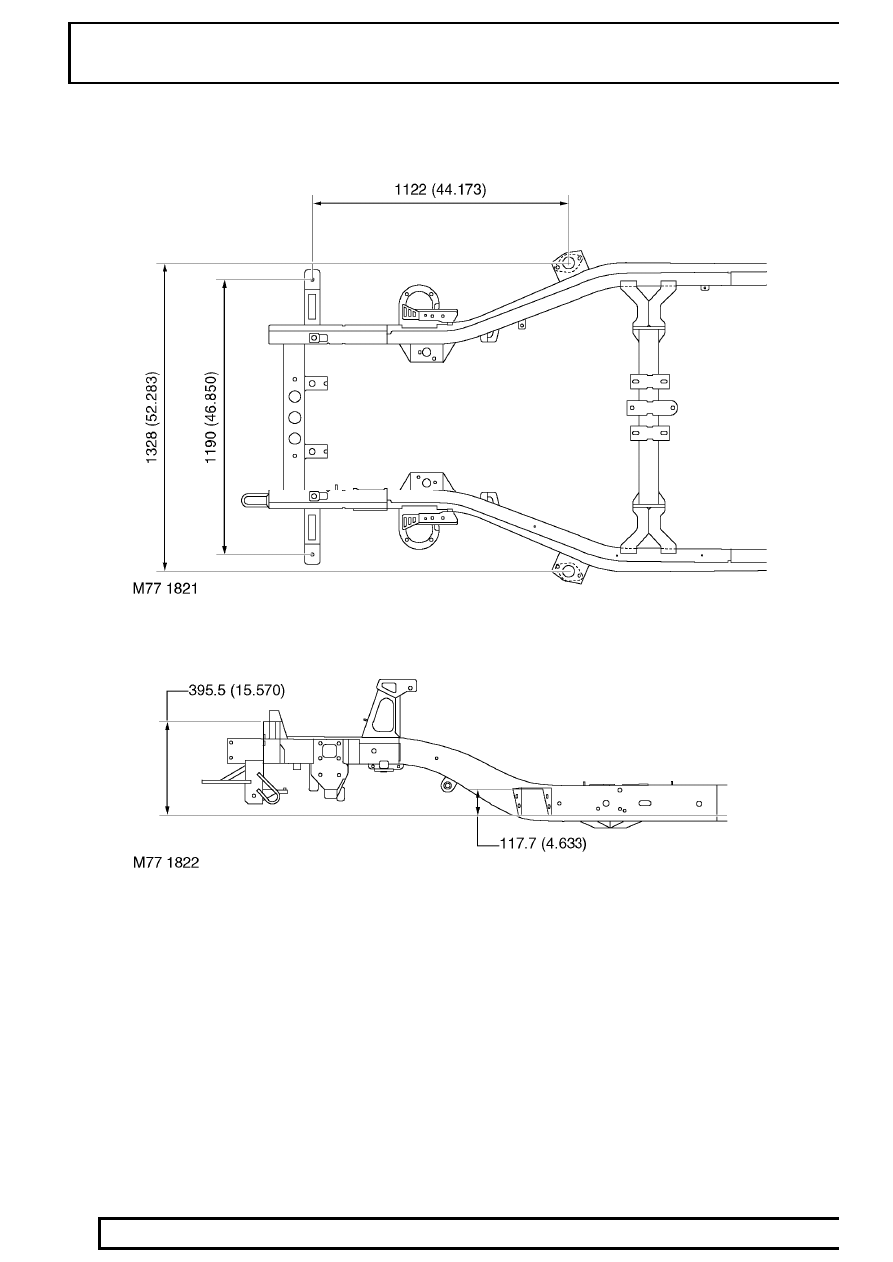

CHASSIS DIMENSIONS
1. 1190 (46.8)
2. 1709 (67.3)
3. 2527 (99.6)
4. 4173 (164.4)
5. 717 (28.3)
6. 982.5 (38.7)
7. 1328 (52.3)
8. 1697 (66.9)
9. 3159 (124.5)
10. 1340 (52.8)
11. 1302 (51.3)
12. 665 (26.2)
13. 1400 (55.2)
14. 2364 (93.1)
15. 1803 (71.0)
A = No. 1 body mount RH and LH
B = Front spring seat RH and LH
C = No. 2 body mount RH and LH
D = Front crossmember piercing RH and LH
E = Front radius arm mounting bracket RH and LH
F =
No. 3 body mount RH and LH
G = Rear composite link mounting bracket RH and
LH
H = No. 5 body mount RH and LH
Dimensions shown outside brackets are metric measurements (millimetres) and those inside brackets are imperial
measurements (inches).
Where holes are used as a point of measurement the dimensions shown are always taken from the hole centre.
