PANEL REPAIRS

1

INFORMATION

BODY REPAIRS

Body shells are of welded construction and bolted to
the chassis frame. Front and rear sections of the shell
are designed as ’energy absorbing’ zones. This
means they are designed to deform progressively
when subjected to impact in order to minimise the
likelihood of injury to vehicle occupants.

It is essential that design dimensions and strength are
restored in accident rectification. It is important that
neither structural weakness nor excessive local
stiffness are introduced into the vehicle during body or
chassis repair.

Repairs usually involve a combination of operations
ranging from straightening procedures to renewal of
either individual panels or panel assemblies. The
repairer will determine the repair method and this
decision will take into account a balance of economics
between labour and material costs and the availability
of repair facilities in both equipment and skills. It may
also involve considerations of vehicles down-time,
replacement vehicle availability and repair turn-around
time.

It is expected that a repairer will select the best and
most economic repair method possible, making use of
the facilities available. The instructions given are
intended to assist a skilled body repairer by expanding
approved procedures for panel replacement with the
objective of restoring the vehicle to a safe running
condition and effecting a repair which is visually
acceptable and which, even to the experienced eye,
does not advertise the fact that it has been damaged.

This does not necessarily mean that the repaired
vehicle will be identical in all respects with original
factory build. Repair facilities cannot always duplicate
methods of construction used during production.

Operations covered in this Manual do not include
reference to testing the vehicle after repair. It is
essential that work is inspected and suspension
geometry checked after completion and if necessary a
road test of the vehicle is carried out, particularly
where safety related items are concerned.

Where major units have been disconnected or
removed, it is necessary to ensure that fluid levels are
checked and topped up when necessary. It is also
necessary to ensure that the repaired vehicle is in a
roadworthy condition in respect of tyre pressures,
lights, washer fluid etc.

Body repairs often involve the removal of mechanical
and electrical units as well as associated wiring. See
BODY and SRS sections.

Taking into consideration the differences in body
styles, steering and suspension systems as well as
engine and suspension layouts, the location of the
following components as applicable to a particular
vehicle is critical:

Front suspension upper damper
mountings.

Front suspension or sub frame mountings.

Engine mounting on RH and LH chassis
longitudinals.

Rear suspension upper damper mountings.

Rear suspension mountings or lower
pivots.

Steering rack mountings.

Additional points which can be used to check
alignment and assembly are:

Inner holes in crossmember - side - main
floor.

Holes in valance front assembly.

Body to chassis mounting holes.

Holes in rear floor.

Holes in rear lower panels or extension
rear floor.

Fuel tank mountings.

Apertures for windscreen, backlight, bonnet and doors
can be checked by offering up an undamaged
component as a gauge and also by measuring known
dimensions. See BODY DIMENSIONS section.

77

PANEL REPAIRS

NEW RANGE ROVER

2

INFORMATION

Straightening

Whenever possible, structural members should be
cold straightened under tension. Do not attempt to
straighten with a single pull, but rework the damaged
area using a series of pulls, releasing tension between
each stage and using the opportunity to check
alignment.

Body jig

Unless damage is limited to cosmetic panels, all repair
work to body members must be carried out on a body
jig, to ensure that impact damage has not spread into
more remote parts of the body structure. Mounting on
a jig will also ensure that the straightening and panel
replacement procedures do not cause further
distortion. If original dimensions cannot be
satisfactorily restored by these methods, damaged
structural members should be replaced. Damaged
areas should be cut away using a high speed saw,
NOT an oxy-acetylene torch.

As a rule, body dimensions are symmetrical about the
centre line. A good initial check for distortion is
therefore to measure diagonally and to investigate
apparent differences in dimensions.

Inspection

Every accident produces individual differences in
damage. Each repair is influenced by the extent of the
damage and by the facilities and equipment available
for its rectification.

Most accident damage can be visually inspected and
the approximate extent of the damage assessed.
Sometimes deformation will extend beyond the area
of direct damage, and the severity of this must be
accurately established so that steps may be taken to
restore critical body components to their original
dimensions.

An initial check of critical dimensions can be carried
out by means of drop checks or (preferably) trammels.
Gauges are available which will check accurately for
body twist. Where repairs necessitate renewal of a
critical body component it is recommended that a
body jig is used.

PANEL REPAIRS

3

INFORMATION

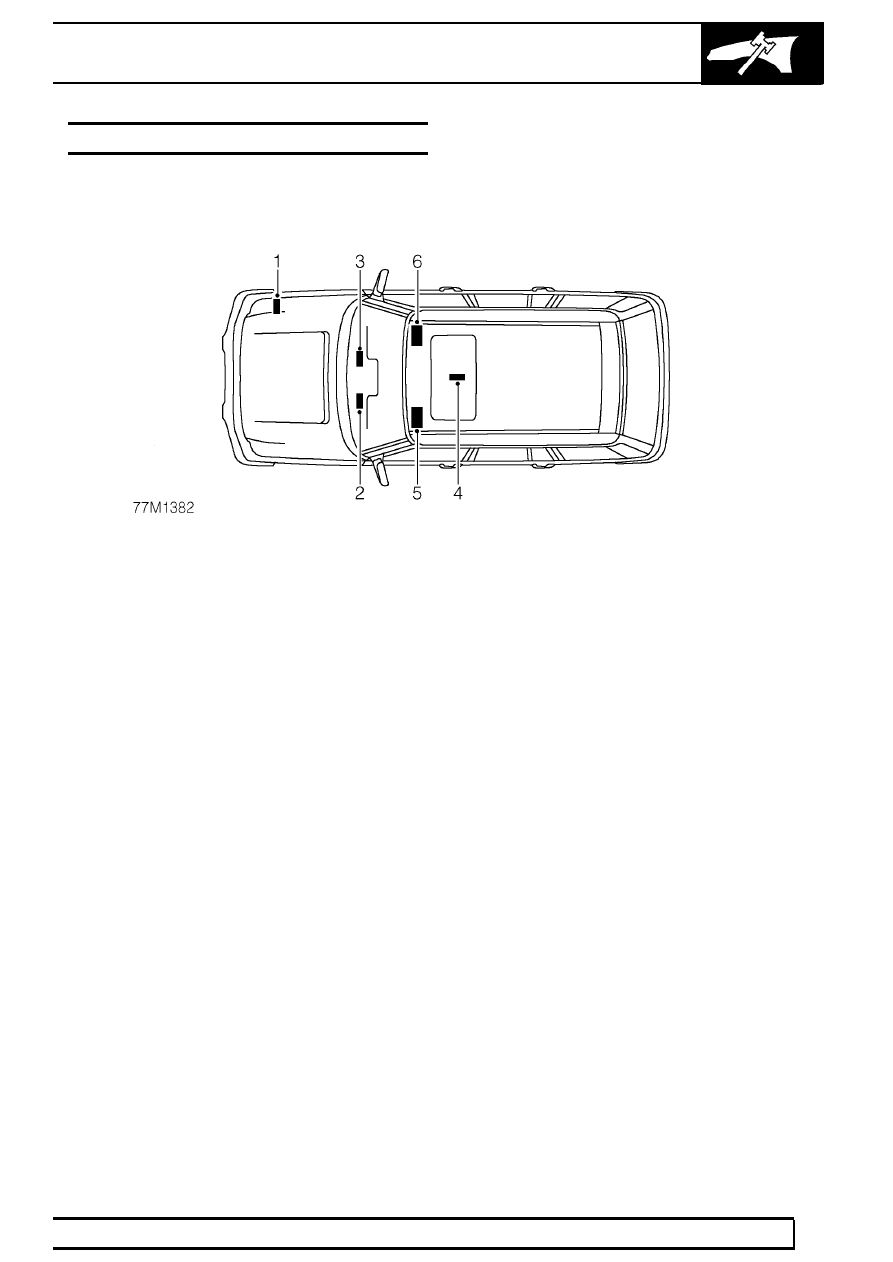

ELECTRONIC CONTROL UNITS

1. Engine control module (ECM) (at RH of engine

bay)

2. ABS ECU (behind access plate at LH of fascia)
3. Cruise control ECU (behind fascia closing panel)

4. Diagnostic control unit (on centre tunnel)
5. Electronic suspension ECU (beneath LH front

seat)

6. Body electrical control module (BeCM) (beneath

RH front seat)

The electronic control units fitted to Range Rover
vehicles make it advisable to follow suitable
precautions prior to carrying out welding repair
operations. All electronic control units must be
diconnected before any welding operations take
place. Harsh conditions of heat and vibration may be
generated during these operations which could cause
damage to the units. See ELECTRICAL
PRECAUTIONS section.

In particular, it is essential to follow the appropriate
precautions when disconnecting or removing the SRS
diagnostic unit. See SUPPLEMENTARY RESTRAINT
SYSTEM, Precautions section.
