CHASSIS AND BODY

91

REPAIR

CAUTION: Manoeuvre knife blade around 3
parcel tray support clips. Ensure aerial
amplifier and alarm receiver plugs do not

become damaged.

15. Attach suction lifters to glass. With assistance,

cut through sealant along top of edge glass.

16. Remove rear quarter glass.

Removal Using Cutting Wire Handles

17. Protect surrounding area of body using masking

tape.

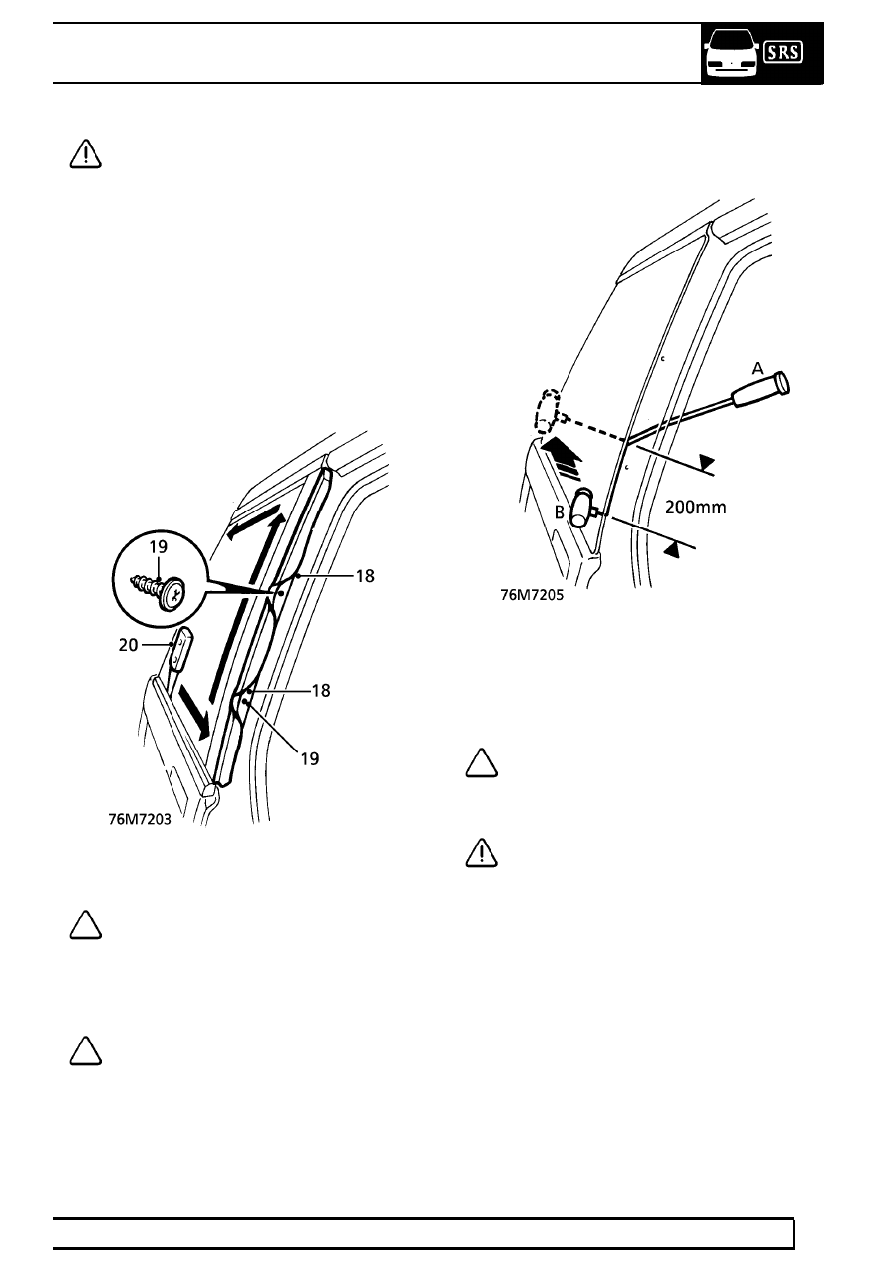

18. Lift flip seal to reveal trim fixings.
19. Remove 2 screws securing exterior trim to ’D’

post.

20. Carefully cut through adhesive bead between

glass and trim using a sharp knife.

NOTE: A reciprocating blade cutting tool,
such as ’FEIN Special Cutter’ will ease the
removal of the trim. Use a cranked blade

with an effective length of not more than 22mm.

21. Remove and discard quarter light trim.

NOTE: Rear quarter lights are supplied
with finisher fitted. Finisher is not
available separately.

22. Using a sharp knife, cut through P.U. sealer at

forward edge of quarter glass.

23. Insert cutting wire through knife cut and fit

handles, as shown, with approximately 200mm
of wire between handles.

24. With assistance, wedge tube of handles ’A’

between glass and body, ahead of the cutting
position, and carefully cut the sealer using a
continuous pull on handle ’B’ from the outside.
Cut side and top edges first. Attach suction lifters
as last sealant is cut.

NOTE: When cutting along lower edge,
manoeuvre wire between glass edge and
parcel tray support clips to reduce strain

on wire.

CAUTION: Ensure aerial amplifier and
alarm receiver plugs do not become
damaged.

25. Remove rear quarter glass.

76

CHASSIS AND BODY

NEW RANGE ROVER

92

REPAIR

Refit

26. Carefully cut old sealer from body flange to

obtain a smooth surface, approximately 2mm
thick.

CAUTION: Do not cut down to painted
surface.

27. Position new quarter glass on felt covered

surface.

28. Apply cleaning solvent to sealing surface of

glass and body flange.

CAUTION: Do not touch cleaned or primed
areas with fingers.

29. Stick 4 self adhesive spacers on the inside edge

of glass at corners.

30. Shake primer tins for at least 30 seconds. Apply

body primer to sealing surface of body flange
using supplied applicator.

31. Apply glass primer to sealing surface of glass.

CAUTION: Use a separate applicator for
each primer.

32. Remove lid from sealer cartridge, remove

crystals, pierce membrane and fit pre-cut nozzle.
Fit cartridge to applicator gun.

NOTE: The profile of the nozzle must be
modified slightly to produce the required
bead section.

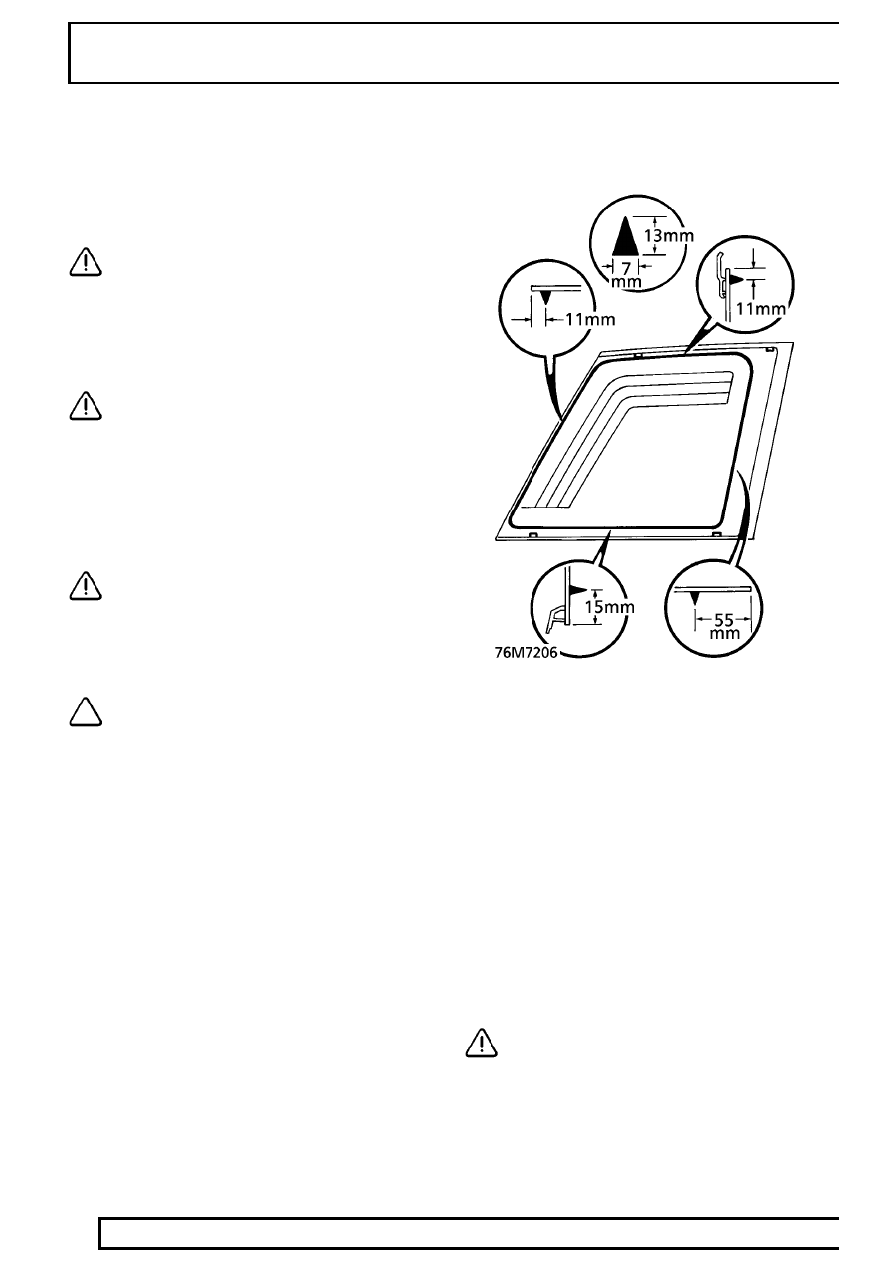

33. Apply a continuous bead of sealer to rear quarter

glass as shown.

34. Fit suction lifters to glass.
35. With assistance, fit glass and align to body. Seat

glass to spacer rubbers.

36. Remove protective tape.
37. Secure exterior trim to ’D’ post with screws.
38. Connect aerial amplifier plug.
39. R.H. glass only: Connect alarm receiver plug.
40. Position headlining and engage beneath tailgate

flip seal.

41. Secure headlining to ’E’ posts with trim studs.
42. Fit exterior ’E’ post finisher.

See this section.

43. Fit grab handle.

See this section.

44. Fit side interior lamp assembly.

See

ELECTRICAL, Repair.

45. Fit ’B’ post upper trim.

See this section.

46. Fit ’E’ post trims.

See this section.

47. Fit parcel tray support.

See this section.

CAUTION: A curing time of 6 hours is
recommended. During this time, leave the
windows open and DO NOT slam the

doors.

77 - PANEL REPAIRS

CONTENTS

Page

INFORMATION

BODY REPAIRS

1

..................................................................................................

ELECTRONIC CONTROL UNITS

3

........................................................................

BODY DIMENSIONS

CHASSIS DIMENSIONS

1

......................................................................................

SEALING AND CORROSION PROTECTION

APPROVED MATERIALS

1

....................................................................................

MATERIALS APPLICATIONS

4

..............................................................................

APPLICATION EQUIPMENT

9

...............................................................................

MATERIALS GUIDE

11

...........................................................................................

CORROSION PROTECTION

13

.............................................................................

CAVITY WAX

19

.....................................................................................................

SEALANTS AND ADHESIVES

20

..........................................................................

SEALING CHARTS

23

............................................................................................

PANELS

SERVICE CONDITION OF PANELS

1

...................................................................

PROCEDURES

GENERAL WELDING PRECAUTIONS

1

...............................................................

PANEL REPLACEMENT PROCEDURE

2

..............................................................

REPAIR

VALANCE AND WHEEL ARCH

1

...........................................................................

FRONT SIDE MEMBER

2

.......................................................................................

UPPER ’A’ POST PANEL AND REPAIR PANEL

3

.................................................

LOWER ’A’ POST AND REINFORCEMENT

4

........................................................

’BC’ POST REPAIR PANEL

5

.................................................................................

’BC’ POST REINFORCEMENT

6

............................................................................

’BC’ POST INNER PANELS

7

.................................................................................

ROOF ASSEMBLY

8

...............................................................................................

OUTER REAR QUARTER PANEL

9

......................................................................

INNER REAR QUARTER PANEL

10

......................................................................

REAR QUARTER REPAIR PANEL

11

....................................................................

LOAD FLOOR SIDE

12

...........................................................................................

77 - PANEL REPAIRS

CONTENTS

Page

REAR CROSSMEMBER PANEL

12

.......................................................................

REAR FLOOR EXTENSION PANEL

13

.................................................................

SPARE WHEEL CLOSING PANEL

13

...................................................................

LOWER PANEL

14

.................................................................................................

PAINT

PAINT PROCEDURES

1

........................................................................................
