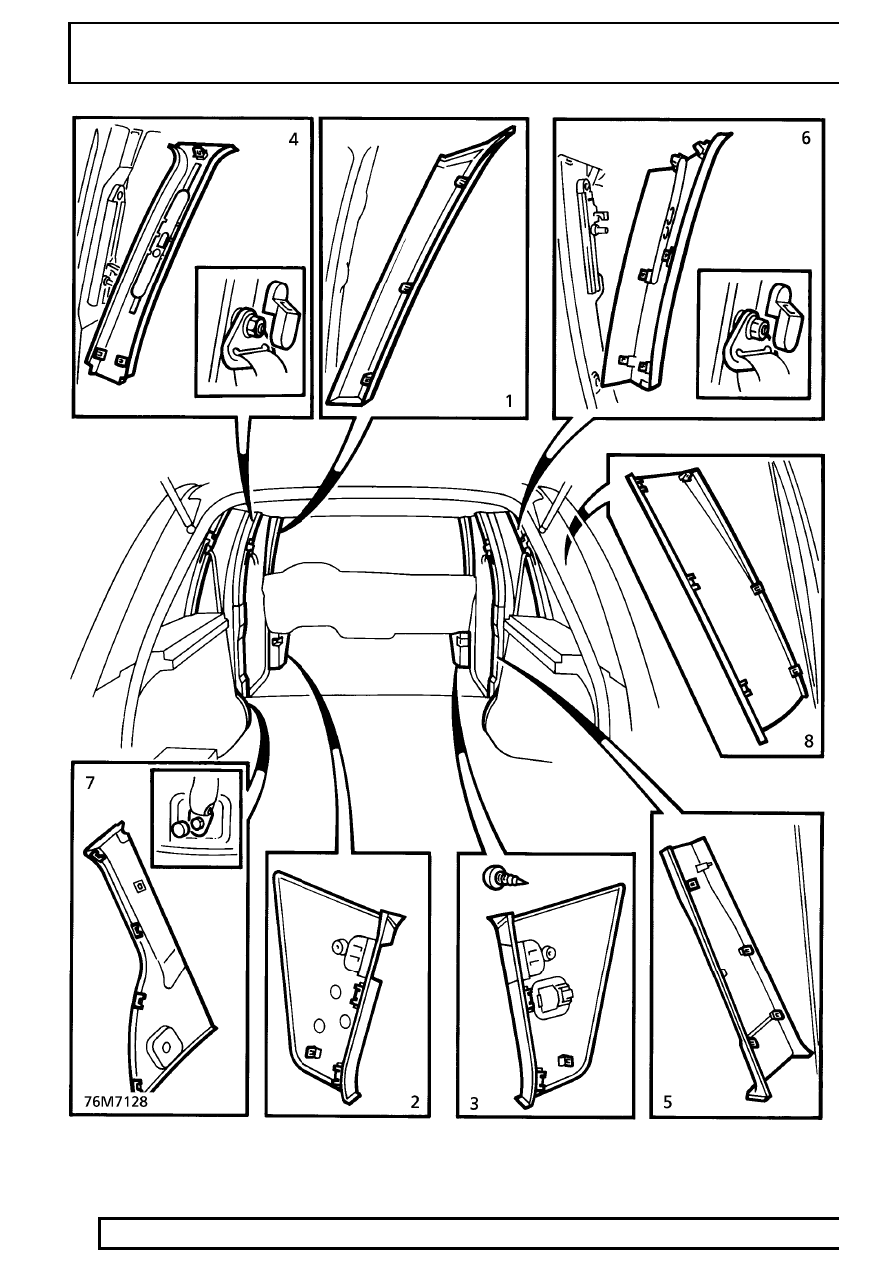

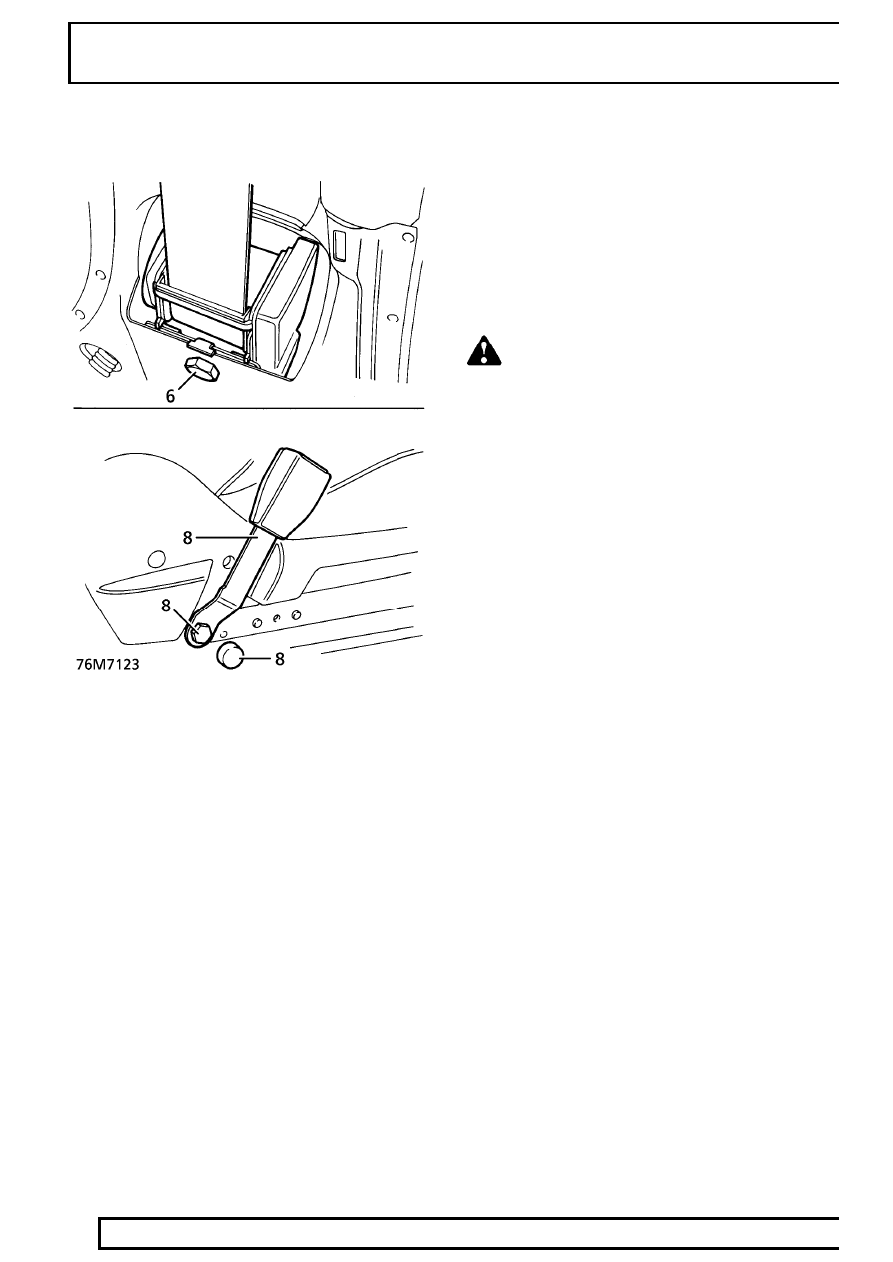

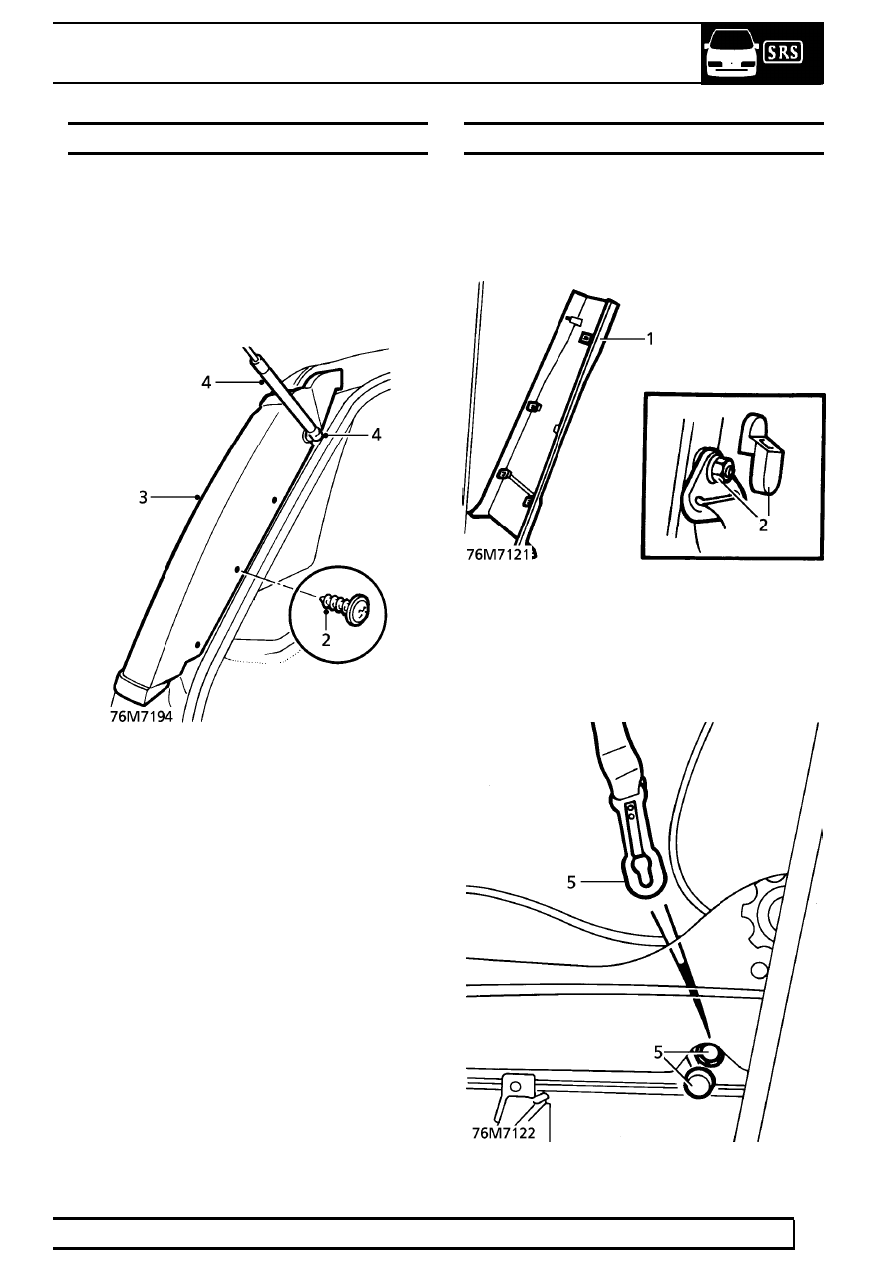

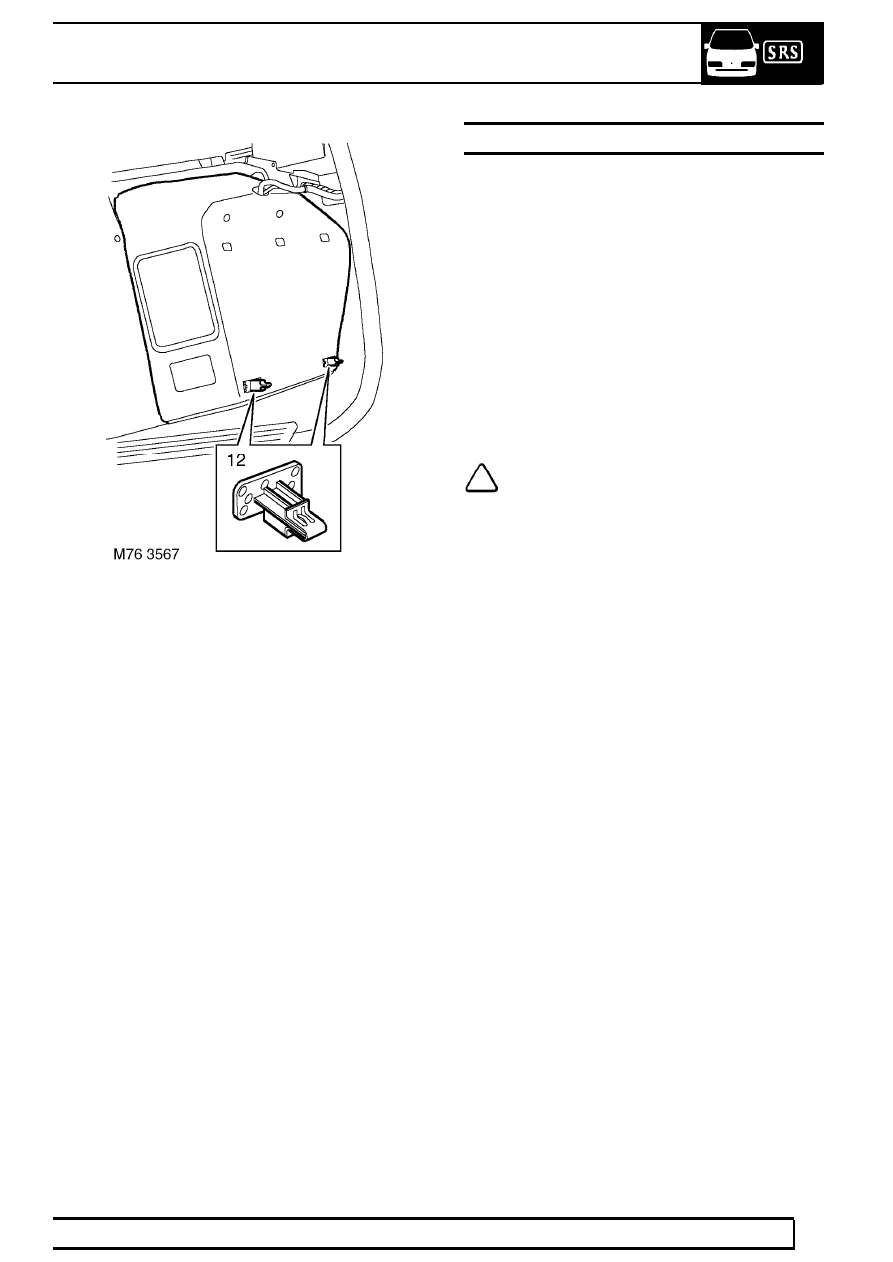

CHASSIS AND BODY 55 REPAIR 9. Release 2 clips securing trim to body and remove trim. Refit 10. Position trim panel to body and secure clips. through correct holes, Push trim into place and 13. Position mounting bracket behind trim and feed mounted threads through holes in trim. 14. Position power socket bracket, feed wires through bracket and connect socket. 15. Fit socket to bracket and secure clip and screw. position GPS receiver to mounting plate. 17. Fit satellite navigation computer bracket to trim and secure with nuts. 18. Fit satellite navigation trim cover and secure with screws and trim clips. 19. Fit satellite navigation computer. See ELECTRICAL, Repair. 20. Fit parcel tray support. See this section. A,B,D and E POST TRIMS Remove 1. Remove aperture seal from appropriate area. upper trims) 4. Release retaining clips, remove finisher. Refit 5. Position finisher, secure with retaining clips and screws. 6. Fit seat belt top mounting. Tighten to 25 Nm. (18lbf. ft) 7. Secure aperture seal. NOTE: Illustration 76M 7128 shows the 1. A post upper |
