Range Rover. Manual - part 241





CHASSIS AND BODY

59

REPAIR

FRONT SEAT BELT ADJUSTABLE MOUNTING

Service repair no - 76.73.26

Remove

1. Remove ’B’ post trim upper.

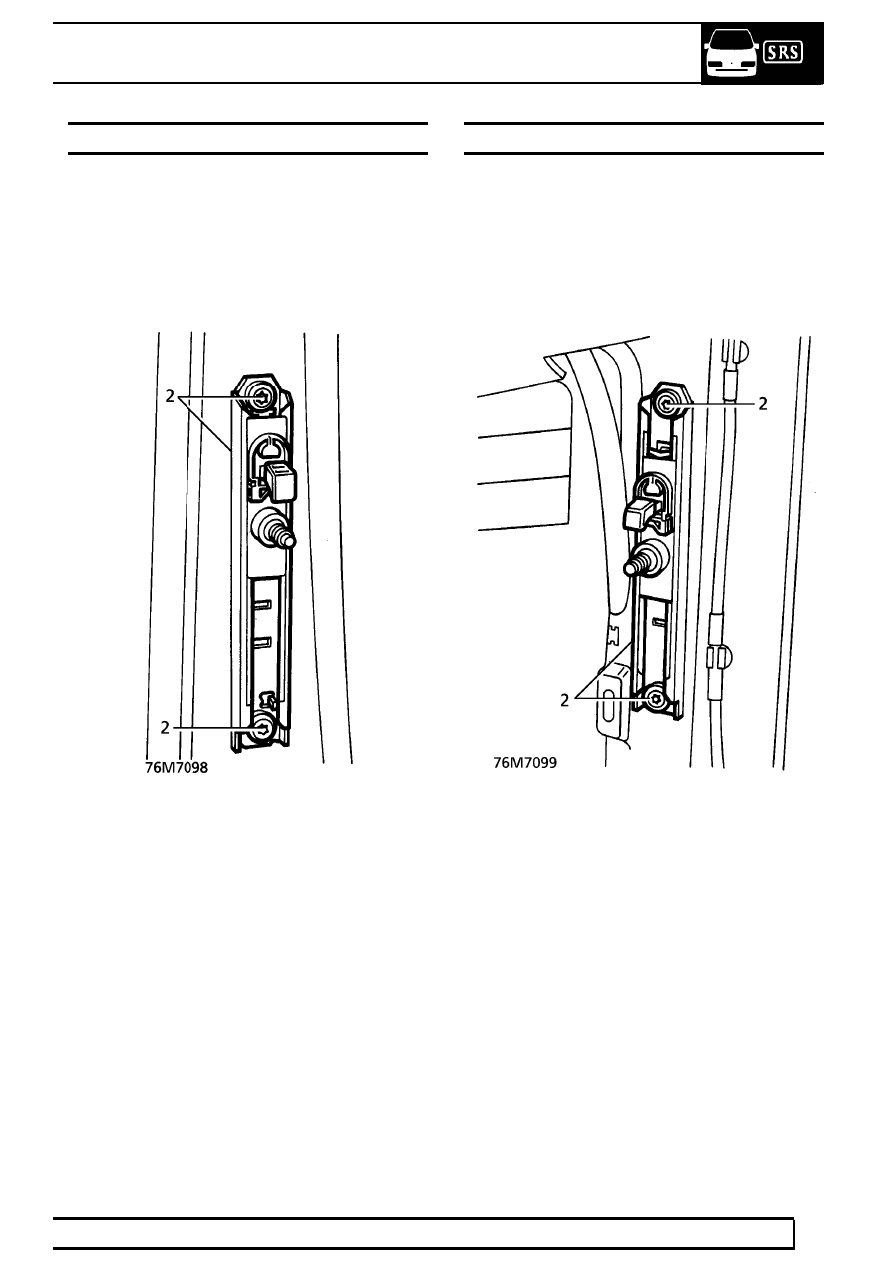

2. Remove 2 screws securing adjustable mounting.

Remove mounting.

Refit

3. Position adjustable mounting. Secure with

screws. Tighten to

25 Nm. (18 lbf.ft)

4. Fit ’B’ post trim upper.

SEAT BELT ADJUSTABLE MOUNTING - ’D’ POST

Service repair no - 76.73.36

Remove

1. Remove ’D’ post trim - upper.
2. Remove 2 screws securing adjustable mounting.

Remove mounting.

Refit

3. Position adjustable mounting. Secure with

screws. Tighten to

25 Nm. (18 lbf.ft)

4. Refit ’D’ post trim - upper.

76

CHASSIS AND BODY

NEW RANGE ROVER

60

REPAIR

REAR SEAT BELT - CENTRE

Service repair no - 76.73.20

Remove

1. Remove right hand rear seat.

See SEATS,

Repair.

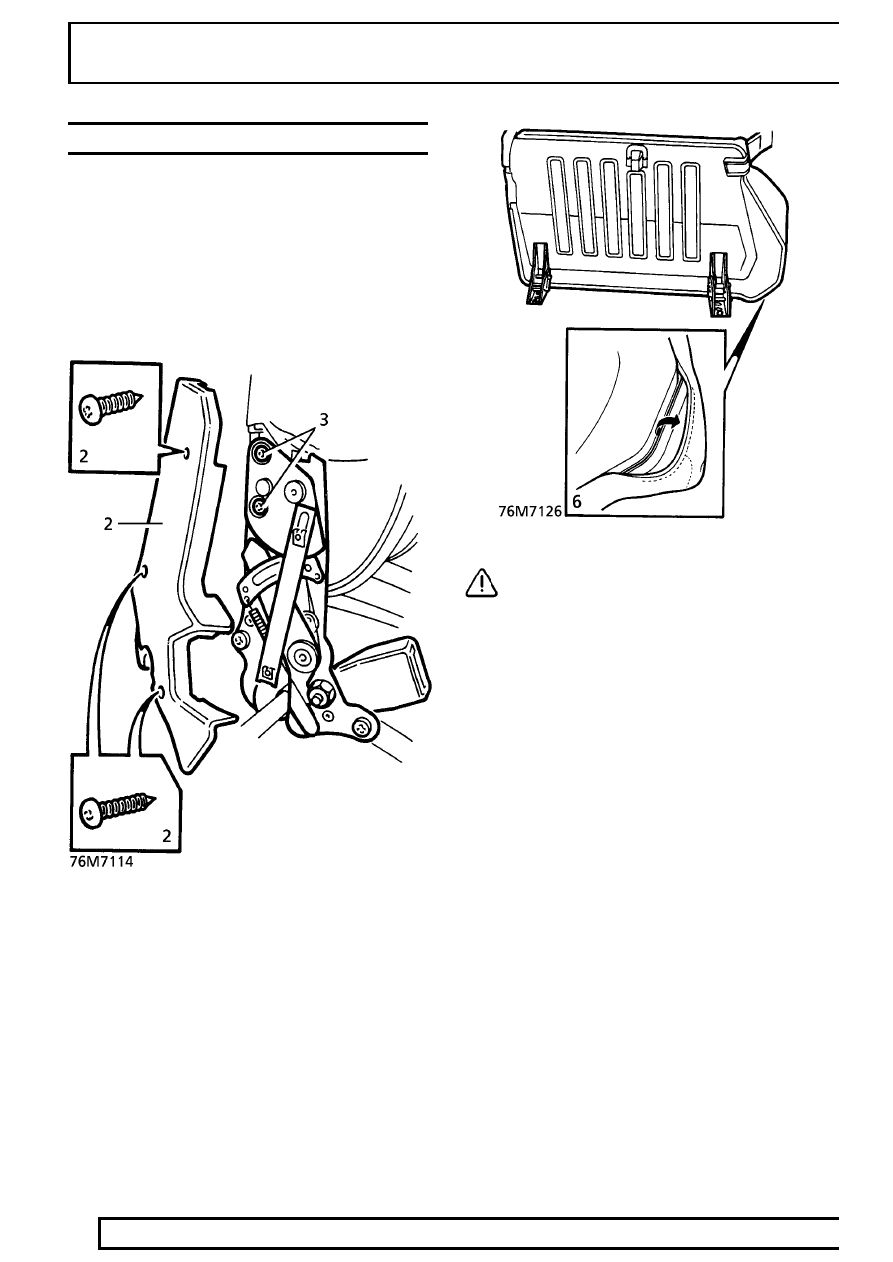

2. Remove 3 screws securing squab hinge cover.

Remove cover.

3. Remove 2 bolts securing squab to cushion

assembly.

4. Remove squab from cushion assembly.
5. Remove bolt and wave washer securing stalk to

squab hinge. Remove stalk. Collect plain
washer.

6. Release beaded edge of cushion cover from

seat pan flange. Remove cushion cover/foam
assembly.

CAUTION: Take care when releasing
cover/foam from belt anchorage finisher.

CHASSIS AND BODY

61

REPAIR

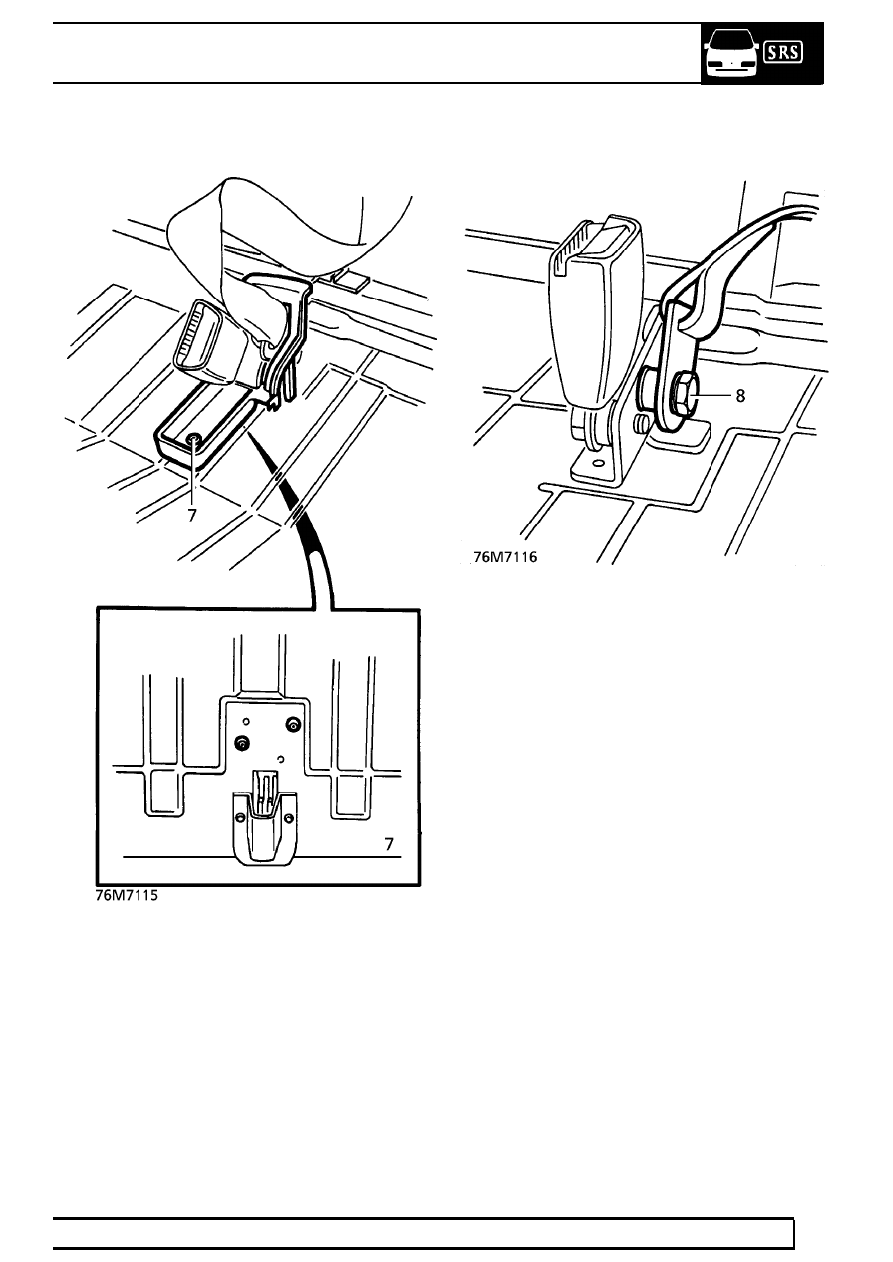

7. Remove 3 screws securing anchorage cover to

seat pan. Remove cover in 2 pieces.

8. Remove bolt securing seat belt to seat pan.

Remove belt, collect spacer.

Refit

9. Fit seat belt to seat pan. Secure with bolt and

spacer. Tighten to

35 Nm. (26 lbf.ft)

10. Fit seat belt anchorage cover. Secure with

screws.

11. Fit cushion assembly to seat pan. Secure

beaded edge of cover to seat pan flange.

12. Fit stalk to squab hinge. Secure with bolt.

Tighten to

35 Nm. (26 lbf.ft)

13. Position seat squab to cushion assembly.

Secure with bolts. Tighten to

45 Nm. (33 lbf.ft)

14. Refit squab hinge cover. Secure with screws.
15. Refit rear seat assembly.

See SEATS, Repair.

76

CHASSIS AND BODY

NEW RANGE ROVER

62

REPAIR

REAR SEAT BELT - LEFT HAND

Service repair no - 76.73.23

Remove

1. Remove parcel shelf support trim.

See this

section.

2. Remove ’D’ post lower trim.

See this section.

3. Remove cover and nut securing seat belt to

upper anchorage point.

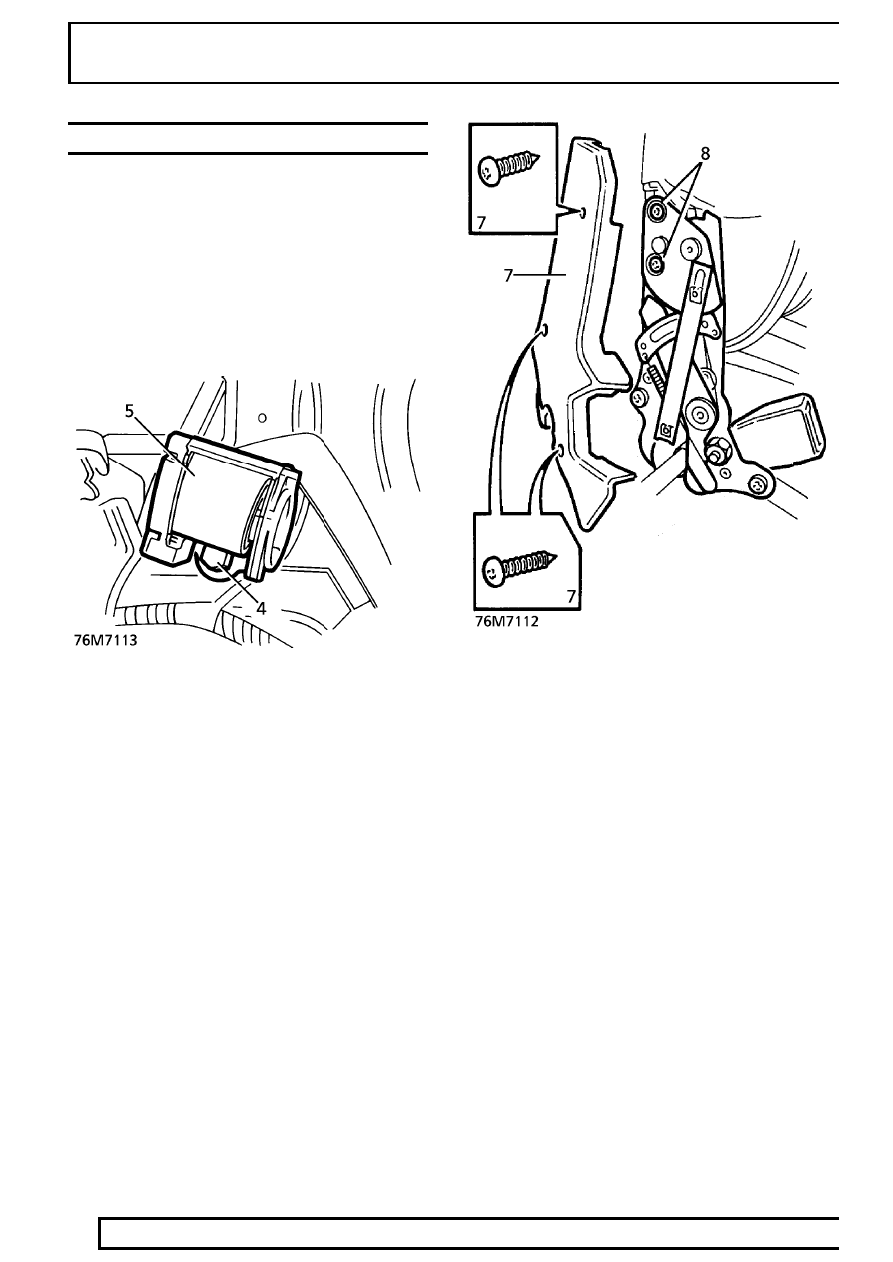

4. Remove bolt securing seat belt reel.

5. Remove seat belt reel.
6. Remove left hand rear seat.

See SEATS,

Repair.

7. Remove 3 screws securing squab hinge cover.

Remove cover.

8. Remove 2 bolts securing squab to cushion

assembly.

9. Remove squab from cushion assembly.

10. Remove bolt and wave washer securing stalk to

squab hinge.

11. Remove stalk. Collect plain washer.

Refit

12. Fit stalk to squab hinge. Secure with bolt.

Tighten to

35 Nm. (26 lbf.ft)

13. Position seat squab to cushion assembly.

Secure with bolts. Tighten to

45 Nm. (33 lbf.ft)

14. Refit squab hinge cover. Secure with screws.
15. Refit rear seat assembly.

See SEATS, Repair.

16. Position belt to upper anchorage point. Secure

with nut. Tighten to

25 Nm. (18 lbf.ft). Fit

cover.

17. Position seat belt reel. Secure with bolt. Tighten

to

35 Nm. (26 lbf.ft)

18. Fit ’D’ post lower trim.

See this section.

19. Fit parcel shelf support trim.

See this section.
