Range Rover. Manual - part 238





CHASSIS AND BODY

47

REPAIR

Refit Glove Box Lid

8. Position lid to glove box and secure with bolts

and square nuts.

9. Engage gas strut, secure with split pin.

Refit Glove Box Assembly

10. Position glove box assembly, connect lamp

multiplug. Secure cable latch.

11. Open glove box lid, align assembly to fascia.

Secure with screws.

12. Fit bolts securing hinges to fascia frame, do no

tighten.

13. Check alignment and latching of glove box lid,

adjusting hinges as necessary using central
adjusting screws.

14. Tighten screws, hinges to fascia.
15. Close glove box lid.
16. Position closing panel. Secure with scrivet

fasteners.

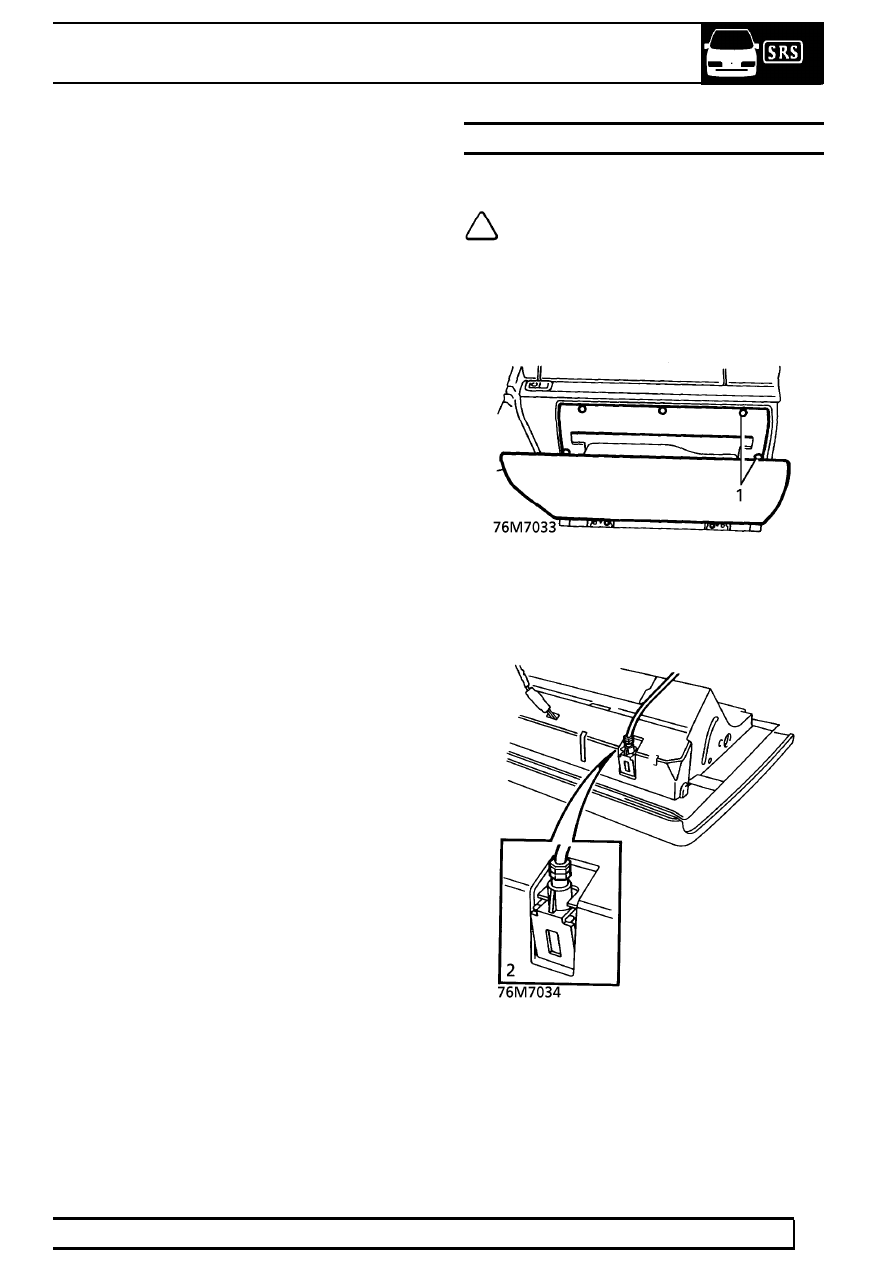

GLOVE BOX RELEASE CABLE

Service repair no - 76.52.14

NOTE: Release cables are supplied preset
and do not normally require adjustment.

Remove

1. Open glove box. Remove 5 screws securing

glove box liner to fascia.

2. Lower glove box liner. Release 2 clips to

disengage cable latch from location.

3. Remove finisher from lock.

76

CHASSIS AND BODY

NEW RANGE ROVER

48

REPAIR

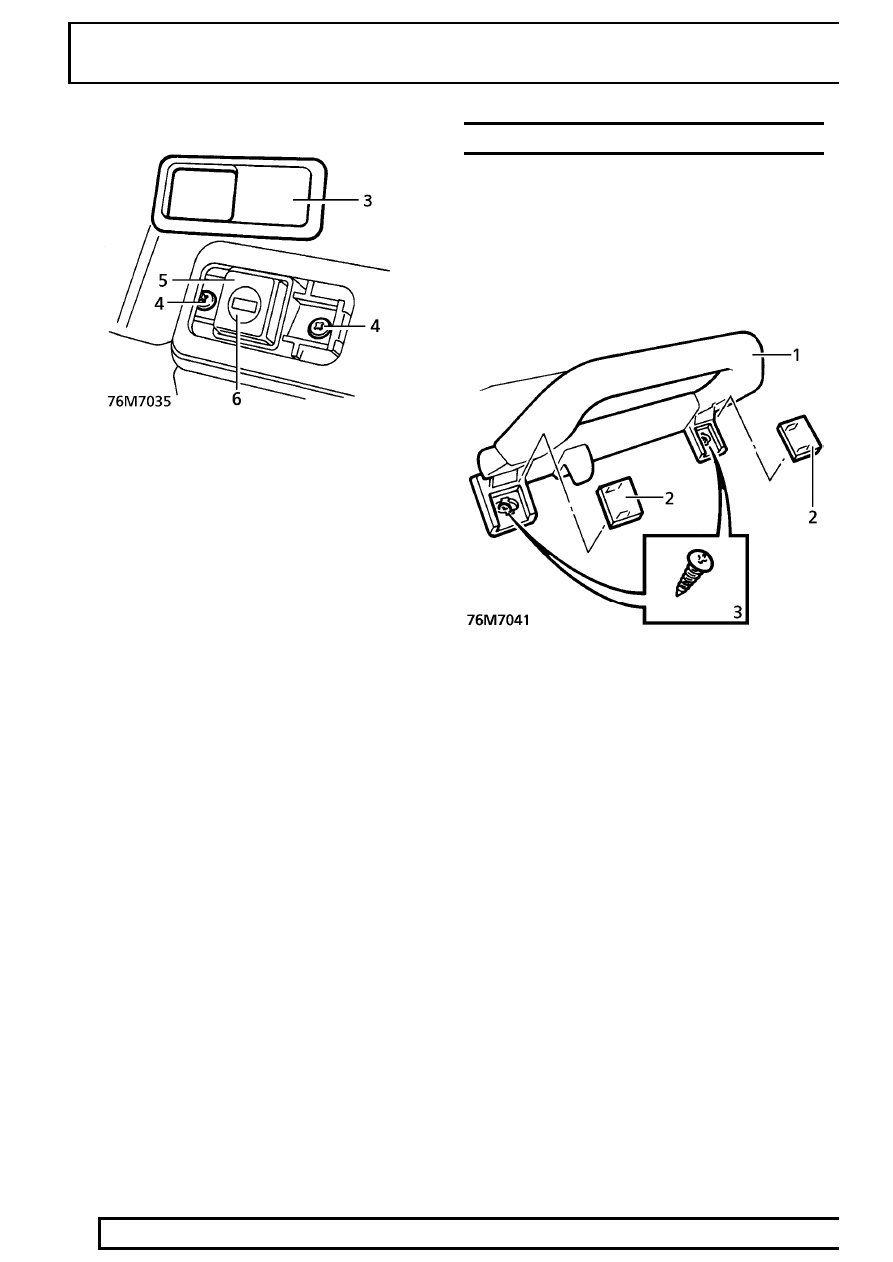

4. Remove 2 screws securing lock and withdraw

cable assembly from fascia.

5. Pry cover from lock button.
6. Insert key into lock, turn key through 45 degrees,

remove barrel.

Refit

7. Insert barrel, turn to engage in button.
8. Remove key, fit cover to lock button.
9. Route release cable assembly into fascia.

Engage cable latch to glove box.

10. Align glove box liner to fascia, tighten screws.
11. Close glove box lid.
12. Position glove box lock to fascia, check

operation of latch.

13. If adjustment is necessary, release lock from

fascia, loosen cable lock nut, adjust outer cable
length. Tighten cable lock nut.

14. Reposition lock to fascia. Recheck operation of

latch before securing lock with screws.

15. Fit finisher to lock.

GRAB HANDLE

Service repair no - 76.58.30

Remove

1. Pull down grab handle.
2. Remove 2 grab handle retaining screw access

covers.

3. Remove 2 screws, remove grab handle.

Refit

4. Position grab handle, fit 2 retaining screws.
5. Fit 2 retaining screw access covers.
6. Release grab handle.

CHASSIS AND BODY

49

REPAIR

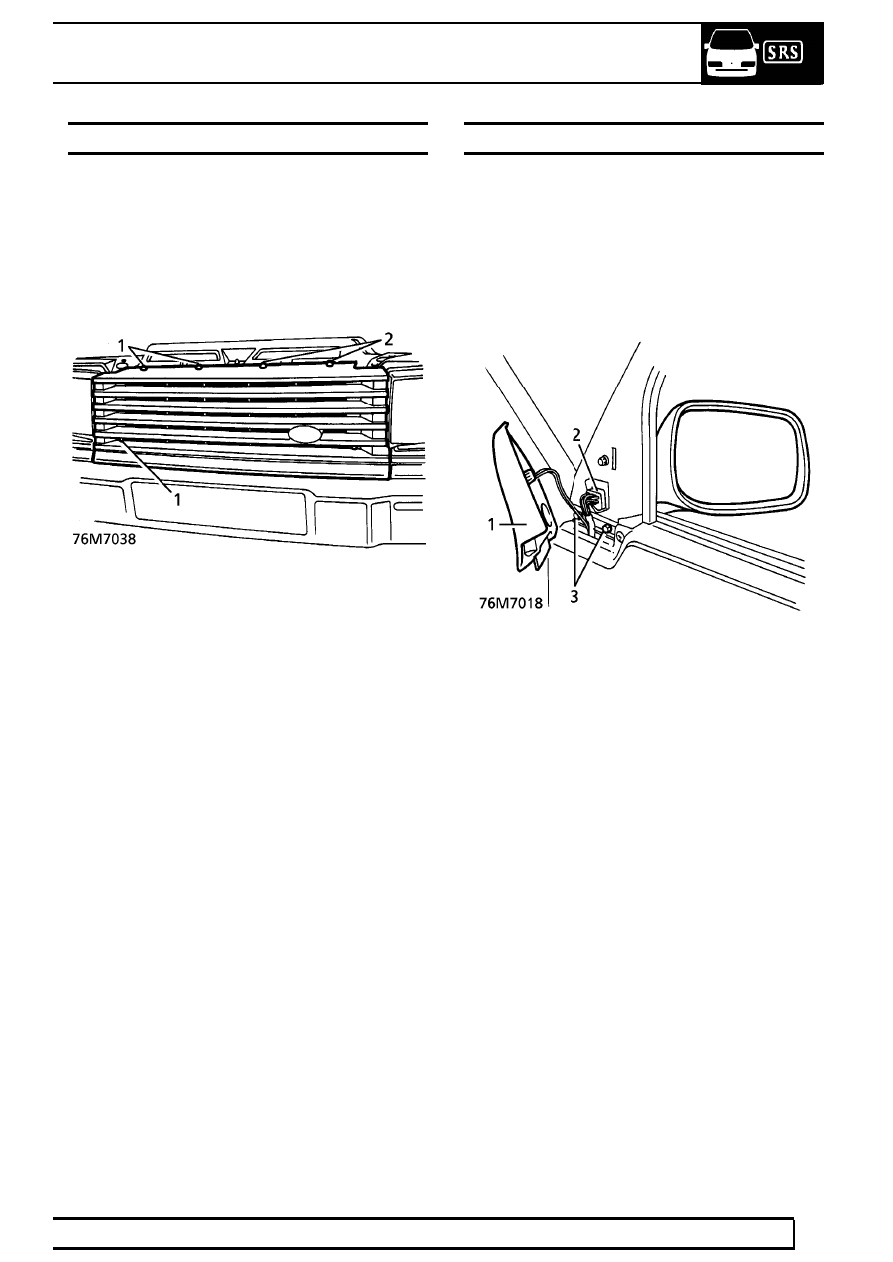

FRONT GRILLE

Service repair no - 76.55.03

Remove

1. Remove 6 screws securing grille.
2. Remove front grille.

Refit

3. Reverse removal procedure.

EXTERIOR MIRROR

Service repair no - 76.10.52

Remove

1. Release cheater panel, disconnect 2 tweeter

speaker connectors. Remove cheater panel.

2. Disconnect mirror multiplug.
3. Remove 3 screws, remove mirror.

Refit

4. Fit mirror, tighten 3 retaining screws.
5. Connect mirror multiplug.
6. Position cheater panel, connect 2 tweeter

speaker connectors, secure panel to door.

76

CHASSIS AND BODY

NEW RANGE ROVER

50

REPAIR

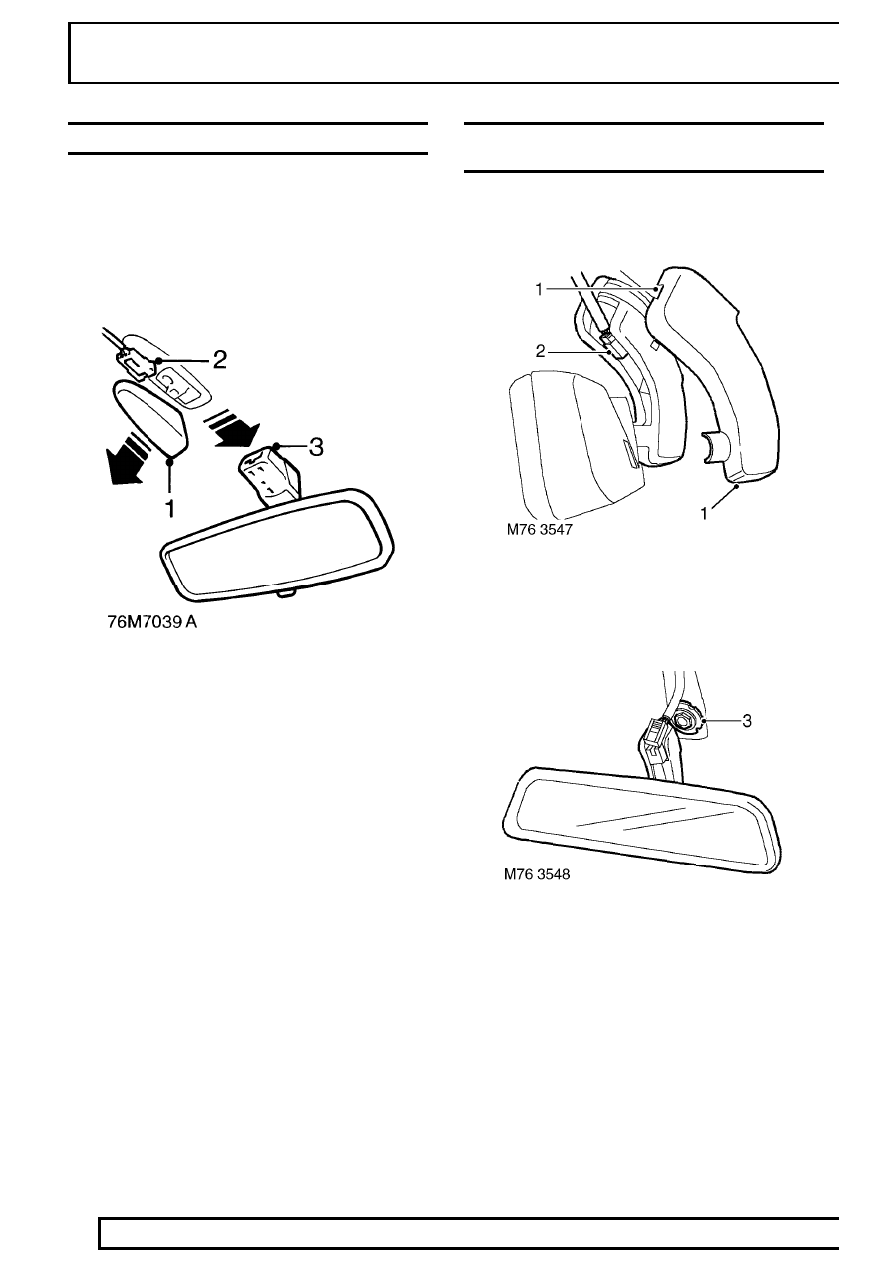

INTERIOR MIRROR

Service repair no - 76.10.51

Remove

1. Remove cover.
2. If fitted, disconnect multiplug.
3. Remove mirror from windscreen location by

pulling sharply downwards.

Refit

4. Reverse removal procedure.

INTERIOR MIRROR - ELECTRONIC DIP - FROM
2000MY

Service repair no - 76.10.53

Remove

1. Release 2 clips securing interior mirror cover to

interior mirror and remove cover.

2. Disconnect multiplug from interior mirror.

3. Rotate interior mirror to release from bracket and

remove mirror.

Refit

4. Position mirror to bracket and rotate to secure.
5. Connect multiplug to interior mirror.
6. Fit interior mirror cover to interior mirror and

secure clips.
