Bumpers - Front Bumper

Removal and Installation

Removal

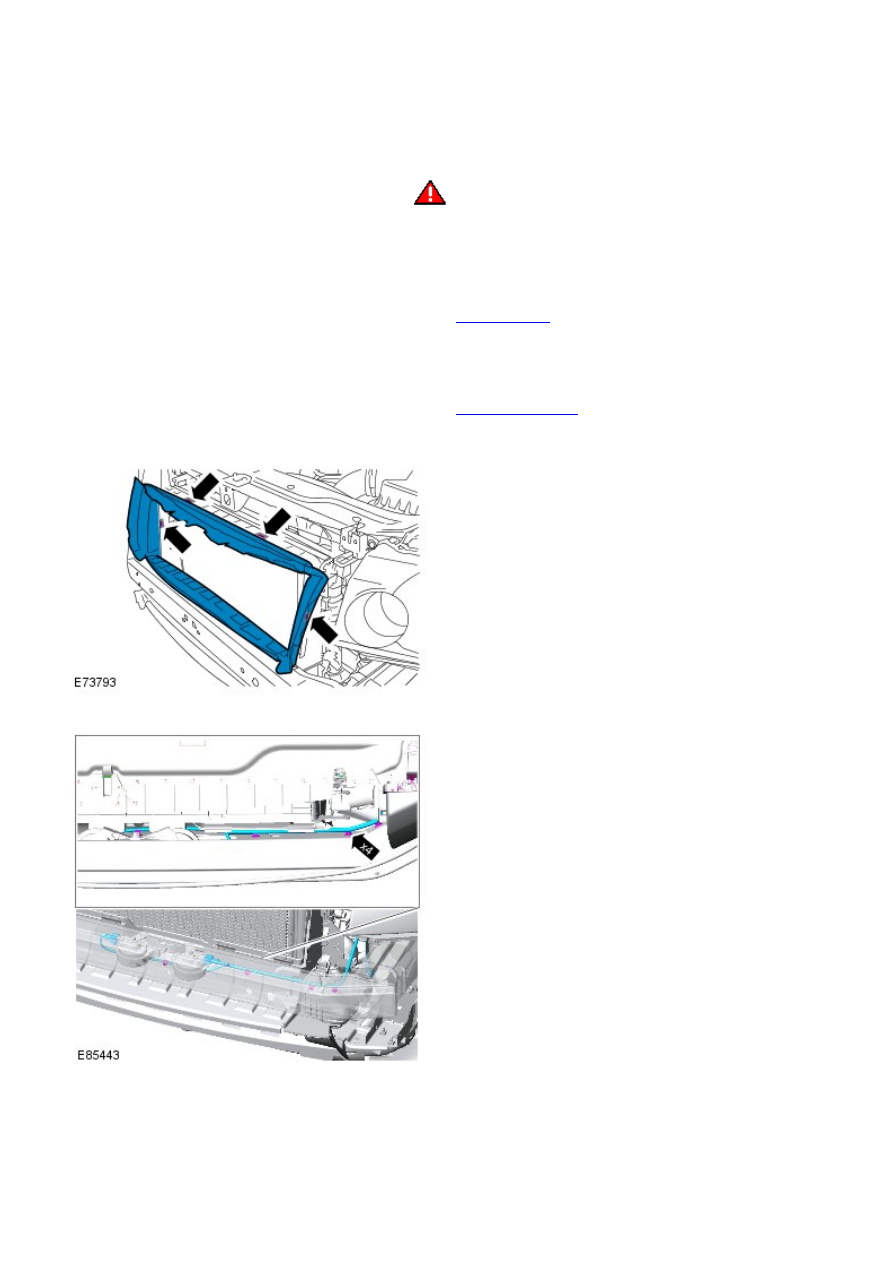

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the front wheels and tires.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

Remove the front bumper cover.

Refer to:

Front Bumper Cover

 (501-19 Bumpers, Removal and

Installation).

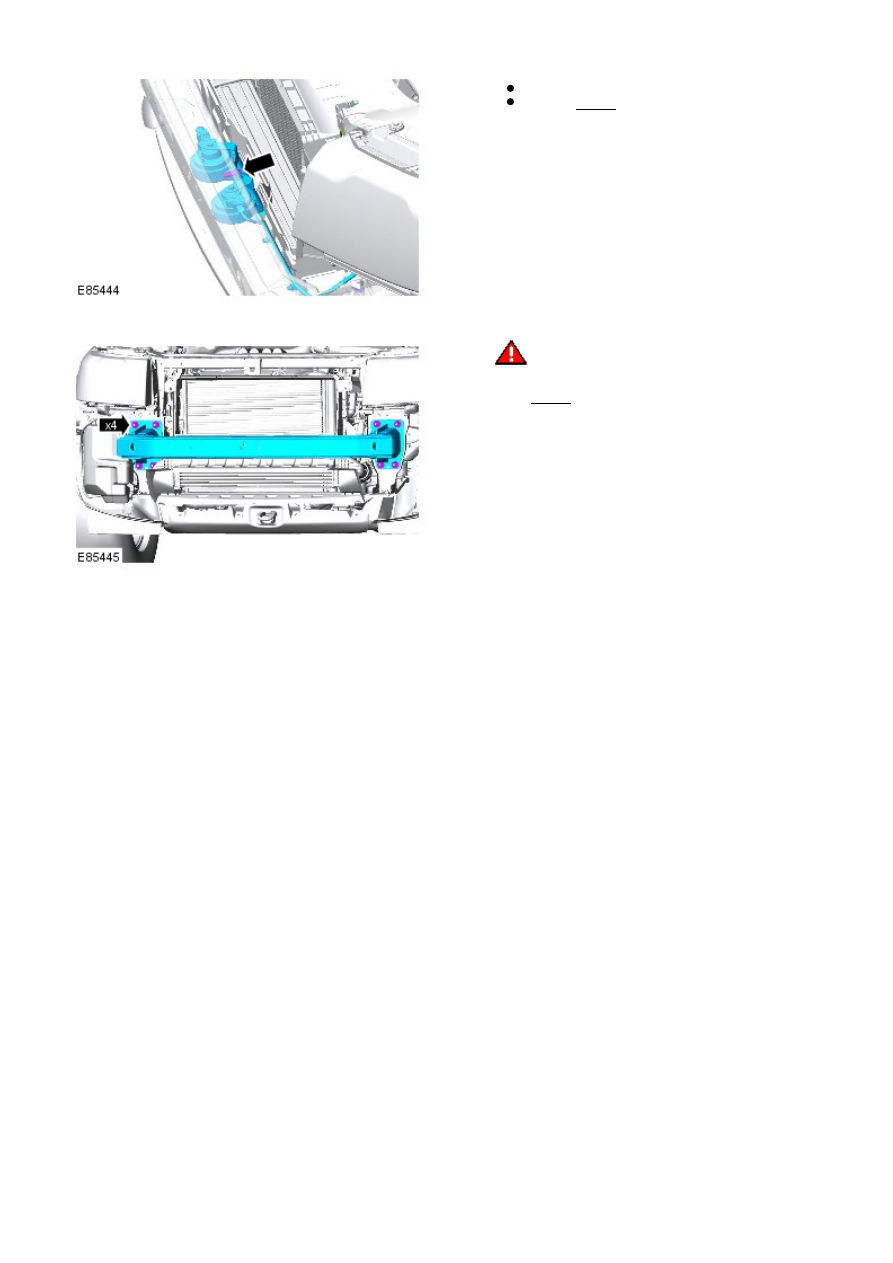

3.

4.

5.



Tie the horns aside.
Torque: 25 Nm

6.

7.

WARNING: This step requires the aid of

another technician.

Torque: 48 Nm

7.

Installation

To install, reverse the removal procedure.

1.

Bumpers - Rear Bumper Cover

Removal and Installation

Removal

• NOTE: New bumper covers are supplied without the four holes for the park distance control sensors.

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove both rear wheels and tires.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

Remove the rear lamp assemblies.

Refer to:

Rear Lamp Assembly

 (417-01 Exterior Lighting, Removal

and Installation).

3.

4.

5.

6.

7.



Release the rear lower edge of the rear fender
splash shield.
Repeat the above procedure for the other side.

8.
