Bumpers - Front Bumper Cover

Removal and Installation

Removal

1.

WARNING: Do not work on or under a vehicle supported only

by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.

1.

Remove the front wheels and tires.

Refer to:

Wheel and Tire

 (204-04 W heels and Tires, Removal and

Installation).

2.

Remove the towing eye cover.

3.

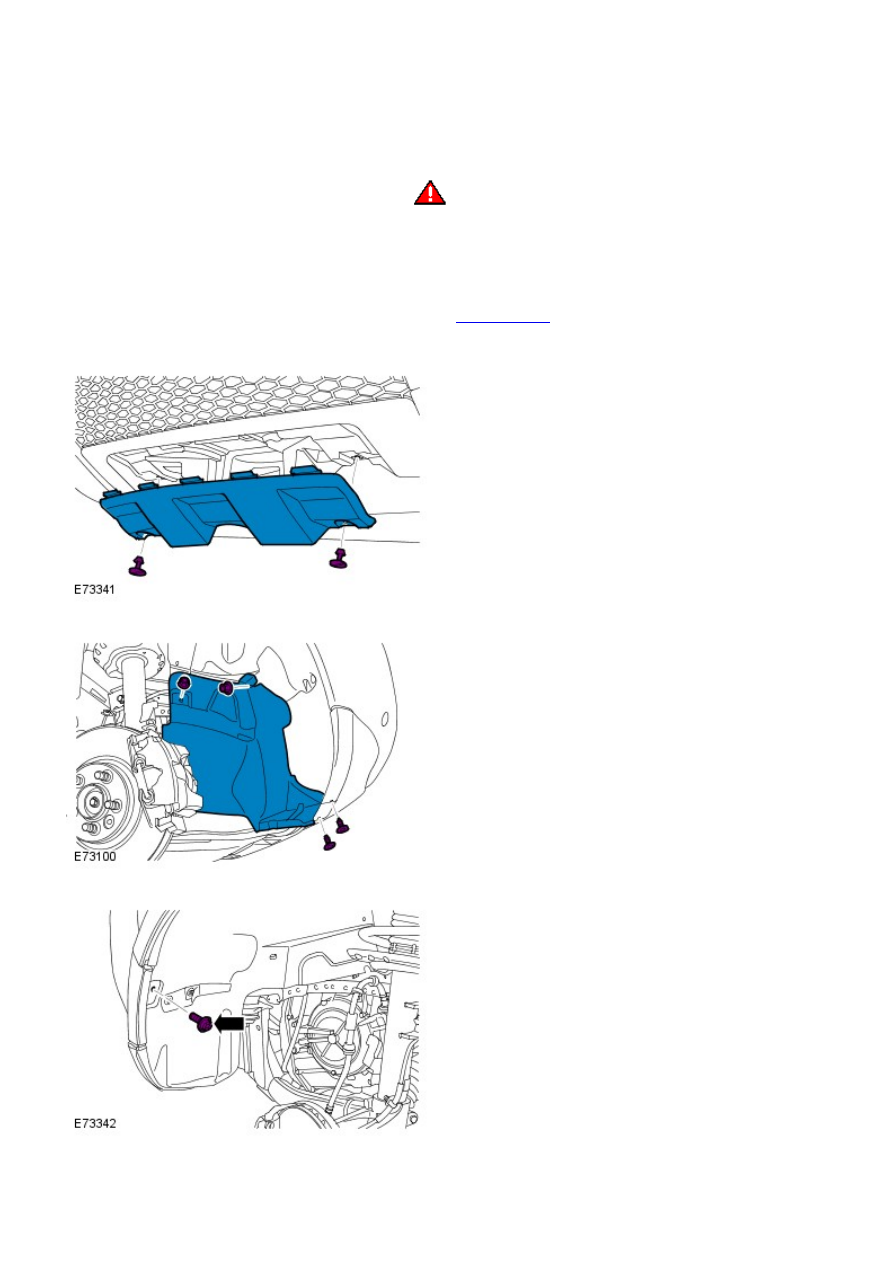

Remove the front RH and LH splash shields.

4.

Release the front bumper cover from the RH and LH
fender splash shields.

5.

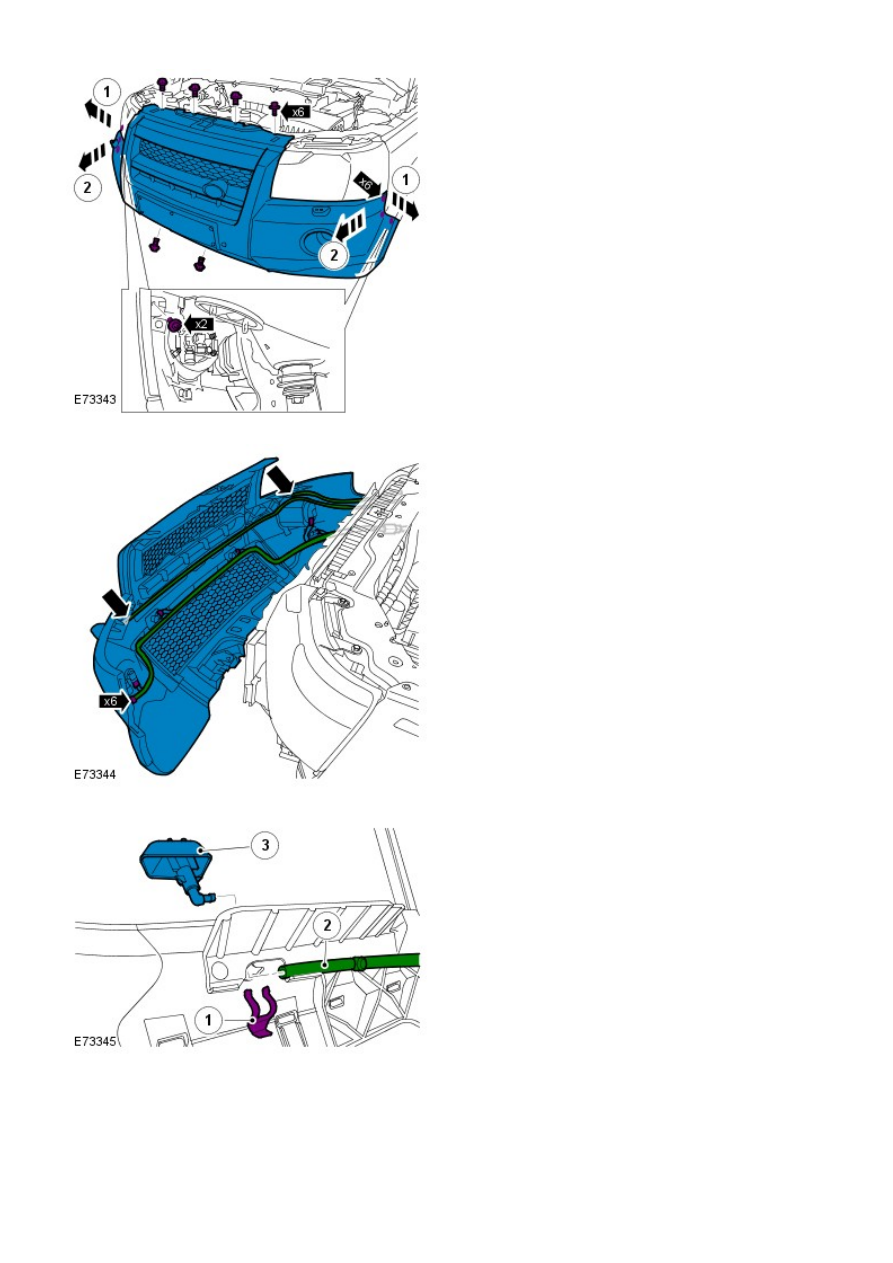

W ith assistance, release the front bumper cover.

6.

7. NOTE: Some fluid spillage is inevitable during this
operation.

W ith assistance, remove the front bumper cover.

7.

8. NOTE: Do not disassemble further if the component
is removed for access only.

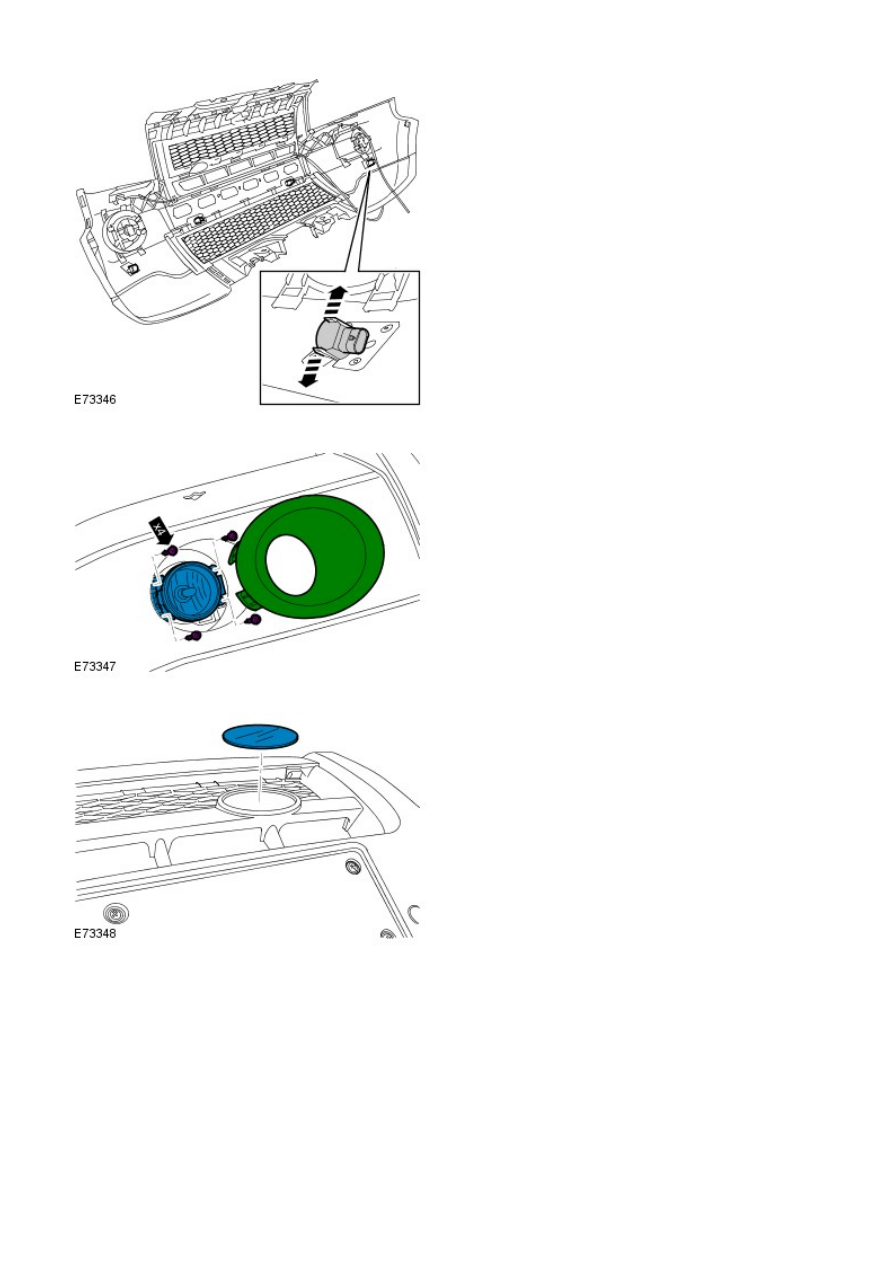

Remove the 2 washer jets.

8.

Remove the 4 parking aid sensors.

9.

Remove the front fog lamps.

10.

Carefully remove the decal.

11.

If installed: Remove the license plate.

12.

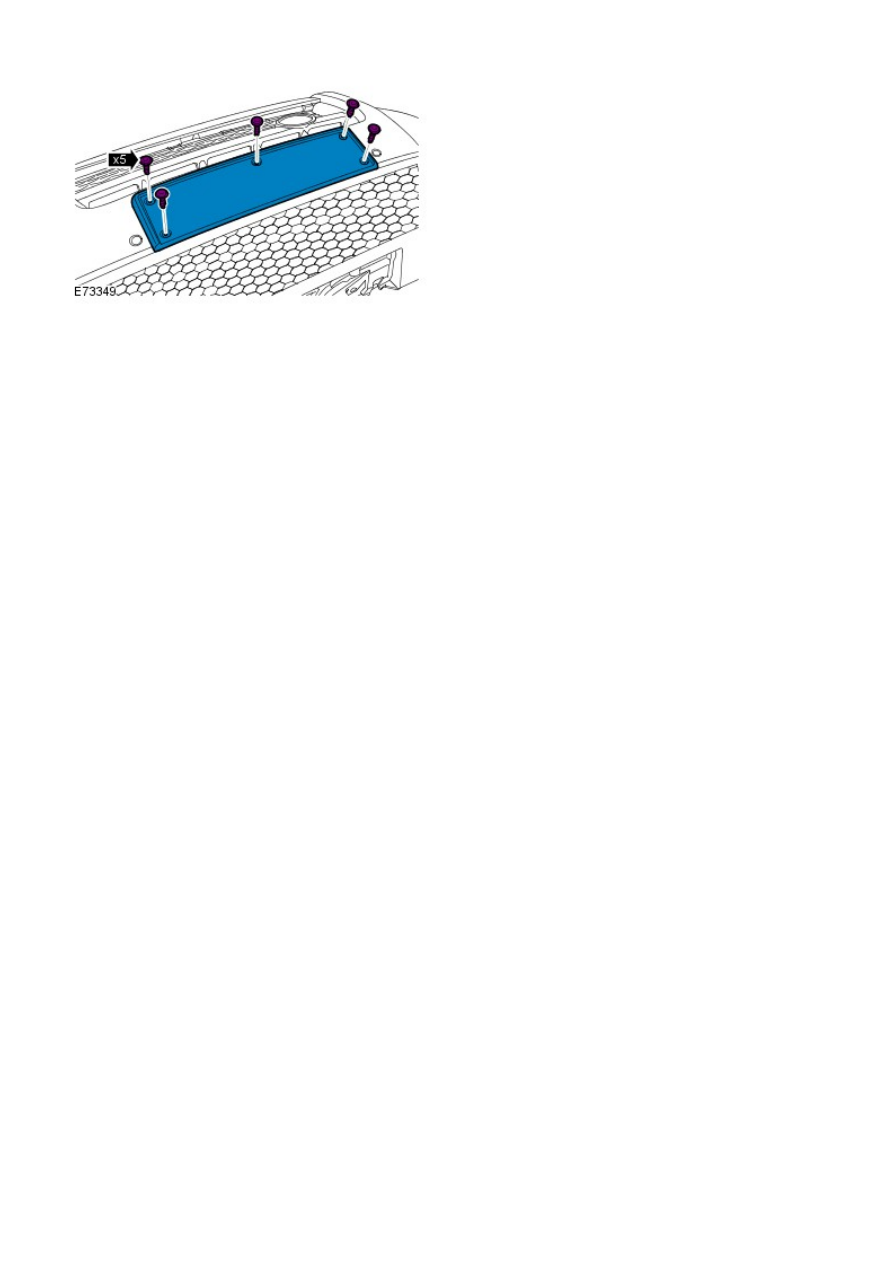

If installed: Remove the license plate panel.

13.

Installation

If installed, install the license plate panel.

1.

If installed, install the license plate.

2.

Install the decal.

3.

Install the front fog lamps.

4.

Install the parking aid sensors.

5.

Install the washer jets.

6.

W ith assistance, install the front bumper cover and tighten the
fixings to 10 Nm (7 lb.ft).

7.

Install the splash shields.

8.

Install the towing eye cover.

9.
