Frelander 2. Manual - part 608

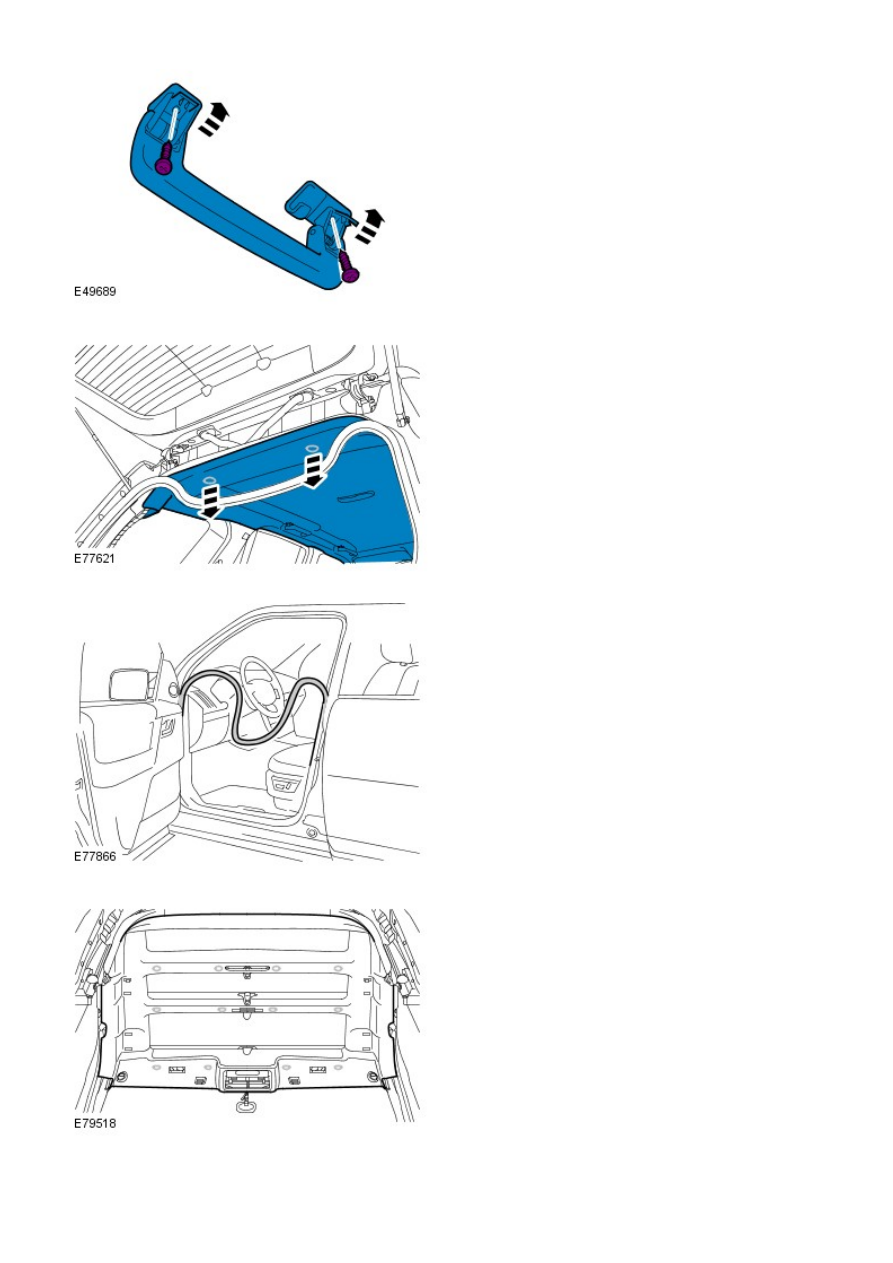

Remove the 4 passenger assist handles.

7.

Release the rear of the headliner.

8.

Release the front door seals.

9.

Release the headliner.

10.

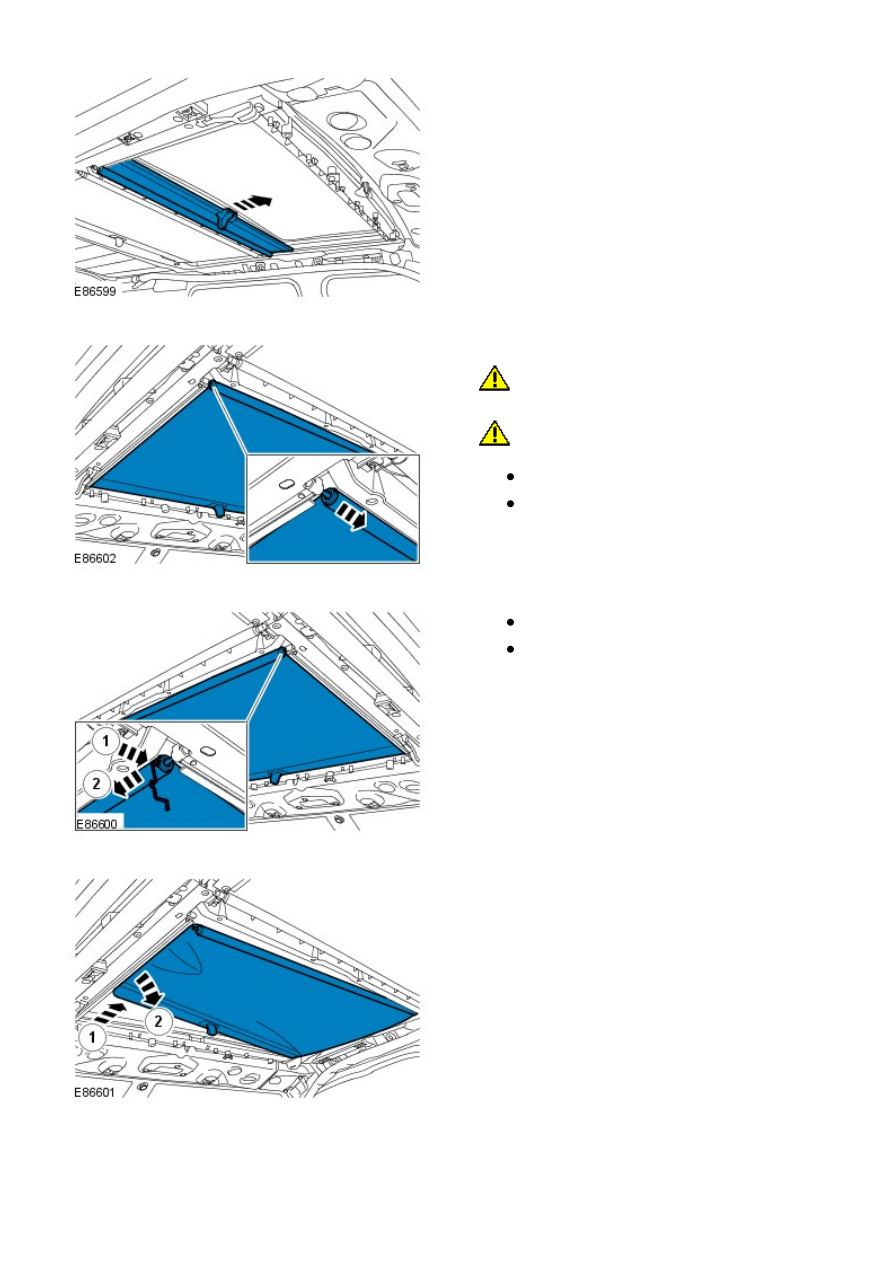

Close the roof opening panel blind.

11.

12. CAUTIONS:

 Do not allow the roof opening panel blind tube to

rotate.

 Do not release the metal pin from its locator until

the locking pin is in place.

Carefully slide the roof opening panel blind tube
to the right.
Release the plastic pin from its locator.

12.



Using a suitable pin (1 mm diameter), lock the
roof opening panel blind.
Release the metal pin from its locator.

13.

Remove the roof opening panel blind.

14.

Installation

Install the roof opening panel blind slider feet to the guides.

1.

2.

CAUTION: Do not allow the roof opening panel blind tube to

rotate until the plastic pin is secure in its locator.

Secure the metal pin to its locator.
Remove the locking pin from the roof opening panel blind.

2.



Carefully slide the roof opening panel blind tube to the right.
Align and secure the plastic pin to its locator.

3.

Open the roof opening panel blind.

4.

Secure the headliner.

5.

Attach the front door seals.

6.

Attach the rear of the headliner.

7.

Install the passenger assist handles.

8.

Install the sun visors.

9.

Install the interior rear view mirror.

Refer to:

Interior Rear View Mirror

 (501-09 Rear View Mirrors,

Removal and Installation).

10.

Install the D-pillar trim panels.

Refer to:

D-Pillar Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

11.

Install the C-pillar trim panels.

Refer to:

C-Pillar Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

12.

Install the B-pillar trim panels.

Refer to:

B-Pillar Upper Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

13.

Install the A-pillar trim panels.

Refer to:

A-Pillar Trim Panel

 (501-05 Interior Trim and

Ornamentation, Removal and Installation).

14.

Bumpers -

Product

Part Number

Rear bumper PDC sensor mounting adhesive

3M 8005B35

Torque Specifications

Description

Nm

lb-ft

Front bumper bolts to body

48

35

Front bumper cover fixing to fender bracket

4

3

Front bumper cover fixing to hood latch panel

3

2

Front bumper cover fixing to undertray

4

3

Rear bumper bolts to body

30

22

Rear bumper cover fixing behind lamp assembly

2

1

Rear bumper cover screws

2

1

Rear bumper cover to bracket bolts

4

3

Fender splash shield screws

2

1
