3
-
Remote handset
4
-
Start control module
5
-
Rear passenger seats
6
-
Auxiliary Junction Box (AJB)
7
-
Driver's door latch and ajar switch
8
-
Driver's seat manual operated lumbar support
9
-
Power operated lumbar support air cells
10
-
Driver's seat power operated lumbar support motor
11
-
Driver's power operated seat squab recline motor
12
-
Power operated lumbar support switch
13
-
Driver's power operated seat height motor
14
-
Driver's power operated non-memory seat switch pack
15
-
Driver's power operated memory seat switch pack
16
-
Driver's power seat module (memory)
17
-
Driver's seat heating module
18
-
Driver's seat cushion/squab heating element
19
-
Passenger power operated seat squab recline motor
20
-
Driver's and passenger power operated seat slide motor
21
-
Passenger seat heating module
22
-
Passenger seat occupancy classification sensor
23
-
Passenger seat cushion/squab heating element
24
-
Passenger power operated seat non-memory switch pack
25
-
Passenger seat occupancy detection sensor
26
-
Driver's seat position sensor
27
-
Central Junction Box (CJB)
OVERVIEW
All vehicles, except those manufactured to North American Specification (NAS), are installed with manually operated front
seats as standard. Options available include electrically power operated front seats without memory function, and an
electrically power operated driver's seat with memory functionality. The front seats may also be provided with arm rests to
improve driver and front passenger comfort.
NAS vehicles are installed with power operated front seats as standard. The front seats feature arm rests to improve driver
and front passenger comfort. A driver's power operated seat with memory functionality is provided as an option for NAS
vehicles.
Depending on vehicle specification and trim level, vehicles may also feature front heated seats and a lumbar support
system. Lumbar support is provided as a manual or electrically operated system, and is only available for the driver's seat.
The rear seat is manufactured to the same specification for all vehicles, and is provided with ISOFIX child safety seat
restraints.
All seats incorporate adjustable head restraints. Depending on the vehicle specification the seats are upholstered in either
all cloth, cloth/leather/PVC, leather/PVC or all PVC finish.

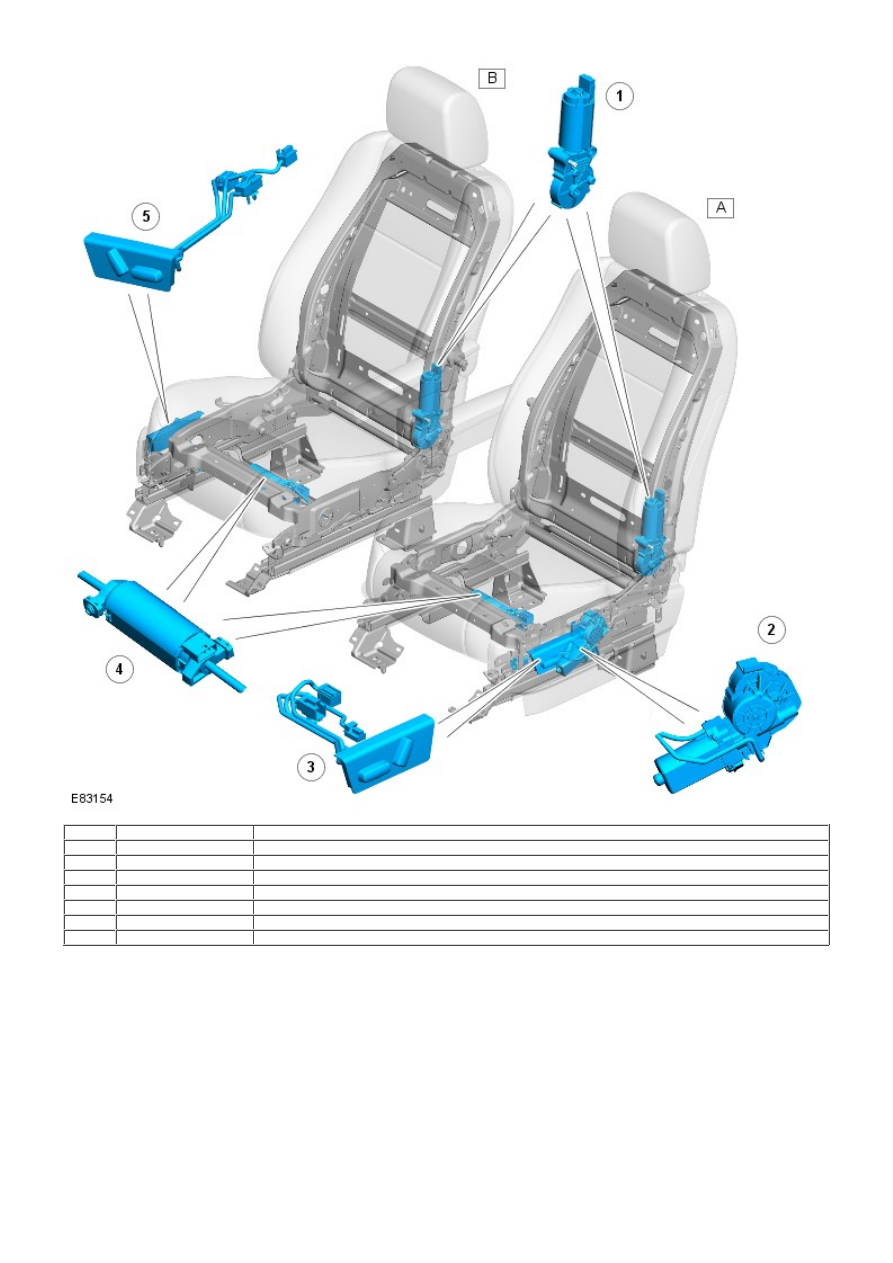

FRONT SEAT CONSTRUCTION
The front seat base is manufactured from high strength steel extrusions designed to exceed current legal strength
requirements. The seat base is molded to form an anti-submarine hollow that will retain the occupant in the seat during a
front end collision. The seat backrest is manufactured from high strength steel and features a wire suspension system to
provide increased comfort. The backrest is attached at both sides of the seat base with a high strength steel bracket and
pivot.
The seat base and backrest are inlayed with formed sections of dual hardness, molded foam to form the seat squab and
cushion. The seats are designed to provide support, comfort and an ergonomic position for the driver and passenger.
The driver and passenger front seats are provided with additional safety features. The front driver's seat is installed with a
seat position sensor; the front passenger seat is installed with an occupancy classification system sensor (dependant on
vehicle specification) and an occupancy detection system. Both the driver's and passenger seat safety features provide
inputs to control the deployment of the air bags and seat belt pre-tensioners.
For additional information, refer to:
Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)
(501-20B
Supplemental Restraint System, Description and Operation).
The front seat belt buckles are mounted integrally with the seats to provide increased anchorage and occupant restraint.
For additional information, refer to:
Safety Belt System
(501-20A Safety Belt System, Description and Operation).

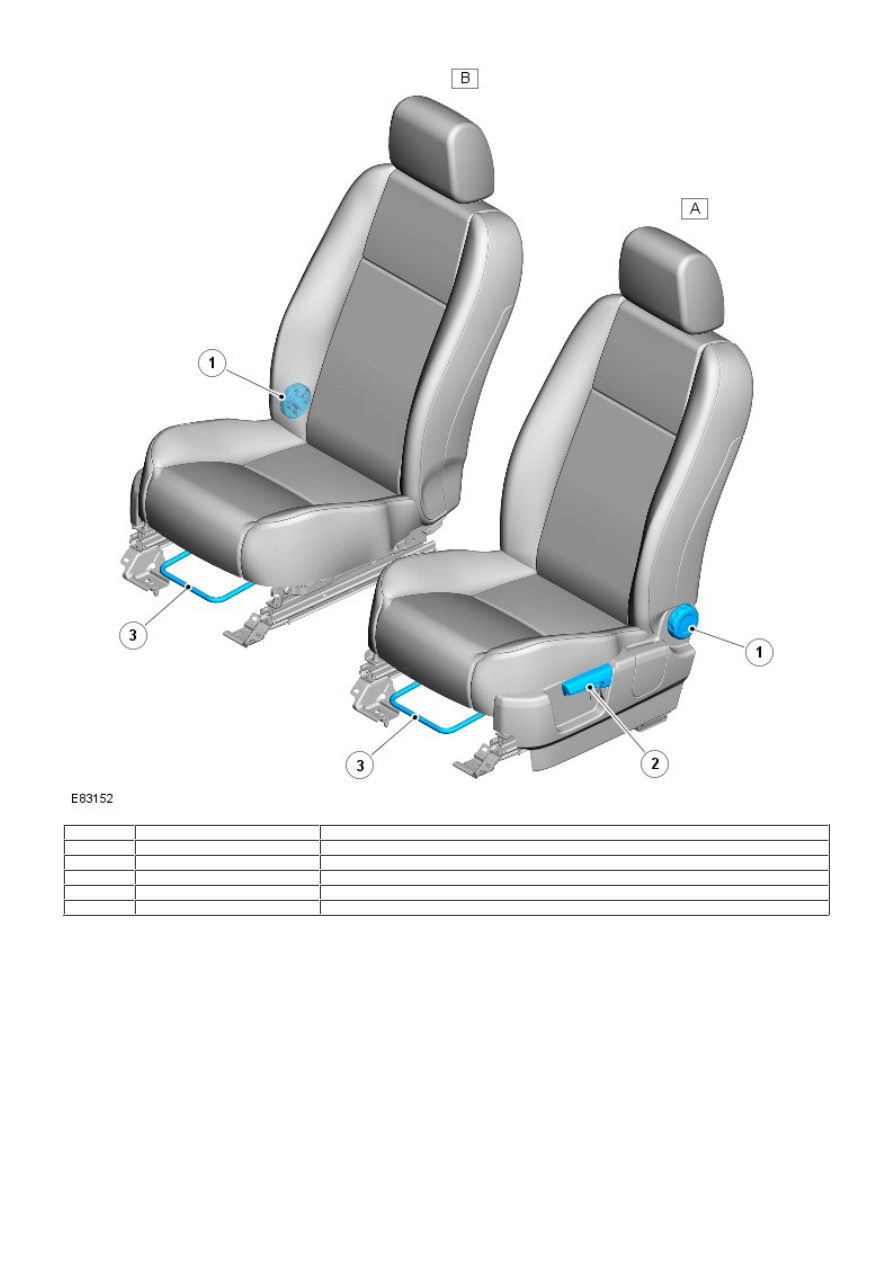

MANUALLY OPERATED FRONT SEATS
