Frelander 2. Manual - part 542





Rear View Mirrors - Rear View Mirrors

Diagnosis and Testing

Principles of Operation

For a detailed description of the rear view mirror systems, refer to the relevant Description and Operation section in the
workshop manual.
REFER to:

Rear View Mirrors

 (501-09 Rear View Mirrors, Description and Operation).

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does

not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor
vehicle.

1. Verify the customer concern.

1.

2. Visually inspect for obvious signs of mechanical or electrical damage.

2.

Visual Inspection

Mechanical

Electrical

Condition, correct installation and security of rear view mirrors

Fuses/relays (refer to electrical guide)
W iring harness
Correct engagement of electrical connectors
Loose or corroded connections

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step.

3.

4. If the cause is not visually evident, check for Diagnostic Trouble Codes (DTCs) and refer to the DTC Index.

4.

DTC Index

• NOTE: If the control module or a component is suspect and the vehicle remains under manufacturer warranty, refer to the
Warranty Policy and Procedures manual (section B1.2), or determine if any prior approval programme is in operation, prior
to the installation of a new module/component.

• NOTE: Generic scan tools may not read the codes listed, or may read only five digit codes. Match the five digits from the
scan tool to the first five digits of the seven digit code listed to identify the fault (the last two digits give extra
information read by the manufacturer-approved diagnostic system).

• NOTE: When performing voltage or resistance tests, always use a digital multimeter (DMM) accurate to three decimal
places and with a current calibration certificate. W hen testing resistance, always take the resistance of the DMM leads into
account.

• NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

• NOTE: If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an intermittent concern may
be the cause. Always check for loose connections and corroded terminals.

DTC

Description

Possible Causes

Action

B116311 Left Mirror Heater Output

short to ground

Short to ground Refer to the electrical circuit diagrams and test left mirror

heater output circuit for short to ground

B116315 Left Mirror Heater Output

short to power

Short to power
or open circuit

Refer to the electrical circuit diagrams and test left mirror
heater output circuit for short to power or open circuit

B116411 Right Mirror Heater Output

short to ground

Short to ground Refer to the electrical circuit diagrams and test right mirror

heater output circuit for short to ground

B116415 Right Mirror Heater Output

short to power

Short to power
or open circuit

Refer to the electrical circuit diagrams and test right mirror
heater output circuit for short to power or open circuit

B1A9411 Driver Mirror

Short to ground Refer to the electrical circuit diagrams and test driver mirror

fold motor circuit for short to ground

B1A9415 Driver Mirror

Short to power
or open circuit

Refer to the electrical circuit diagrams and test driver mirror
fold motor circuit for short to power or open circuit

B1A9511 Passenger Mirror

Short to ground Refer to the electrical circuit diagrams and test passenger

mirror fold motor circuit for short to ground

B1A9515 Passenger Mirror

Short to power
or open circuit

Refer to the electrical circuit diagrams and test passenger
mirror fold motor circuit for short to power or open circuit

B1C0911 Driver Left/Right Mirror

Motor Circuit

Short to ground Refer to the electrical circuit diagrams and test driver

left/right mirror motor circuit for short to ground

B1C0915 Driver Left/Right Mirror

Motor Circuit

Short to power
or open circuit

Refer to the electrical circuit diagrams and test driver
left/right mirror motor circuit for short to power or open circuit

B1C1011 Driver Up/Down Mirror

Motor Circuit

Short to ground Refer to the electrical circuit diagrams and test driver

up/down mirror motor circuit for short to ground

DTC

Description

Possible Causes

Action

B1C1015 Driver Up/Down Mirror

Motor Circuit

Short to power
or open circuit

Refer to the electrical circuit diagrams and test driver
up/down mirror motor circuit for short to power or open circuit

B1C1111 Passenger Left/Right Mirror

Motor Circuit

Short to ground Carry out pinpoint tests associated with this DTC using the

manufacturer approved diagnostic system

B1C1115 Passenger Left/Right Mirror

Motor Circuit

Short to power
or open circuit

Carry out pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system

B1C1211 Passenger Up/Down Mirror

Motor Circuit

Short to ground Carry out pinpoint tests associated with this DTC using the

manufacturer approved diagnostic system

B1C1215 Passenger Up/Down Mirror

Motor Circuit

Short to power
or open circuit

Carry out pinpoint tests associated with this DTC using the
manufacturer approved diagnostic system

B1C1311 Driver Up/Down Mirror

Motor Feedback Circuit

Short to ground Refer to the electrical circuit diagrams and test driver

up/down mirror motor feedback circuit for short to ground

B1C1315 Driver Up/Down Mirror

Motor Feedback Circuit

Short to power
or open circuit

Refer to the electrical circuit diagrams and test driver
up/down mirror motor feedback circuit for short to power or
open circuit

B1C1411 Driver Left/Right Mirror

Motor Feedback Circuit

Short to ground Refer to the electrical circuit diagrams and test driver

left/right mirror motor feedback circuit for short to ground

B1C1415 Driver Left/Right Mirror

Motor Feedback Circuit

Short to power
or open circuit

Refer to the electrical circuit diagrams and test driver
left/right mirror motor feedback circuit for short to power or
open circuit

B1C1511 Passenger Up/Down Mirror

Motor Feedback Circuit

Short to ground Refer to the electrical circuit diagrams and test passenger

up/down mirror motor feedback circuit for short to ground

B1C1515 Passenger Up/Down Mirror

Motor Feedback Circuit

Short to power
or open circuit

Refer to the electrical circuit diagrams and test passenger
up/down mirror motor feedback circuit for short to power or
open circuit

B1C1611 Passenger Left/Right Mirror

Motor Feedback Circuit

Short to ground Refer to the electrical circuit diagrams and test passenger

left/right mirror motor feedback circuit for short to ground

B1C1615 Passenger Left/Right Mirror

Motor Feedback Circuit

Short to power
or open circuit

Refer to the electrical circuit diagrams and test passenger
left/right mirror motor feedback circuit for short to power or
open circuit

Rear View Mirrors - Interior Rear View Mirror

Removal and Installation

Removal

• NOTE: A humidty sensor is installed to certain derivatives. It is part of the interior rear view mirror and cannot be
serviced separately.

1.



Disconnect the electrical connector.
Rotate the mirror stem at its base to release
from the windshield.

2.

Installation

To install, reverse the removal procedure.

1.

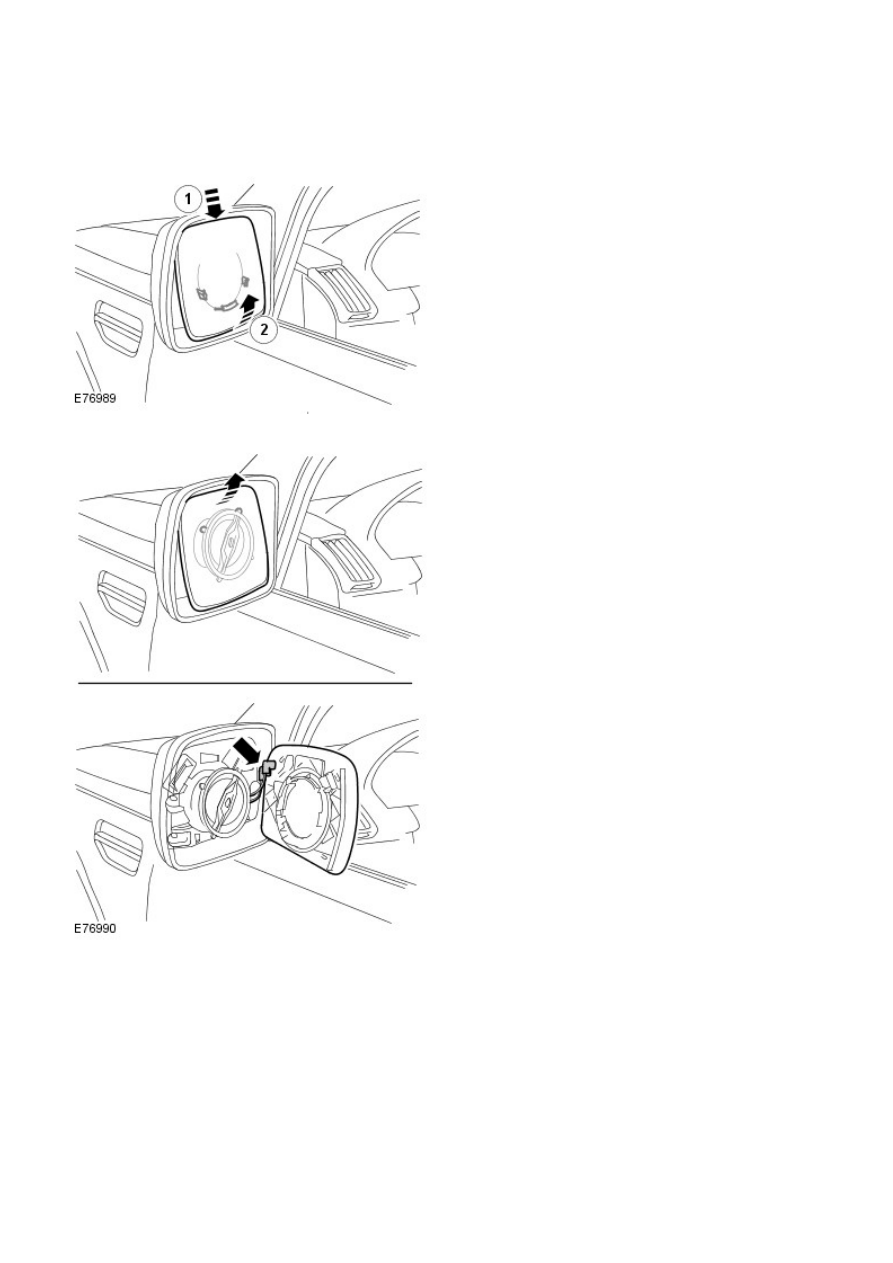

Rear View Mirrors - Exterior Mirror Glass

Removal and Installation

Removal

Release the exterior mirror glass.

1.

Remove the exterior mirror glass.

2.

Installation

To install, reverse the removal procedure.

1.
