DTC

Description

Possible Cause

Action

P210177 Throttle actuator control

motor circuit
range/performance

Throttle body
contaminated/sticking
Throttle actuator control motor
failure

Check the throttle body condition and
operation. Clean the throttle body and
recheck. Install a new throttle body as
necessary.
REFER to:

Throttle Body

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P210300 Throttle actuator control

motor circuit high

Throttle actuator control motor
circuit: short circuit to power
Throttle actuator control motor
failure

Check the throttle motor and circuits. Refer
to the electrical guides. Install a new
throttle body as necessary.
REFER to:

Throttle Body

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P211800 Throttle actuator control

motor current
range/performance

Throttle actuator control motor
circuit: short circuit to power
Throttle actuator control motor
circuit: short circuit to ground
Throttle actuator control motor
circuit: short circuit to power
Throttle actuator control motor
failure

Check the throttle motor and circuits. Refer
to the electrical guides. Install a new
throttle body as necessary.
REFER to:

Throttle Body

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P211900 Throttle actuator control

throttle body
range/performance

Throttle body
contaminated/sticking

Check the condition and operation of the
throttle body. Rectify as necessary. Install a
new throttle body as necessary.
REFER to:

Throttle Body

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).

P213562 Accelerator pedal position

sensor A/B voltage
correlation

Accelerator pedal position (APP)
sensor signal circuit: open
circuit
Accelerator pedal position (APP)
sensor signal circuit: short
circuit to ground
Accelerator pedal position (APP)
sensor signal circuit: short
circuit to power
Accelerator pedal position (APP)
sensor fault

Carry out a complete vehicle read for related
DTCs. Check the APP sensor and circuits.
Refer to the electrical guides. Rectify as
necessary.

P213800 Throttle/Pedal Position

Sensor/Switch D/E Voltage
Correlation

Accelerator Pedal plausibility -
plausibility violated

Refer to electrical circuit diagrams and check
accelerator pedal circuits for short, open
circuit faults. Check/install new pedal as
required

P213827 Throttle/Pedal Position

Sensor/Switch D/E Voltage
Correlation

Accelerator Pedal plausibility -
dynamic plausibility violated

Refer to electrical circuit diagrams and check
accelerator pedal circuits for short, open
circuit faults. Check/install new pedal as
required

P213828 Throttle/Pedal Position

Sensor/Switch D/E Voltage
Correlation

Accelerator Pedal plausibility -
extended plausibility violated

Refer to electrical circuit diagrams and check
accelerator pedal circuits for short, open
circuit faults. Check/install new pedal as
required

Speed Control - I6 3.2L Petrol - Speed Control Switch

Removal and Installation

Removal

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Make the SRS system safe.

Refer to: Supplemental Restraint System (SRS) Depowering and
Repowering (501-20, General Procedures).

2.

Remove the driver air bag module.

Refer to:

Driver Air Bag Module

 (501-20B Supplemental Restraint

System, Removal and Installation).

3.



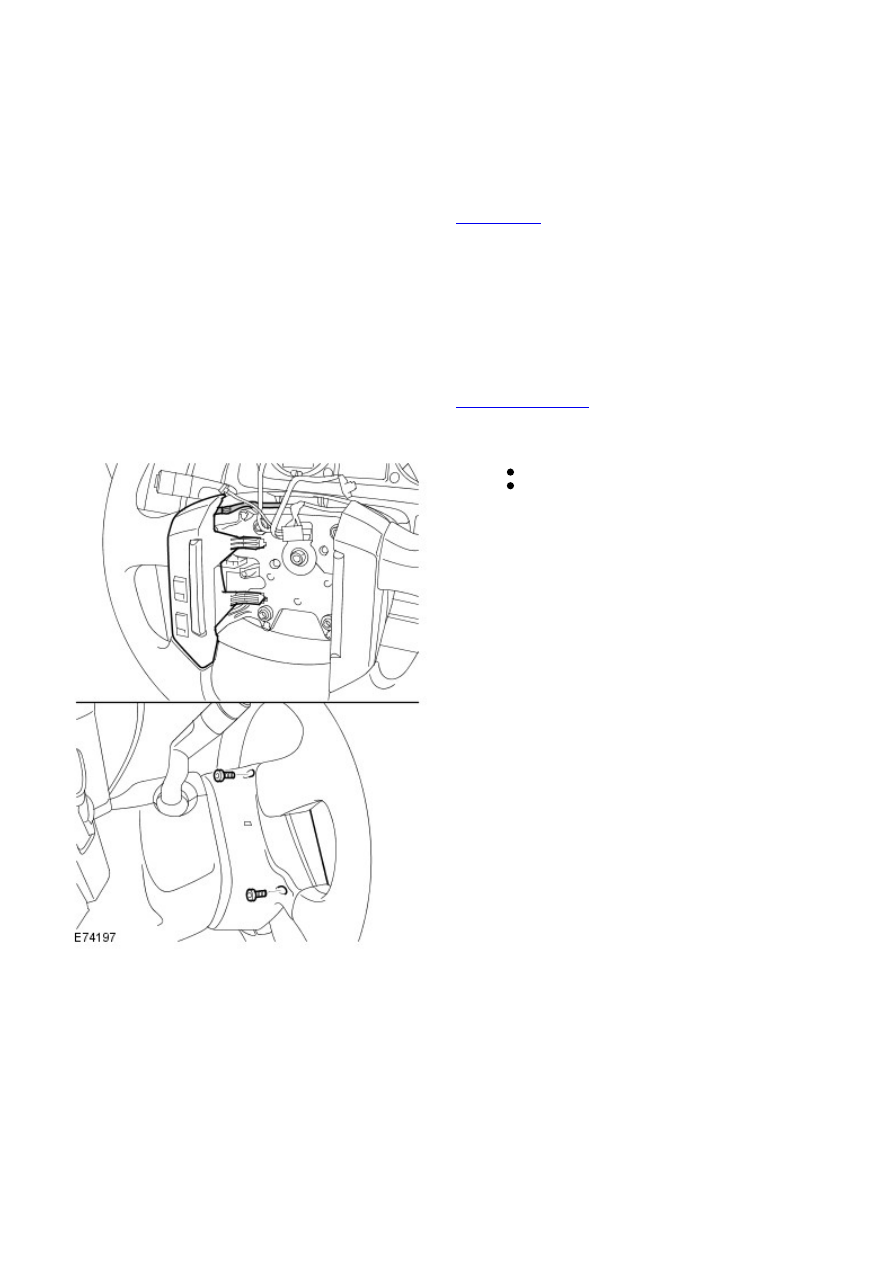

Remove the 2 Torx screws.
Disconnect the electrical connector.

4.

Installation

To install, reverse the removal procedure.

1.

Speed Control - I6 3.2L Petrol - Speed Control Actuator

Removal and Installation

Removal

Remove the accelerator pedal assembly.

Refer to:

Accelerator Pedal

 (310-02 Acceleration Control, Removal

and Installation).

1.

Installation

Install the accelerator pedal assembly.

Refer to:

Accelerator Pedal

 (310-02 Acceleration Control, Removal

and Installation).

1.

Speed Control - I6 3.2L Petrol - Speed Control Deactivator Switch

Removal and Installation

Removal

Right-hand drive vehicles

Remove the cover and disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Remove the stoplamp switch.

Refer to:

Stoplamp Switch

 (417-01 Exterior Lighting, Removal and

Installation).

2.

All vehicles

3.

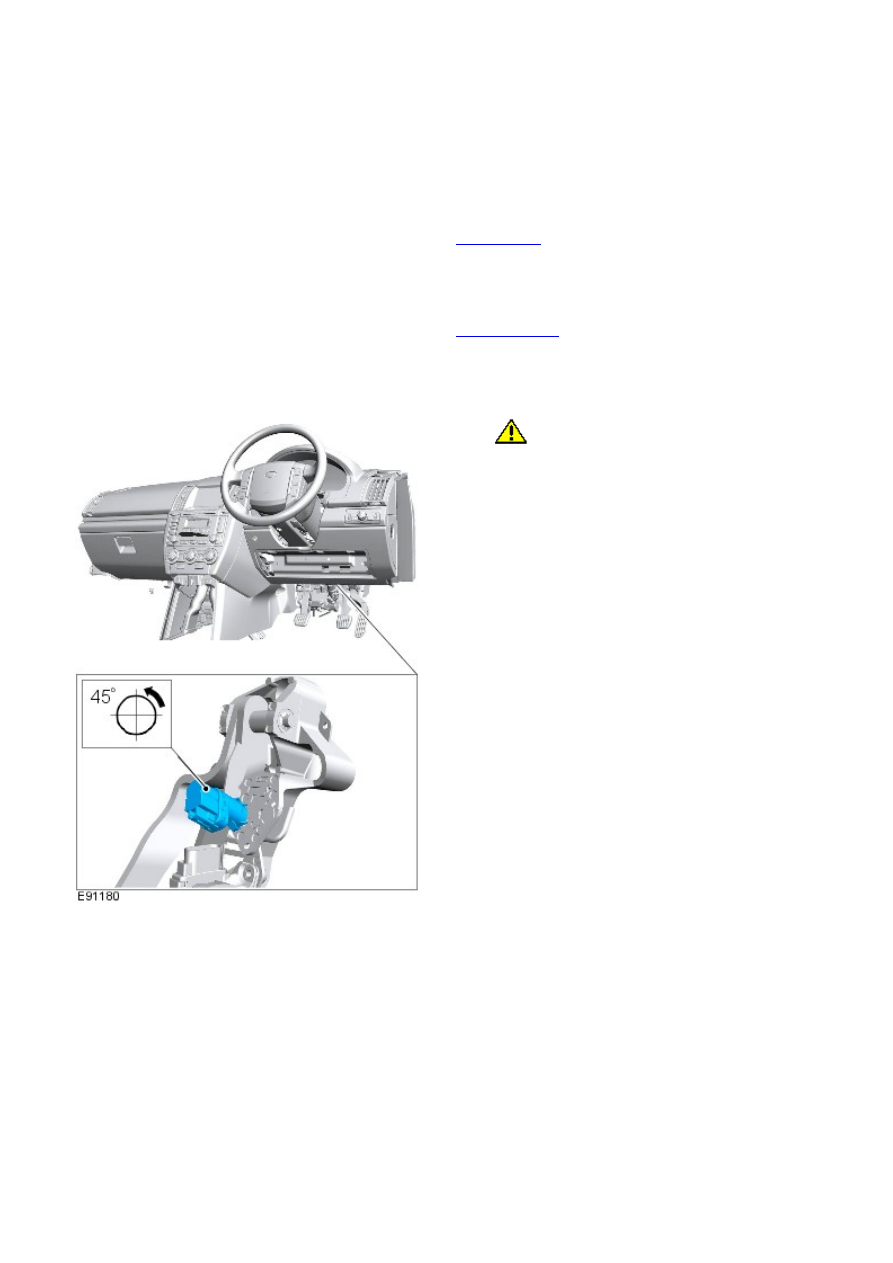

CAUTION: The switch has a latching device that

only allows the switch to be removed or installed when
the switch plunger is depressed.

• NOTE: RHD illustration shown, LHD is similar.

3.

Installation

To install, reverse the removal procedure.

1.
