Frelander 2. Manual - part 406





Speed Control - TD4 2.2L Diesel -

Torque Specifications

Description

Nm

lb-ft

Accelerator pedal assembly nuts

10

7

Speed Control - TD4 2.2L Diesel - Speed Control2.2L Diesel

Description and Operation

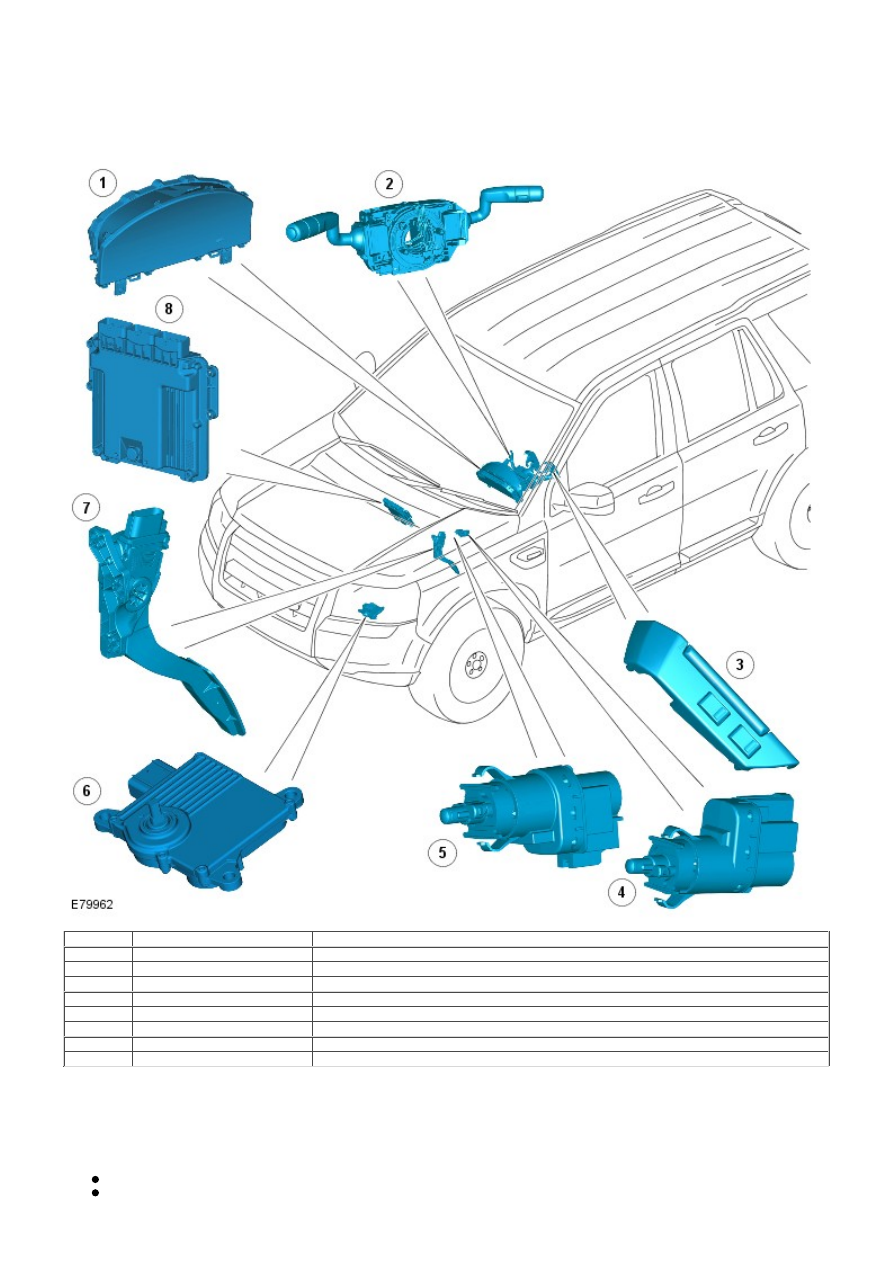

COMPONENT LOCATION

Item

Part Number

Description

1

-

Instrument cluster

2

-

Clockspring

3

-

Speed control steering wheel switches

4

-

Speed control inhibit switch

5

-

Stoplamp switch

6

-

transmission control module (TCM)

7

-

accelerator pedal position (APP)

8

-

engine control module (ECM)

OVERVIEW

The speed control system maintains a set speed selected by the driver until operation is suspended or cancelled by a
further input from the driver and is controlled by the ECM.

The speed control system comprises the following components:

A set +/- switch
A RESUME switch

A CANCEL switch.

The system also uses the following:

The ECM
The stoplamp switch.
The APP sensor
A clutch switch

The ECM controls the set speed by modifying engine speed/torque and requesting gearchanges from the transmission
(automatic variants only).

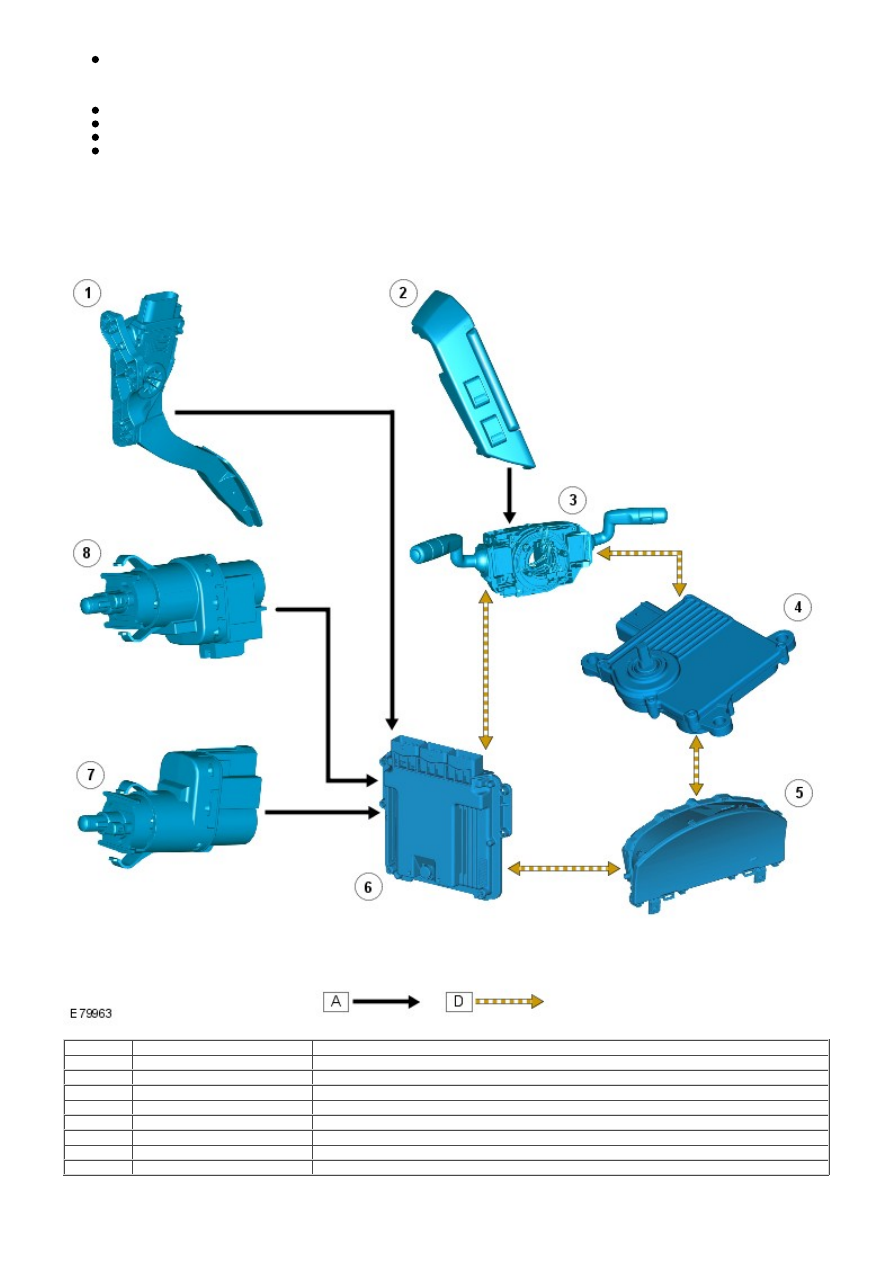

CONTROL DIAGRAM

• NOTE: A = Hardwired; D = High speed controller area network (CAN) bus

Item

Part Number

Description

1

-

APP

2

-

Speed control steering wheel switches

3

-

Clockspring

4

-

TCM

5

-

Instrument cluster

6

-

ECM

7

-

Stoplamp switch

8

-

Speed control inhibit switch

Speed Control - TD4 2.2L Diesel - Speed Control Switch

Removal and Installation

Removal

Disconnect the battery ground cable.

Refer to:

Specifications

 (414-00 Battery and Charging System -

General Information, Specifications).

1.

Make the SRS system safe.

Refer to: Supplemental Restraint System (SRS) Depowering and
Repowering (501-20, General Procedures).

2.

Remove the driver air bag module.

Refer to:

Driver Air Bag Module

 (501-20B Supplemental Restraint

System, Removal and Installation).

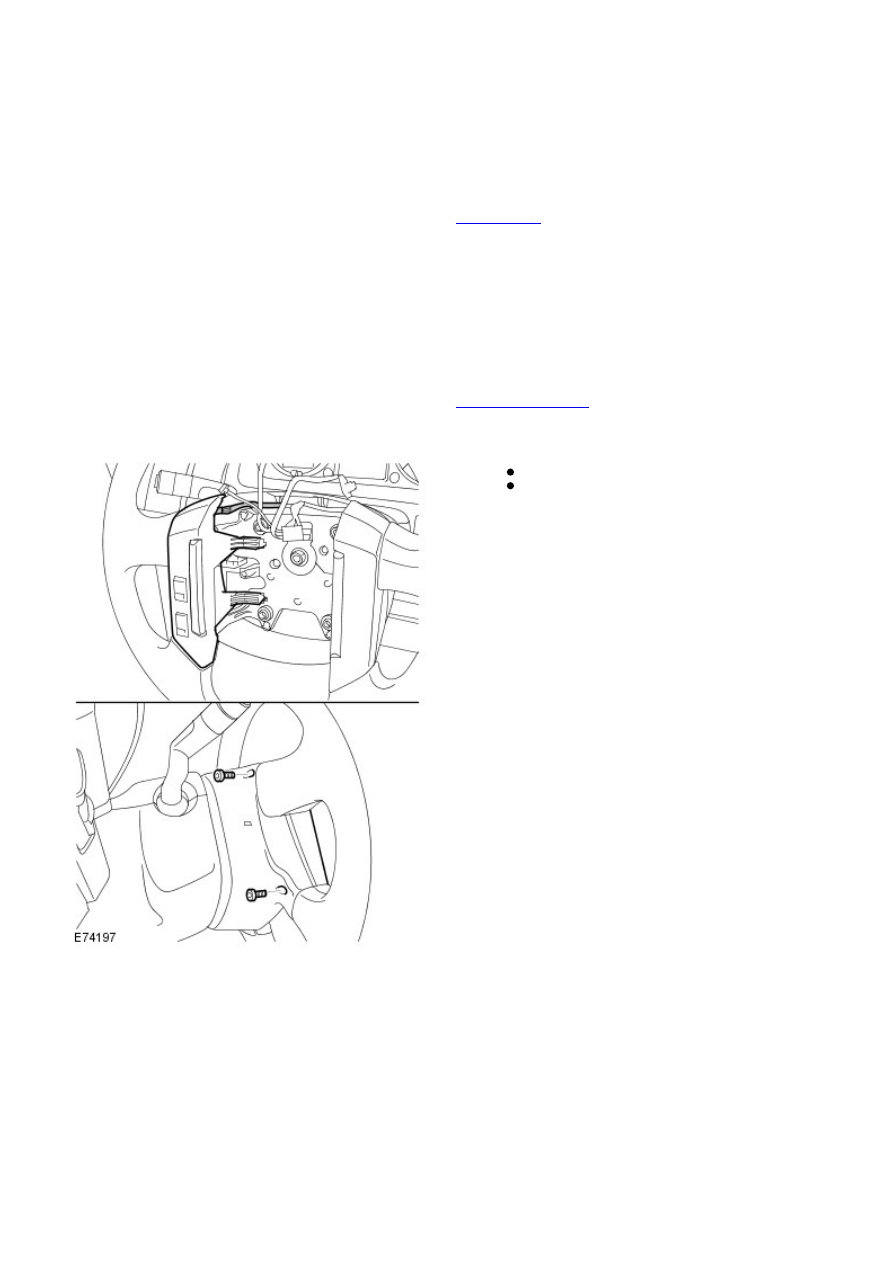

3.



Remove the 2 Torx screws.
Disconnect the electrical connector.

4.

Installation

To install, reverse the removal procedure.

1.
