Frelander 2. Manual - part 404





Item

Part Number

Description

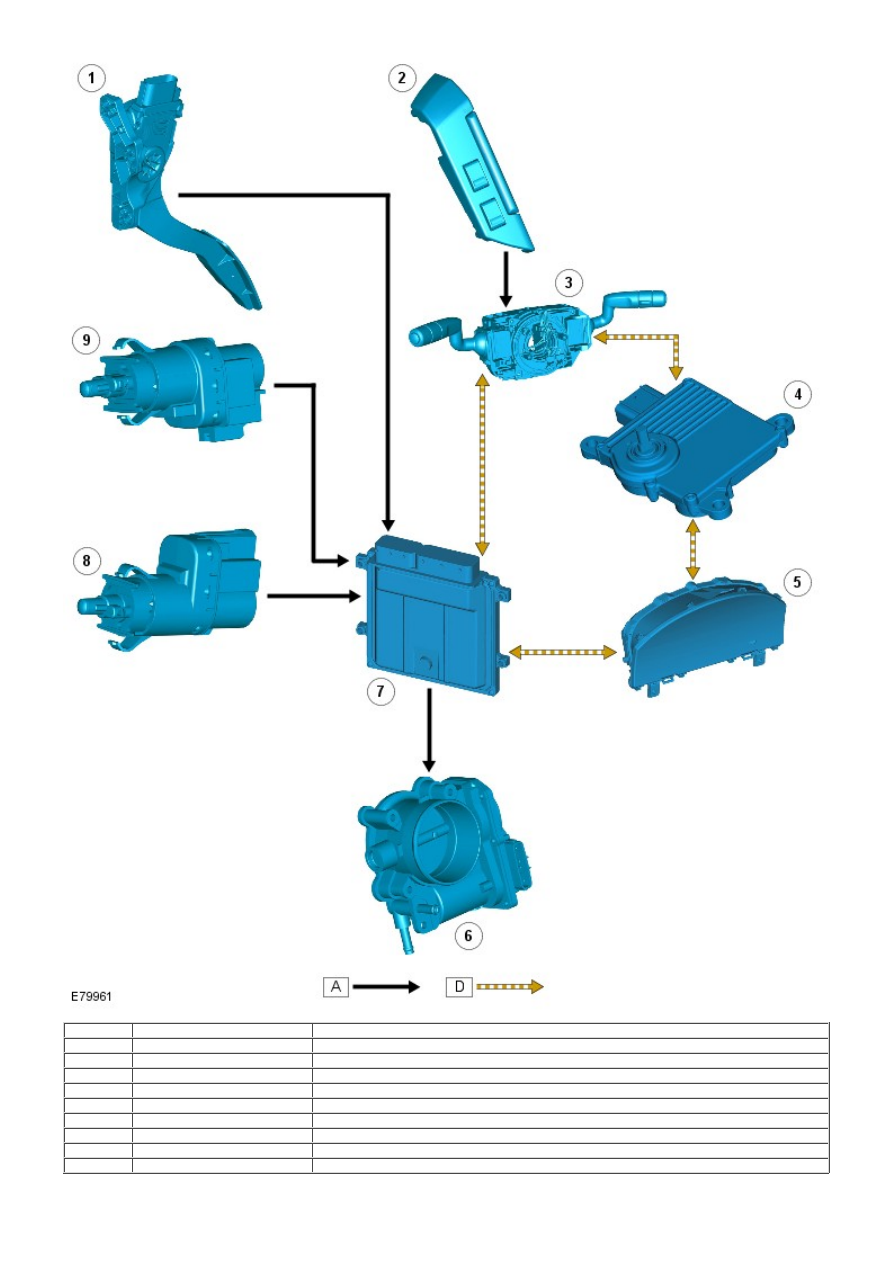

1

-

APP

2

-

Speed control steering wheel switches

3

-

Clockspring

4

-

TCM

5

-

Instrument cluster

6

-

Electric throttle

7

-

ECM

8

-

Speed control inhibit switch

9

-

Stoplamp switch

Speed Control - I6 3.2L Petrol - Speed Control

Diagnosis and Testing

Principles of Operation

For a detailed description of the speed control system, refer to the relevant Description and Operation section in the
workshop manual.
REFER to: Speed Control - 3.2L (310-03, Description and Operation) /

Speed Control - 2.2L Diesel

 (310-03B Speed Control - TD4 2.2L Diesel, Description and Operation).

Inspection and Verification

CAUTION: Diagnosis by substitution from a donor vehicle is NOT acceptable. Substitution of control modules does

not guarantee confirmation of a fault, and may also cause additional faults in the vehicle being tested and/or the donor
vehicle.

1. Verify the customer concern.

1.

2. Visually inspect for obvious signs of mechanical or electrical damage.

2.

Visual Inspection

Mechanical

Electrical

Speed control inhibit switch
Stop lamp switch
Steering wheel rotation sensor

Fuses
Wiring harness
Electrical connector(s)
Steering wheel switches
Brake switch
Speed control inhibit switch
Transmission Control Module (TCM)
Engine Control Module (ECM)

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step.

3.

4. If the cause is not visually evident, verify the symptom and refer to the Symptom Chart, alternatively check for

Diagnostic Trouble Codes (DTCs) and refer to the relevant DTC Index.

4.

Symptom Chart

Symptom

Possible Cause

Action

Speed control inhibited or
disabled

Steering wheel speed
control switch(s)
Steering wheel speed
control switch circuit
Throttle sensors
Brake switch

Refer to electrical circuit diagrams and check
steering wheel speed control switches and circuits
Check ECM for throttle related DTCs and refer to the
DT Index.
REFER to:

Electronic Engine Controls

 (303-14A

Electronic Engine Controls - I6 3.2L Petrol, Diagnosis
and Testing) /

Electronic Engine Controls

 (303-14B Electronic Engine

Controls - TD4 2.2L Diesel, Diagnosis and Testing).
Refer to the electrical circuit diagrams and check
brake switches and circuits

Unable to regulate/adjust
vehicle speed

Steering wheel switch
malfunction

Refer to electrical circuit diagrams and check
steering wheel speed control switch and circuits

Unable to cancel speed
control from steering wheel

Steering wheel switch
malfunction

Refer to electrical circuit diagrams and check
steering wheel speed control switch and circuits

Unable to cancel speed
control from brake pedal

Brake switch
malfunction

Refer to the electrical circuit diagrams and check
brake switches and circuits

DTC Index

• NOTE: If a module or component is suspect, and the vehicle remains under the Manufacturers warranty, refer to the
Warranty Policy and Procedure manual (section B1.2), or determine if any prior approval programme is in operation, prior to
the installation of a new module/component.

• NOTE: Generic scan tools may not read the codes listed, or may read only five digit codes. Match the five digits from the
scan tool to the first five digits of the seven digit code listed to identify the fault (the last two digits give extra
information read by the manufacturer-approved diagnostic system).

• NOTE: When performing voltage or resistance tests, always use a digital multimeter (DMM) accurate to three decimal
places and with a current calibration certificate. W hen testing resistance, always take the resistance of the DMM leads into
account.

• NOTE: Check and rectify basic faults before beginning diagnostic routines involving pinpoint tests.

• NOTE: If DTCs are recorded and, after performing the pinpoint tests, a fault is not present, an intermittent concern may
be the cause. Always check for loose connections and corroded terminals.

DTC

Description

Possible Cause

Action

B10AC86 Cruise Control Switch -

Signal invalid

Signal invalid

Carry out the pinpoint tests associated to
this DTC using the manufacturer approved
diagnostic system

B10AC87 Cruise Control Switch -

Missing message

Missing message

Carry out the pinpoint tests associated to
this DTC using the manufacturer approved
diagnostic system

B10AC95 Cruise Control Switch -

W rong assembly

Mis-match between Car
Configuration File and vehicle

Check/up-date Car Configuration File using
the manufacturer approved diagnostic
system

C004064 Brake Pedal Switch “A” -

Signal plausibility failure

Brake pedal switch circuit -
short to ground, short to power,
open circuit
Brake pedal switch failure

Carry out pinpoint tests associated with this
DTC using the manufacturer approved
diagnostic system. Install a new brake
switch as required.
REFER to:

Speed Control Deactivator Switch

(310-03B Speed Control - TD4 2.2L Diesel,
Removal and Installation).

P012023 Accelerator pedal position

sensor A circuit - signal
stuck low

Accelerator pedal position (APP)
sensor A circuit: short circuit to
ground
Accelerator pedal position (APP)
sensor failure

Check the APP sensor and circuits. Refer to
the electrical guides. Install a new sensor as
required.

P012024 Accelerator pedal position

sensor A circuit - signal
stuck high

Accelerator pedal position (APP)
sensor A circuit: short circuit to
power
Accelerator pedal position (APP)
sensor A circuit: open circuit
Accelerator pedal position (APP)
sensor power supply circuit:
open circuit
Accelerator pedal position (APP)
sensor ground circuit: open
circuit
Accelerator pedal position (APP)
sensor failure

Check the APP sensor and circuits. Refer to
the electrical guides. Install a new sensor as
required.

P012038 Accelerator pedal position

sensor A circuit - signal
frequency incorrect

Accelerator pedal position (APP)
sensor A circuit: loose
connection
Accelerator pedal position (APP)
sensor A circuit: interference
Accelerator pedal position (APP)
sensor failure

Check the APP sensor and circuits. Refer to
the electrical guides. Install a new sensor as
required.

P012100 Throttle/Pedal Position

Sensor A Circuit
Range/Performance

Analogue accelerator pedal ADC
error

Carry out the pinpoint tests associated with
this DTC using the manufacturer approved
diagnostic system

P012200 Throttle/Pedal Position

Sensor A Circuit Low

Analogue accelerator pedal duty
cycle below lower limit

Carry out the pinpoint tests associated with
this DTC using the manufacturer approved
diagnostic system

P012300 Throttle/Pedal Position

Sensor A Circuit High

Analogue accelerator pedal duty
cycle above upper limit

Carry out the pinpoint tests associated with
this DTC using the manufacturer approved
diagnostic system

P012400 Throttle/Pedal Position

Sensor A Intermittent

Analogue accelerator pedal
signal - noisy, disturbance

Carry out CAN network integrity tests using
the manufacturer approved diagnostic
system

P022000 Accelerator pedal position

switch B circuit

Accelerator pedal position (APP)
sensor B circuit: short circuit to
ground
Accelerator pedal position (APP)
sensor B circuit: open circuit
Accelerator pedal position (APP)
sensor B circuit: short circuit to
power
Accelerator pedal position (APP)
sensor failure

Check the APP sensor and circuits. Refer to
the electrical guides. Carry out a complete
vehicle read for APP sensor DTCs. Rectify as
necessary.

P022023 Accelerator pedal position

sensor B circuit - signal
stuck low

Accelerator pedal position (APP)
sensor B circuit: short circuit to
ground
Accelerator pedal position (APP)
sensor B circuit: open circuit
Accelerator pedal position (APP)
sensor failure

Check the APP sensor and circuits. Refer to
the electrical guides. Carry out a complete
vehicle read for APP sensor DTCs. Rectify as
necessary.

P022024 Accelerator pedal position

sensor B circuit - signal
stuck high

Accelerator pedal position (APP)
sensor B circuit: short circuit to
power
Accelerator pedal position (APP)
sensor failure

Check the APP sensor and circuits. Refer to
the electrical guides. Carry out a complete
vehicle read for APP sensor DTCs. Rectify as
necessary.

DTC

Description

Possible Cause

Action

P022082 Accelerator pedal position

sensor B circuit

Accelerator pedal position (APP)
sensor B circuit: short circuit to
ground
Accelerator pedal position (APP)
sensor B circuit: open circuit
Accelerator pedal position (APP)
sensor B circuit: short circuit to
power
Controller area network (CAN)
circuit: open circuit
Controller area network (CAN)
circuit: short circuit to ground
Controller area network (CAN)
circuit: short circuit to power
Accelerator pedal position (APP)
sensor failure

Check the APP sensor and circuits. Check the
CAN circuits. Refer to the electrical guides.
Carry out a complete vehicle read for APP
sensor DTCs. Rectify as necessary.

P022200 Accelerator pedal position

sensor B circuit low

Accelerator pedal position (APP)
sensor B circuit: short circuit to
ground
Accelerator pedal position (APP)
sensor B circuit: open circuit
Accelerator pedal position (APP)
sensor failure

Check the APP sensor and circuits. Refer to
the electrical guides. Carry out a complete
vehicle read for APP sensor DTCs. Rectify as
necessary.

P022300 Throttle/Pedal Position

Sensor/Switch B Circuit High

PWM accelerator pedal duty
cycle above upper limit

Carry out the pinpoint tests associated with
this DTC using the manufacturer approved
diagnostic system

P050429 Brake switch A/B correlation

- general signal failures -
signal invalid

Brake switch circuit: short
circuit to ground
Brake switch circuit: open
circuit
Brake switch circuit: high
resistance
Brake pedal switch failure
Brake control module fault

Carry out a complete vehicle read for related
DTCs. Rectify as necessary. Check the brake
switch and circuits. Refer to the electrical
guides. Install a new brake switch as
necessary.
REFER to:

Speed Control Deactivator Switch

(310-03B Speed Control - TD4 2.2L Diesel,
Removal and Installation).

P050462 Brake Switch A/B Correlation

Brake pedal switch signal
compare failure

Carry out the pinpoint tests associated with
this DTC using the manufacturer approved
diagnostic system

P050464 Brake Switch A/B Correlation

Brake pedal switch signals not
plausible

Carry out the pinpoint tests associated with
this DTC using the manufacturer approved
diagnostic system

P050465 Brake switch A/B correlation

Brake switch circuit: short
circuit to ground
Brake switch circuit: open
circuit
Brake switch circuit: high
resistance
Brake pedal switch failure
Brake control module fault

Carry out a complete vehicle read for related
DTCs. Rectify as necessary. Check the brake
switch and circuits. Refer to the electrical
guides. Install a new brake switch as
necessary.
REFER to:

Speed Control Deactivator Switch

(310-03B Speed Control - TD4 2.2L Diesel,
Removal and Installation).

P057100 Brake Switch A Circuit

Brake switch error - inspectible
fault counter beyond limit

Refer to electrical circuit diagrams and check
both brake switch circuits for short/open
circuit faults. Check/install new brake switch
as required

P080600 Clutch Position Sensor

Circuit Range/Performance

Error with at least one clutch
pedal switch

Refer to electrical circuit diagrams and check
Bottom of Travel clutch switch circuit, carry
out CAN network integrity tests using the
manufacturer approved diagnostic system

P083100 Clutch Pedal Switch 'A'

Circuit Low

Top Of Travel clutch switch
circuit - short to ground, open
circuit

Refer to electrical circuit diagrams and check
Top Of Travel clutch switch circuit for short
to ground, open circuit

P083200 Clutch Pedal Switch 'A'

Circuit High

Top Of Travel clutch switch
circuit - short to power

Refer to electrical circuit diagrams and check
Top Of Travel clutch switch circuit for short
to power

P083300 Clutch Pedal Switch 'B'

Circuit

Error with 75% switch

Refer to electrical circuit diagrams and check
Bottom of Travel clutch switch circuit

P193B00 Throttle/Pedal Signal

Analogue accelerator pedal CAN
signal error

Carry out CAN network integrity tests using
the manufacturer approved diagnostic
system

P210100 Throttle actuator control

motor circuit
range/performance

Throttle actuator control motor
circuit: short circuit to ground
Throttle actuator control motor
circuit: open circuit
Throttle actuator control motor
circuit: short circuit to power
Throttle actuator control motor
failure

Check the throttle motor and circuits. Refer
to the electrical guides. Install a new
throttle body as necessary.
REFER to:

Throttle Body

 (303-04A Fuel

Charging and Controls - I6 3.2L Petrol,
Removal and Installation).















Content   ..  402  403  404  405   ..
