BODY

30

DOORS

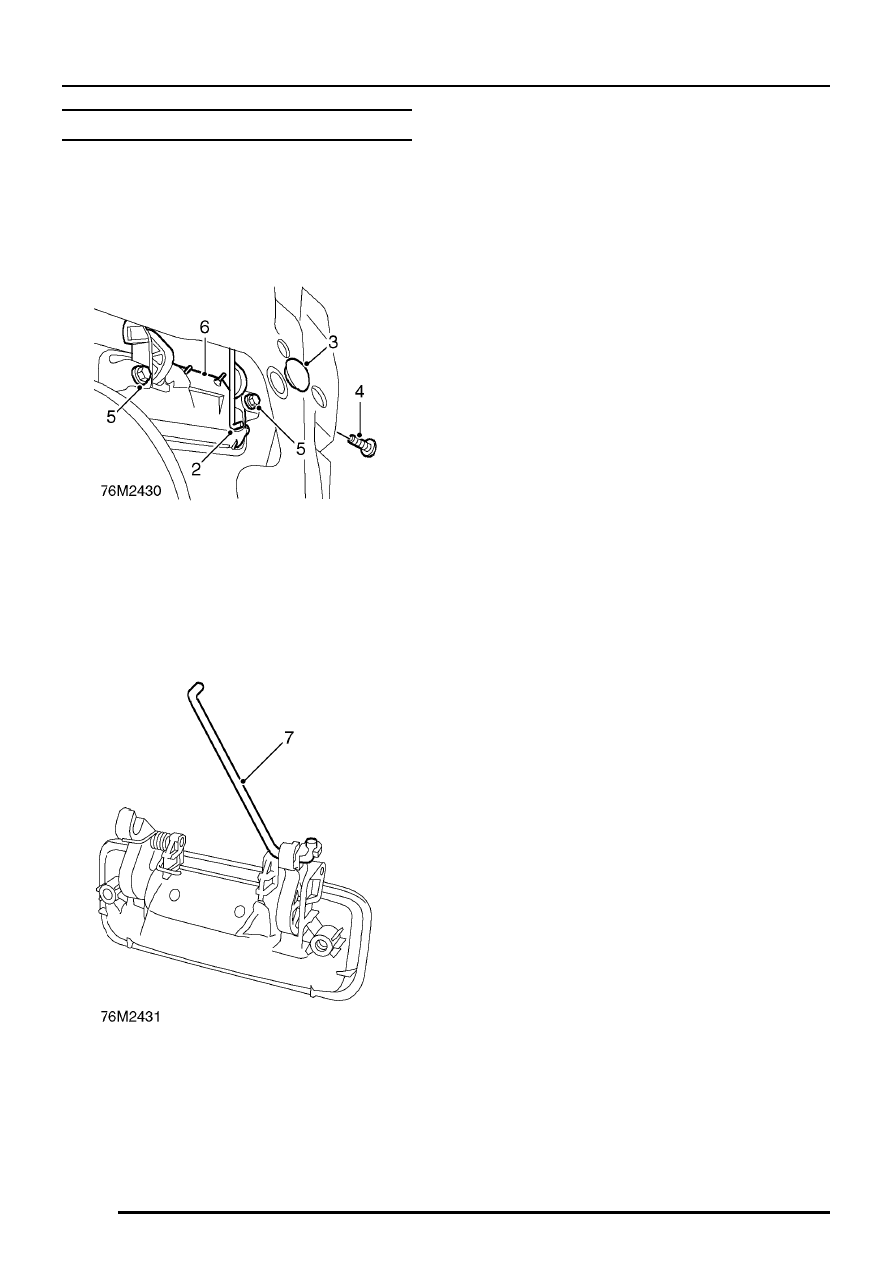

HANDLE - EXTERIOR - REAR DOOR

Service repair no - 76.58.02

Remove

1. Remove rear door water shedder.

See this

section.

2. Release door latch control rod.
3. Remove grommet to access screw.
4. Remove 3 Torx screws securing door latch

release and lower latch to access screw.

5. Remove 2 screws securing door handle.
6. Remove door handle.

7. Remove door latch control rod.

Refit

1. Fit door latch control rod to handle.
2. Position handle to door and tighten securing

screws.

3. Position door latch, fit and tighten Torx screws.
4. Fit grommet.
5. Connect door latch control rod.
6. Fit water shedder.

See this section.

BODY

DOORS

31

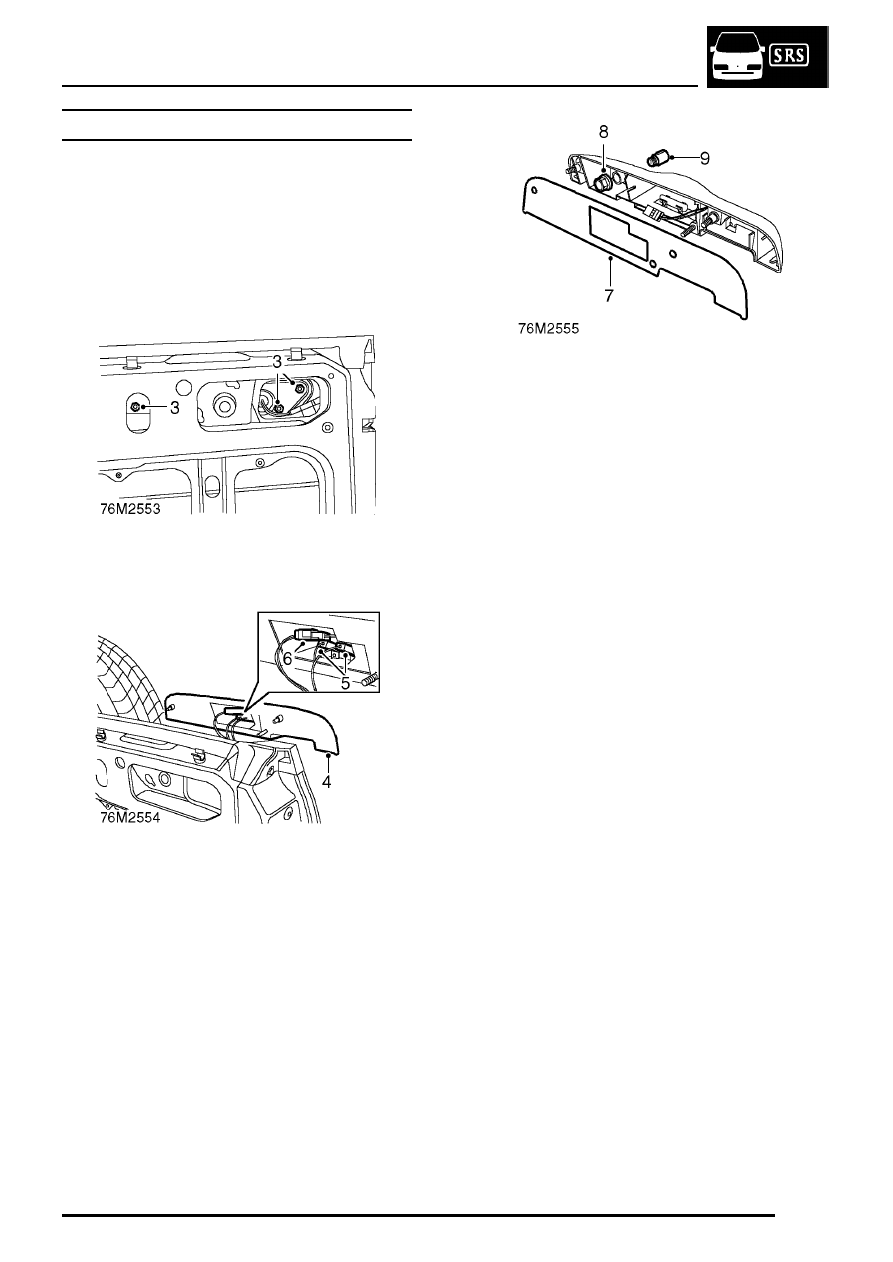

HANDLE - EXTERIOR - TAIL DOOR

Service repair no - 76.58.05

Remove

1. Remove tail door water shedder.

See this

section.

2. Raise glass by clicking latch.

3. Remove 3 nuts securing handle to tail door.
4. Release handle from tail door.

5. Disconnect 2 Lucars from number plate lamp.
6. Disconnect multiplug from locking mechanism

and remove handle.

7. Collect gasket.

Do not carry out further dismantling if
component is removed for access only.

8. Remove nut from lock barrel.
9. Remove lock barrel from handle.

10. Fit lock barrel to replacement handle. Fit and

tighten nut.

Refit

1. Position gasket on handle.
2. Connect multiplug to handle locking

mechanism.

3. Connect Lucars to number plate lamp.
4. Position housing on door, fit and tighten nuts to

5 Nm.

5. Fit water shedder.

See this section.

6. Reset latch to lower glass.
7. Close door.

BODY

32

DOORS

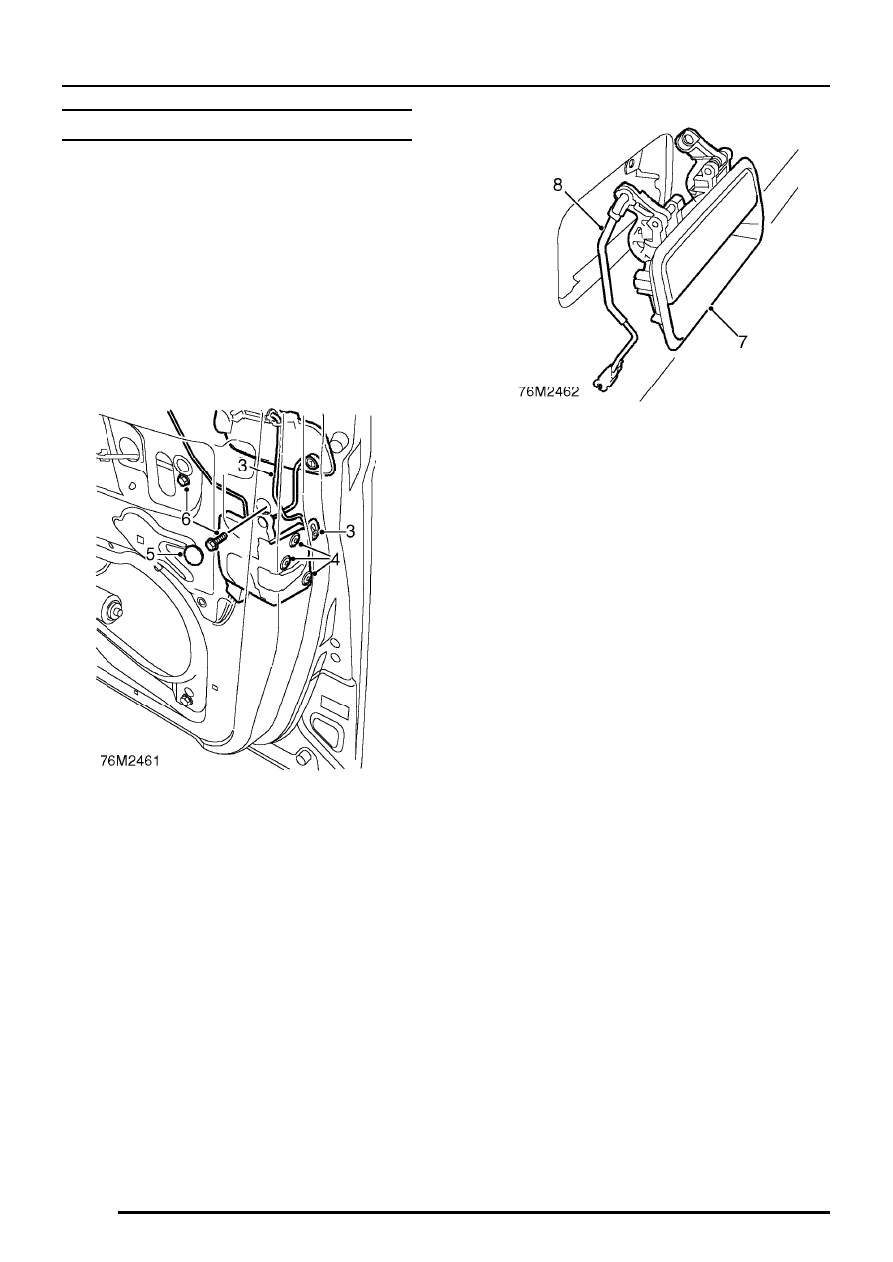

HANDLE - EXTERIOR - FRONT DOOR

Service repair no - 76.58.07

Remove

3 door models

1. Remove upper water shedder.

See this

section.

5 door models

2. Remove front door water shedder.

See this

section.

All models

3. Release clip securing latch control rod to door

latch, and release rod.

5 door models

4. Remove Torx screws securing door latch,

lower latch and release door lock paddle.

All models

5. Remove grommet to access screw.
6. Remove 2 screws securing door handle.

7. Remove door handle.
8. Remove latch control rod from handle.

Refit

1. Fit door latch control rod to handle.
2. Position handle to door, fit and tighten screws.
3. Fit grommet.

5 door models

4. Position latch, locate door lock paddle, fit and

tighten Torx screws.

All models

5. Connect control rod to door latch.
6. Fit water shedder.

See this section.

BODY

DOORS

33

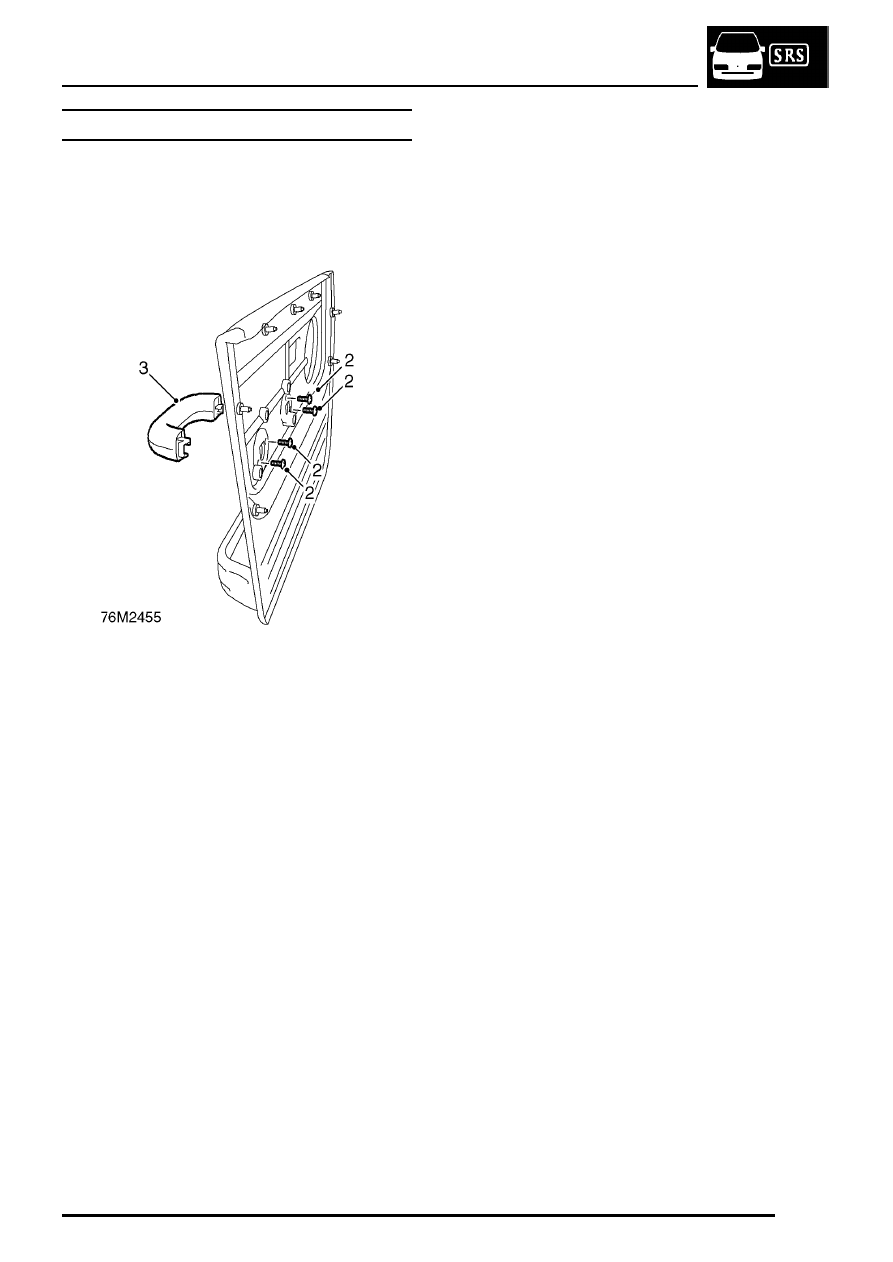

DOOR PULL - FRONT

Service repair no - 76.58.25

Remove

1. Remove front door casing.

See this section.

2. Remove 4 Torx screws securing door pull to

door casing.

3. Remove door pull.

Refit

1. Position door pull to door casing, fit and tighten

Torx screws.

2. Fit front door casing.

See this section.
