LIGHTING

ADJUSTMENTS

86-2-1

LIGHTING

ADJUSTMENTS

Headlamps - pair - align beam

$% 86.40.17

Check

1. Align suitable beam setting equipment to

headlamp.

2. Switch on headlamps. Headlamp setting

l

Non NAS models: 1.2% below horizontal
and parallel.

l

NAS models: 0.4% below horizontal and
parallel.

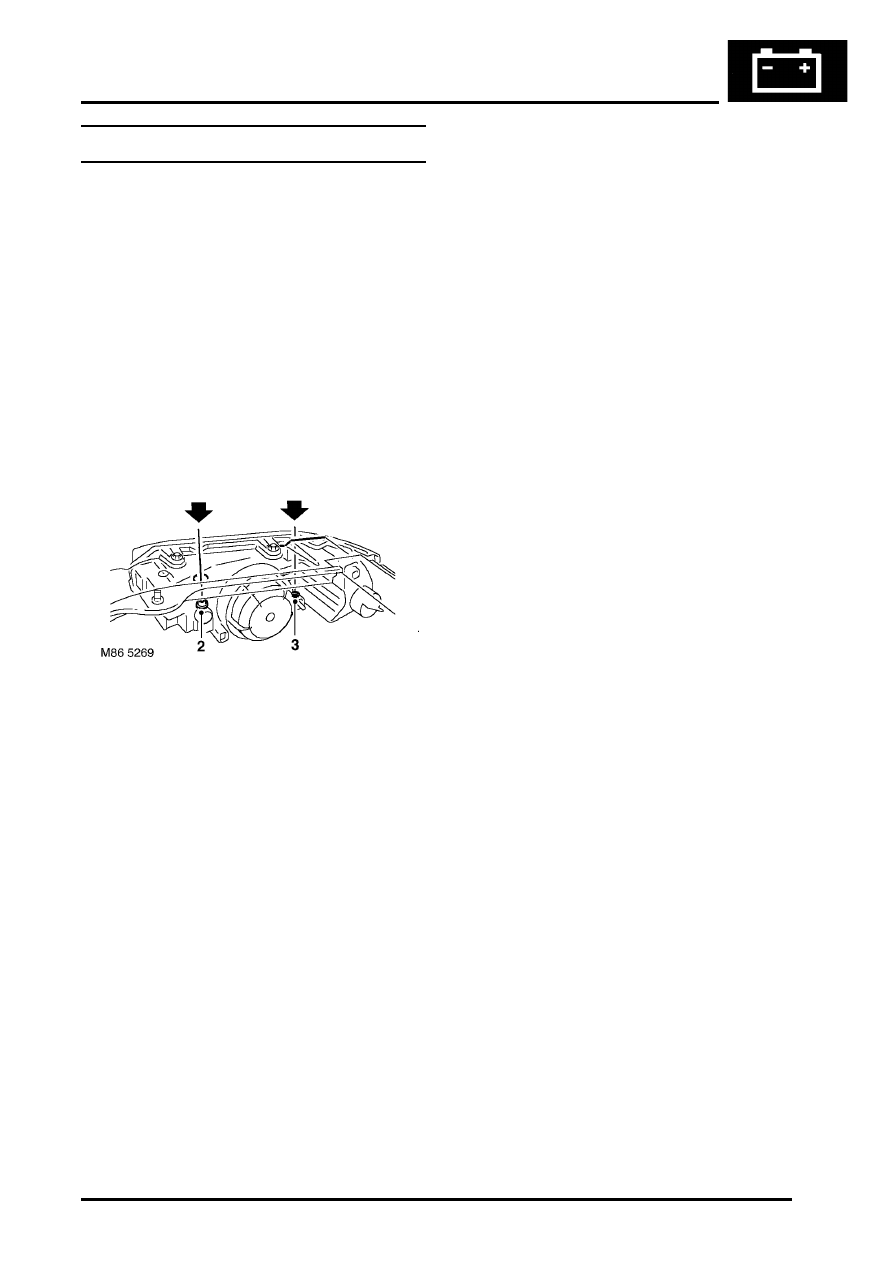

Adjust

1. Adjust headlamp using a 6 mm Allen key.
2. Turn Allen screw for vertical alignment.
3. Non NAS models: Turn Allen screw for

horizontal alignment.

4. Align beam setting equipment to 2nd

headlamp.

5. Adjust 2nd headlamp as detailed above.
6. Switch off headlamps and remove beam setting

equipment.

LIGHTING

86-2-2

ADJUSTMENTS

LIGHTING

REPAIRS

86-2-3

REPAIRS

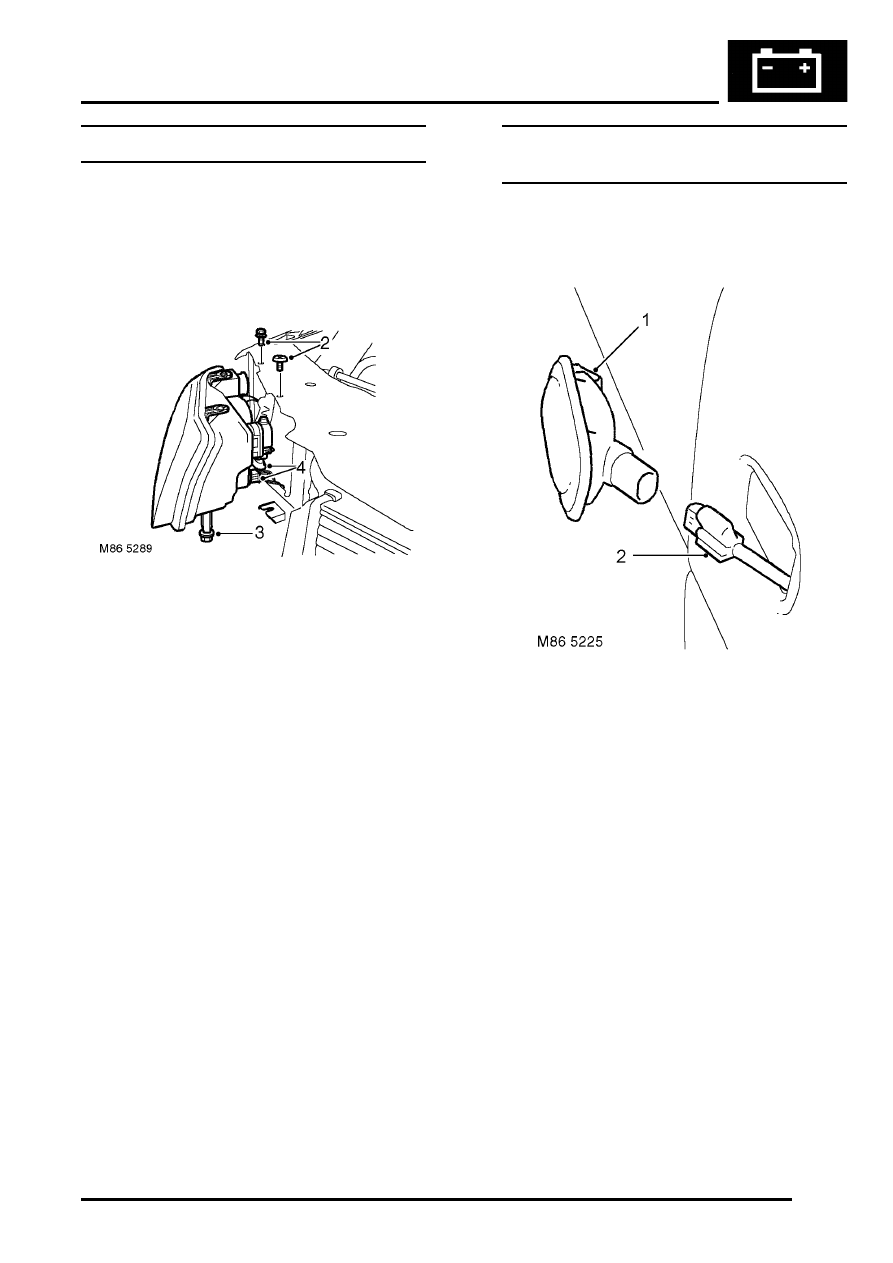

Headlamp assembly

$% 86.40.49

Remove

1. Remove front bumper.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

2. Remove bolt and screw securing headlamp to

body.

3. Loosen nut securing headlamp to body.
4. Disconnect 2 multiplugs from headlamp and

remove headlamp.

Refit

1. Position headlamp and connect multiplugs.
2. Fit and tighten bolt, screw and nut securing

headlamp.

3. Fit front bumper.



 +

 EXTERIOR FITTINGS, REPAIRS,

Bumper - assembly - front.

4. Check headlamp adjustment.



 +

 LIGHTING, ADJUSTMENTS,

Headlamps - pair - align beam.

Lamp assembly - flasher side repeater -
front

$% 86.40.53

Remove

1. Push lamp towards rear of vehicle to release

spring clip, and release lamp from wing.

2. Disconnect multiplug.

Refit

1. Connect multiplug to lamp and secure lamp to

wing.

LIGHTING

86-2-4

REPAIRS

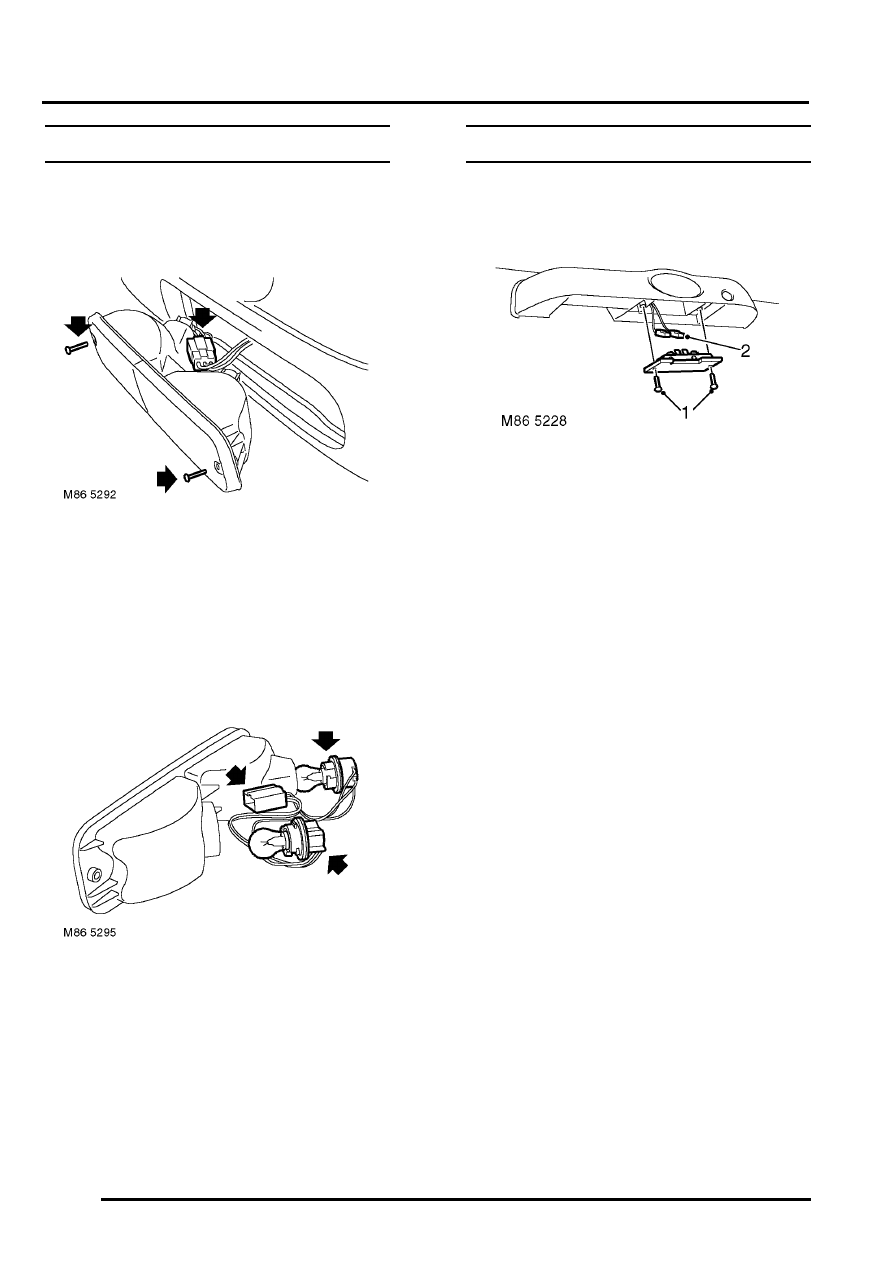

Lamp assembly - tail

$% 86.40.70

Remove

1. Remove 2 Torx screws securing tail lamp to

bumper.

2. Release lamp, disconnect multiplug and

remove lamp.

NOTE: Do not carry out further dismantling if
component is removed for access only.

3. Remove multiplug and bulb holders from tail

lamp.

Refit

1. Fit multiplug and bulb holders to replacement

tail lamp.

2. Position tail lamp, connect multiplug and

secure to bumper with Torx screws.

Lamp assembly - number plate

$% 86.40.86

Remove

1. Remove 2 screws securing lamp to tail door

handle.

2. Disconnect 2 Lucars from number plate lamp.

Refit

1. Position number plate lamp and connect

Lucars.

2. Fit number plate lamp and secure with screws.
