SEATS
REPAIRS 76-5-13

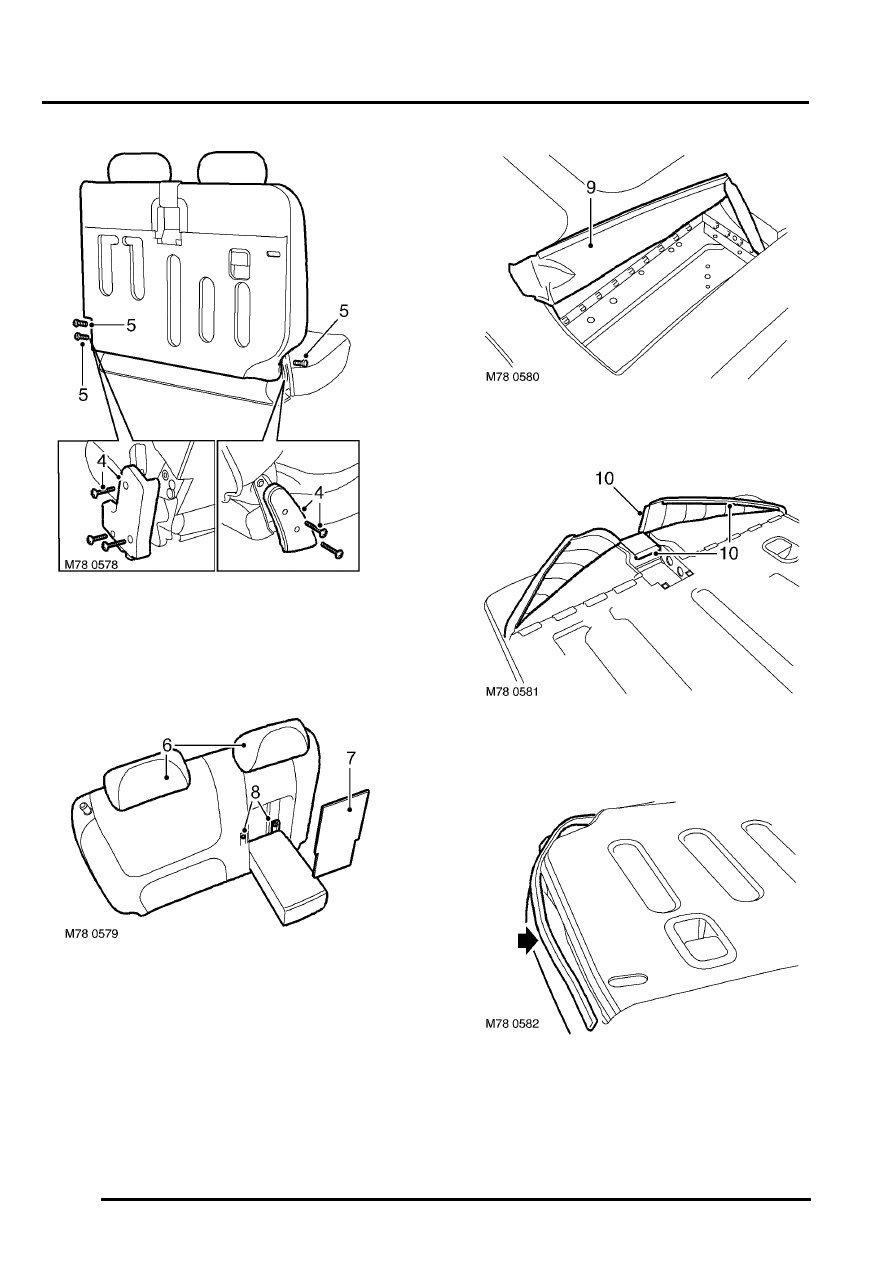

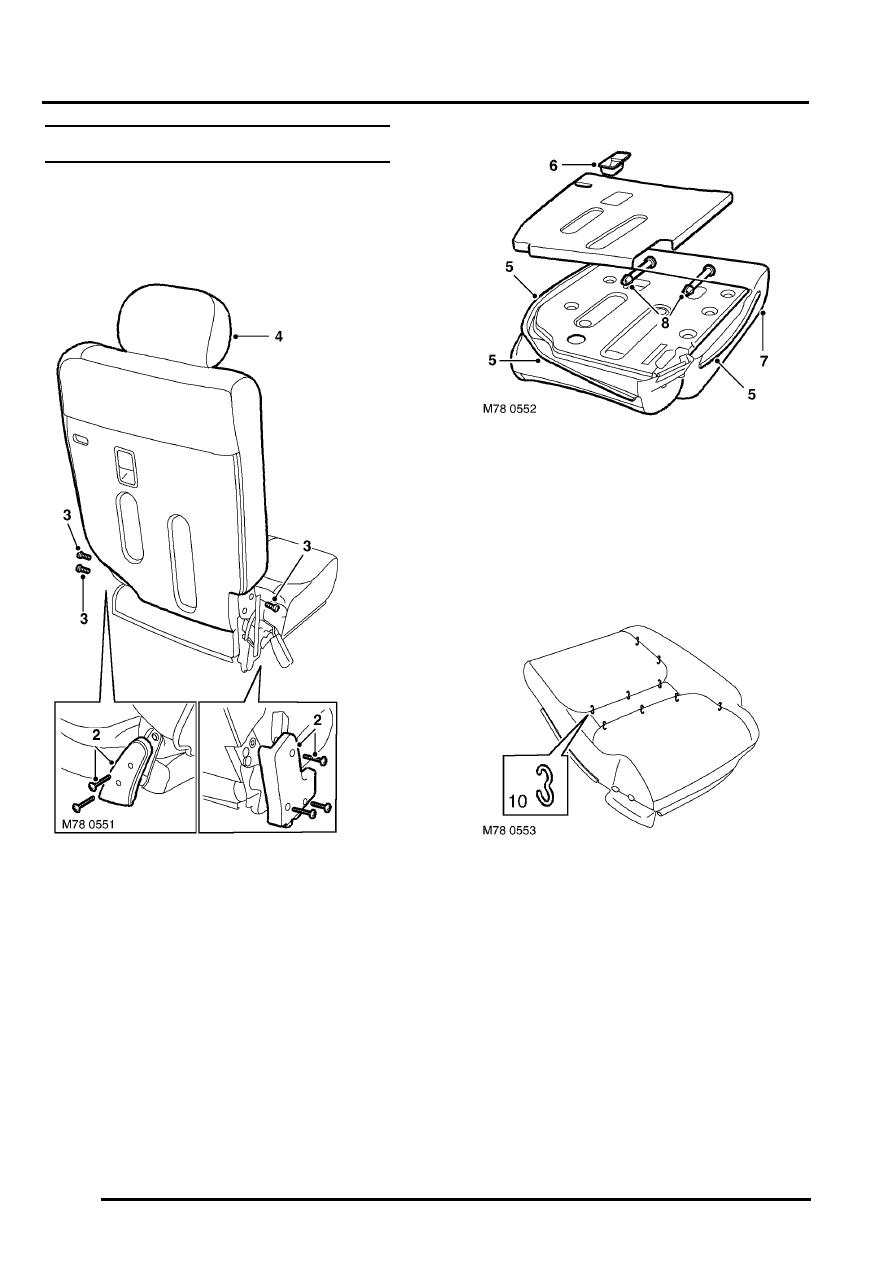

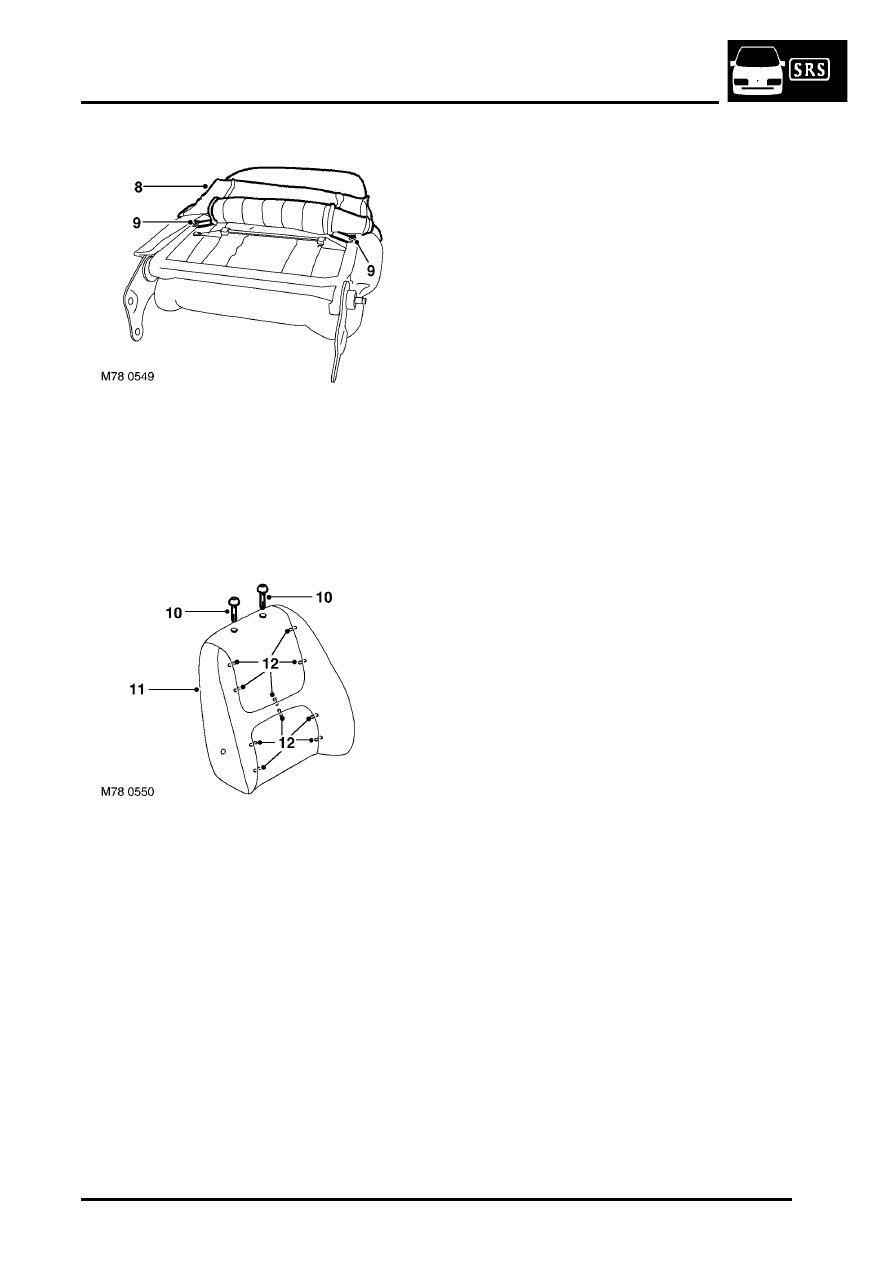

8. Release squab cover from squab frame and
squab pad.
9. Drill out 2 pop rivets from squab frame.
10. Remove both head restraint guide tubes.
11. Remove squab cover and pad from frame.
12. Remove and discard 10 hog rings holding
cover to squab pad.
13. Remove squab cover.
Refit
1. Position squab cover to pad.
2. Pull cover into position and secure with NEW
hog rings.
3. Fit squab cover and pad to frame.
4. Fit head restraint guide tubes.
5. Position straps and secure with pop rivets.
6. Fit squab cover to squab pad and squab frame.
7. Secure squab cover at base of squab frame.
8. Fit lumbar support control knob.
9. Fit squab frame to cushion frame and tighten
Torx bolts to 45 Nm (33 lbf.ft).
10. Fit side covers and secure retaining studs.
11. Fit recline control knob.
12. Fit head restraint.
13. Fit front seat.
+
SEATS, REPAIRS, Front seat.
