Freelander 1. Manual - part 221





SEATS

REPAIRS

76-5-9

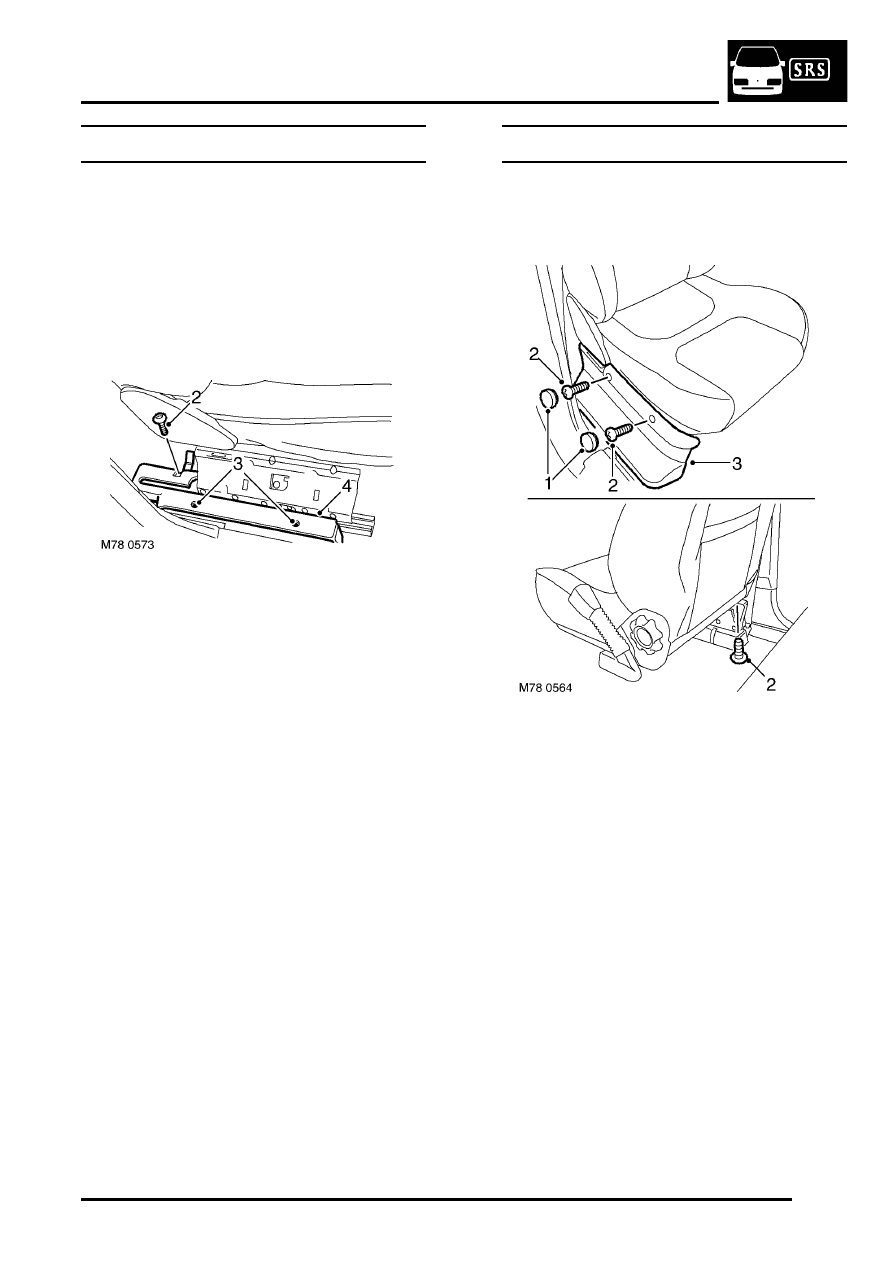

Finisher - seat base - front - each

$% 78.55.01

Remove

1. Remove front seat cushion side finisher.



 +

 SEATS, REPAIRS, Finisher -

cushion side - front seat.

2. Release cover to access Torx screw under

front seat and remove Torx screw.

3. Remove 2 Torx screws securing finisher to seat

runner.

4. Remove finisher.

Refit

1. Position finisher to seat runner.
2. Fit and tighten Torx screws.
3. Fit and tighten Torx screw under front seat and

close cover.

4. Fit front seat cushion side finisher.



 +

 SEATS, REPAIRS, Finisher -

cushion side - front seat.

Finisher - cushion side - front seat

$% 78.55.06

Remove

1. Remove 2 covers to access screws.
2. Remove 3 screws securing finisher.
3. Release clips at front and side of seat and

remove finisher.

Refit

1. Fit finisher to seat and secure with clips and

screws.

2. Fit screw covers.

SEATS

76-5-10 REPAIRS

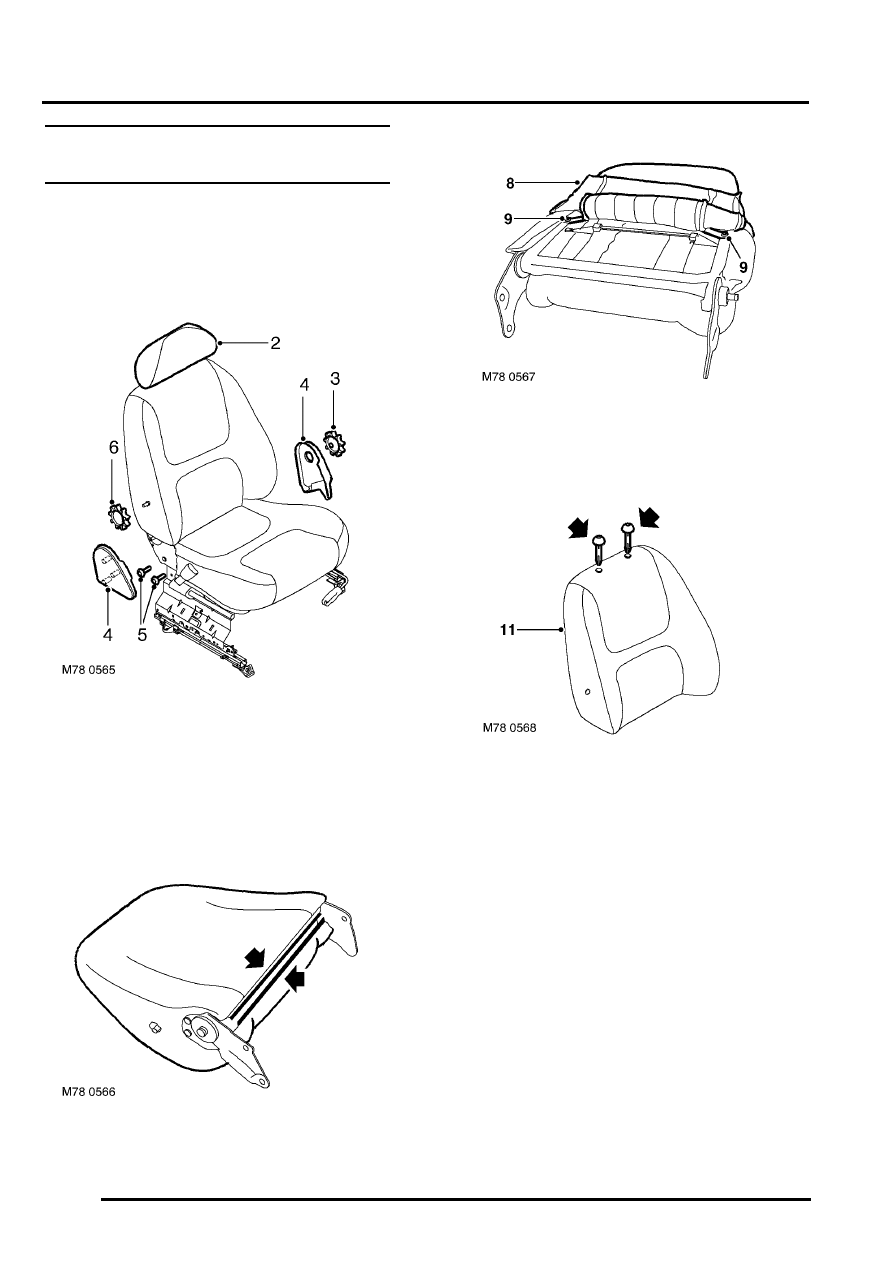

Manual mechanism - lumbar support -
front seat

$% 78.60.07

Remove

1. Remove front seat.



 +

 SEATS, REPAIRS, Front seat.

2. Release and remove head restraint.
3. Remove recline control knob.
4. Release retaining studs from side covers and

remove covers.

5. Remove 4 Torx bolts from squab frame and

remove squab frame from cushion frame.

6. Remove lumbar control knob.

7. Release squab cover at base of seat frame.

8. Release squab cover from squab frame and

squab pad.

9. Drill out 2 pop rivets from squab frame.

10. Remove both head restraint guide tubes.
11. Remove squab cover and pad from frame.

SEATS

REPAIRS 76-5-11

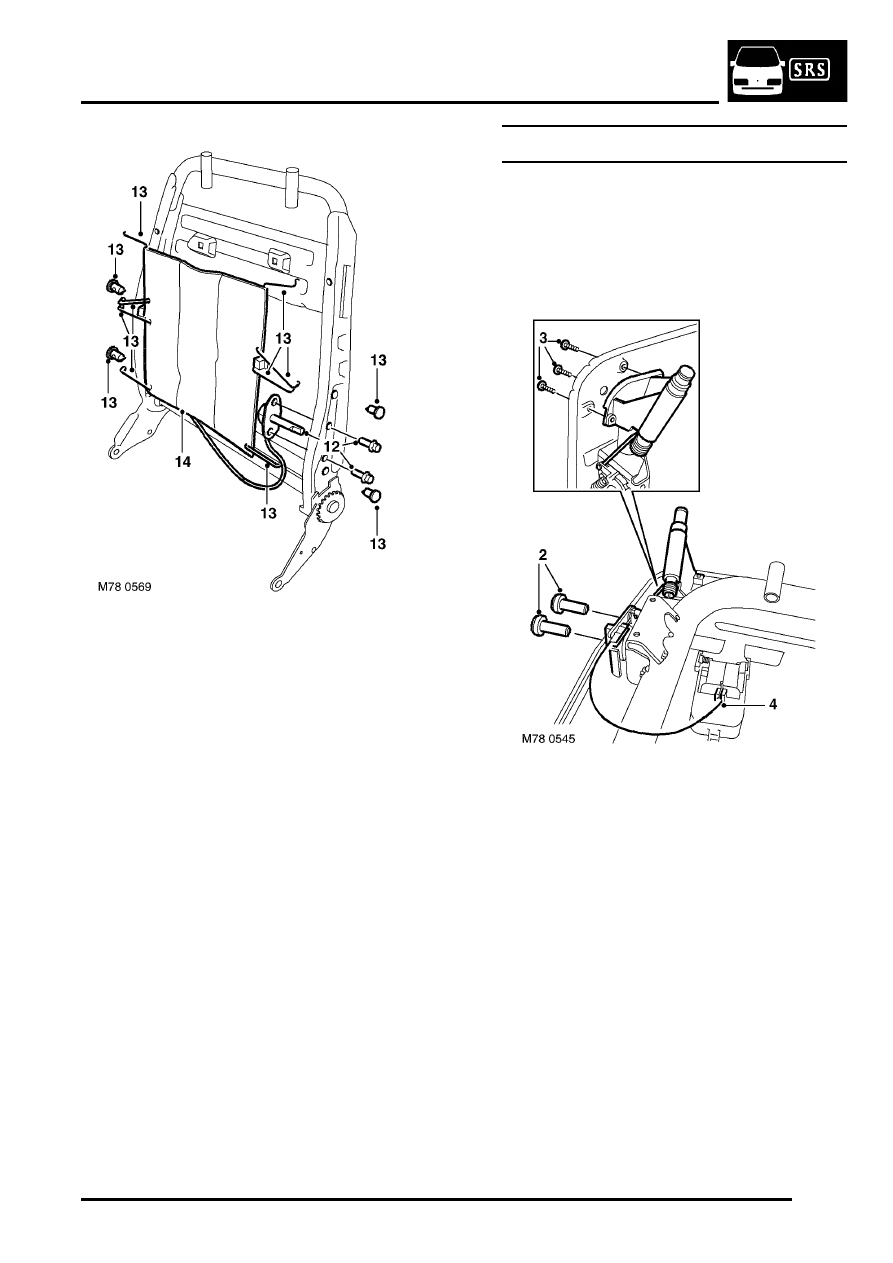

12. Remove 2 bolts from cable control and release

cable control.

13. Release 8 lumbar support retainers from squab

frame and collect 4 hook retainers.

14. Remove lumbar support mechanism.

Refit

1. Position lumbar support to squab frame and

locate hook retainers

2. Fit lumbar support retainers to squab frame.
3. Position cable control and tighten bolts.
4. Fit squab cover and pad to frame.
5. Fit head restraint guide tubes.
6. Position straps and secure with pop rivets.
7. Fit squab cover to squab pad and squab frame.
8. Secure squab cover at base of squab frame.
9. Fit lumbar support control knob.

10. Fit squab frame to cushion frame and tighten

Torx bolts to 45 Nm (33 lbf.ft).

11. Fit side covers and secure retaining studs.
12. Fit head restraint.
13. Fit recline control knob.
14. Fit front seat.



 +

 SEATS, REPAIRS, Front seat.

Latch - rear squab - RH

$% 78.80.05

Remove

1. Remove rear seat squab cover.



 +

 SEATS, REPAIRS, Cover - squab -

rear seat - RH.

2. Remove 2 Torx screws from squab lock.
3. Remove 3 screws from lock button.
4. Release cable from lever abutment and remove

latch assembly.

Refit

1. Position latch assembly to frame and locate

cable in abutment.

2. Fit Torx screws to squab lock and tighten to 20

Nm (15 lbf.ft).

3. Fit screws to lock button.
4. Fit squab cover.



 +

 SEATS, REPAIRS, Cover - squab -

rear seat - RH.

SEATS

76-5-12 REPAIRS

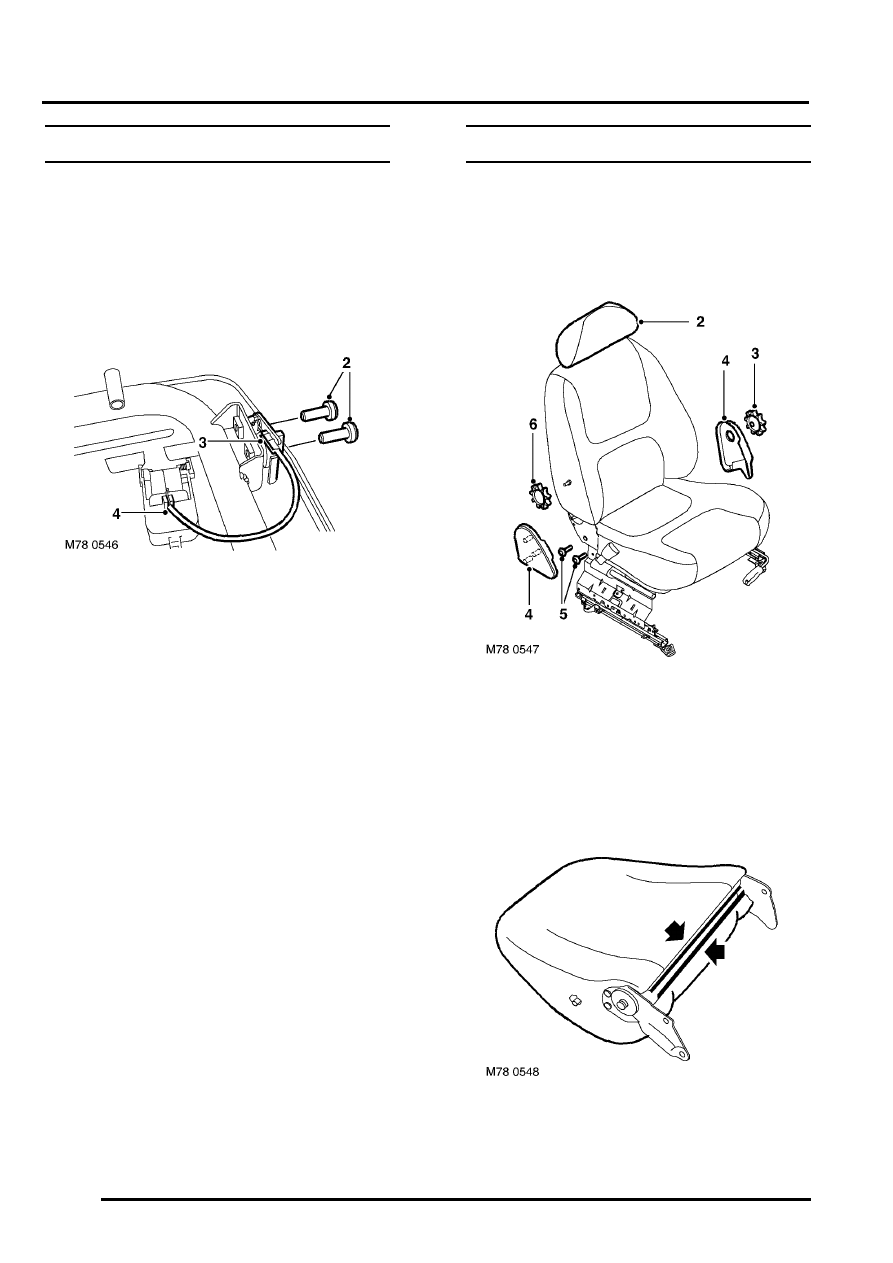

Latch - rear squab - LH

$% 78.80.16

Remove

1. Remove rear seat squab cover.



 +

 SEATS, REPAIRS, Cover - squab -

rear seat - side - LH.

2. Remove 2 Torx screws from squab lock.
3. Release cable from lever abutment.
4. Remove lock and cable from frame.

Refit

1. Position lock and cable to frame.
2. Fit and tighten Torx screws to lock.
3. Fit cable to lever abutment.
4. Fit squab cover.



 +

 SEATS, REPAIRS, Cover - squab -

rear seat - side - LH.

Cover - squab - front seat

$% 78.90.08

Remove

1. Remove front seat.



 +

 SEATS, REPAIRS, Front seat.

2. Release and remove head restraint.
3. Remove recline control knob.
4. Release retaining studs from side covers and

remove covers.

5. Remove 4 Torx bolts from squab frame and

remove squab frame from cushion frame.

6. Remove lumbar control knob.

7. Release squab cover at base of seat frame.
