BRAKES

REPAIRS

70-5

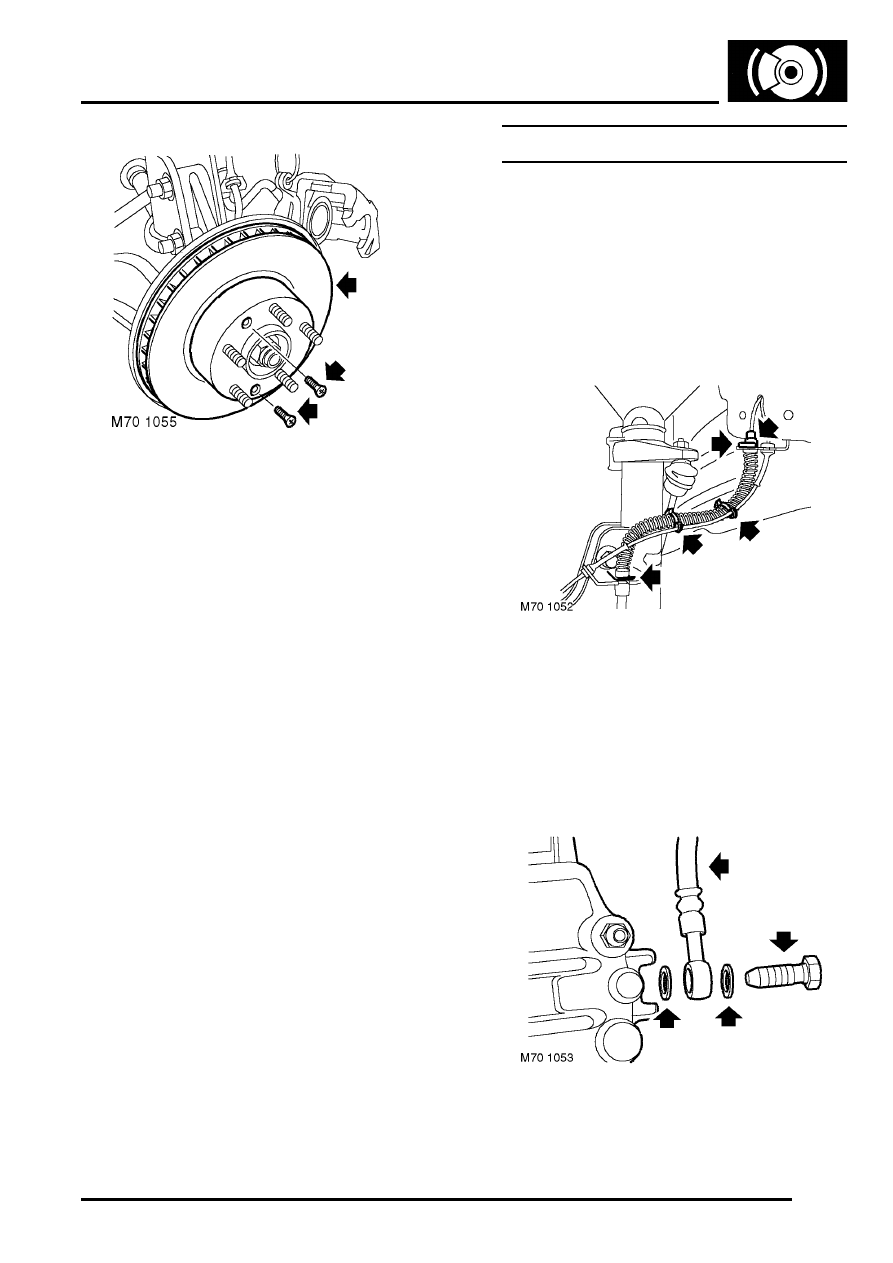

5. Remove 2 screws securing brake disc to drive

flange.

6. Remove brake disc from drive flange.

Refit

1. Clean brake disc and drive flange mating faces.
2. Fit disc to drive flange, fit screws and tighten to

5 Nm (3.5 lbf.ft).

3. Clean mating faces of caliper and hub.
4. Position caliper to brake disc fit bolts and

tighten to 100 Nm (74 lbf.ft).

5. Fit road wheel(s) and tighten nuts to 115 Nm

(85 lbf.ft).

6. Remove stand and lower vehicle.

Hose - front - primary - LH

$% 70.15.02

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove road wheel(s).

3. Loosen brake pipe union to hose and release

union.

CAUTION: Always fit plugs to open
connections to prevent contamination.

4. Remove 2 clips securing hose to valance and

damper bracket.

5. Release clips securing  ABS sensor lead to

brake  hose.

6. Remove banjo bolt securing brake hose to

caliper and collect sealing washers.

7. Remove brake hose and plug brake caliper.

BRAKES

70-6

REPAIRS

Refit

1. Remove plugs and clean brake pipe male end.
2. Position hose to support brackets and secure

with clips.

3. Clean banjo bolt, hose and caliper mating

faces.

4. Using new sealing washers,  align hose to

caliper, fit banjo bolt and tighten to 28 Nm (21
lbf.ft)

5. Align hose to brake pipe and tighten union to 17

Nm (12 lbf.ft).

6. Secure ABS sensor lead to brake hose.
7. Bleed brakes.



 +

 BRAKES, ADJUSTMENTS, Brake

bleed.

8. Fit road wheel(s) and tighten nuts to 115  Nm

(85 lbf.ft).

9. Remove stand(s) and lower vehicle.

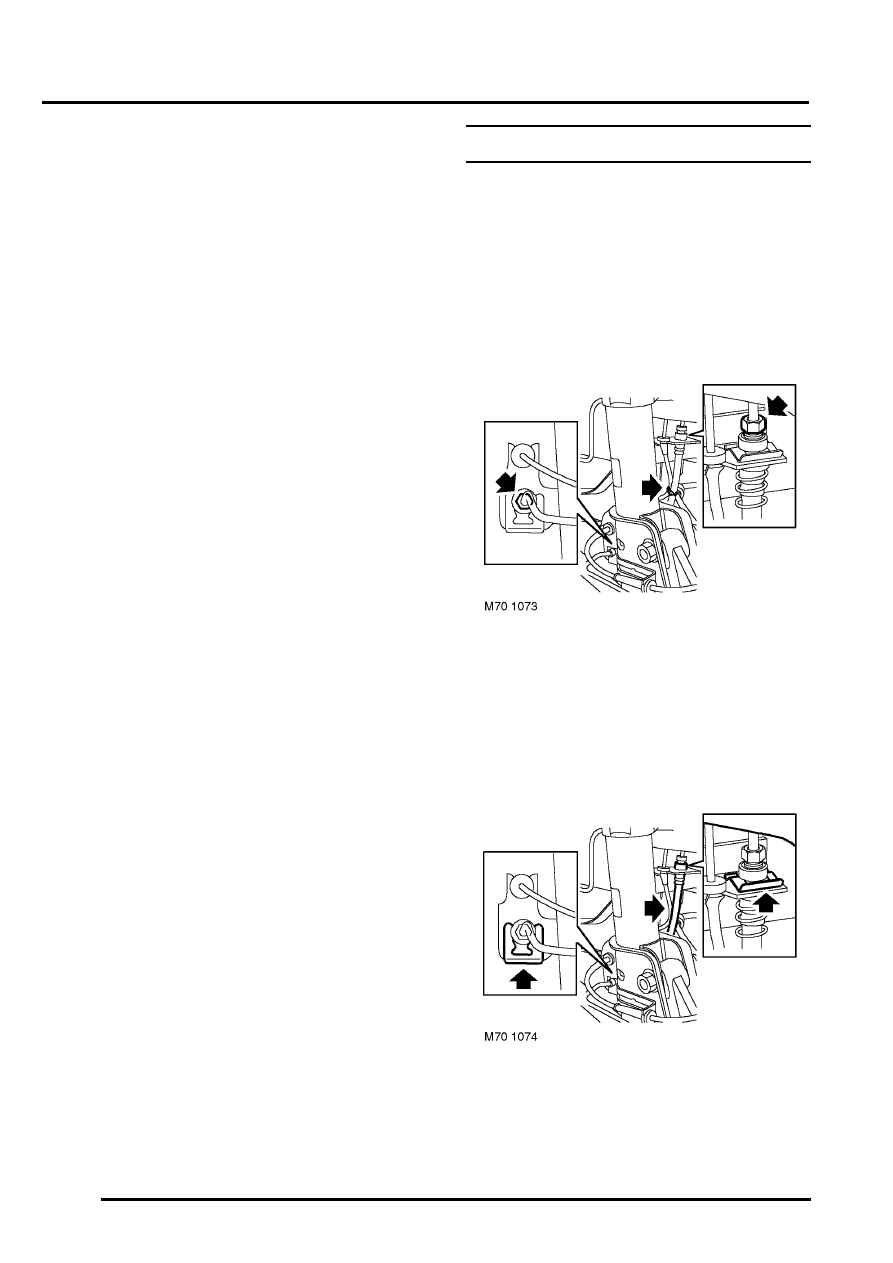

Hose - rear

$% 70.15.17

Remove

1. Raise rear of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove road wheel.

3. Release clips securing  ABS sensor lead to

brake  hose.

4. Loosen brake pipe unions to brake hose and

release unions.

CAUTION: Always fit plugs to open
connections to prevent contamination.

5. Remove 2 clips securing hose to valance and

damper bracket.

6. Remove brake hose.

BRAKES

REPAIRS

70-7

Refit

1. Remove plugs and clean brake pipe male end.
2. Position hose to support brackets and secure

with clips.

3. Align brake pipes and tighten unions to 17 Nm

(12 lbf.ft).

4. Secure ABS sensor lead to brake hose.
5. Bleed brakes.



 +

 BRAKES, ADJUSTMENTS, Brake

bleed.

6. Fit road wheel(s) and tighten nuts to 115 Nm

(85 lbf.ft).

7. Remove stands and lower vehicle.

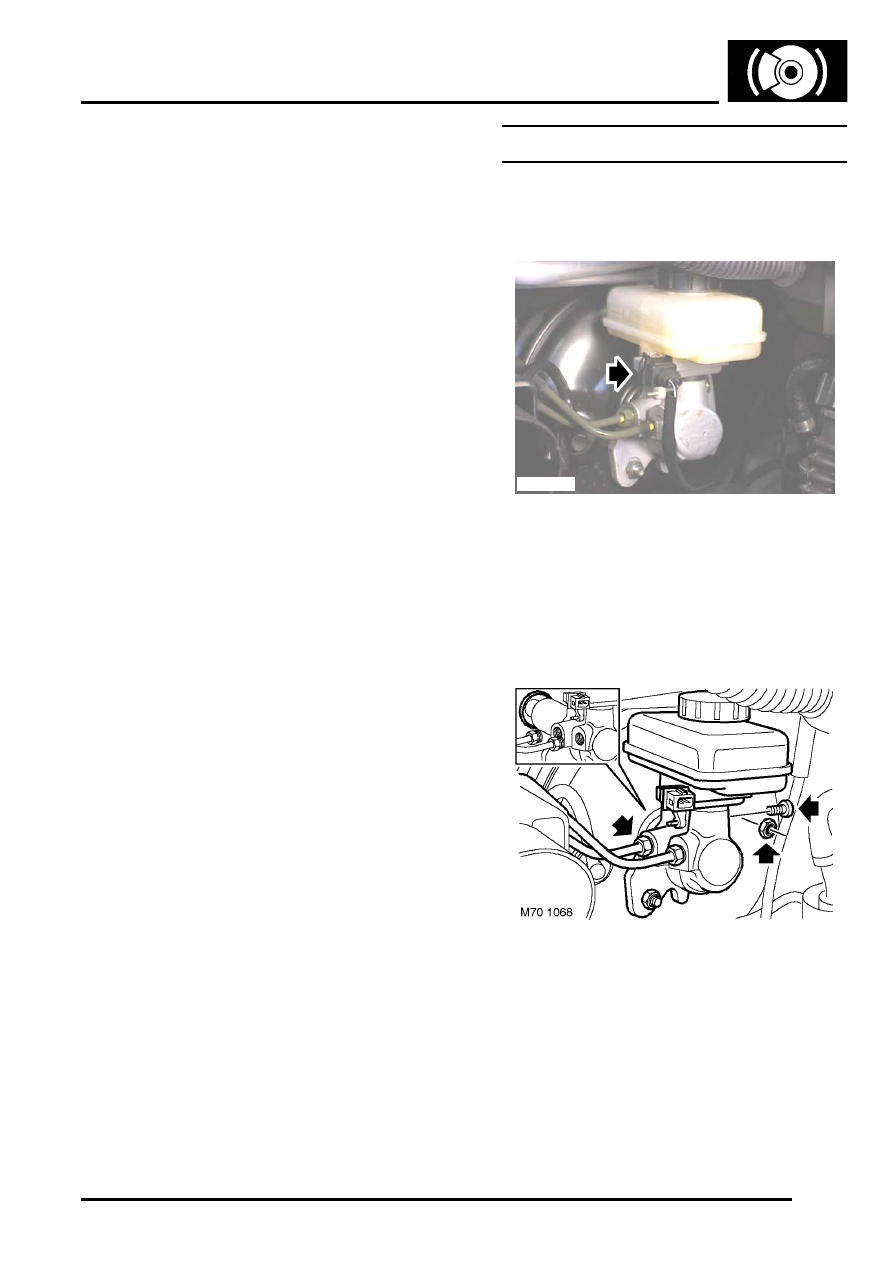

Cylinder - master - tandem - LHD

$% 70.30.08

Remove

1. Disconnect brake fluid level multiplug.
2. Position cloth under master cylinder to absorb

spilled fluid.

CAUTION: Brake fluid will damage paint
finished surfaces. If spilled, immediately
remove fluid and clean area with water.

3. Disconnect secondary system pipe union from

master cylinder.

4. Disconnect primary system pipe union from

master cylinder.

CAUTION: Always fit plugs to open
connections to prevent contamination.

5. Remove Torx bolt securing  master cylinder

reservoir to access master cylinder retaining
nut.

M70 1067

BRAKES

70-8

REPAIRS

6. Remove and discard 2 nuts securing master

cylinder to servo, remove master cylinder.

7. Refit Torx bolt to reservoir.
8. Remove and discard sealing ring.

Refit

1. Clean master cylinder and servo mating

surfaces.

2. Remove Torx bolt securing brake fluid reservoir

to master cylinder.

3. Fit new sealing ring to master cylinder.
4. Align push rod and position master cylinder to

servo.

5. Fit new nuts and tighten 25 Nm (18 lbf.ft).
6. Fit Torx bolt securing reservoir to master

cylinder and tighten to 8 Nm (6 lbf.ft).

7. Clean brake pipe unions.
8. Connect primary and secondary brake pipes

and tighten unions 17 Nm (12 lbf.ft).

9. Connect fluid level switch multiplug.

10. Bleed brakes.



 +

 BRAKES, ADJUSTMENTS, Brake

bleed.

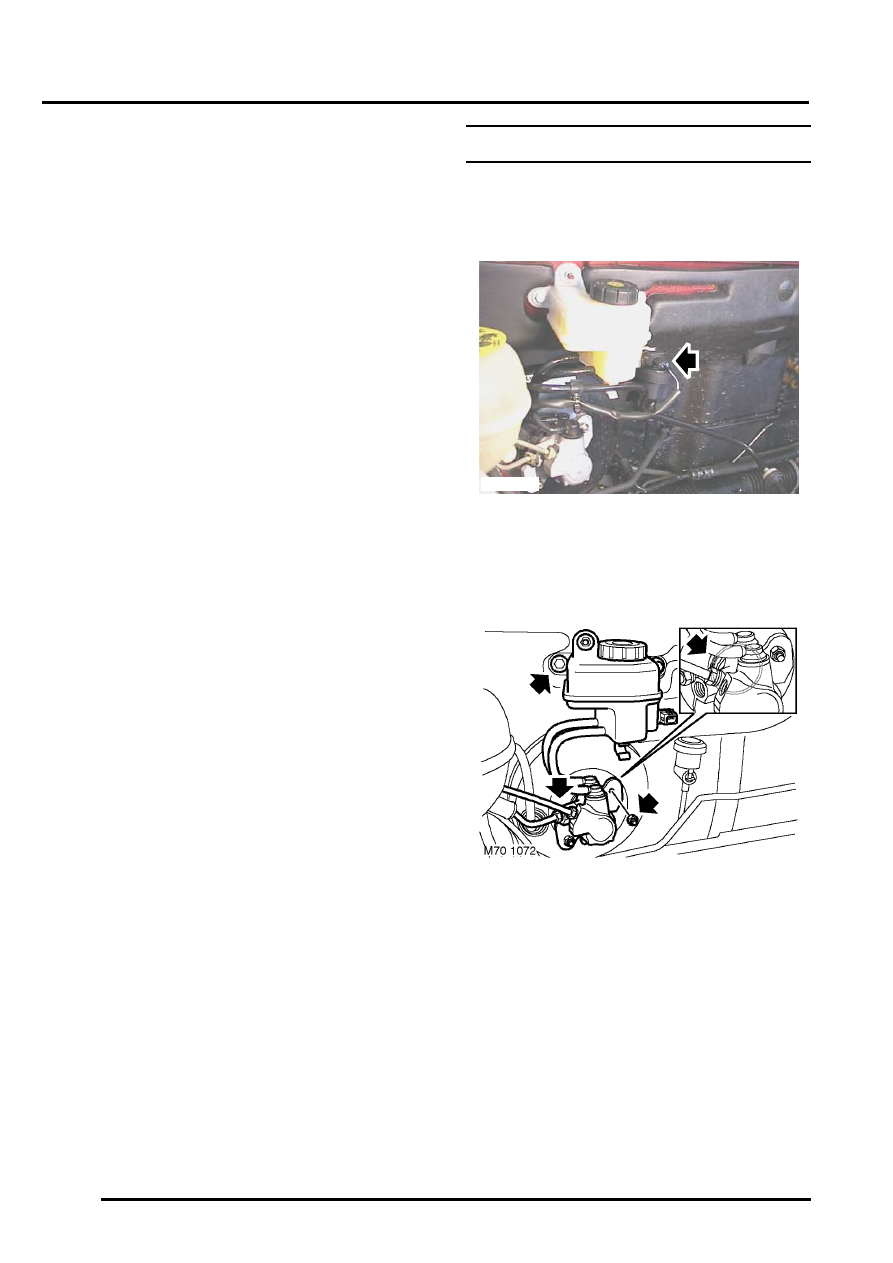

Cylinder - master - tandem - RHD

$% 70.30.08

Remove

1. Disconnect brake fluid level multiplug.
2. Disconnect servo vacuum pipe from inlet

manifold and release vacuum pipe from master
cylinder reservoir.

3. Position cloth under master cylinder to absorb

spilled fluid.

CAUTION: Brake fluid will damage paint
finished surfaces. If spilled, immediately
remove fluid and clean area with water.

4. Disconnect secondary system pipe union from

master cylinder.

5. Disconnect primary system pipe union from

master cylinder.

CAUTION: Always fit plugs to open
connections to prevent contamination.

6. Remove nut and 2 bolts securing master

cylinder reservoir.

M70 1071
