INTERMEDIATE REDUCTION DRIVE

REPAIRS

41-21

Seal - pinion gear

$% 41.29.04

Remove

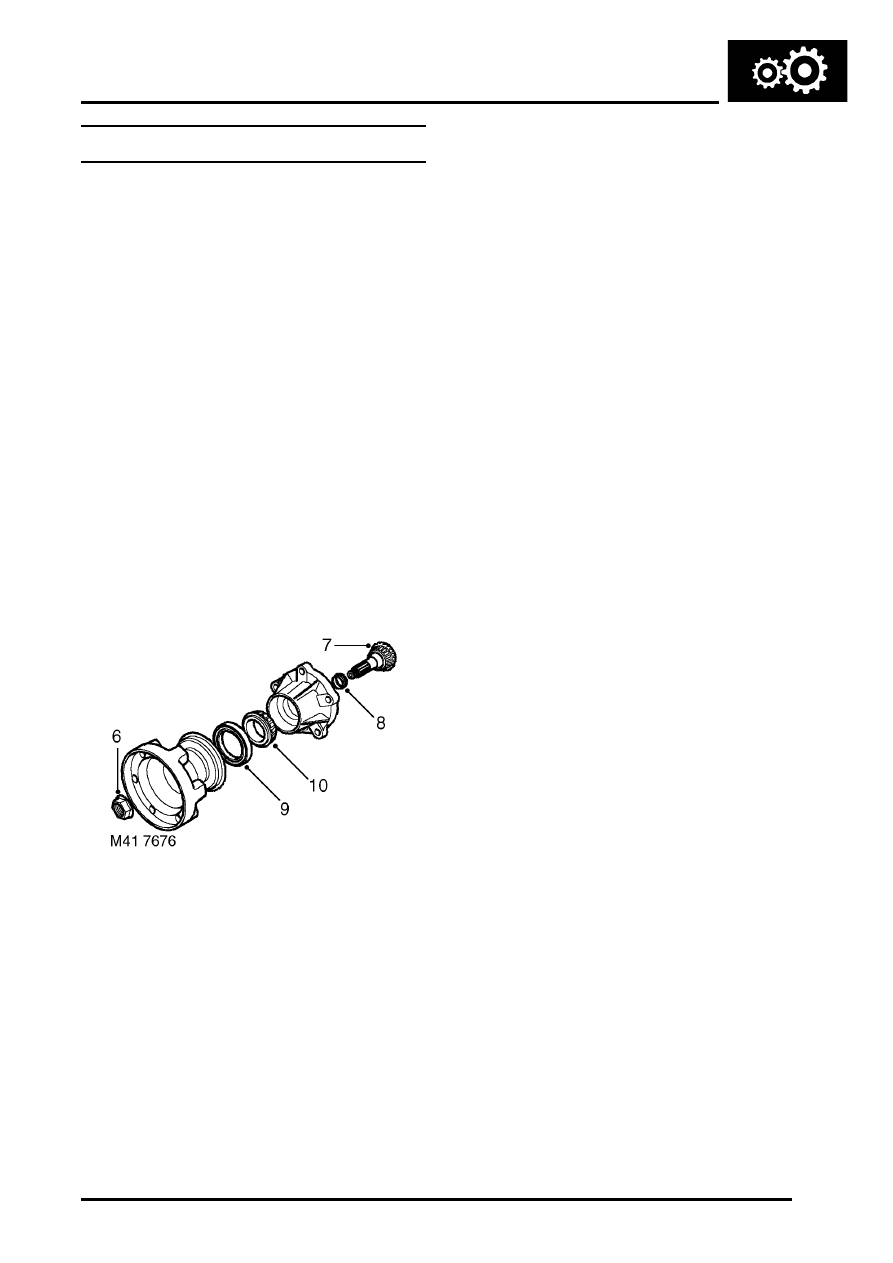

1. Remove pinion housing.



 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Seal - pinion gear
housing - Td4.


 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Seal - pinion gear
housing - K1.8.


 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Seal - pinion gear
housing - KV6 - Non NAS.


 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Seal - pinion gear
housing - KV6 - NAS.

CAUTION: Before dismantling the pinion
housing, measure the turning torque on
existing bearings.

2. Attach pinion housing to suitable mounting

plate and secure mounting plate in vice.

3. Check pinion torque to turn figure.

4. Reference mark pinion flange and pinion shaft

for assembly purposes.

5. Restrain pinion flange using LRT-51-003.
6.
Remove and discard nut.
7. Position pinion housing onto press, fit suitable

adaptor on end of pinion shaft, press pinion
shaft from drive flange and housing.

8. Remove and discard collapsible spacer.
9. Using a suitable lever, remove pinion oil seal.

CAUTION: Take care to avoid damage to oil
seal recess.

10. Remove pinion bearing inner race.

Refit

1. Clean pinion shaft, drive flange and housing.
2. Clean oil seal recess.
3. Lubricate and fit bearing to pinion housing.
4. Lubricate new seal.
5. Using a suitable adapter, press seal into

housing.

CAUTION: Oil seal must be flush with end of
pinion housing.

6. Assemble pinion to housing using new

collapsible spacer.

7. Lightly lubricate drive flange splines with

Molybdenum Disulphide grease.

8. Align pinion to drive flange reference marks

and press flange onto pinion shaft until a 2 mm
clearance exists in bearings.

9. Fit pinion assembly to mounting plate and

secure in vice.

10. Fit new pinion nut, hold pinion drive flange

using LRT-51-003 and tighten pinion nut to 150
Nm (111 lbf.ft).

11. Check pinion torque to turn figure.

NOTE: Figure for new bearings is 180 to 200
Ncm.

If original bearing figure is above 20 to 30 Ncm
and below new bearing figure, set to figure
recorded.

If original bearing is below 20 Ncm set to 20 to
30 Ncm.

12. If turning torque is too low, carefully tighten nut

and recheck reading. If turning torque is too
high, pinion assembly will have to be
dismantled and a new collapsible spacer fitted.
Reassemble using new nut and recheck turning
torque.

13. Check drive flange run-out using a Dial Test

Indicator (DTI).

CAUTION: The drive flange run-out should
not exceed 0.05 mm.

14. Remove pinion housing from vice and

mounting plate.

INTERMEDIATE REDUCTION DRIVE

41-22

REPAIRS

15. Fit pinion housing.



 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Seal - pinion gear
housing - Td4.


 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Seal - pinion gear
housing - K1.8.


 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Seal - pinion gear
housing - KV6 - Non NAS.


 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Seal - pinion gear
housing - KV6 - NAS.

Seal - driveshaft - LH - Td4 & KV6 models

$% 41.29.08

Remove

1. Remove LH drive shaft.



 +

 DRIVESHAFTS, REPAIRS, Shaft

with both joints - LH.

2. Carefully remove and discard oil seal, take care

not to damage oil seal recess.

Refit

1. Clean oil seal recess.

CAUTION: Oil seal is waxed on outer
diameter and must not be lubricated before
fitting.

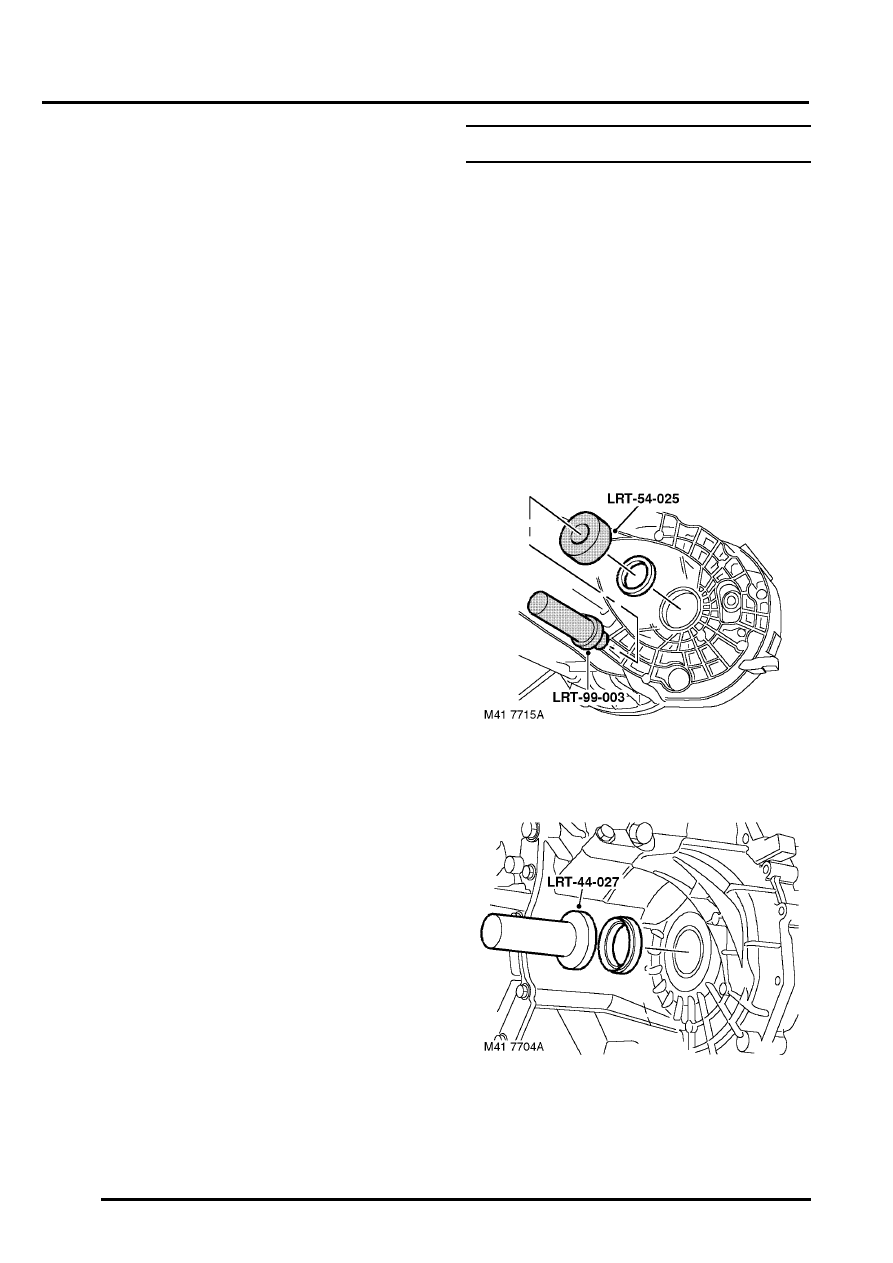

2. Models with manual gearbox:Using LRT-54-

025 and LRT-99-003, fit new oil seal.

3. Models with automatic gearbox: Using LRT-

44-027, fit new oil seal.

INTERMEDIATE REDUCTION DRIVE

REPAIRS

41-23

4. Fit LH drive shaft.



 +

 DRIVESHAFTS, REPAIRS, Shaft

with both joints - LH.

5. Top-up gearbox fluid level.



 +

 MAINTENANCE, MAINTENANCE,

Automatic Gearbox – JATCO.

Seal - drive shaft - LH - K1.8

$% 41.29.08

Remove

1. Remove LH drive shaft.



 +

 DRIVESHAFTS, REPAIRS, Shaft

with both joints - LH.

2. Carefully remove oil seal from differential

housing, discard oil seal.

Refit

1. Thoroughly clean oil seal recess in differential

housing, splines and oil seal running surface on
drive shaft.

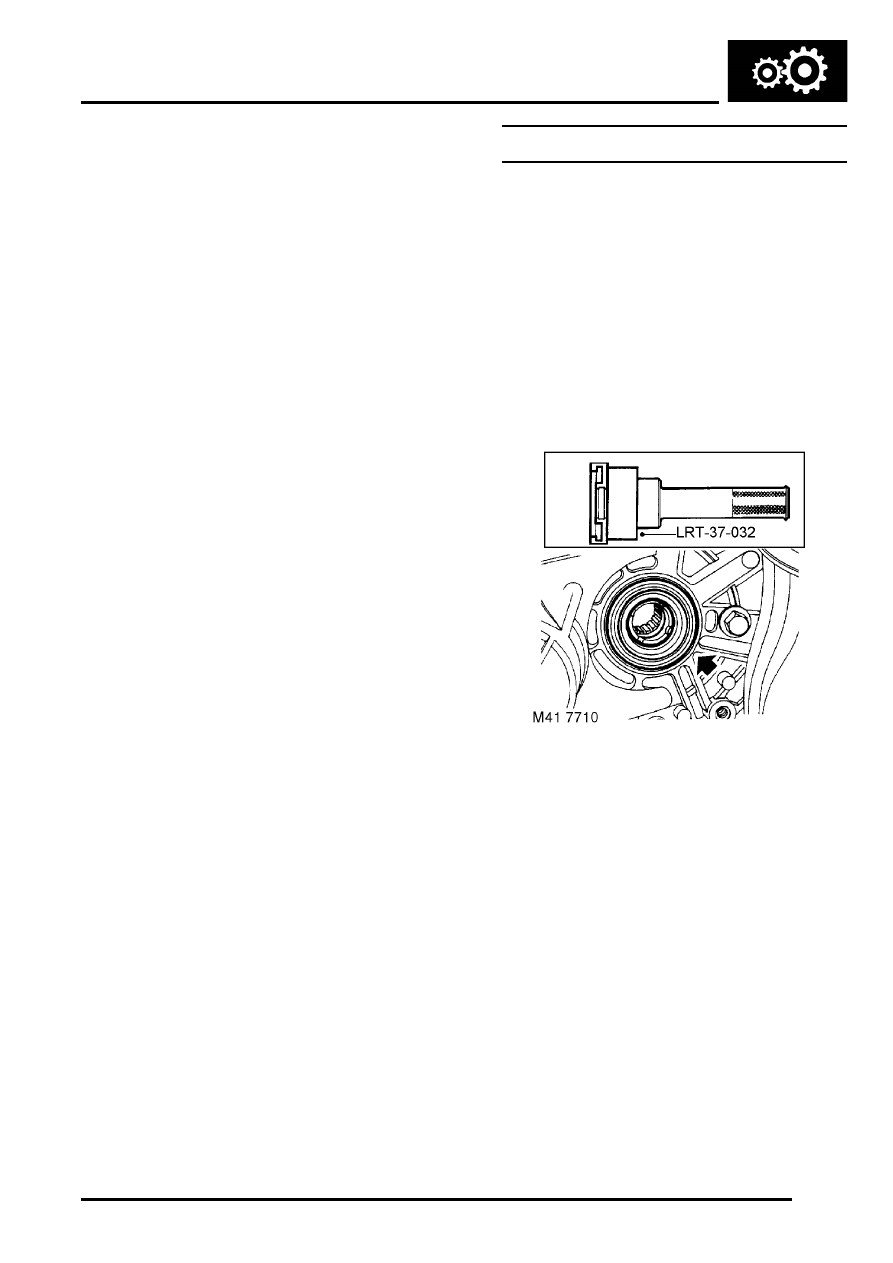

2. Fit handle LRT-37-027 into seal replacer

adaptor, LRT-37-032.

3. Position new oil seal onto LRT-37-032 with

sealing lip facing towards differential housing.

4. Carefully drift oil seal into housing until fully

seated in recess.

INTERMEDIATE REDUCTION DRIVE

41-24

REPAIRS

5. Fully insert oil seal protector tool, Unipart TRV

100060, into differential oil seal so that oil seal
lip is protected and that the split end of tool is
butted correctly.

6. Fit LH drive shaft.



 +

 DRIVESHAFTS, REPAIRS, Shaft

with both joints - LH.

Seal - driveshaft - RH

$% 41.29.09

Remove

1. Remove RH drive shaft.



 +

 DRIVESHAFTS, REPAIRS, Shaft

with both joints - RH.

2. Carefully remove and discard oil seal, take care

not to damage oil seal recess.

Refit

1. Clean oil seal recess.

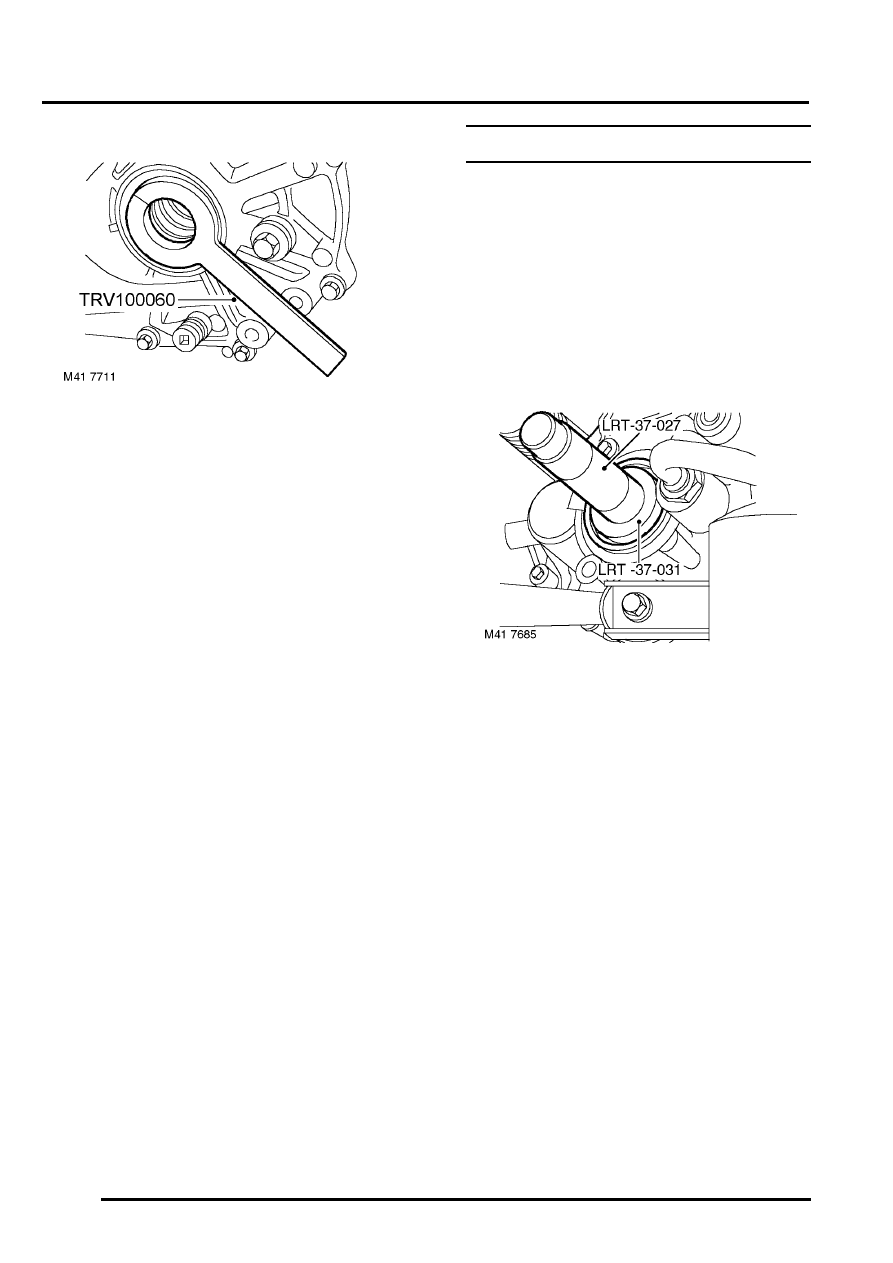

2. Locate seal on tool LRT-37-031 and replacer

LRT-37-027 with sealing lip facing towards
housing.

3. Carefully drift oil seal into housing until fully

seated in recess.

4. Fit RH drive shaft.



 +

 DRIVESHAFTS, REPAIRS, Shaft

with both joints - RH.
