INTERMEDIATE REDUCTION DRIVE

REPAIRS

41-17

8. Non NAS models: Fit nut securing heat shield

to IRD and tighten to 45 Nm (33 lbf.ft).

9. Non NAS models: Fit bolts securing manifold

heat shield to IRD support bracket and tighten
to 9 Nm (7 lbf.ft).

10. Non NAS models: Fit nut securing heat shield

to IRD pinion housing and tighten to 25 Nm (18
lbf.ft).

11. Fit drive shaft RH seal.



 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Seal - driveshaft - RH.

12. Fill IRD to correct level with fluid.



 +

 INTERMEDIATE REDUCTION

DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) fluid - drain & refill -
Non NAS.


 +

 INTERMEDIATE REDUCTION

DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) lubrication system -
drain & refill - NAS.

13. NAS models: Fit RH catalytic converter.



 +

 EMISSION CONTROL, REPAIRS,

Catalytic converter - RH - KV6 - NAS.

Gasket -  end cover - IRD housing - K1.8

$% 41.27.05

Remove

1. Drain fluid from IRD.



 +

 INTERMEDIATE REDUCTION

DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) fluid - drain & refill -
Non NAS.

2. Remove drive shaft RH seal.



 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Seal - driveshaft - RH.

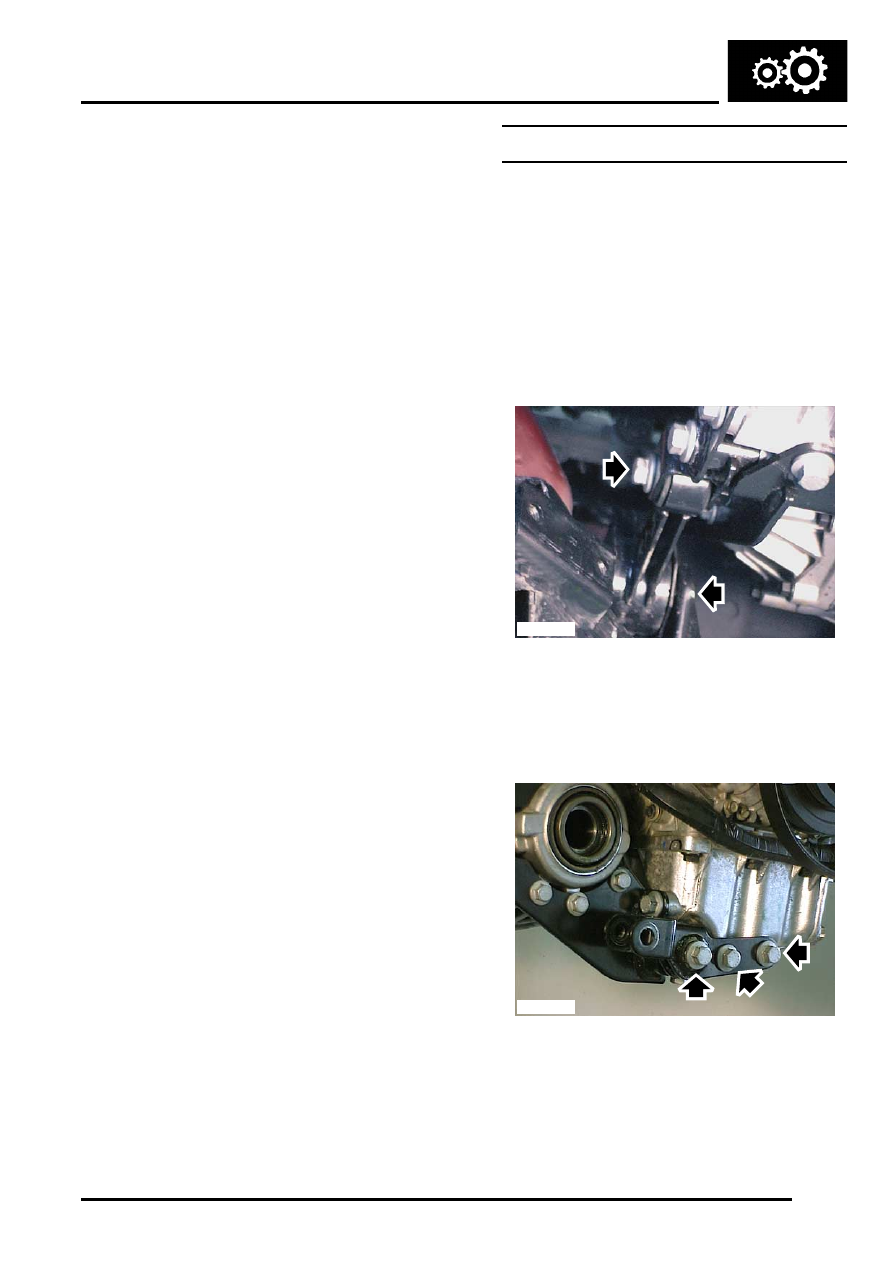

3. Remove bolt securing engine lower steady to

beam.

4. Remove bolt securing engine lower steady to

bracket on sump.

5. Remove engine lower steady.

6. Remove 3 bolts securing lower engine steady

bracket to sump and remove bracket.

M12 7144

M12 7165

INTERMEDIATE REDUCTION DRIVE

41-18

REPAIRS

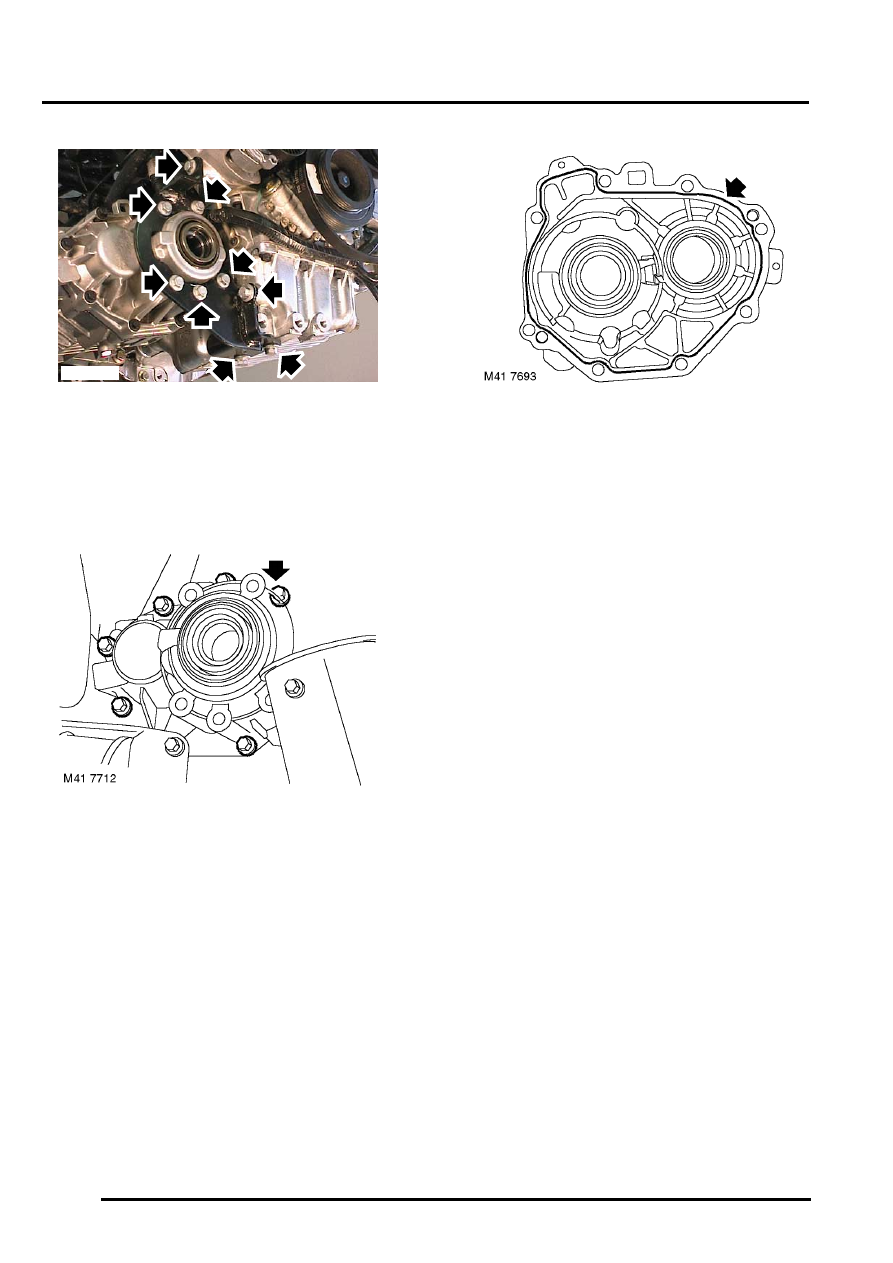

7. Remove upper bolt securing IRD support

bracket to cylinder block.

8. Remove 5 bolts securing support bracket to

IRD.

9. Remove 3 bolts securing IRD support bracket

to sump and remove bracket.

10. Remove 8 bolts securing end cover to main

case of IRD.

11. Remove end cover.
12. Remove bolt securing engine lower steady to

bracket on sump.

Refit

1. Clean remains of old sealant from mating faces

of end cover and IRD main case.

2. Apply a narrow bead of sealant, Part No. STC

3254 to mating face of end cover.

3. Fit end cover to IRD and tighten bolts

progressively to 30 Nm (22 lbf.ft).

4. Fit IRD support bracket and tighten bolts

sufficiently only to pull mating faces together.

5. Final tighten bolts securing IRD support bracket

in following sequence: 5 bolts securing IRD
support bracket to IRD 50 Nm (37 lbf.ft),  bolt
securing support bracket to cylinder block 45
Nm (33 lbf.ft), 3 bolts securing support bracket
to sump 45 Nm (33 lbf.ft).

6. Position engine lower steady bracket to sump,

fit and tighten bolts to 100 Nm (74 lbf.ft).

7. Fit engine lower steady, fit bolts and tighten to

80 Nm (59 lbf.ft).

8. Fit drive shaft RH seal.



 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Seal - driveshaft - RH.

9. Fill IRD to correct level with fluid.



 +

 INTERMEDIATE REDUCTION

DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) fluid - drain & refill -
Non NAS.

M12 7166

INTERMEDIATE REDUCTION DRIVE

REPAIRS

41-19

Seals - primary gear shaft

$% 41.29.02

Remove

1. Remove IRD.



 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Intermediate reduction
drive (IRD) unit - K1.8.


 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Intermediate reduction
drive (IRD) unit - Td4.


 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Intermediate reduction
drive (IRD) unit - KV6.

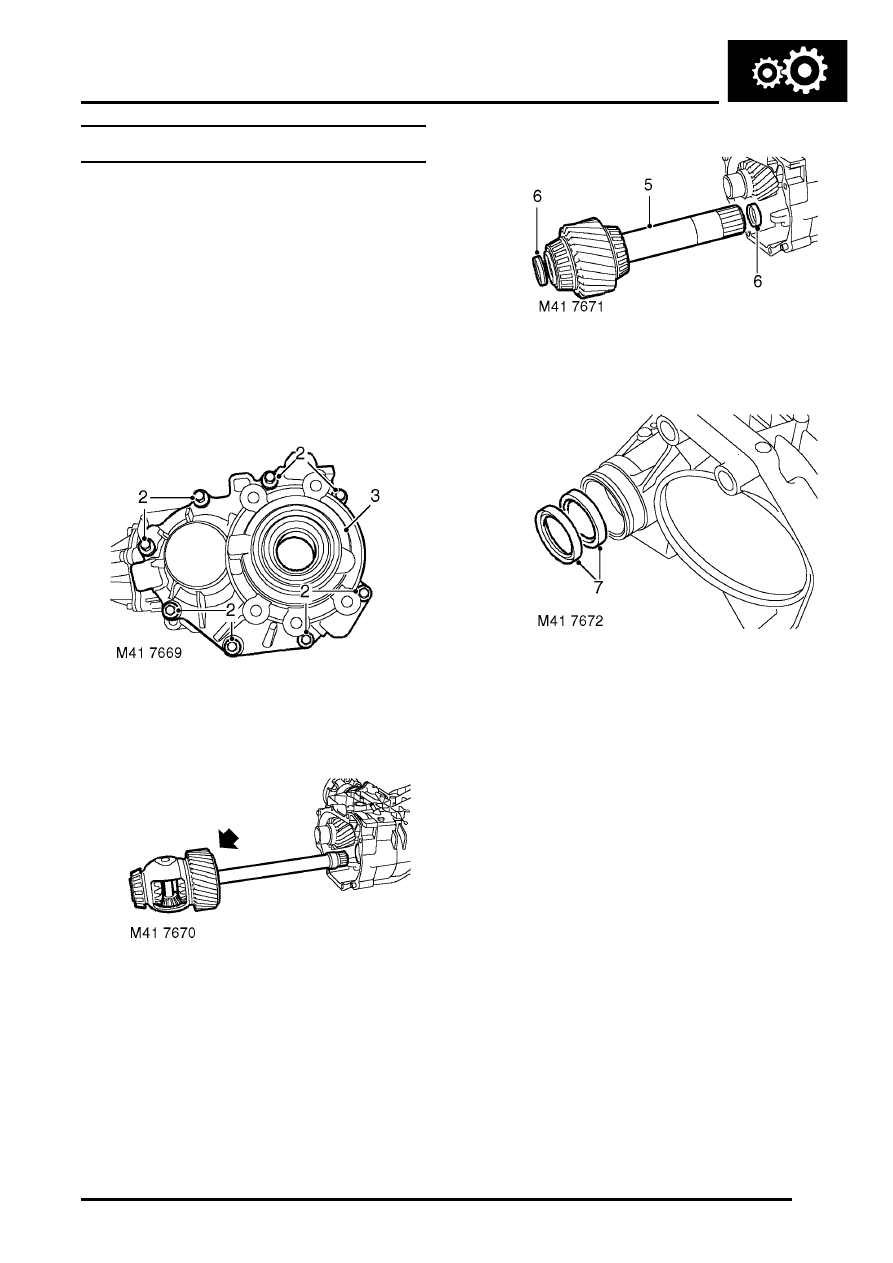

2. Remove 8 bolts securing end cover to main

case of IRD.

3. Remove end cover.

4. Remove intermediate shaft and differential

from primary shaft.

5. Remove primary shaft from main case.
6. Remove 2 seals from primary shaft.

7. Remove 2 seals from main case.

Refit

1. Clean primary gear shaft and intermediate

shaft and differential.

2. Clean seal locations.
3. Fit seal to each end of primary gear shaft with

seal lips facing outwards.

4. Fit primary gear shaft to main case.
5. Fit suitable protection over splines on

intermediate shaft.

6. Carefully fit intermediate shaft to primary shaft.
7. Clean remains of old sealant from mating faces

of end cover and IRD main case.

INTERMEDIATE REDUCTION DRIVE

41-20

REPAIRS

8. Apply a narrow bead of  RTV sealant,  to mating

face of end cover.

9. Fit end cover to IRD and tighten bolts

progressively to 30 Nm (22 lbf.ft).

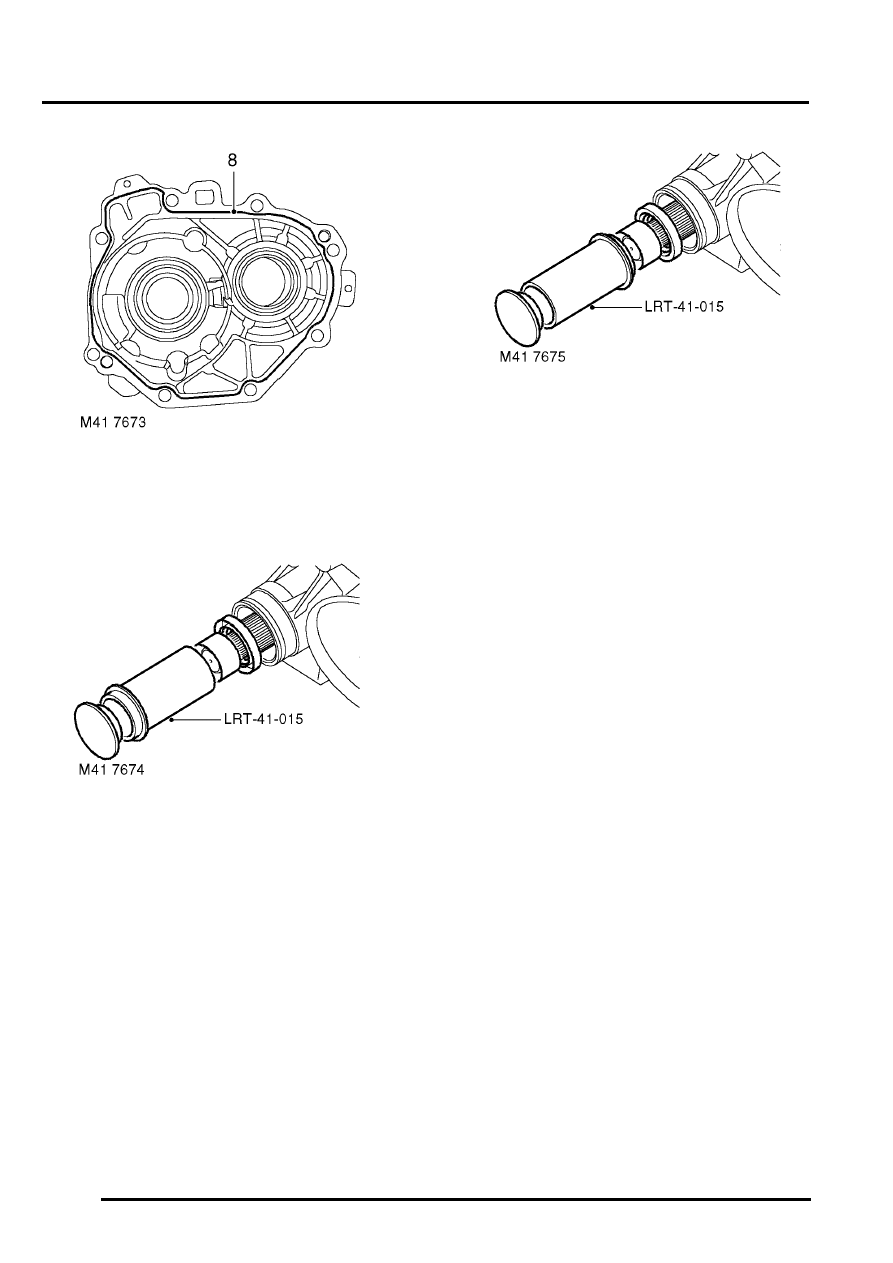

10. Fit seal protector, part of LRT-41-015 to IRD

splines.

11. Using plain end of LRT-41-015, fit inner seal

into main case until it contacts shoulder.

CAUTION: The seals are fitted with the main
sealing lips facing away from each other.

12. Using flanged end of LRT-41-015  fit outer seal

to depth dictated by tool flange.

CAUTION: Use end protector of LRT-41-015
to avoid damage to the working surfaces of
the tool.

13. Remove oil seal protector.
14. Fit IRD.



 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Intermediate reduction
drive (IRD) unit - K1.8.


 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Intermediate reduction
drive (IRD) unit - Td4.


 +

 INTERMEDIATE REDUCTION

DRIVE, REPAIRS, Intermediate reduction
drive (IRD) unit - KV6.
