INTERMEDIATE REDUCTION DRIVE
REPAIRS
41-25
Seal - pinion gear housing - Td4
$% 41.29.11
Remove
1. Raise front of vehicle.
WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.
2. Remove underbelly panel.
3. Drain fluid from IRD.
DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) fluid - drain & refill -
Non NAS.
4. Raise one rear wheel for rotation of propeller
shaft to access bolts.
5. Reference mark front propeller shaft for
reassembly.

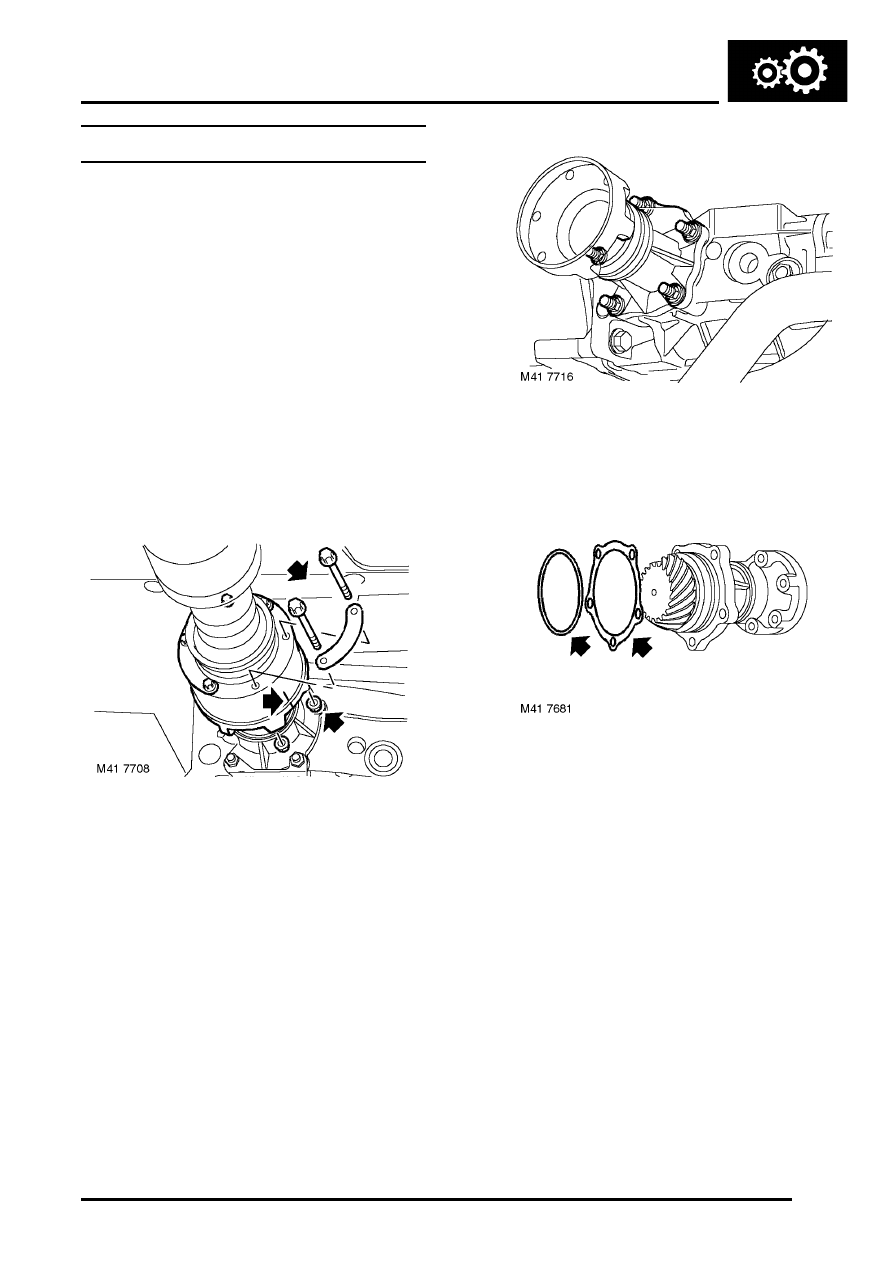

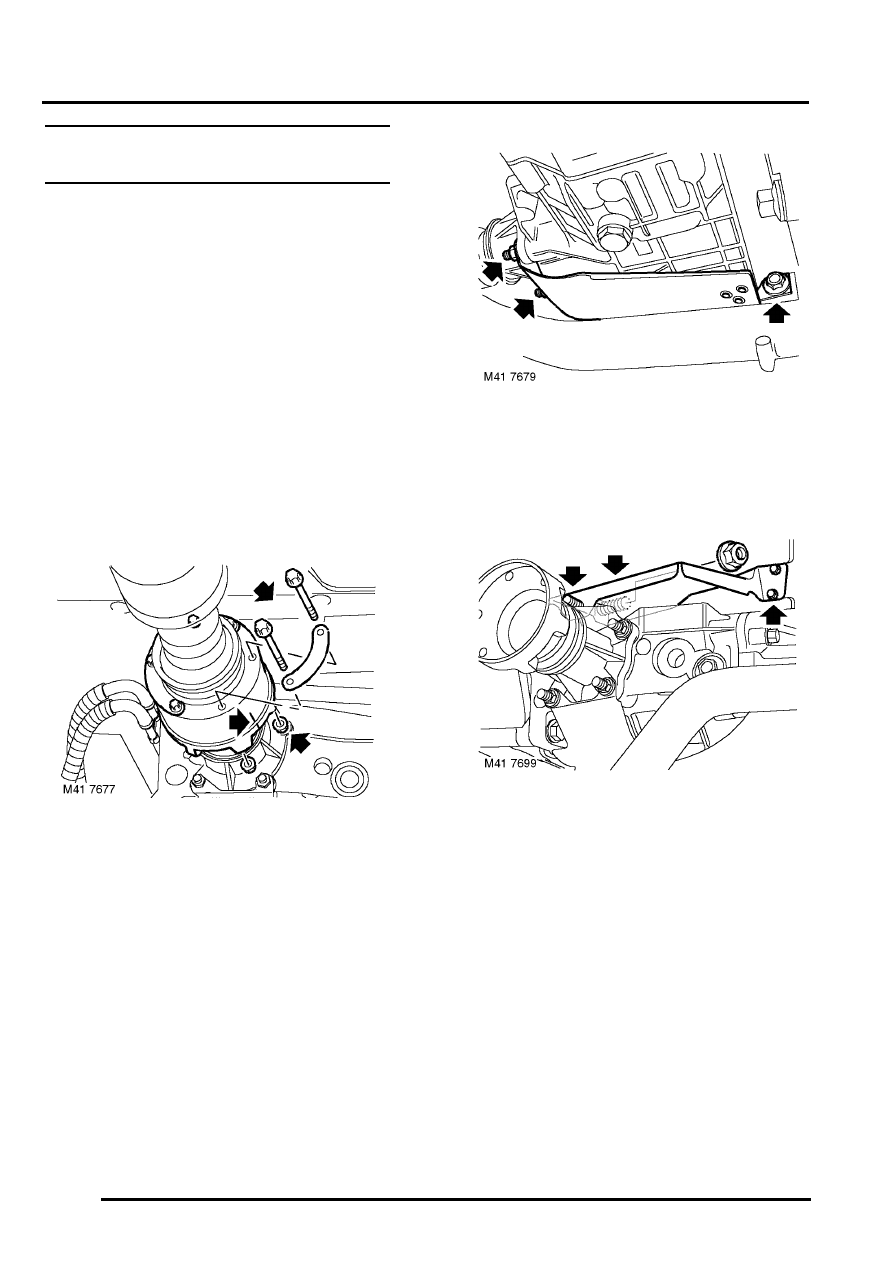

6. Remove 6 nuts and bolts securing propeller
shaft to IRD drive flange.
7. Release propeller shaft from IRD drive flange
and tie shaft aside.

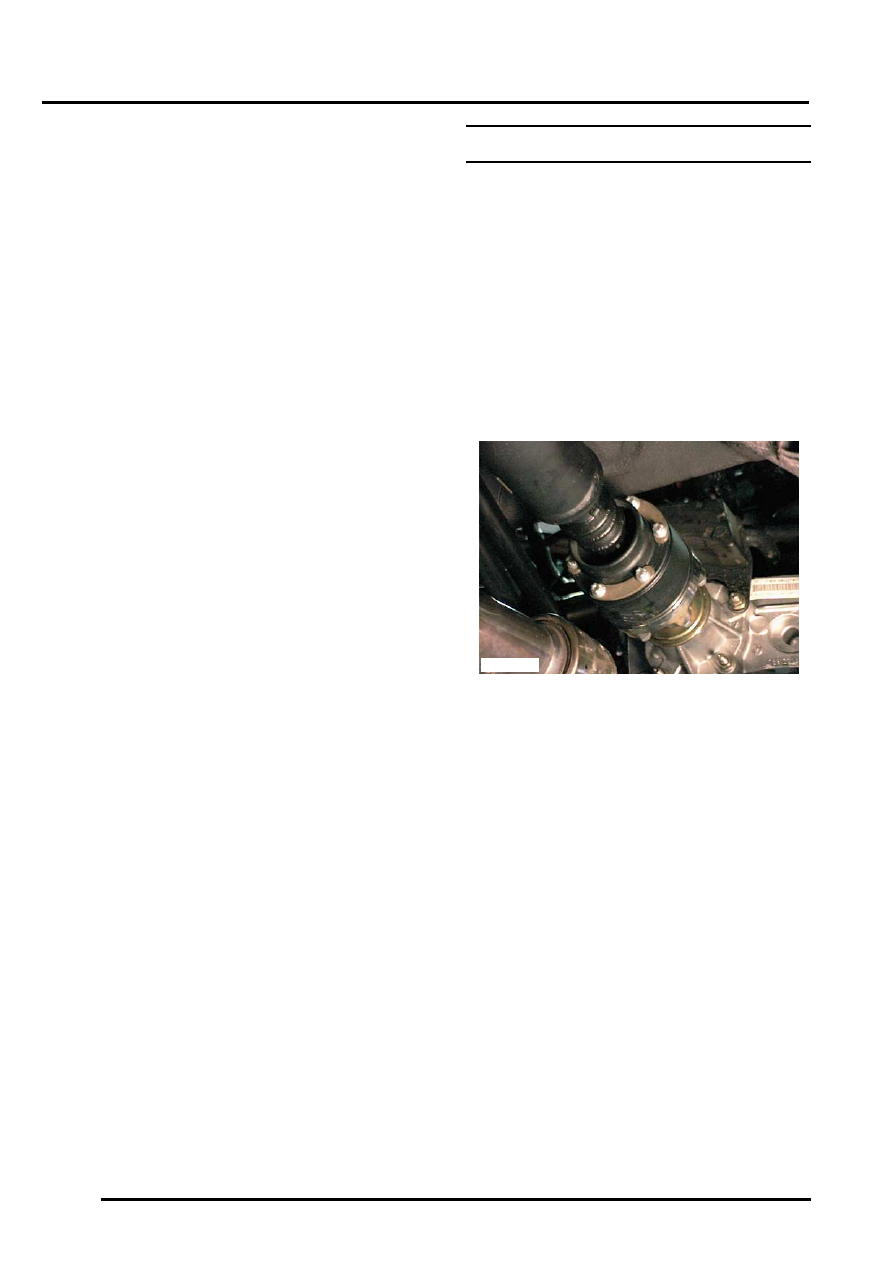

CAUTION: Care must be taken to support
the Tripode joint when removed from the
IRD unit. To avoid damage to gaiter or steel
can, the joint should not be allowed to fully
extend or be dropped.

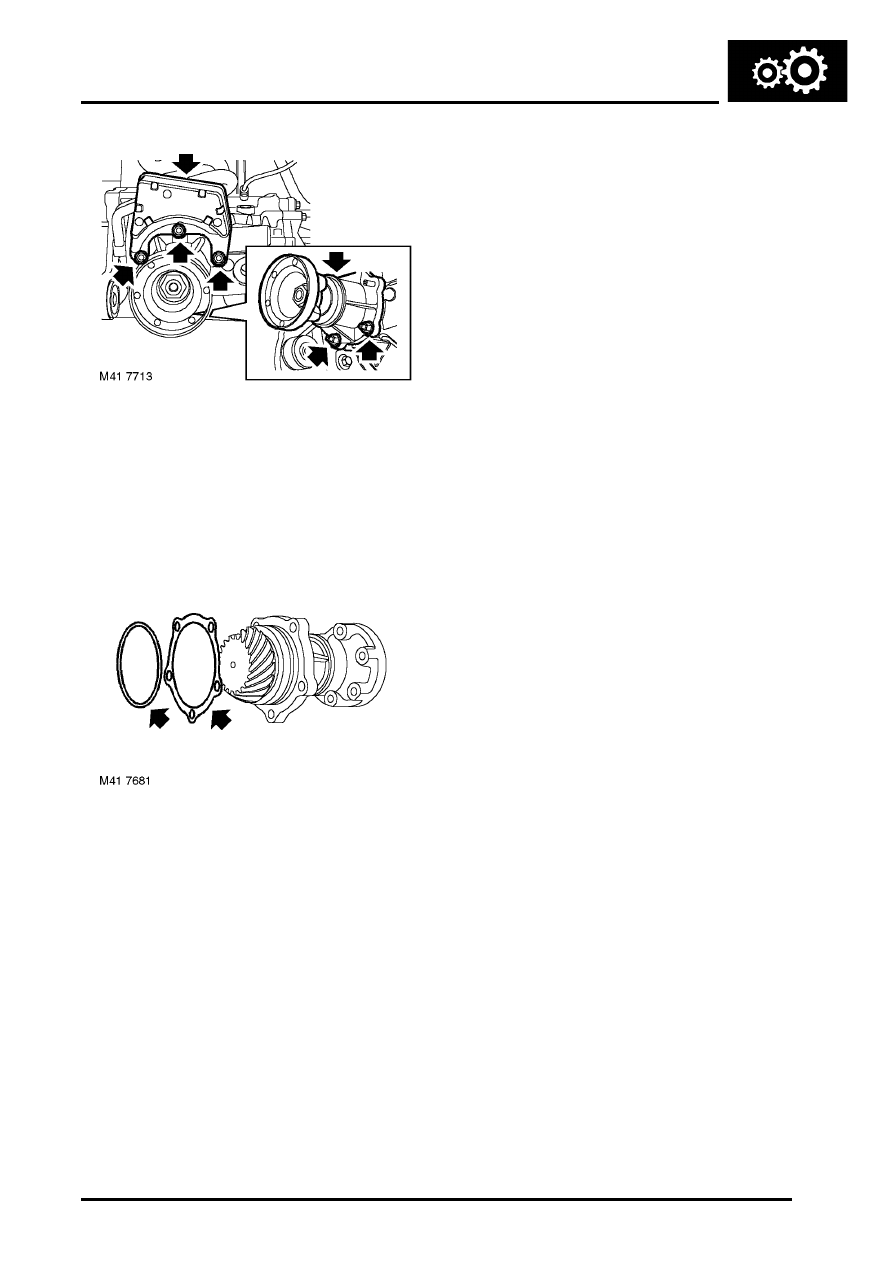

8. Remove 5 nuts securing pinion housing.
9. Remove pinion housing.
10. Remove and discard 'O' ring.
11. Remove and retain spacing washer.
Refit
1. Clean pinion housing and mating face on IRD
casing.
2. Clean spacing washer.
3. Fit spacing washer to IRD.
4. Lubricate new 'O' ring with IRD fluid and fit to
groove in pinion housing.
5. Fit pinion housing.
6. Fit nuts securing pinion housing and tighten to
25 Nm (18 lbf.ft).
7. Ensure mating face of propeller shaft and IRD
drive flange are clean.
8. Fit propeller shaft to IRD flange and align
marks. Tighten nuts and bolts to 40 Nm (30
lbf.ft).
9. Fill IRD to correct level with fluid.
DRIVE, ADJUSTMENTS, Intermediate
reduction drive (IRD) fluid - drain & refill -
Non NAS.
