3. Release and disconnect HO2S multiplug.

4. Release HO2S harness from clip.
5. Remove HO2S from LH exhaust manifold.

Refit

1. Clean HO2S and exhaust manifold mating

face.

2. Fit HO2S and tighten to 55 Nm (41 lbf.ft).

3. Connect multiplug to HO2S, and secure to

support bracket and harness clip.

4. Fit underbelly panel.

5. Remove stand(s) and lower vehicle.

FUEL DELIVERY SYSTEM - PETROL

19-2-12 REPAIRS

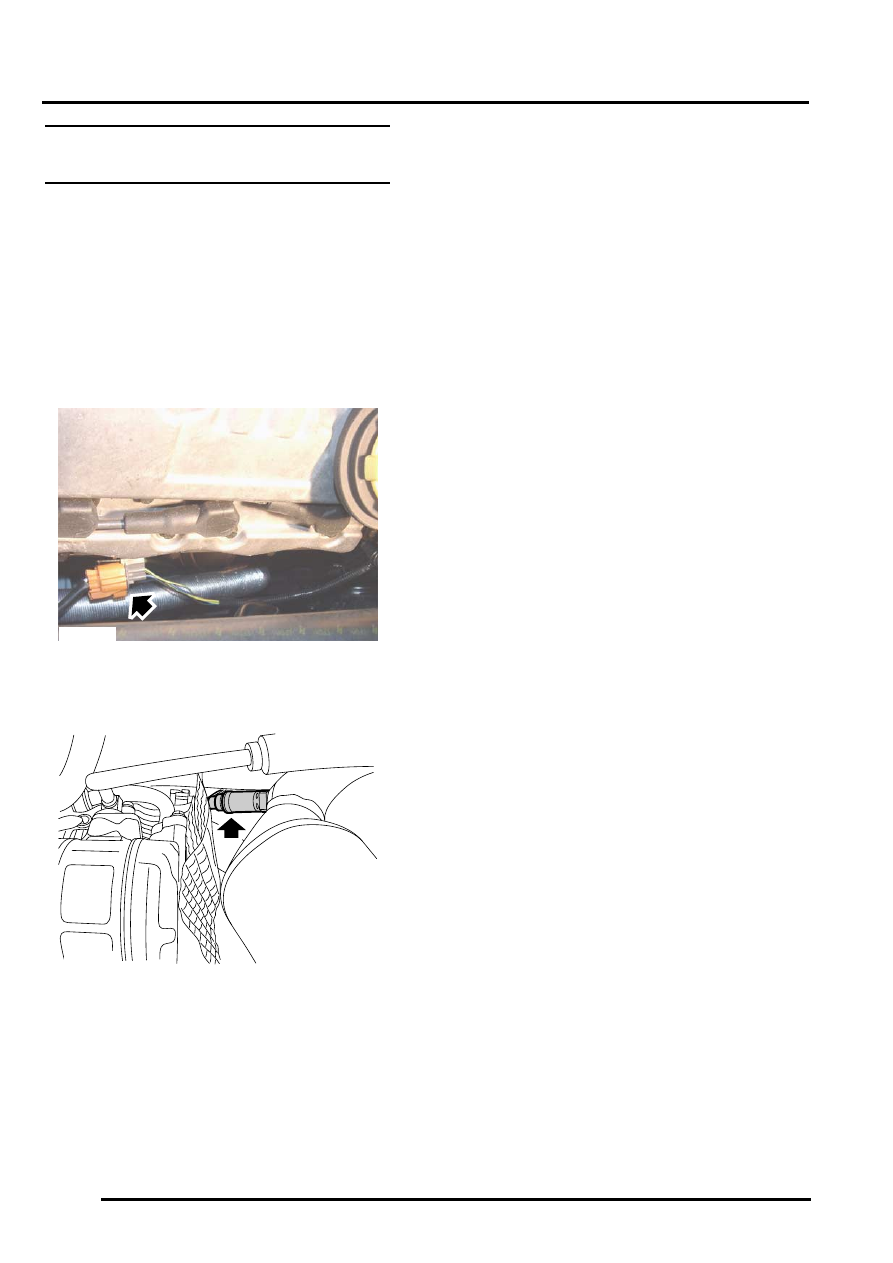

Sensor - heated oxygen (H02S) - pre-
catalyst - LH - KV6 - NAS

$% 19.22.16

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.

3. Remove underbelly panel.

4. Release and disconnect HO2S multiplug.
5. Release HO2S harness from clip.

6. Remove HO2S.

Refit

1. Clean HO2S and mating face.
2. Fit H02S and tighten to 55 Nm (40 lbf.ft).
3. Connect H02S multiplug and fit to bracket.
4. Fit H02S harness to clip.
5. Fit underbelly panel.

6. Fit engine acoustic cover.

7. Connect battery earth lead.

M19 3505

M19 3483

FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-13

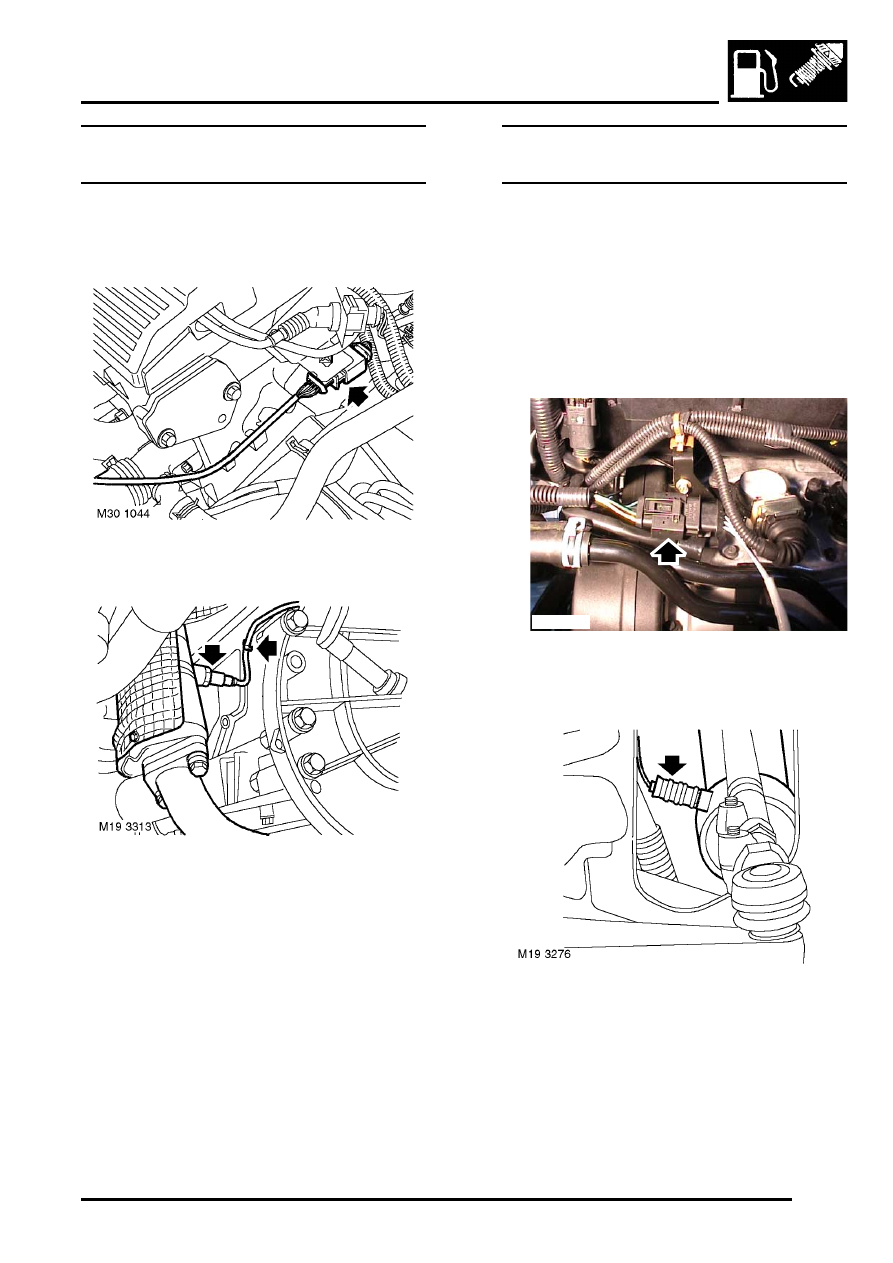

Sensor - heated oxygen (H02S) - front -
K1.8

$% 19.22.16

Remove

1. Release and disconnect HO2S multiplug.

2. Release HO2S harness from clip on cylinder

block.

3. Using a 22 mm crowsfoot spanner, remove

HO2S.

Refit

1. Clean HO2S, sealing washer and mating faces.
2. Fit HO2S and tighten to 55 Nm (41 lbf.ft).
3. Connect HO2S multiplug and secure to support

bracket.

4. Secure HO2S harness to cylinder block clip.

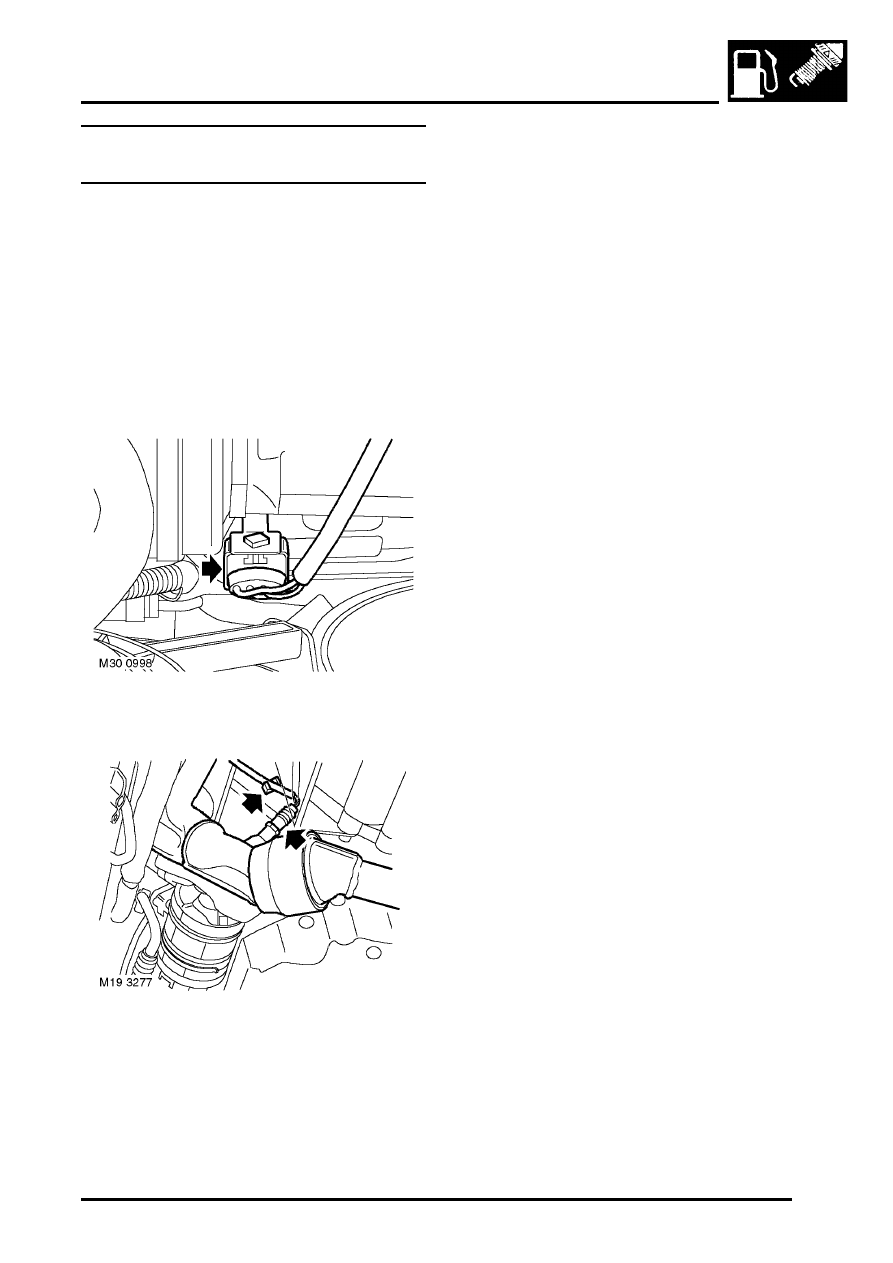

Sensor - heated oxygen (H02S) - pre-
catalyst - RH - KV6 - Non NAS

$% 19.22.17

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove LH front road wheel.

3. Release RH HO2S multiplug from coolant rail

bracket and disconnect multiplug.

4. Remove HO2S from RH exhaust manifold.

Refit

1. Clean HO2S and exhaust manifold mating

face.

2. Fit HO2S and tighten to 55 Nm (41 lbf.ft).
3. Connect RH HO2S multiplug, secure multiplug

in coolant rail bracket.

M30 0996

FUEL DELIVERY SYSTEM - PETROL

19-2-14 REPAIRS

4. Fit LH front road wheel and tighten nuts to 115

Nm (85 lbf.ft).

5. Remove stands and lower vehicle.

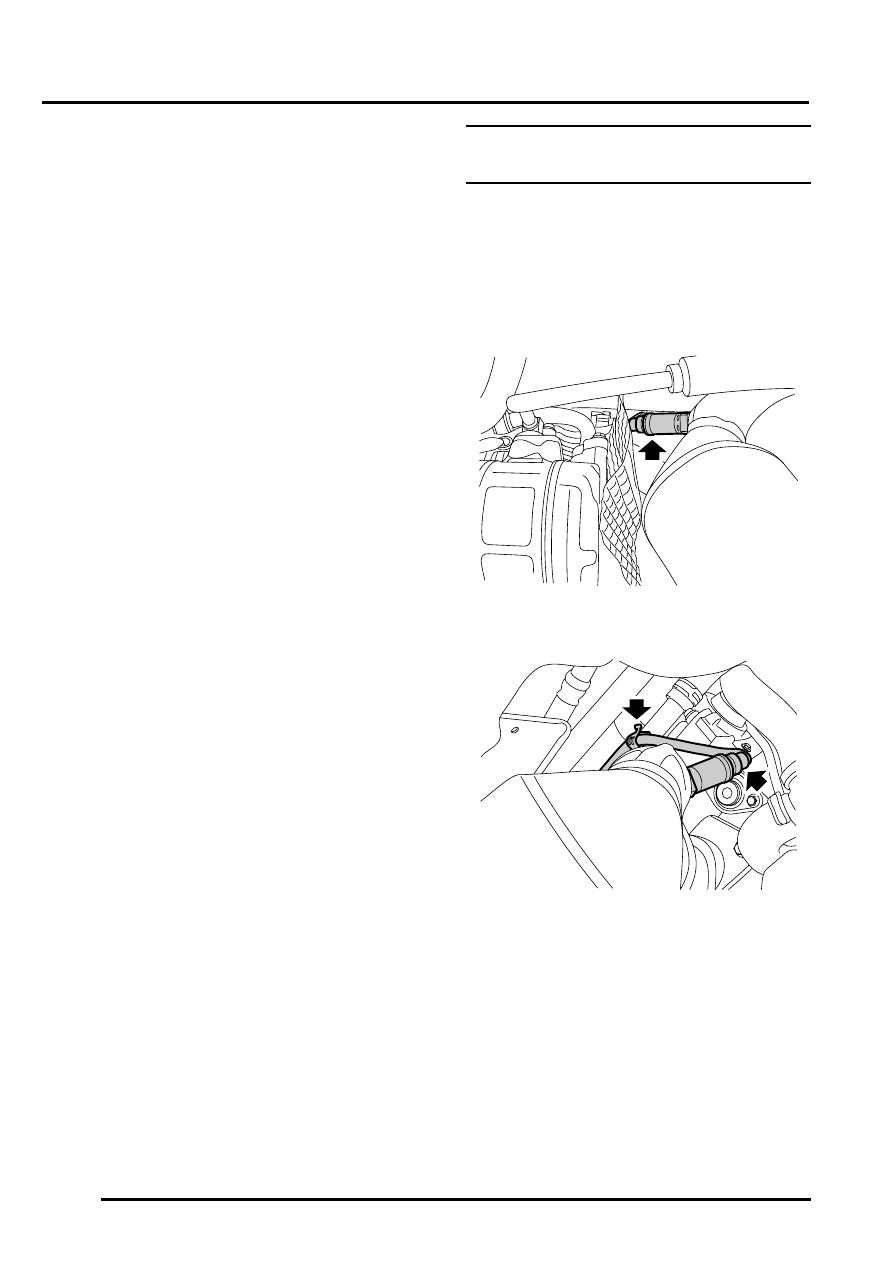

Sensor - heated oxygen (H02S) pre-
catalyst - RH - KV6 - NAS

$% 19.22.17

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.

3. Release and disconnect HO2S multiplug.

4. Release HO2S harness from clips.
5. Remove HO2S.

Refit

1. Clean HO2S and mating face.
2. Fit H02S and tighten to 55 Nm (40 lbf.ft).
3. Connect H02S multiplug and fit to bracket.
4. Fit harness into clips.
5. Fit engine acoustic cover.
