FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-15

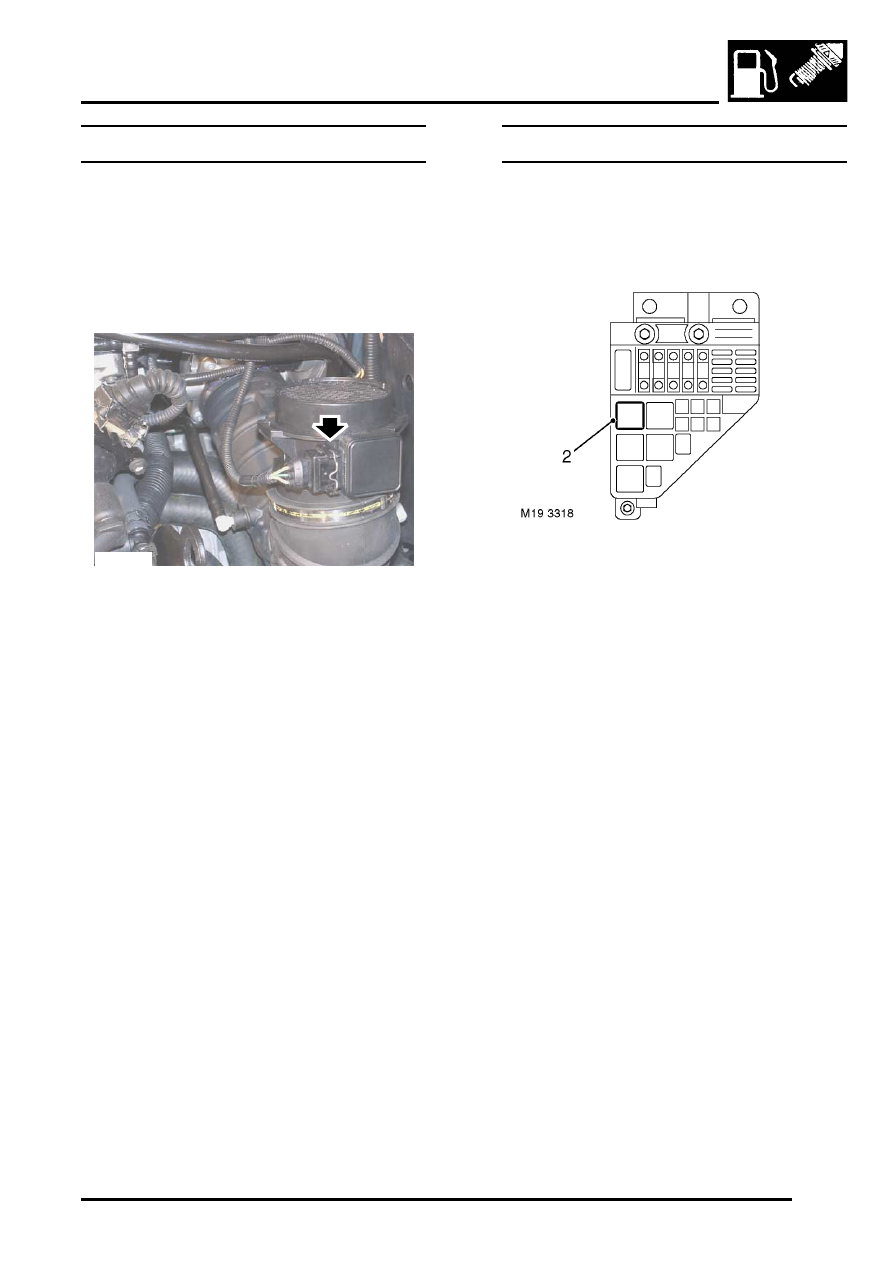

Sensor - mass air flow (MAF) - NAS

$% 19.22.25

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

3. Disconnect multiplug from MAF sensor.
4. Release clip and remove MAF sensor.

Refit

1. Fit MAF sensor and secure with clip.
2. Connect multiplug to MAF sensor.
3. Fit engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

4. Connect battery earth lead.

Relay - fuel pump

$% 19.22.39

Remove

1. Open engine compartment fuse box.

2. Identify and remove fuel pump relay.

Refit

1. Fit fuel pump relay.
2. Close engine compartment fuse box.

M19 3480

FUEL DELIVERY SYSTEM - PETROL

19-2-16 REPAIRS

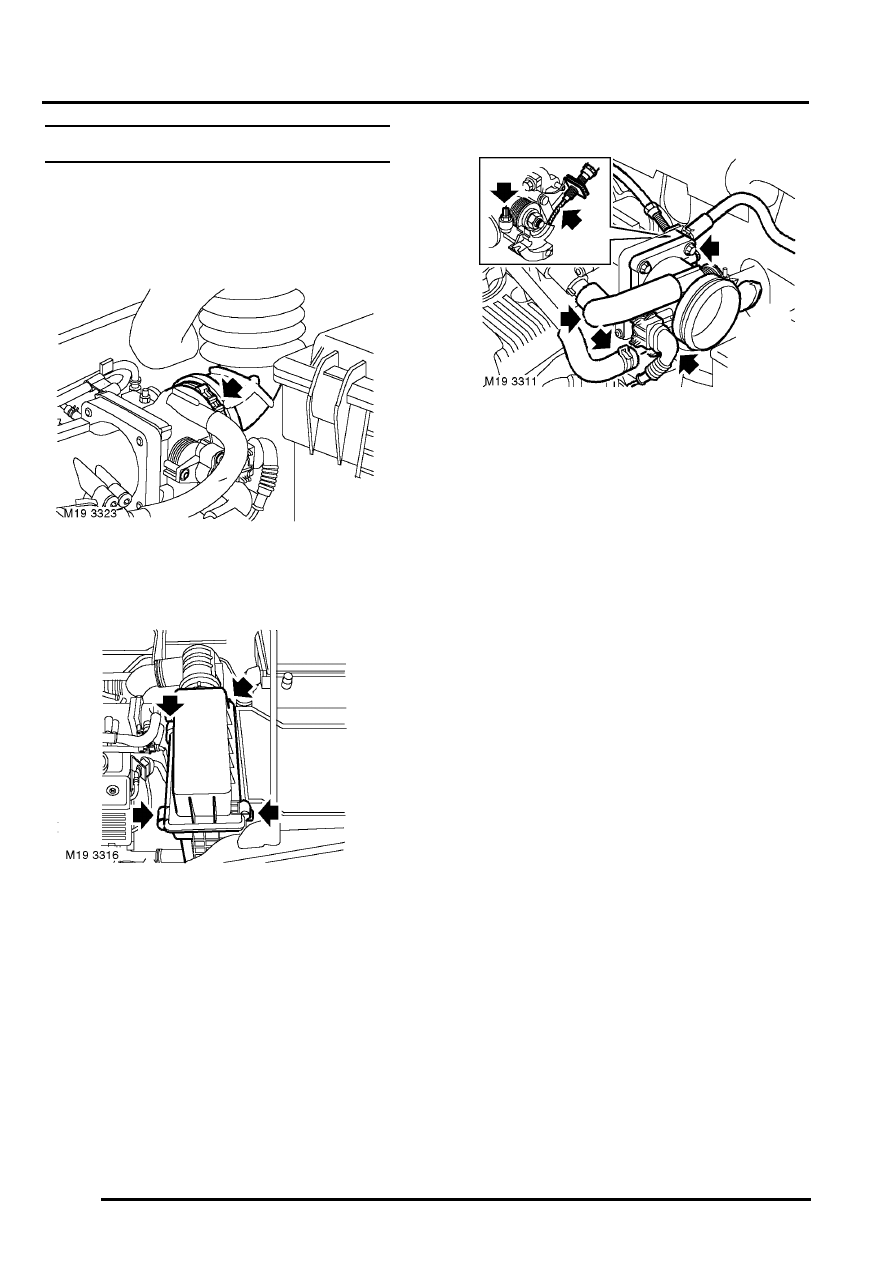

Throttle housing - K1.8

$% 19.22.45

Remove

1. Disconnect battery earth lead.

2. Remove clip and disconnect air intake hose

from throttle housing.

3. Release 4 clips and remove lid from air cleaner.

4. Disconnect idle air control valve (IACV) hose

from throttle housing.

5. Disconnect multiplug from throttle position

sensor.

6. Release clip and disconnect breather hose

from throttle housing.

7. Release throttle cable adjusting nut from

abutment bracket.

8. Disconnect throttle cable from throttle cam.
9. Remove 4 bolts securing throttle housing to

inlet manifold.

10. Remove throttle housing.
11. Remove and discard 'O' ring from throttle

housing.

Refit

1. Clean mating faces of throttle housing and inlet

manifold.

2. Lubricate new 'O' ring with silicone grease and

fit to throttle housing.

3. Position throttle housing to inlet manifold, align

harness bracket and fit bolts finger tight.

FUEL DELIVERY SYSTEM - PETROL

REPAIRS 19-2-17

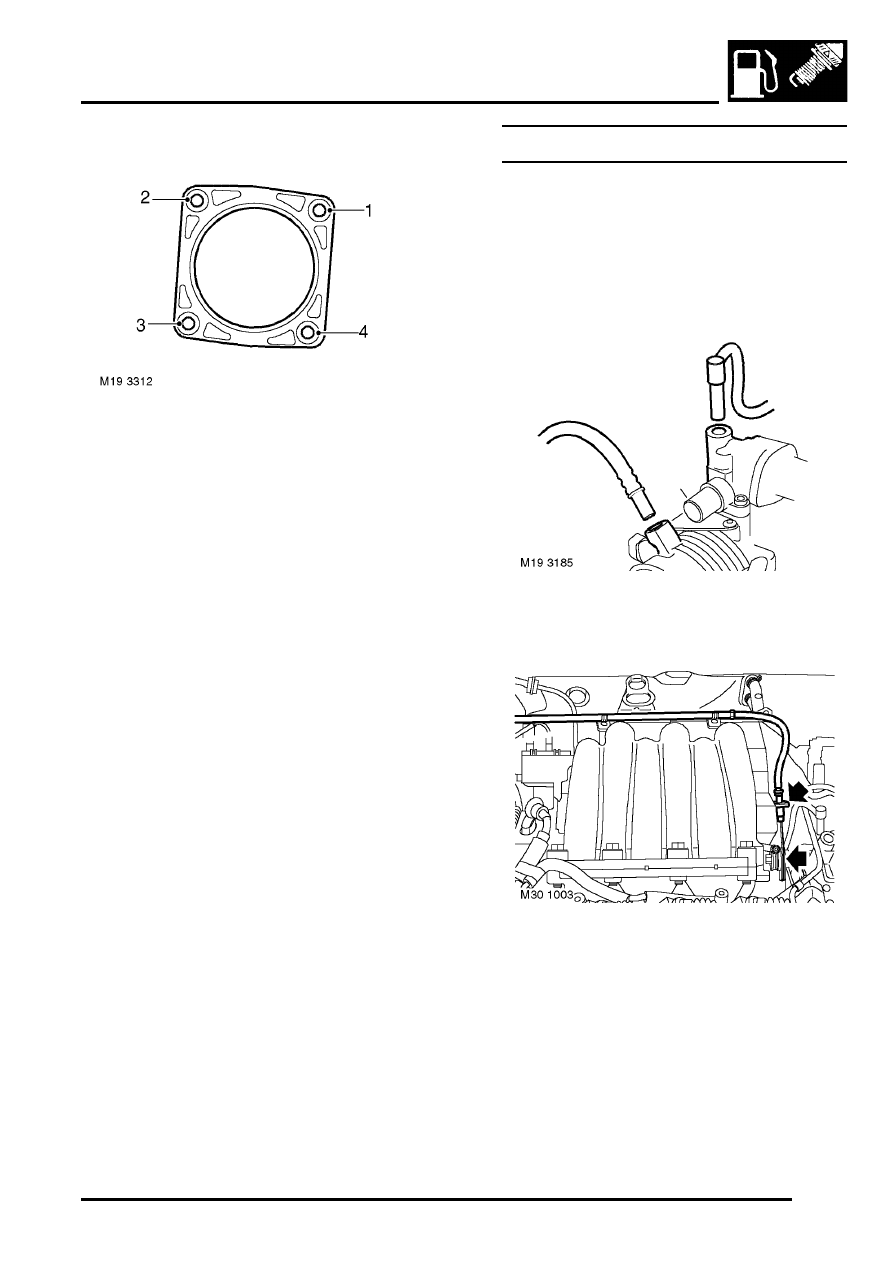

4.  Tighten bolts in the sequence shown using the

following procedure.

a Tighten to 4 Nm (3 lbf.ft).

b Back off one flat.

c Tighten to 9 Nm (7 lbf.ft).

5. Connect throttle cable to throttle cam.
6. Locate throttle cable adjusting nut in abutment

bracket.

7. Connect breather hose to throttle housing and

secure with clip.

8. Connect multiplug to throttle position sensor.
9. Fit IACV hose and align orientation marks.

10. Fit lid to air cleaner and secure clips.
11. Connect air intake hose to throttle housing and

secure with clip.

12. Connect battery earth lead.
13. Retune using Testbook.

Throttle housing - KV6 - Non NAS

$% 19.22.45

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover.



 +

 ENGINE - K SERIES KV6, REPAIRS,

Cover - engine acoustic.

3. Depress locking collars and release engine

breather/vacuum pipes from throttle and IACV.

4. Release throttle cable from abutment bracket

and disconnect cable from throttle body cam.

FUEL DELIVERY SYSTEM - PETROL

19-2-18 REPAIRS

5. Vehicles with cruise control: Disconnect

vacuum hose from cruise control actuator.

6. Disconnect multiplugs from primary TP sensor

and IACV.

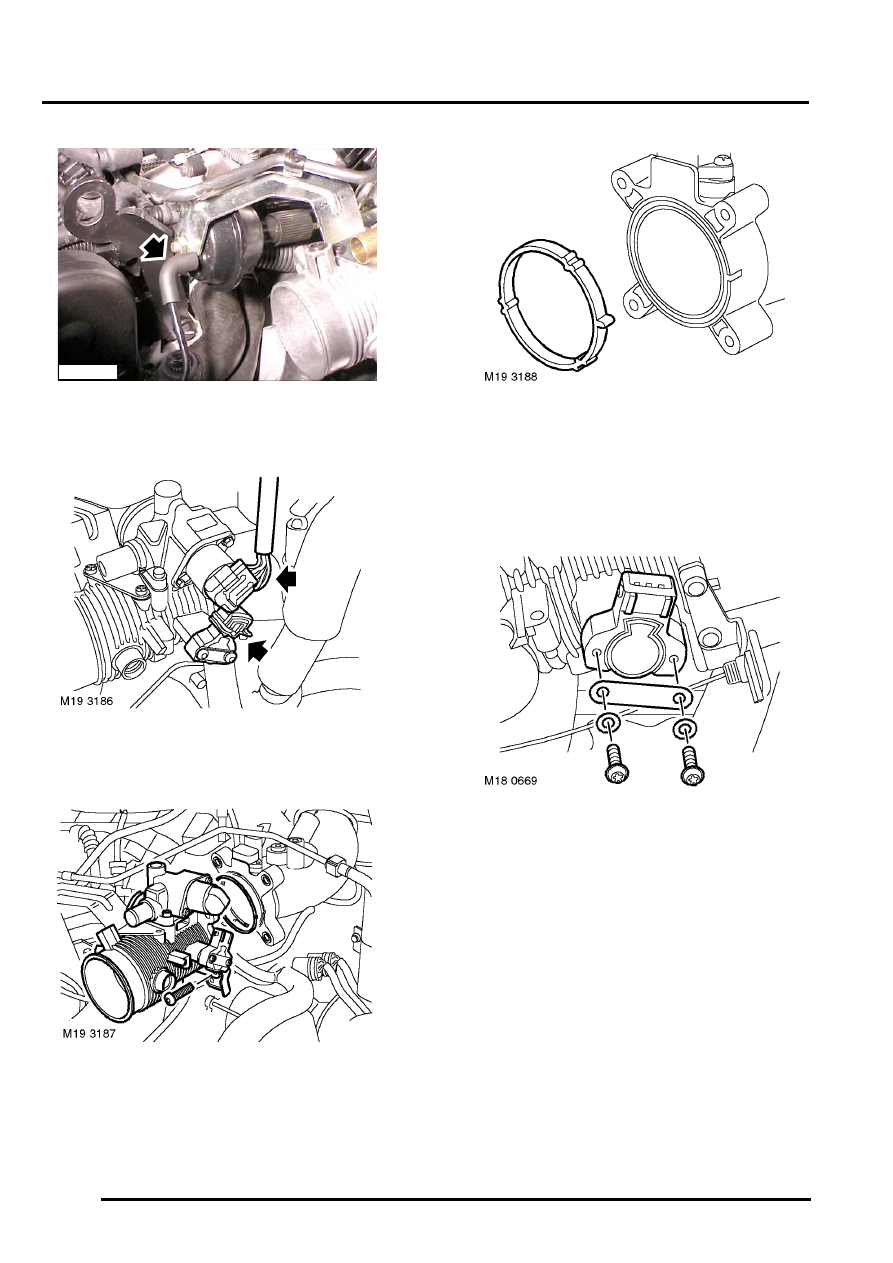

7. Remove 4 Torx screws securing throttle body

to inlet manifold chamber, remove throttle
body.

8. Remove and discard throttle body seal from

inlet manifold chamber.

9. Vehicles with cruise control: Disconnect

actuator arm from throttle linkage, remove 3
Torx screws securing actuator support bracket
to throttle body and remove actuator assembly.

10. Remove and discard 2 Torx screws and wave

washers securing primary TP sensor to throttle
body. Remove primary TP sensor and
specification plate.

CAUTION: Do not twist or apply leverage to
throttle position sensor.
