Freelander 1. Manual - part 102





ENGINE - K SERIES KV6

OVERHAUL 12-3-99

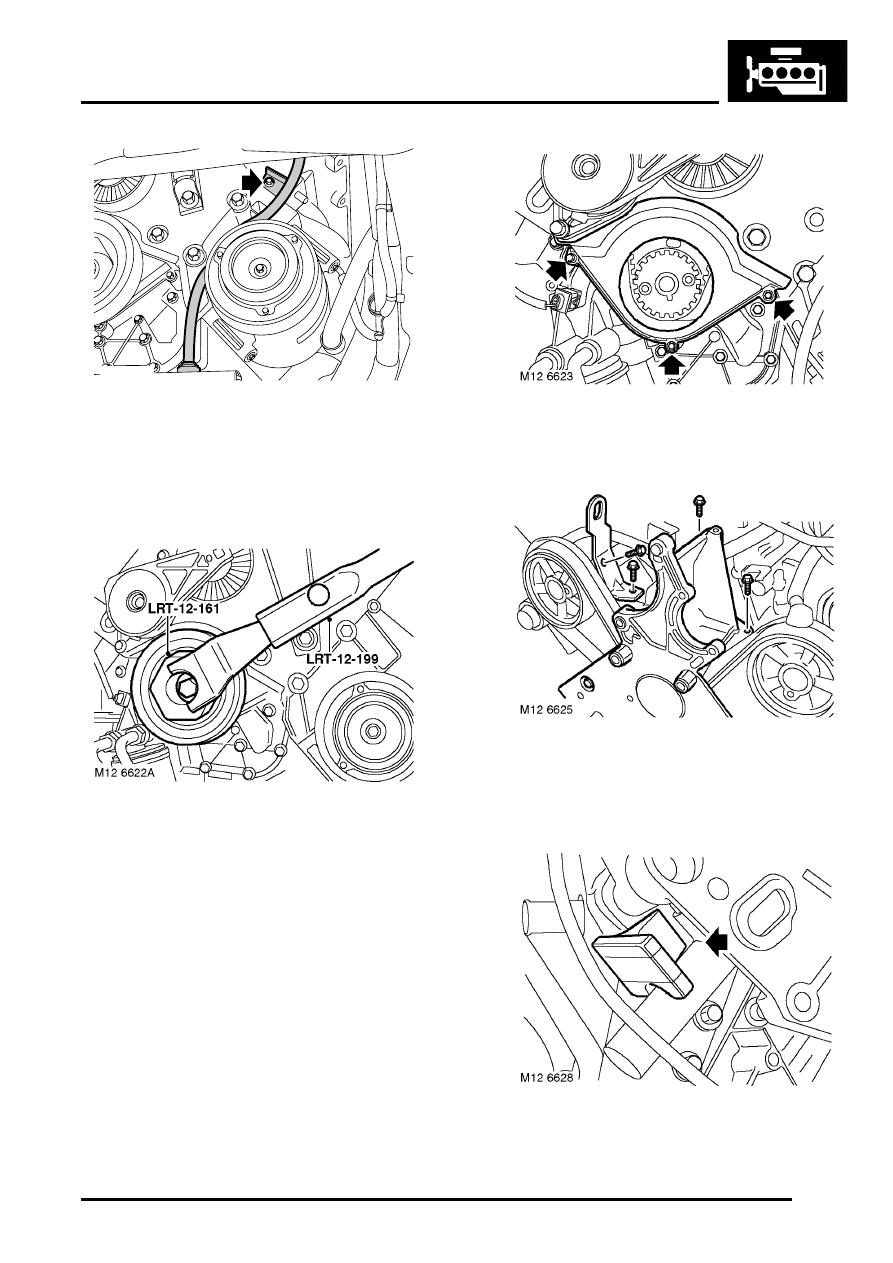

17. Remove bolt securing dipstick tube to cylinder

block.

18. Depress locking collar, release and remove

dipstick tube from engine sump.

19. Assemble  LRT-12-161  to  LRT-12-199 and

secure with clamp bolt.

20. Insert LRT-12-161 with LRT-12-199 into

crankshaft pulley, loosen and remove pulley
bolt.

CAUTION: Ensure crankshaft does not
rotate during above operation.

21. Remove LRT-12-161 and LRT-12-199 from

crankshaft pulley.

22. Remove crankshaft pulley.

23. Remove 3 bolts securing camshaft timing belt

lower cover to cylinder block and remove cover.

24. Remove 3 bolts securing engine front mounting

plate and lifting bracket to cylinder block.

25. Remove bolt securing lifting bracket to RH

cylinder head and remove lifting bracket.

26. Remove rubber blanking plug from around

camshaft timing belt tensioner.

M12 6672

ENGINE - K SERIES KV6

12-3-100 OVERHAUL

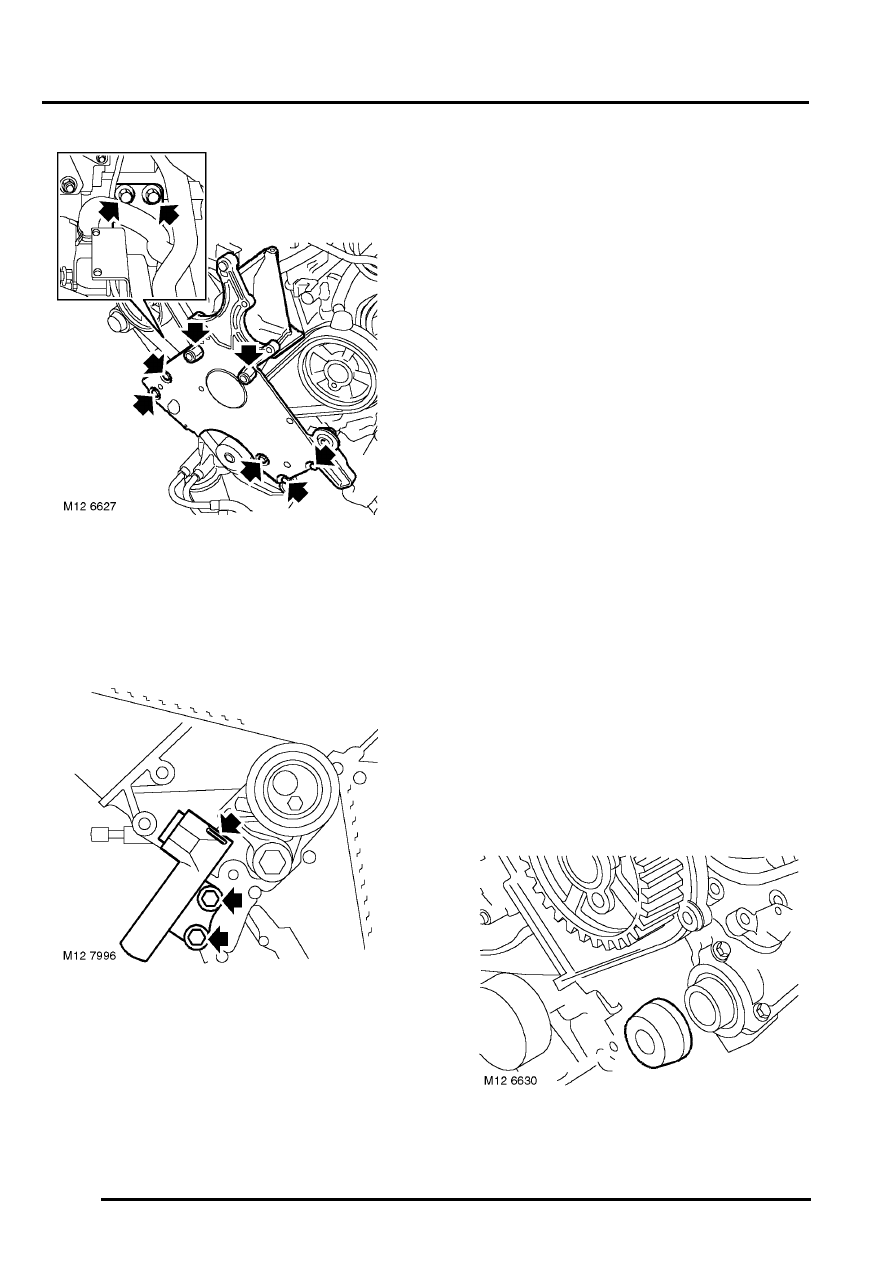

27. Remove 5 bolts and 2 pillar bolts securing

engine front mounting plate to cylinder block.

28. Remove 2 bolts securing IRD support bracket

to engine front mounting plate.

29. With care, release and remove front mounting

plate from engine.

30. Fit a suitable 1.5 mm diameter pin through hole

in tensioner body and into hole in plunger.

NOTE: If holes in body and plunger are not
aligned, move tensioner backplate using a
broad bladed screwdriver; this will move the
plunger sufficiently to align the holes and allow
the pin to be inserted.

31. Remove and discard 2 Patchlok bolts securing

tensioner to cylinder block and remove
tensioner.

CAUTION: Exercise great care when
removing bolts, do not apply excessive
torque. If bolts appear to be seized, apply
suitable anti-seize lubricant prior to
removing bolts. DO NOT loosen Allen screw
securing tensioner pulley.

32. If camshaft timing belt is to be refitted, mark

direction of rotation on timing belt before
removal.

33. With care, ease camshaft timing belt from

gears using fingers only and remove timing
belt.

CAUTION: Do not rotate crankshaft or
camshafts with timing belt removed.

CAUTION: Camshaft timing belt must be
replaced if cylinder head is to be removed or
new drive gears, tensioner or coolant pump
are to be fitted. Camshaft timing belts must
be stored and handled with care. Always
store a camshaft timing belt on its edge with
a bend radius greater than 50 mm (2.0 in).
Do not use a camshaft timing belt that has
been twisted or bent double as this will
damage the reinforcing fibres. Do not use a
camshaft timing belt if debris other than belt
dust is found in timing belt covers. Do not
use a camshaft timing belt if partial engine
seizure has occurred. Do not use a
camshaft timing belt if mileage exceeds
72,000 km (45,000 miles). Do not use an oil
or coolant contaminated timing belt, cause
of contamination must be rectified.

34. Remove and discard LH and RH exhaust

camshaft cap seals.

ENGINE - K SERIES KV6

OVERHAUL 12-3-101

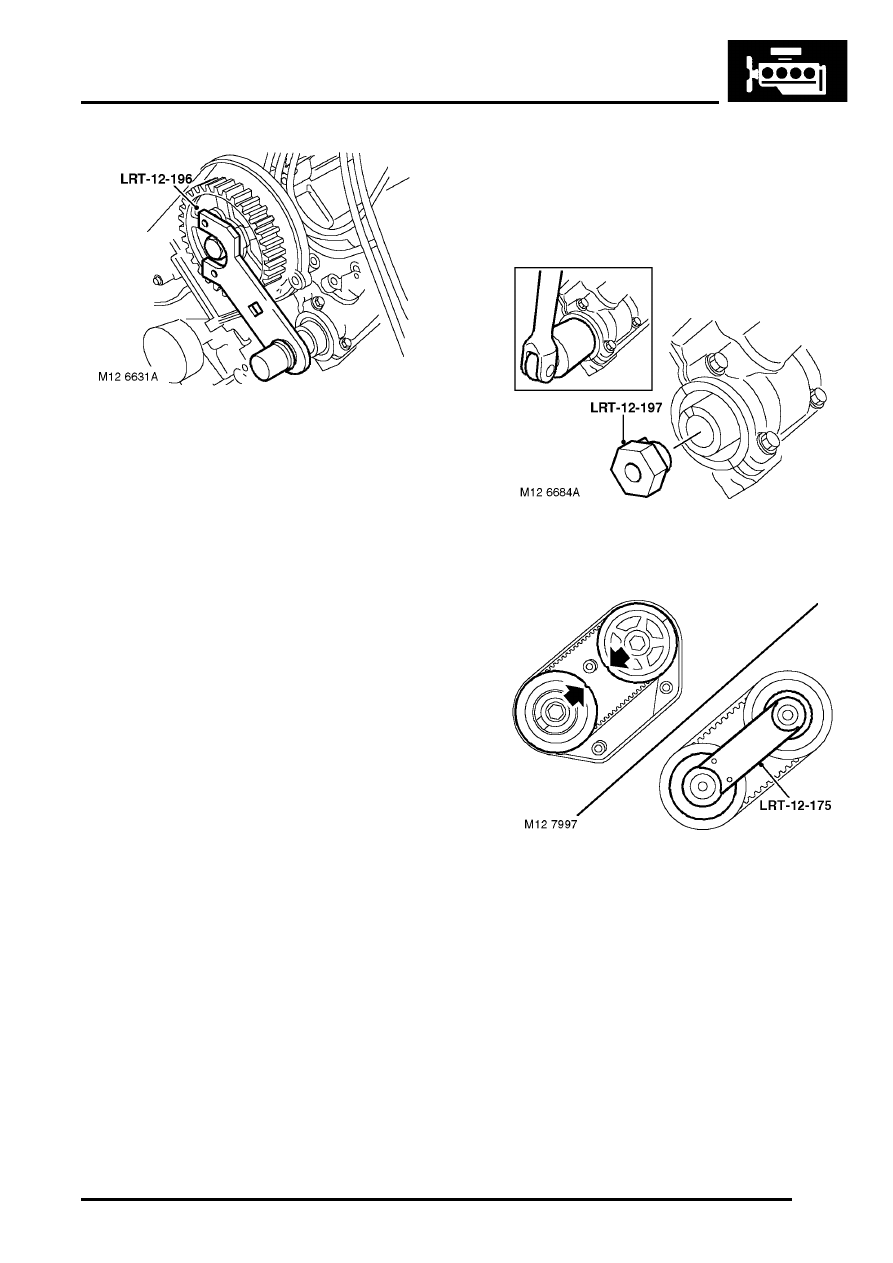

35. Position tools  LRT-12-196 to LH and RH front

inlet camshaft gears and into the  end of each
exhaust camshaft.

CAUTION: Special tools must be fitted when
tightening or loosening gear retaining bolts,
otherwise damage to camshafts may occur.

36. Remove and discard bolts retaining front inlet

camshaft gears to camshafts.

37. Remove tools  LRT-12-196 from both inlet

camshaft gears and exhaust camshafts.

38. Remove camshaft drive gears and hub

assemblies.

Refit

NOTE: Following front or rear timing belt
refitment, it is possible that, after rotating the
engine and positioning the crankshaft pulley to
the 'SAFE' position, the timing marks on the
rear timing gears may be misaligned. This
misalignment is acceptable provided that the
timing belt refitting procedure was carried out
correctly.

1. Clean camshaft gears and hubs, crankshaft

gear, tensioner and water pump pulleys.

CAUTION: If sintered gears have been
subjected to prolonged oil contamination,
they must be soaked in solvent and then
thoroughly washed in clean solvent before
refitting. Because of the porous
construction of sintered material, oil
impregnated in the gears will emerge and
contaminate the timing belts.

2. Fit hubs to camshaft gears and fit gears to

camshafts.

3. Fit new camshaft gear bolts; tighten bolts

sufficiently to allow gears to rotate without
tipping.

4. Position timing belt to crankshaft gear.

NOTE: To prevent the timing belt from
disengaging from the crankshaft gear when
fitting, fit a suitable wedge between the belt and
oil pump belt guard.

5. Fit tool LRT-12-197 into each exhaust

camshaft in turn.

6. Using assistance, rotate each exhaust

camshaft slightly and align timing marks on LH
and RH rear camshaft gears.

7. Remove tool LRT-12-197.
8. Fit tools LRT-12-175 to LH and RH rear

camshaft gears.

9. Rotate both front camshaft gears fully

clockwise as viewed from front of engine.

10. Using fingers only, fit timing belt to gears,

starting at the crankshaft gear and working in
an anti-clockwise direction, keeping the belt run
as taut as possible and turning the camshaft
gears only a minimum amount anti-clockwise to
fit timing belt.

CAUTION: Gears must not be rotated anti-
clockwise more than one tooth.

ENGINE - K SERIES KV6

12-3-102 OVERHAUL

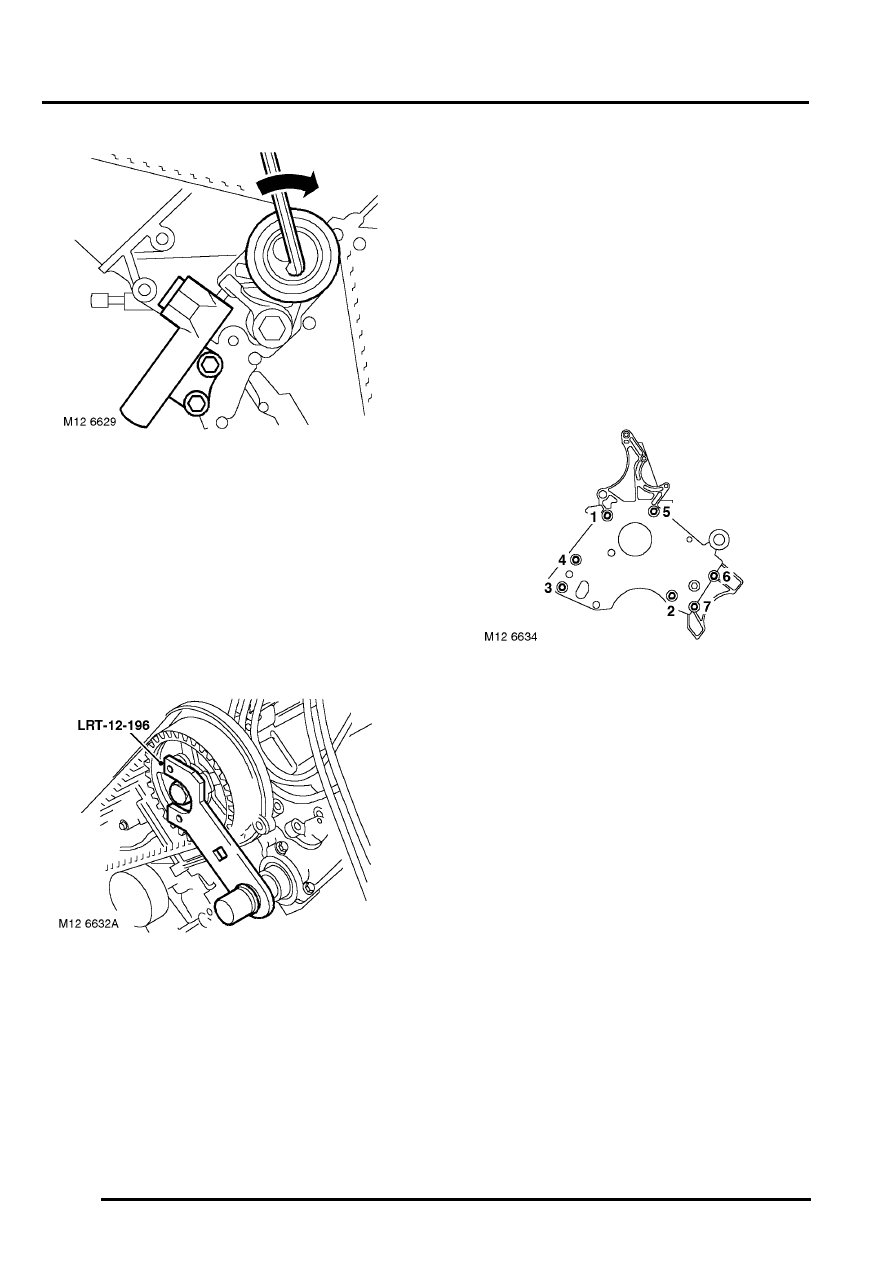

11. Position an Allen key in tensioner backplate

and hold tensioner pulley against timing belt.

12. With assistance, position timing belt tensioner,

fit new Patchlok bolts and tighten to 25 Nm (18
lbf.ft).

CAUTION: Ensure tensioner plunger is
contacting underside of tensioner
backplate.

13. Remove tools LRT-12-175 from rear timing belt

gears.

14. Fit tools  LRT-12-196 to both front inlet

camshaft gears and into the end of  each
exhaust camshaft.

CAUTION: Special tools must be fitted when
tightening or loosening gear retaining bolts,
otherwise damage to camshafts may occur.

15. Tighten front inlet camshaft gear bolts to:

l

Stage 1 - 27 Nm (20 lbf.ft)

l

Stage 2 - Further 90

°

16. Remove tools  LRT-12-196 from both inlet

camshaft gears and exhaust camshafts.

17. Remove wedge from between drive belt and oil

pump belt guard.

18. Remove 1.5 mm diameter pin from tensioner.
19. Clean exhaust camshaft front cap seal

locations and fit new cap seals.

CAUTION: The sealing edge of the cap seal
and mating face must be clean and dry.

20. Position engine front mounting plate and

manoeuvre plate into position; fit bolts but do
not tighten at this stage.

21. Fit bolts securing IRD support bracket to front

mounting plate; do not tighten bolts at this
stage.

22. Tighten bolts in the sequence shown:

l

M10 bolt - No.1 - 25 Nm (18 lbf.ft)

l

M10 bolt - No. 5 - 45 Nm (33 lbf.ft)

l

Bolts Nos. 2, 3, 4, 6 and 7 - 85 Nm (63 lbf.ft)

23. Position engine lifting bracket, fit bolts securing

lifting bracket and front mounting plate to
cylinder block and RH cylinder head and
tighten to:

l

M8 bolt - 25 Nm (18 lbf.ft)

l

M10 bolts - 45 Nm (33 lbf.ft)

24. Fit rubber blanking plug around tensioner.
25. Clean end of dipstick tube.
26. Position dipstick tube to sump and cylinder

block, fit bolt and tighten to 9 Nm (7 lbf.ft).

27. Clean lower timing belt cover.
28. Position lower timing belt cover, fit and tighten

bolts to 9 Nm (7 lbf.ft).

29. Remove timing pin LRT-12-232.
30. Clean crankshaft pulley.
31. Fit crankshaft pulley to crankshaft gear and

ensure that the indent on pulley locates over
the lug on crankshaft gear.

32. Fit crankshaft pulley bolt and washer, position

LRT-12-161 with LRT-12-199 into crankshaft
pulley. Tighten pulley bolt to 160 Nm (118
lbf.ft).

33. Remove tools LRT-12-161 and LRT-12-199.
34.
Clean ancillary drive belt tensioner.
