Freelander 1. Manual - part 101





ENGINE - K SERIES KV6

OVERHAUL 12-3-95

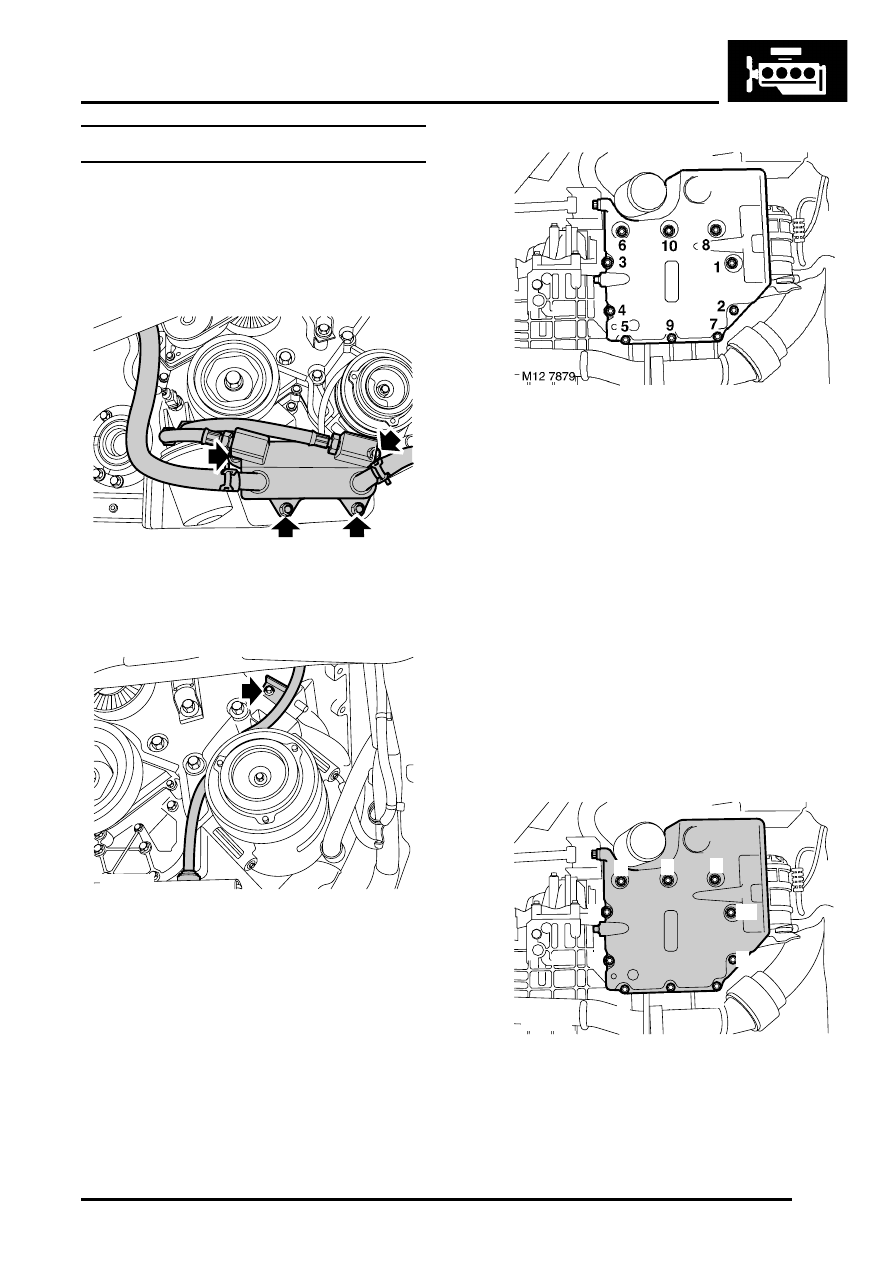

Sump - engine oil

$% 12.60.38.01

Remove

1. Drain engine oil.



 +

 MAINTENANCE, MAINTENANCE,

Engine Oil and Filter – KV6.

2. If fitted:Remove 4 nuts securing engine oil

cooler to mounting bracket and position oil
cooler aside.

3. Remove bolt securing dipstick tube to cylinder

block.

4. Depress and hold down dipstick tube collar;

remove dipstick tube from sump.

5. Using sequence shown and noting their fitted

positions, remove 10 bolts securing sump to
lower crankcase.

6. Using a mallet, gently tap sump sideways to

break sealant bond, remove sump.

CAUTION: Do not lever between crankcase
and sump.

Refit

1. Using a suitable cleaning solvent, clean sump

and mating face on lower crankcase. DO NOT
use a metal scraper on sealing surfaces.

2. Apply a 2 mm (0.1 in) bead of sealant, Part No.

STC 4600 along centre of sump flange, then
spread to an even film using a roller.

CAUTION: To avoid contamination,
assembly should be completed immediately
after application of sealant.

3. Position sump, fit bolts and tighten

progressively in the sequence shown to 35 Nm
(26 lbf.ft).

4. If fitted:Position engine oil cooler to sump

mounting bracket, fit and tighten nuts to 25 Nm
(18 lbf.ft).

M12 7916

M12 6672

M12 6675

10

9

1

3

5

8

4

7

2

6

ENGINE - K SERIES KV6

12-3-96 OVERHAUL

5. Position dipstick tube to sump and cylinder

block, fit bolt and tighten to 9 Nm (7 lbf.ft).

6. Fill engine with oil.



 +

 CAPACITIES, FLUIDS AND

LUBRICANTS, Lubrication.

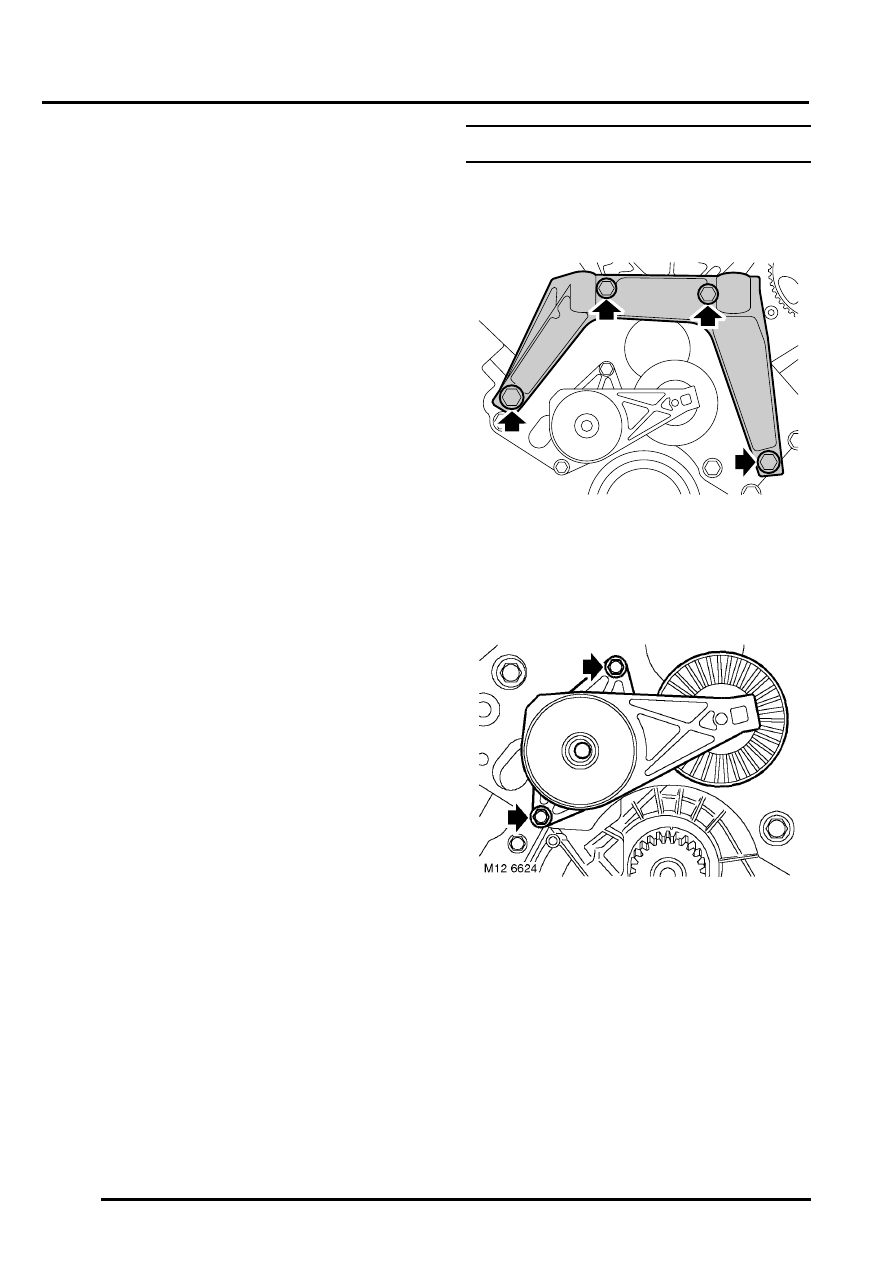

Camshaft timing belt

$% 12.65.18.01

Remove

1. Remove 4 bolts securing engine mounting

bracket to engine front plate and remove
bracket.

2. Release and remove ancillary drive belt from

remaining pulleys.

3. Remove 2 bolts securing ancillary drive belt

tensioner and remove tensioner.

M86 5264

ENGINE - K SERIES KV6

OVERHAUL 12-3-97

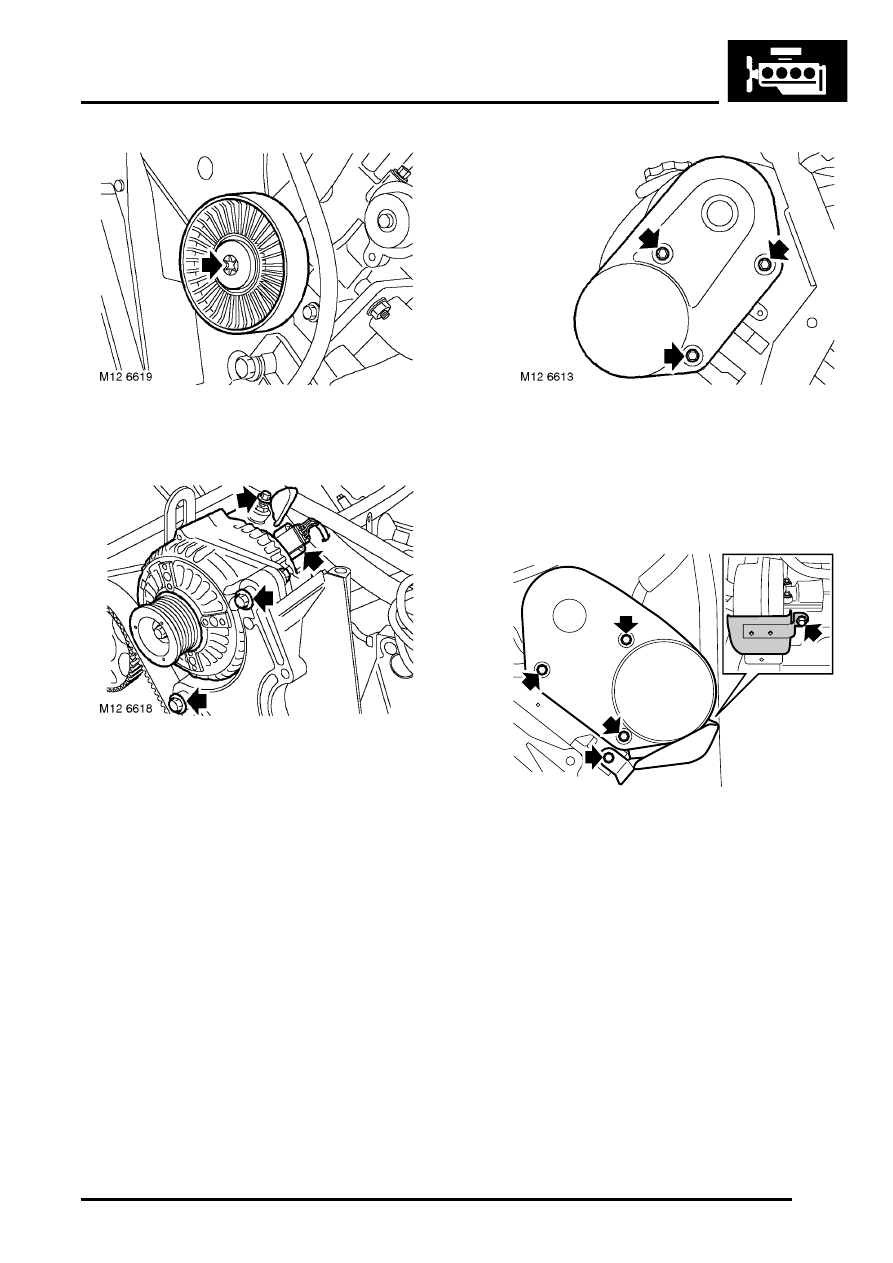

4. Remove Torx screw securing idler pulley to

front mounting plate and remove pulley.

5. Release alternator battery lead terminal cover,

loosen terminal nut and disconnect lead from
terminal

6. Disconnect multiplug from alternator.
7. Remove lower bolt and upper nut and bolt

securing alternator to front mounting plate.

8. Release alternator and remove.

9. Remove 3 bolts securing camshaft timing belt

LH rear cover and remove cover.

10. Remove inlet manifold chamber - if fitted.



 +

 MANIFOLDS & EXHAUST SYSTEMS

- K SERIES KV6, REPAIRS, Seals - inlet
manifold chamber.

11. Remove 2 bolts securing RH rear timing belt

cover heat shield to cylinder head; remove heat
shield.

12. Remove 3 bolts securing RH rear timing belt

cover; remove cover.

M12 6694

ENGINE - K SERIES KV6

12-3-98 OVERHAUL

13. Using a socket on crankshaft pulley bolt, rotate

crankshaft in a clockwise direction and align the
engine "SAFE" position - notch on crankshaft
pulley aligned to the "ARROW" on front
mounting plate. Check that the timing marks on
the rear camshaft gears are aligned as
illustrated.

CAUTION: Do not use the camshaft gear
bolts or timing belts to rotate the
crankshaft. Do not use the arrow on the oil
pump body as a timing reference.

14. Insert timing pin LRT-12-232 through hole

immediately adjacent to side of lower
crankcase ensuring that pin is located in hole in
drive plate.

15. Remove 3 bolts securing camshaft timing belt

LH front cover and remove cover.

16. Remove 3 bolts securing camshaft timing belt

RH front cover and remove cover.

LRT-12-232

M12 7927
