MAINTENANCE

MAINTENANCE

10-7

Tyres

Check

1. Check for any apparent damage to tyres,

paying particular attention to side walls.

2. Look at tyre treads and check for any unusual

wear patterns which may indicate out of
specification adjustment of steering or
suspension.

NOTE: Any adjustments to steering or
suspension will be subject to additional labour
and/or material cost and should not be carried
out without the authorisation of the customer.

3. Measure the tread depth across the width of the

tyre and around the circumference. Annotate
the maintenance check sheet with the lowest
figure obtained from each tyre.

NOTE: Any requirement to replace tyres should
be advised to the customer before any remedial
work is carried out. This will be subject to
additional labour and/or material cost and
should not be carried out without the
authorisation of the customer.

CAUTION: If new tyres are to be fitted,
ensure that they are fitted to the rear axle
only or to both front and rear axles. DO NOT
fit new tyres to front axle only.

Brake Pads and Calipers

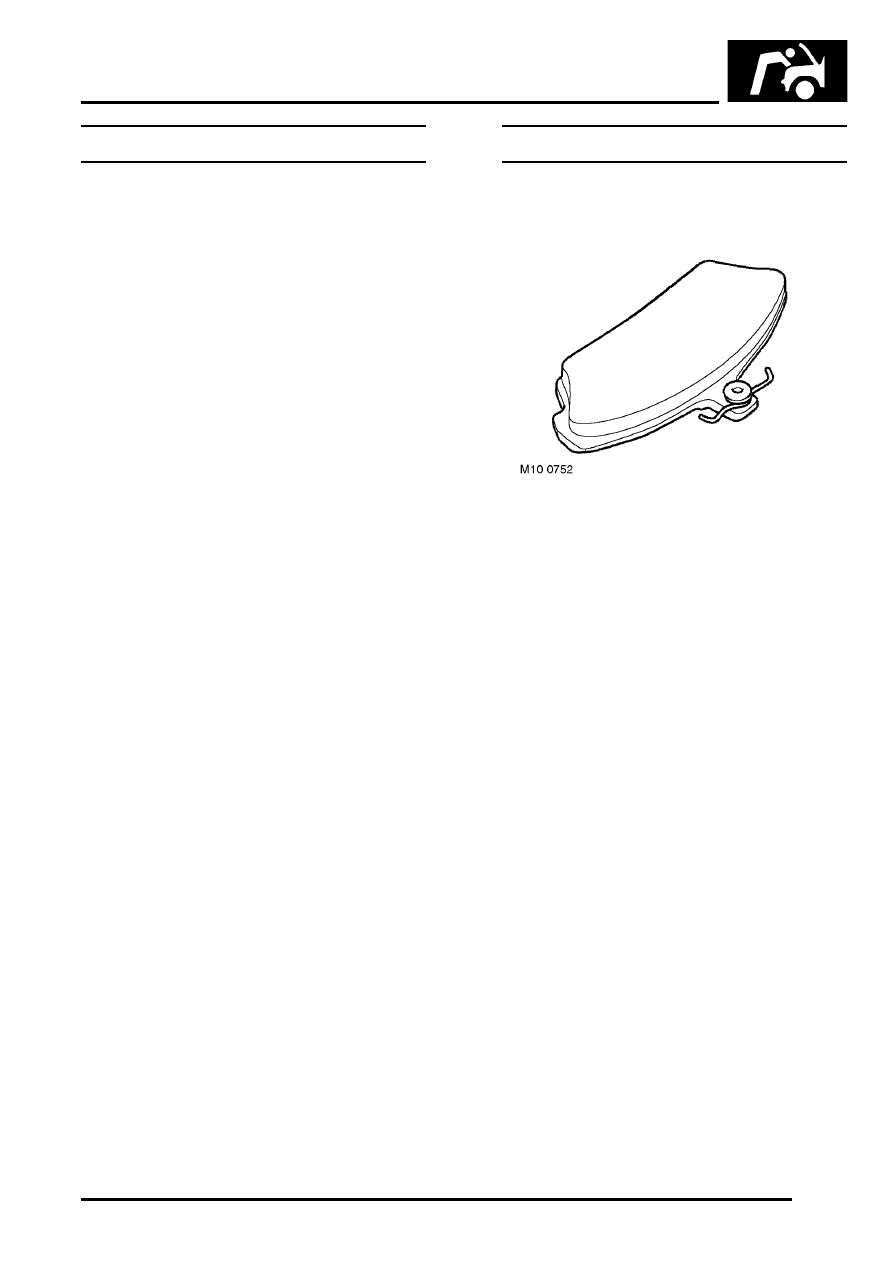

Brake Pads

1. With front road wheels removed, check brake

pad thickness and ensure that both pads are
wearing evenly.

2. Check brake discs for signs of cracking,

excessive scoring or oil contamination.

NOTE: Any requirement to replace brake pads
or brake discs should be advised to the
customer as this will be subject to additional
labour and/or material cost and should not be
carried out without the authorisation of the
customer.

3. Check for any signs of brake fluid leakage from

caliper seals, hoses or unions.

4. Using brake cleaner, remove excessive

deposits of brake dust from pads, calipers and
disc shields.

MAINTENANCE

10-8

MAINTENANCE

Brake Shoes

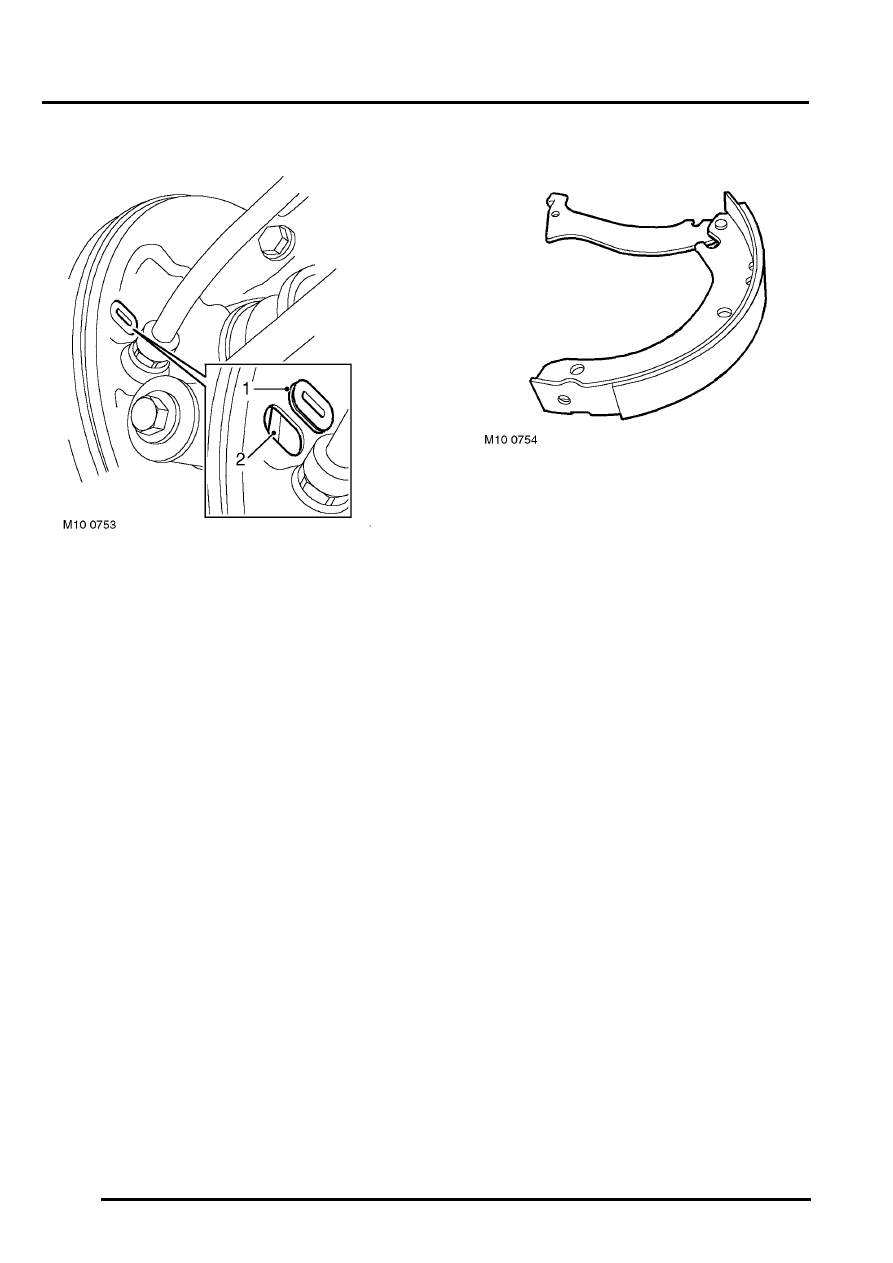

1. With the vehicle at a convenient working height,

remove the rubber plugs from the rear of the
back plate.

2. Using a lamp, inspect thickness of rear brake

shoes.

NOTE: Any requirement to replace brake shoes
should be advised to the customer as this will
be subject to additional labour and/or material
cost and should not be carried out without the
authorisation of the customer.

3. Check for any signs of brake fluid

contamination on brake shoes, or evidence of
brake fluid leakage from drum/backplate.

4. Ensure that rubber plug is correctly fitted into

back plate upon completion of check.

Brake Drums

1. With vehicle at a convenient working height and

the wheels removed, remove the rear brake
drums.


 +

 BRAKES, REPAIRS, Drum - rear.

2. Check brake shoe thickness, and condition of

brake shoes for any evidence of contamination
from brake fluid.

3. Check brake drum for signs of cracking,

excessive scoring or oil contamination.

NOTE: Any requirements to replace brake
shoes, wheel cylinders or brake drums should
be advised to the customer as this will be
subject to additional labour and/or material cost
and should not be carried out without the
authorisation of the customer.

4. Using brake cleaner, remove excessive

deposits of brake dust from drums, shoes and
back plate.

5. Refit drums.



 +

 BRAKES, REPAIRS, Drum - rear.

MAINTENANCE

MAINTENANCE

10-9

Brake Fluid

Replace

1. Replace brake fluid.



 +

 BRAKES, ADJUSTMENTS, Brake

bleed.

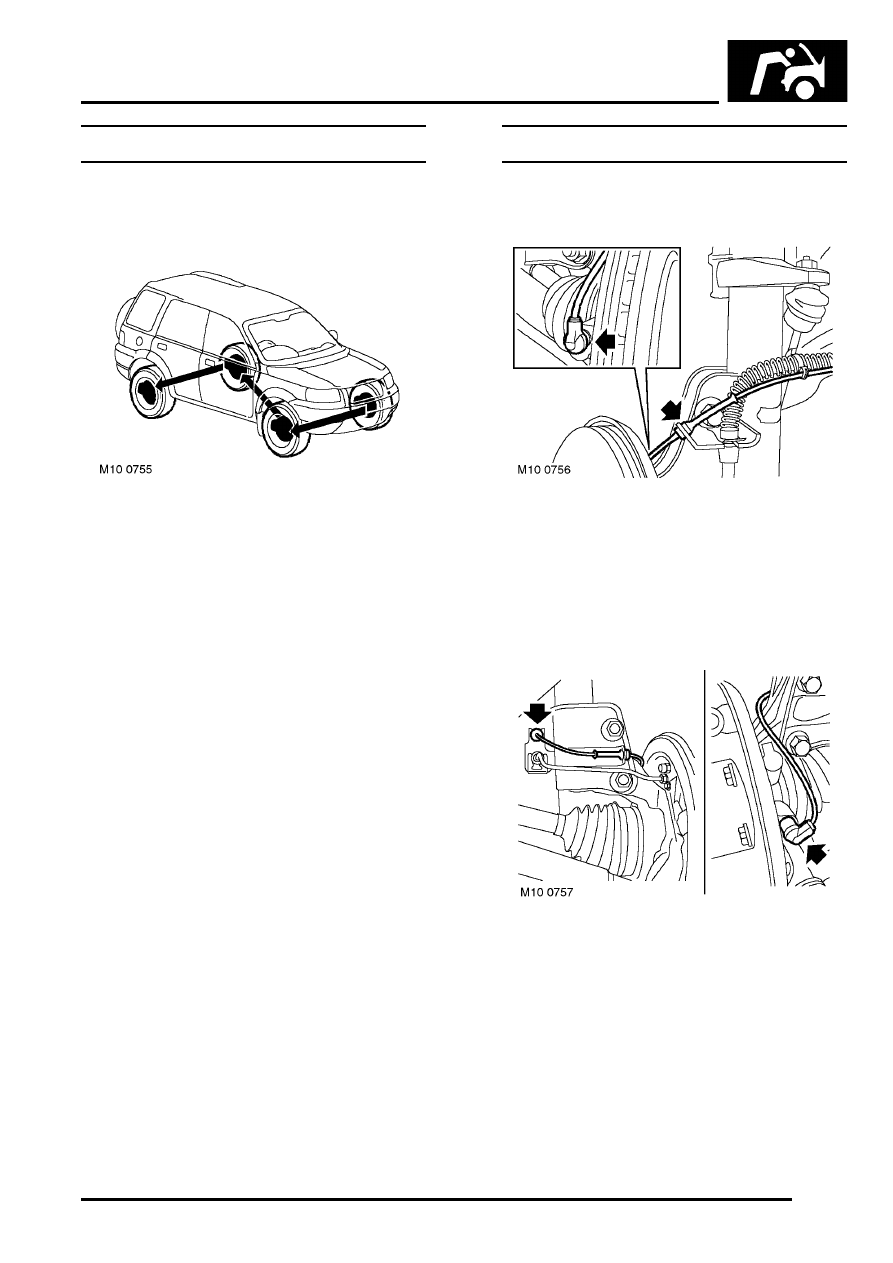

Road Wheel Speed Sensors

Inspect

Front wheel

1. Check harness is correctly routed and secured.

Ensure harness shows no sign of damage or
chafing.

2. Check speed sensor is fully inserted to the

correct position. Check reluctor ring condition
and ensure it is free from debris.

Rear wheel

3. Check harness is correctly routed and secured.

Ensure harness shows no sign of damage or
chafing.

4. Check speed sensor is fully inserted to the

correct position. Check reluctor ring condition
and ensure it is free from debris.

MAINTENANCE

10-10

MAINTENANCE

Fuel Filter - Petrol

Replace

1. Renew fuel filter.



 +

 FUEL DELIVERY SYSTEM -

PETROL, REPAIRS, Filter - main.

Fuel Filter - Diesel

Replace

1. Replace fuel filter element.



 +

 FUEL DELIVERY SYSTEM - DIESEL,

REPAIRS, Filter - main.
