CAPACITIES, FLUIDS AND LUBRICANTS
09-3
Anti-freeze solutions
The overall anti-freeze concentration should not fall,
by volume, below 50% to ensure that the anti-
corrosion properties of the coolant are maintained.
Anti-freeze concentrations greater than 60% are not
recommended as cooling efficiency will be impaired.
Use Havoline Extended Life Coolant (XLC), or any
ethylene glycol based anti-freeze (containing no
methanol) with only Organic Acid Technology (OAT)
corrosion inhibitors, to protect the cooling system.
CAUTION: No other anti-freeze should be used
with Havoline Extended Life Coolant.
The cooling system should be drained, flushed and
refilled with the correct amount of anti-freeze
solution at the intervals given on the Service
Maintenance Check Sheet.
After filling with anti-freeze solution, attach a warning
label to a prominent position on the vehicle stating
the type of anti-freeze contained in the cooling
system to ensure that the correct type is used for
topping-up.
The following recommended quantities of anti-freeze
will provide frost protection to -36
°
C (-33
°
F):

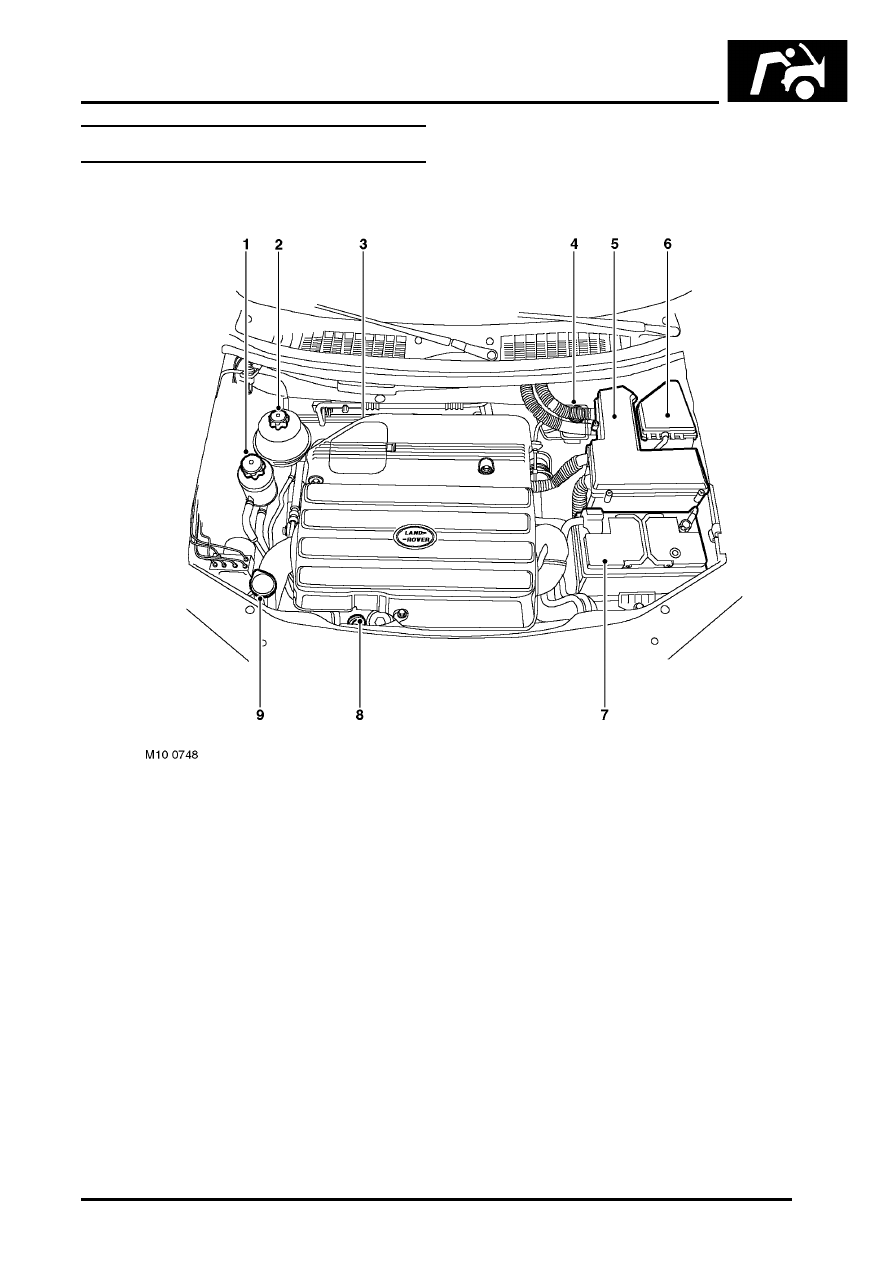

Engine – Td4

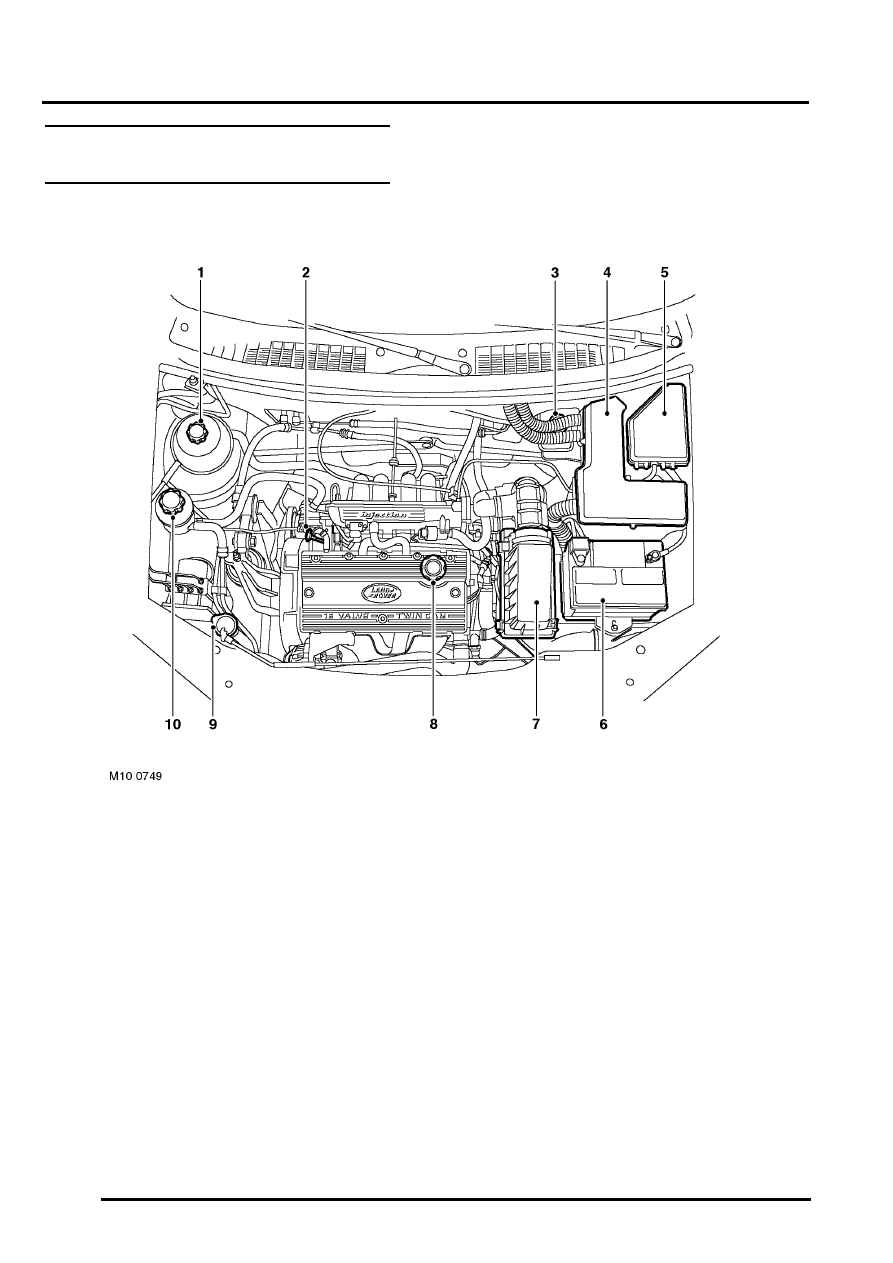

Engine – K1.8
Engine – KV6
Lubrication
The engine and other lubricating systems are filled
with high- performance lubricants giving prolonged
life.
CAUTION: Always use a high quality oil of the
correct viscosity range in the engine. The use of
oil of the incorrect specification can lead to high
oil and fuel consumption and ultimately to
damaged components.
Oil to the correct specification contains additives
which disperse the corrosive acids formed by
combustion and prevent the formation of sludge
which can block the oil ways. Additional oil additives
should not be used.
Always adhere to the recommended servicing
intervals.
Engine oil

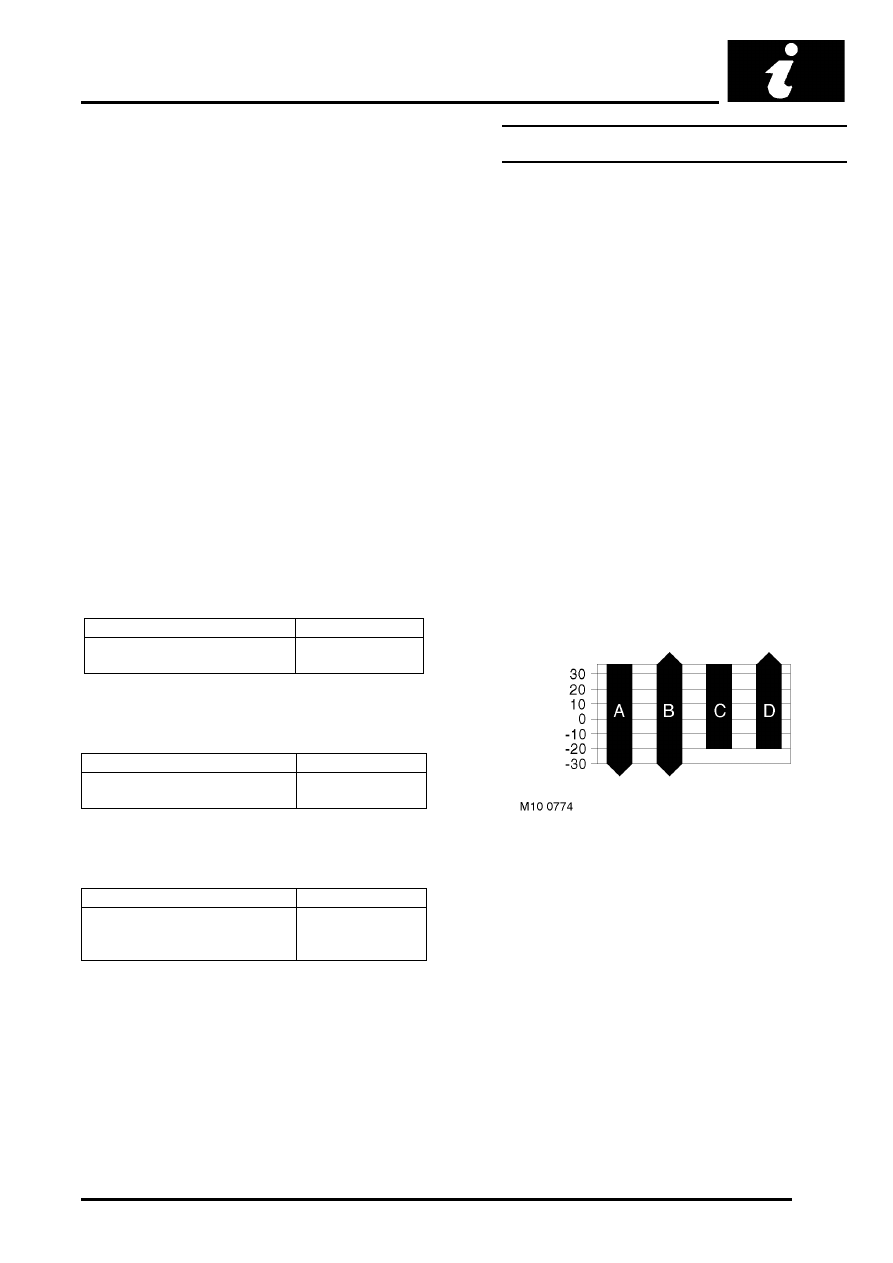

Engine oil viscosity / temperature ranges are
indicated in the following table:
a 0W-30; 5W30 – K1.8 & Td4 only
b 0W-40, 50, 60; 5W-40, 50, 60 – all engine types
c 10W-30 – K1.8 & Td4 only
d 10W-40, 50, 60 – all engine types
Engine oil – Td4 engine
Use a 10W/40 or 15W/40 oil meeting both ACEA A3
and ACEA B3 specifications, and having a viscosity
band recommended for the temperature range of
your locality. Where oils to these Land Rover and
European specifications are not available, well
known brands of oils meeting API SH quality should
be used.
Concentration
50%
Amount of anti-freeze
3.75 litres (6.625
imp. pts)
Concentration
50%
Amount of anti-freeze
2.9 litres (5.125
imp. pts)
Concentration
50%
Amount of anti-freeze
3.9 litres (6.875
imp. pts, 8.25 US
pts)
