LIFTING AND TOWING

08-3

If the front of the vehicle is to be trailed, turn ignition
key to  position 'I' to release steering lock.

WARNING: Do not turn the starter switch to
position '0' or remove the ignition key while the
vehicle is being towed.

CAUTION: If it is considered unsafe to turn the
starter switch to position '1' due to accident
damage or an electrical fault; disconnect the
battery before turning the ignition switch.

CAUTION: The steering wheel and/or linkage
must be secured in a straight ahead position. DO
NOT use the steering lock mechanism for this
purpose.

CAUTION: Under no circumstances should the
vehicle be towed or recovered by means of
lashing to the rear subframe. Serious damage to
the subframe and body could result.

CAUTION: Only use the rear towing eye for
towing another vehicle.

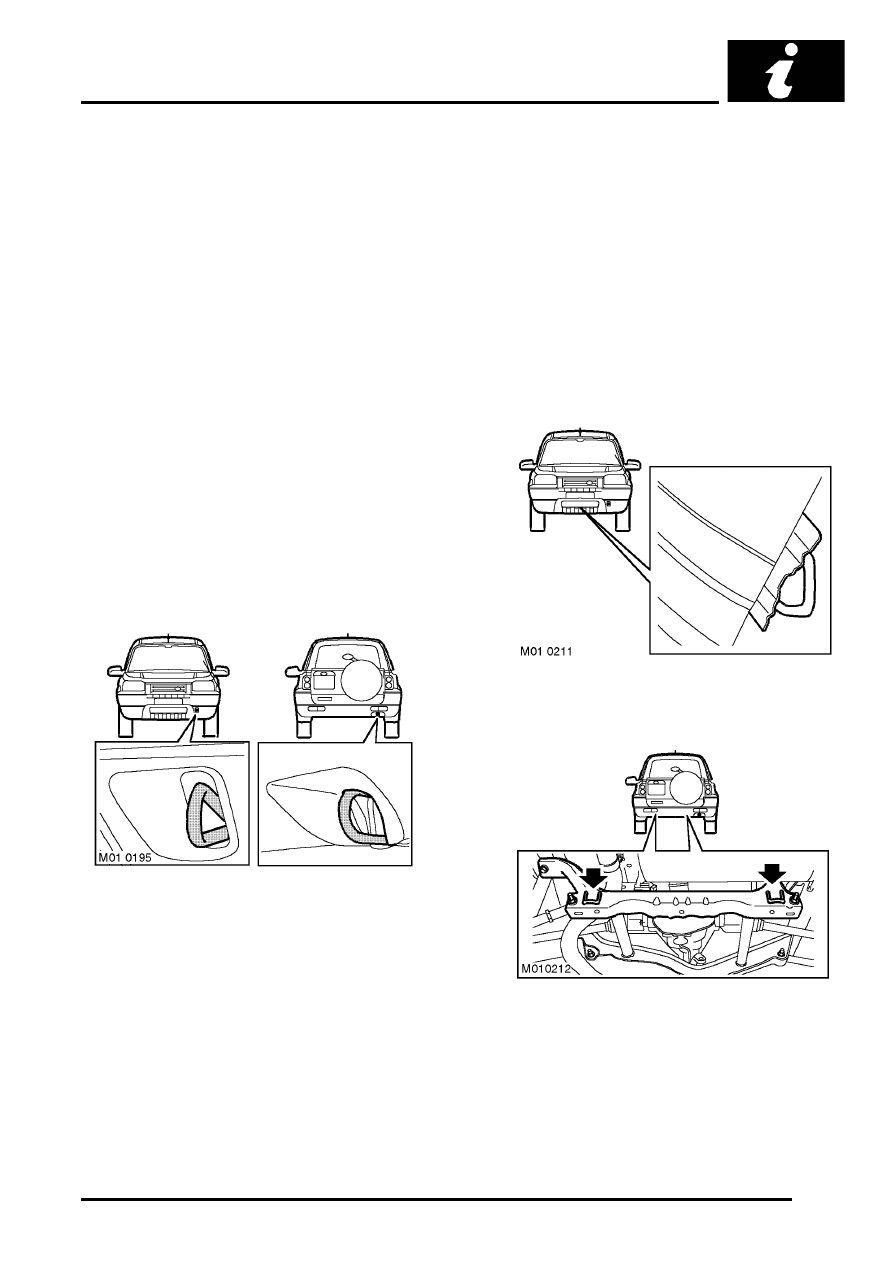

Towing eyes
The towing eyes at the front and rear of the vehicle
are designed for vehicle recovery purposes only and
must not be used to tow a trailer or caravan.

Front and rear towing eyes

A single towing eye is provided in the front spoiler.
Only use when the vehicle is to be towed with all four
wheels on the ground.

A single towing eye is provided in the rear RH spoiler.
Only use when towing another vehicle.

Transporting the vehicle by trailer
Lashing rings are provided at the front and rear of the
body to facilitate the securing of the vehicle to a
trailer or other means of  transportation.

CAUTION: Underbody components must not be
used as lashing points. The lashing rings must
not be used for towing.

Install the vehicle on trailer and apply the parking
brake. Select neutral.

Lashing eyes
Lashing rings are provided at the front and rear of the
vehicle for use when transporting by trailer. DO NOT
use lashing eyes for towing purposes.

Front lashing eye

Rear lashing eyes

LIFTING AND TOWING

08-4

Emergency starting

WARNING: Battery fluid (electrolyte) contains
sulphuric acid. It may cause severe burns if it
gets on your skin or in your eyes. Wear
protective clothing and a face shield.

If electrolyte gets on your skin or clothes,
immediately rinse it off with water.

If electrolyte gets in your eyes, immediately flush
eyes with water for at least 15 minutes and seek
medical help.

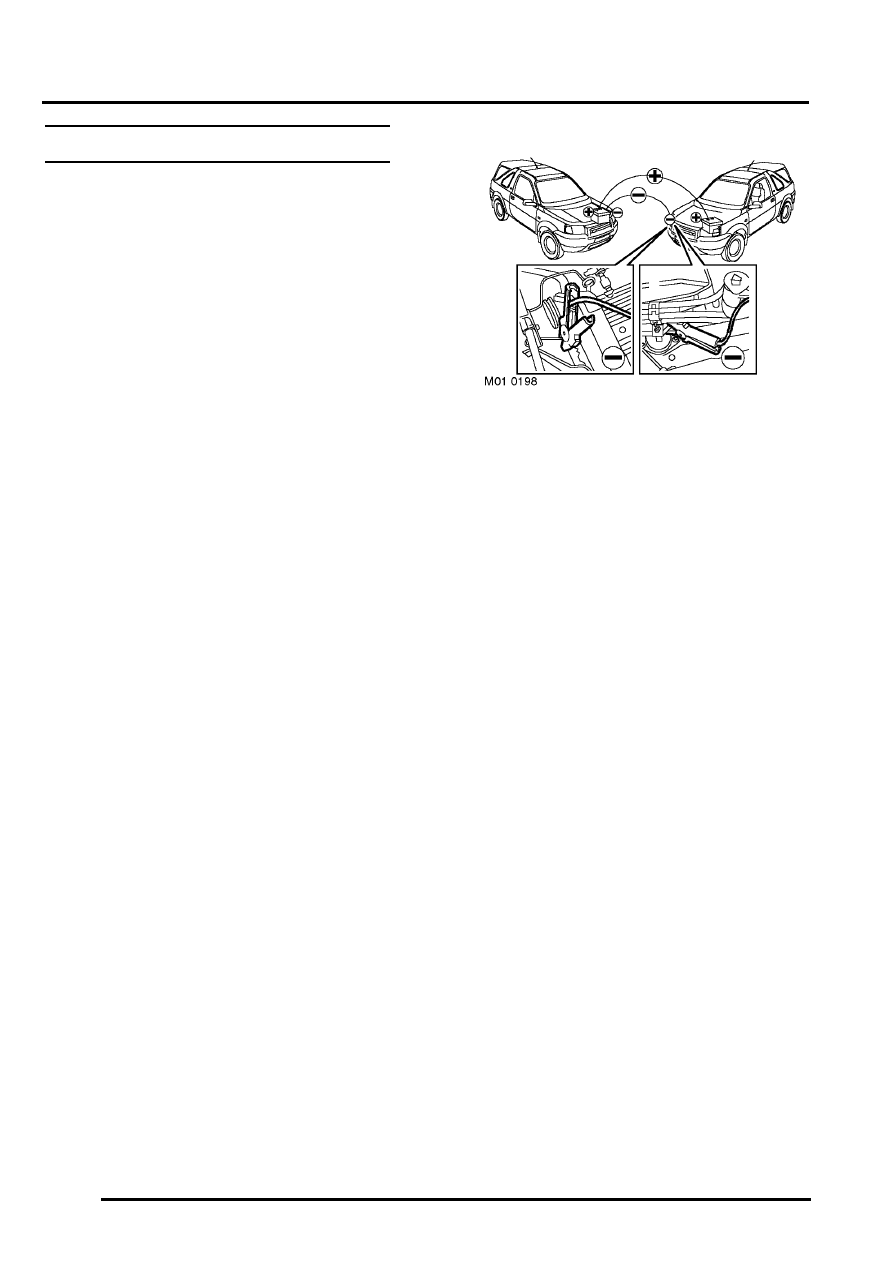

To Jump Start - Negative Ground Battery
Position vehicles so that jump leads will reach,
ensuring  that vehicles  DO NOT TOUCH,
alternatively a fully charged slave battery may be
positioned on the floor adjacent to the vehicle.

Ensure that:

l

the ignition and all electrical accessories are
switched off

l

the parking brake is applied and neutral is
selected on gearbox

Connect the jump leads as follows:

WARNING: Making final cable connection could
cause an electrical arc, which if made near
battery could cause an explosion.

Connect one end of first jumper cable to

positive (+) terminal of booster battery.

Connect other end of first jumper cable to

positive (+) terminal of discharged battery.

Connect one end of second jumper cable to

negative terminal of booster battery.

Connect other end of second jumper cable  to a

good earth point on the engine,   NOT TO
NEGATIVE TERMINAL  OF DISCHARGED
BATTERY.

CAUTION: Keep jumper leads away from moving
parts, pulleys, drive belts and fan blade
assembly.

If the booster battery is installed in another vehicle,
start engine and  allow to idle.

Start engine of vehicle with discharged battery,
following starting  procedure in Owners' Handbook.

CAUTION: If vehicle fails to start within a
maximum time of 12 seconds, switch ignition off
and investigate cause. Failure to follow this
instruction could result in irreparable damage to
catalyst.

To disconnect:

l

 Remove negative (-) jumper cable from the
engine and then terminal of booster battery.

l

Remove positive (+) jumper cable from positive
terminals of booster battery and discharged
battery.

CAPACITIES, FLUIDS AND LUBRICANTS

09-1

CAPACITIES, FLUIDS AND LUBRICANTS

Capacities

The following capacities are only an approximation of
the amount of fluid required to fill the respective
system.

Capacities – UK/ROW

† An extra 420 cc (0.73 imp pt) is required for
vehicles with an air blast fluid cooler fitted.

* Refill capacity is approx. 0.7 litre (1.125 imp. pt)
less than the from dry figures.

Component / system

Capacity

Fuel tank:

 Td4 Model

 K1.8 & KV6 Model

59 litres (13 gallons)
65 litres (14.3 gallons

Engine - Td4 (including oil cooler and oil filter):

 Refill

6.8 litres (12 imp. pts)

 Fill from dry

7.3 litres (12.9 imp. pts)

Engine - K1.8 (including filter):

 Refill

4.5 litres (7.9 imp. pts)

 Fill from dry

4.8 litres (8.4 imp. pts)

Engine - KV6 (including oil cooler and filter):

 Refill

5.2 litres (9.125 imp. pts)

 Fill from dry

6.0 litres (10.625 imp. pts)

Manual gearbox - PG1:

 Refill

2.0 litres (3.5 imp. pts)

 From dry

2.2 litres (3.9 imp. pts)

Manual gearbox - Getrag:

 Refill

1.6 litres (2.875 imp. pts)

 From dry

1.67 litres (3 imp. pts)

Automatic gearbox - JATCO:

 Refill

4.0 litres (7 imp. pts)

 From dry

8.5 litres (15 imp. pts)

Intermediate Reduction
Drive

1.1 litres (2 imp. pts)

Rear differential:

 Maximum

830 ml (29.2 imp. fl. oz.)

 Minimum

750 ml (26.4 imp. fl. oz.)

Power steering reservoir

335 cm

3

Cooling system - Td4 Engine – Fill from dry (with
reservoir)*:

 Automatic

7.25 litres (12.8 imp. pts)

 Manual

7.25 litres (12.8 imp. pts)

Cooling system - K1.8 Engine:

 Fill from dry (with

reservoir)*

5.8 litres ( 10.25 imp. pts)

Cooling system - KV6 Engine:

 Fill from dry (with

reservoir)*

7.8 litres ( 13.75 imp. pts)

Reservoir tank:

 Maximum fill

0.44 litres (0.75 imp. pts)

 Expansion tank volume 1.2 litres (2.125 imp. pts)

 Gross expansion

capacity

0.72 litres (1.27 imp. pts)

Windscreen washer
reservoir

4.0 litres (7 imp. pints)

CAPACITIES, FLUIDS AND LUBRICANTS

09-2

Capacities – NAS

Fluids

Fuel
Always use the following recommended fuels:

Petrol engines
Use unleaded petrol with a minimum octane rating of
95 RON to ENN 228 specification.

In an emergency (and only if the correct fuel is
unavailable), lower octane rated fuel can be used for
very limited periods of moderate, low speed
motoring, provided engine 'knocking' does not occur.

Fuels of 90 RON is used in certain markets; 90 RON
fuel can be used regularly ONLY if the engine has
been tuned specifically to suit low octane fuel.

Certain markets use fuel containing a 23% Ethanol
additive.

K1.8 and KV6 engines are also available for use with
a low octane leaded fuel specification in some
markets.

Diesel engines
Use a good quality diesel fuel or automotive gas oil
(AGO) conforming to EN 590 specification.

It is important that the sulphur content of diesel fuel
does not exceed 0.3%.

Ensure the fuel filter element is changed at the
recommended intervals.


 +

 MAINTENANCE, MAINTENANCE, Fuel

Filter - Diesel.

Brake Fluid
Use only Shell Donax YB DOT 4 brake fluid or, if this
is unavailable, use a brake fluid of the same
specification. DO NOT use brake fluid of a different
specification.

PAS fluid
Use fluid to Dexron III specification.

Component / system

Capacity

Fuel tank:
Td4 Model
KV6 Model

15.6 US gallons
17.2 US gallons

Engine - KV6 (including oil cooler and filter):

 Engine oil and filter

change

11 US pts

 Fill from dry

12.7 US pts

Automatic gearbox - JATCO:

 Refill

8.5 US pts

 From dry

18.2 US pts

Intermediate Reduction
Drive

2.3 US pts

Rear differential:

 Maximum

 Minimum

28.1 US fl. oz.
25.4 US fl. oz.

Power steering reservoir

335 cm

3

Cooling system - KV6 Engine:

 Fill from dry (with

reservoir)

17.82 US pts

Reservoir tank:

 Maximum fill

0.93 US pts

 Expansion tank volume

2.54 US pts

 Gross expansion

capacity

1.52 US pts

Windscreen washer
reservoir

8.5 US pts
