AIR CONDITIONING

15

REPAIR

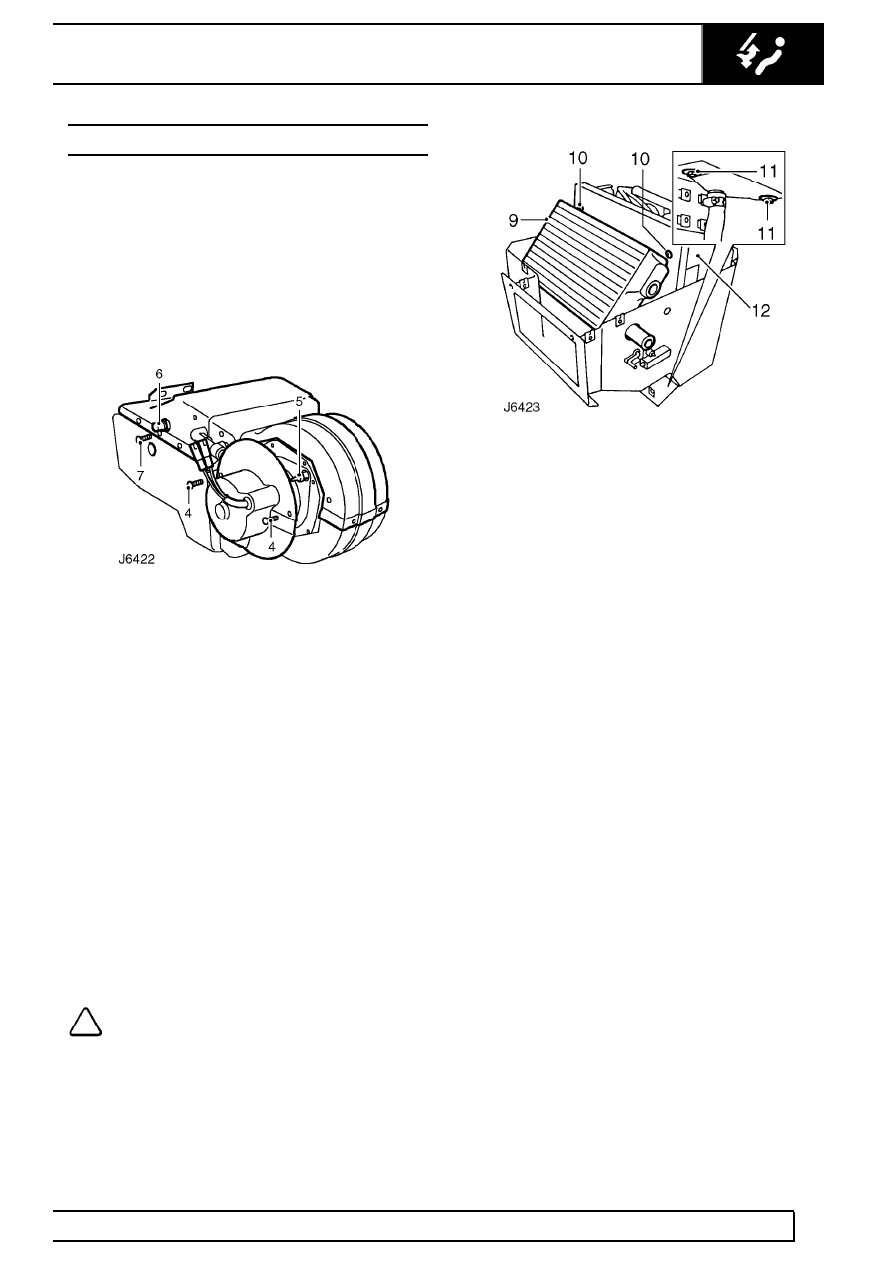

EVAPORATOR - RH DRIVE

Service repair no - 82.25.20

Remove

1. Remove heater/cooler unit

See Heater/cooler

unit - RH drive.

2. Suitably support unit on a bench.
3. Remove sealant and release thermostat probe

from low pressure pipe.

4. Remove 2 screws securing blower motor cover

to main casing.

5. Withdraw cover sufficiently to release motor

Lucar connector and earth eyelet. Remove
cover.

6. Unscrew top adaptor pipe from heater matrix.
7. Remove 18 fixings securing top cover to main

casing and heater/cooler support frame.

8. Carefully break sealing compound around edge

of joint seam and remove top cover from main
casing.

9. Lift out heater matrix.

10. Remove 2 screws securing back of evaporator

to support frame.

11. From underneath, remove 2 nuts and washers

securing evaporator matrix to base of casing.

12. Lift evaporator matrix from casing, complete with

side plates.

13. Remove side plates
14. Clean sealing compound from all joint seams of

main casing and top cover.

NOTE: The evaporator matrix is supplied
complete with the expansion valve.
However, a faulty expansion valve can be

serviced separately,

See Expansion valve - RH

drive.

Refit

15. Locate side panels to new evaporator lower

fixing studs.

16. Fit evaporator, with side plates, into main casing.

Ensure both studs are located through bottom of
casing and secure.

17. Apply sealing compound around joint seam of

main casing.

18. Fit top cover to main casing.
19. Fit thermostat probe to to low pressure pipe and

apply sealant.

20. Fit top adaptor pipe to heater matrix.
21. Fit Lucar connector and eath eyelet to blower

motor.

22. Fit blower motor cover.
23. Fit heater/cooler unit assembly into engine

compartment

See Heater/cooler unit.

82

AIR CONDITIONING

16

REPAIR

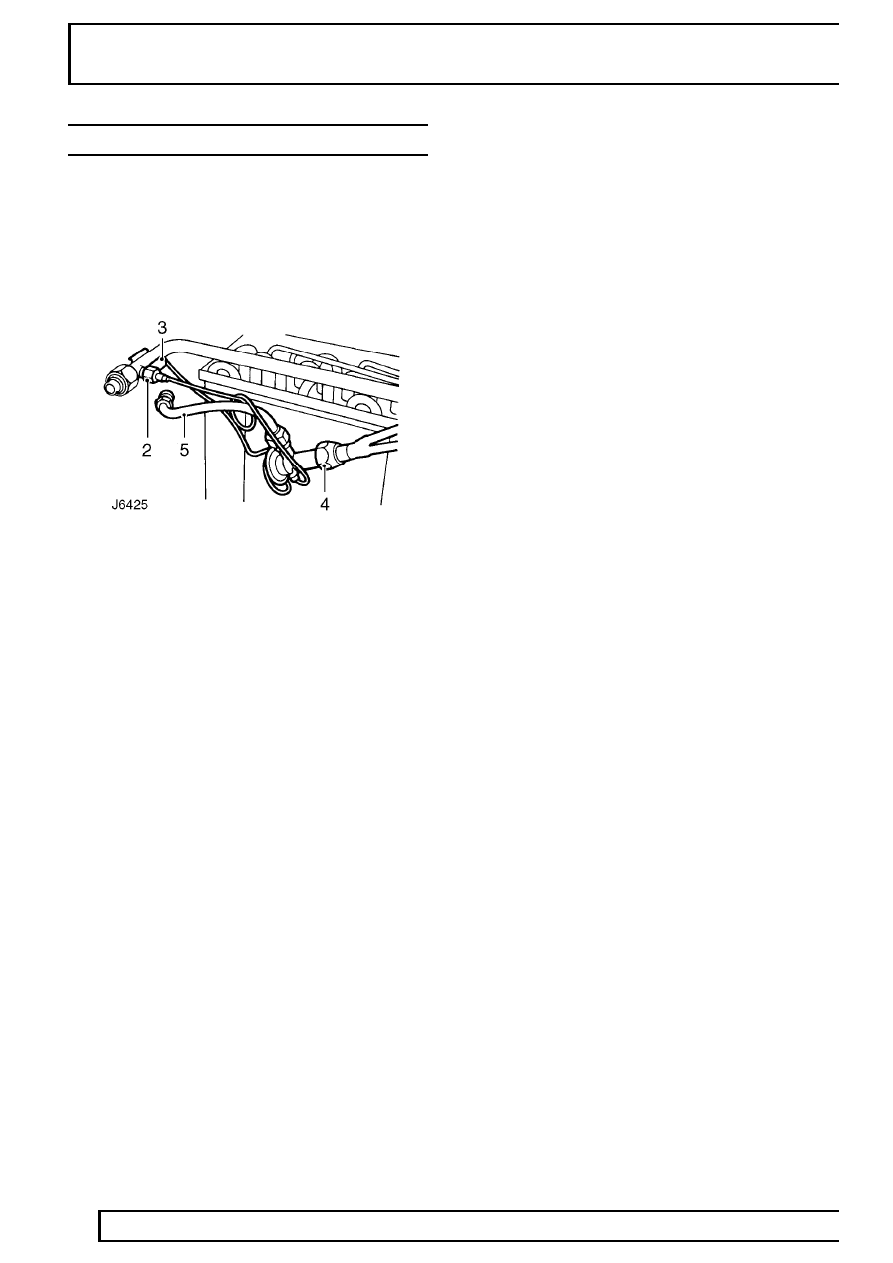

EXPANSION VALVE - RH DRIVE

Service repair no - 82.25.01

Remove

1. Remove evaporator

See Evaporator - RH

drive.

2. Unscrew union securing pressure sensor to low

pressure pipe.

3. Release spring clip securing temperature sensor

to low pressure pipe.

4. Unscrew union and remove expansion valve

from evaporator high pressure pipe.

5. Remove high pressure pipe from expansion

valve.

6. Discard all pipe connection ’O’ rings.

Refit

7. Coat unions, threads and new ’O’ rings with

refrigerant oil prior to reassembly.

8. Fit high presssure pipe to new expansion valve.
9. Fit expansion valve to evaporator high pressure

pipe.

10. Secure temperature and pressure sensors to low

pressure pipe.

11. Fit evaporator

See Evaporator - RH drive.

AIR CONDITIONING

17

REPAIR

HEATER MATRIX - RH DRIVE

Service repair no - 82.25.19

Remove

1. Remove heater/cooler unit

See Heater/cooler

unit - RH drive.

2. Suitably support unit on a bench.
3. Remove sealant and release thermostat probe

from low pressure pipe.

4. Remove 2 screws securing blower motor cover

to main casing.

5. Withdraw cover sufficiently to release motor

Lucar connector and earth eyelet. Remove
cover.

6. Unscrew top adaptor pipe from heater matrix.
7. Remove 18 fixings securing top cover to main

casing and heater/cooler support frame.

8. Carefully break sealing compound around edge

of joint seam and remove top cover from main
casing.

9. Lift out heater matrix.

10. Clean sealing compound from all joint seams of

main casing and top cover.

Refit

11. Locate heater matrix in main casing.
12. Apply sealing compound around joint seam of

main casing.

13. Fit top cover to main casing.
14. Fit adaptor pipe to heater matrix.
15. Fit thermostat probe to to low pressure pipe and

apply sealant.

16. Fit Lucar connector and eath eyelet to blower

motor.

17. Fit blower motor cover.
18. Fit heater/cooler unit assembly into engine

compartment

See Heater/cooler unit.

82

AIR CONDITIONING

18

REPAIR

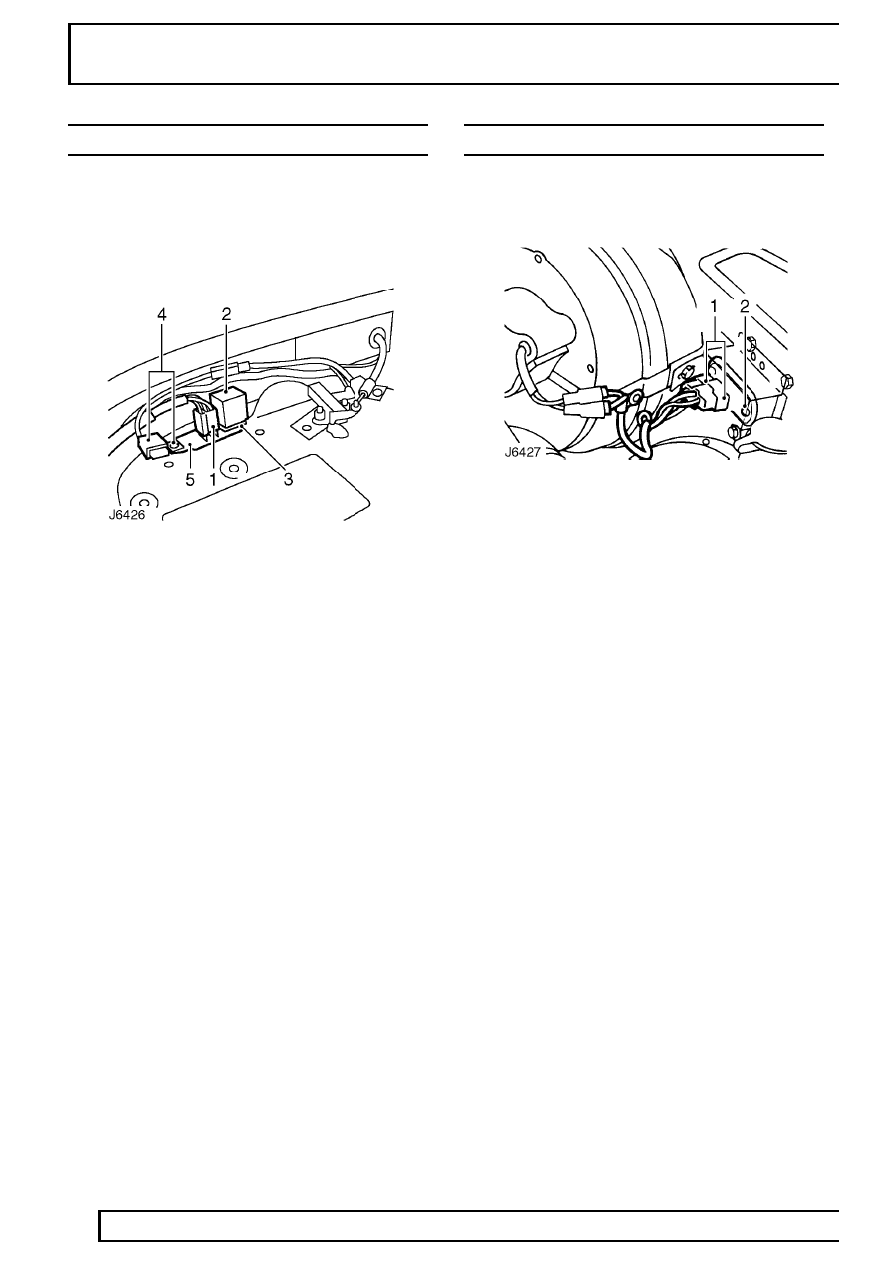

RESISTOR, BLOWER MOTOR - LH DRIVE

Service repair no - 82.20.26

Remove

1. Remove multi-plug from resistor.
2. Remove blower motor relay from connecting

block to gain access to fixing screw.

3. Remove screw and release relay connector

block. Retain relay in connector block.

4. Remove screw and detach air conditioning 30

amp fuse bracket from resistor.

5. Lift resistor unit from top cover.

Refit

6. Locate resistor unit in top cover.
7. Fit fuse bracket.
8. Fit blower motor relay connector block and relay.
9. Fit resistor multi-plug.

RESISTOR, BLOWER MOTOR - RH DRIVE

Service repair no - 82.20.26

Remove

1. Remove multi-plugs from resistor.
2. Remove 2 screws securing resistor to wing

mounted block.

3. Withdraw resistor unit.

Refit

4. Secure resistor to mounting block.
5. Fit resistor multi-plugs.
