Defender 90 NAS. Manual - part 82





76

CHASSIS AND BODY

26

REPAIR

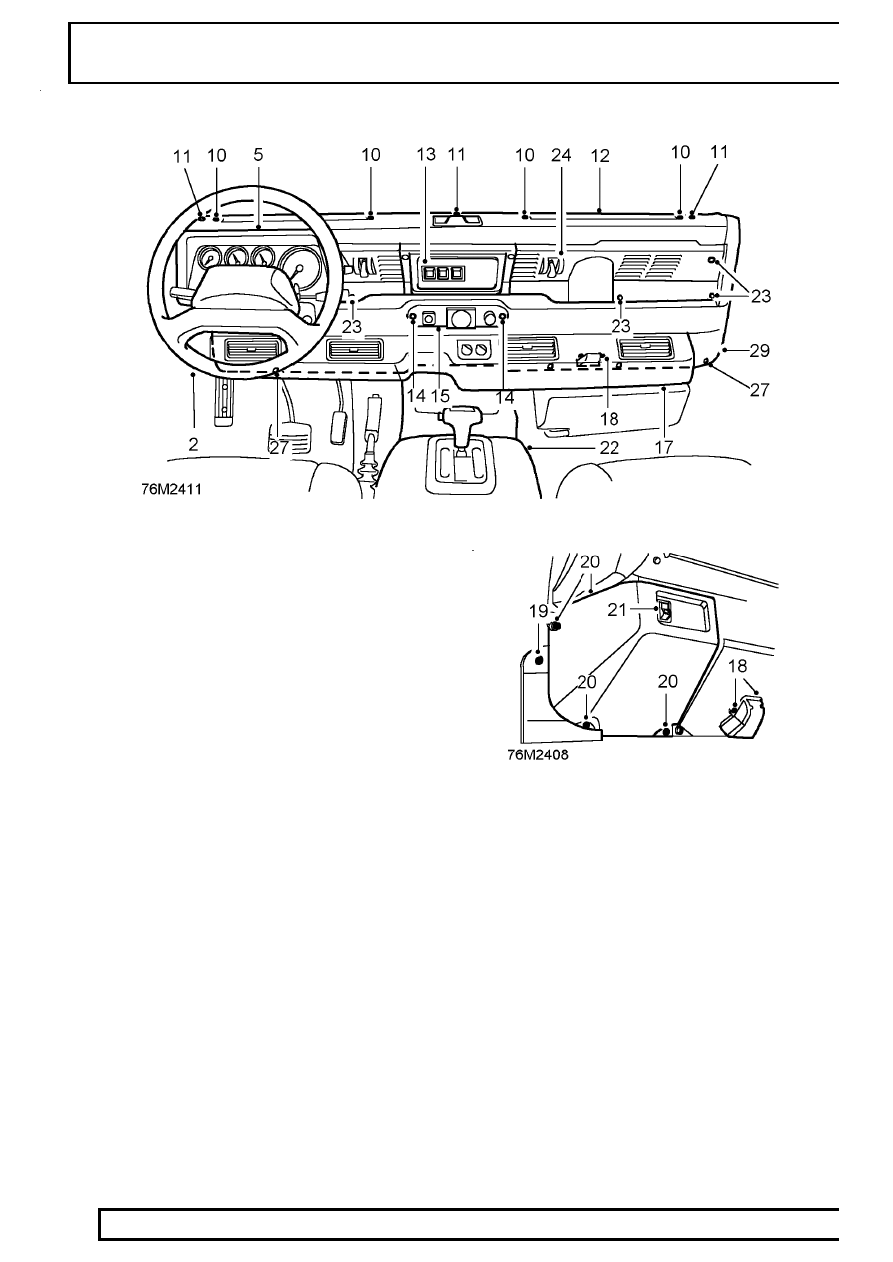

10. Remove 4 screws and remove both demister

vents from crash pad.

11. Remove 3 screws securing crash pad to fascia

bulkhead.

12. Remove crash pad.
13. Remove rear door switch panel.

See

ELECTRICAL, Repair, Switch panel-rear door
services

14. Remove 2 screws, washers and nuts securing

auxiliary switch panel to lower fascia panel and
switch cover.

15. Withdraw switch panel and disconnect harness

leads.

16. Remove 2 screws securing switch cover to

parcel tray.

17. Remove air conditioning fascia duct bezel.

See

AIR CONDITIONING, Repair, Fascia duct
bezel

18. If air conditioning is not fitted, remove 4 screws

and remove both footwell vents from lower fascia
panel.

19. Remove single screw and detach door check

strap cover from LH and RH doors.

20. Remove 3 screws securing wiper motor cover to

fascia bulkhead.

21. Release locating pins from fascia panel, lower

wiper motor cover and disconnect instrument
ilumination switch plug. Retain wiper motor rack
cover.

22. Remove centre console.

See Centre console

23. Prise out 2 large and 5 small cap fasteners

securing trim panel to parcel shelf and fascia
bulkhead.

24. Carefully fold back trim panel to clear fresh air

vent operating levers and remove panel from
parcel shelf.

25. Release demist hose and lift parcel shelf from

lower fascia panel (heater duct). Feed main
harness leads and plugs through aperture in
parcel shelf.

26. Remove parcel shelf.
27. Remove 4 screws securing bottom edge of lower

fascia panel to fascia bulkhead, noting position
of both footwell cover retaining plates. Remove
retaining plates.

28. Unscrew 2 retaining bolts securing top edge of

lower fascia panel to bulkhead.

29. With assistance, release lower fascia panel and

remove from vehicle.

CHASSIS AND BODY

27

REPAIR

Refit

30. Position lower fascia panel to bulkhead and

secure top edge with 2 bolts.

31. Locate RH footwell cover retaining plate under

bottom edge of fascia panel and secure with 3
screws.

32. Repeat operation for LH footwell cover retaining

plate.

33. Fit remaining lower fascia panel fixing screws.
34. Locate parcel shelf. Ensure all rear door services

and auxiliary switch panel harness leads and
plugs are fed through aperture in parcel shelf.

35. Fit demist hoses into heater duct of lower fascia

panel. Ensure flanges of hose grommets are
correctly seated.

36. Fit trim panel and secure with cap fasteners.
37. Fit centre console.

See Centre console

38. Reconnect instrument illumination switch plug

and locate wiper motor cover pins in lower fascia
panel and secure wth 3 screws. Ensure wiper
rack cover is correctly seated.

39. Fit door check strap covers on both sides.
40. Fit air conditioning fascia duct bezel.

See AIR

CONDITIONING, Repair, Fascia duct bezel

41. If air conditioning is not fitted, fit footwell vents to

lower fascia panel.

42. Fit auxiliary switch cover to parcel tray.
43. Connect leads and plugs to auxiliary switches

and clock.

44. Secure switch panel to lower fascia panel and

switch cover.

45. Fit rear door switch panel.

See ELECTRICAL,

Repair, Switch panel-rear door services

46. Fit crash pad to fascia bulkhead.
47. Fit demister vents in crash pad.
48. Fit grab handle to lower fascia panel and secure

to crash pad. Refit Land Rover decal.

49. Connect multi-plugs to rear screen, hazard and

interior lamp switches and fit switch panel to
fascia panel.

50. Fit heater control cable.

See HEATING AND

VENTILATION, Repair, Heater control cable -
air distribution

51. Fit instrument binnacle.

See ELECTRICAL,

Repair, Instrument binnacle

52. Fit steering column nacelle.
53. Fit steering wheel.
54. Reconnect battery.

FRONT WING [FENDER] ASSEMBLY

Service repair no - 76.11.05

Remove

1. Release exterior roll-over bar from its fitted

position to allow removal of front wing [fender].
See exterior roll-over bar

2. Raise and support front of vehicle on safety

stands.

3. Remove road wheel.
4. Disconnect wiring connectors for parking and

indicator lamps.

5. Disconnect harness multiplug for headlamp.
6. Position wiring clear of wheel arch.
7. Inside wing [fender] rear: Loosen fully 3 bolts

securing wing [fender] bulkhead.

8. Remove 2 bolts securing wheel arch to brackets,

front and rear.

9. From inside engine bay: Remove bolt securing

rear of wing [fender] to bulkhead.

10. Remove 2 bolts securing wing [fender] to

bracket, front bottom.

11. Remove 2 bolts securing wing [fender] to

bracket, front top.

12. Lift wing [fender] assembly and disengage rear

from 3 bolts and remove.

Refit

13. Ensure washers are against heads of bolts with

clearance to insert wing [fender].

14. Position and engage rear of wing [fender] onto

bolts.

15. Fit bolts securing top of wing [fender] to front

bracket, do not tighten.

16. Fit bolts securing bottom of wing [fender] to front

bracket, do not tighten.

17. Fit bolts securing wheel arch to brackets, do not

tighten.

18. Position wiring inside wheel arch.
19. Fit bolt securing top of wing [fender] to bulkhead.
20. Align wing [fender] to ’A’ post and tighten bolts

inside wing [fender] and at top.

25 Nm, 18 lbf ft.

21. Align front of wing [fender] and tighten bolts at

front.

25 Nm, 18 lbf ft.

22. Tighten bolts inside wheel arch.

25 Nm, 18 lbf ft.

23. Connect wiring.
24. Fit road wheel and lower vehicle, tighten nuts to

130 Nm, 95 lbf ft.

25. Fit exterior roll-over bar.

See exterior roll-over

bar

76

CHASSIS AND BODY

28

REPAIR

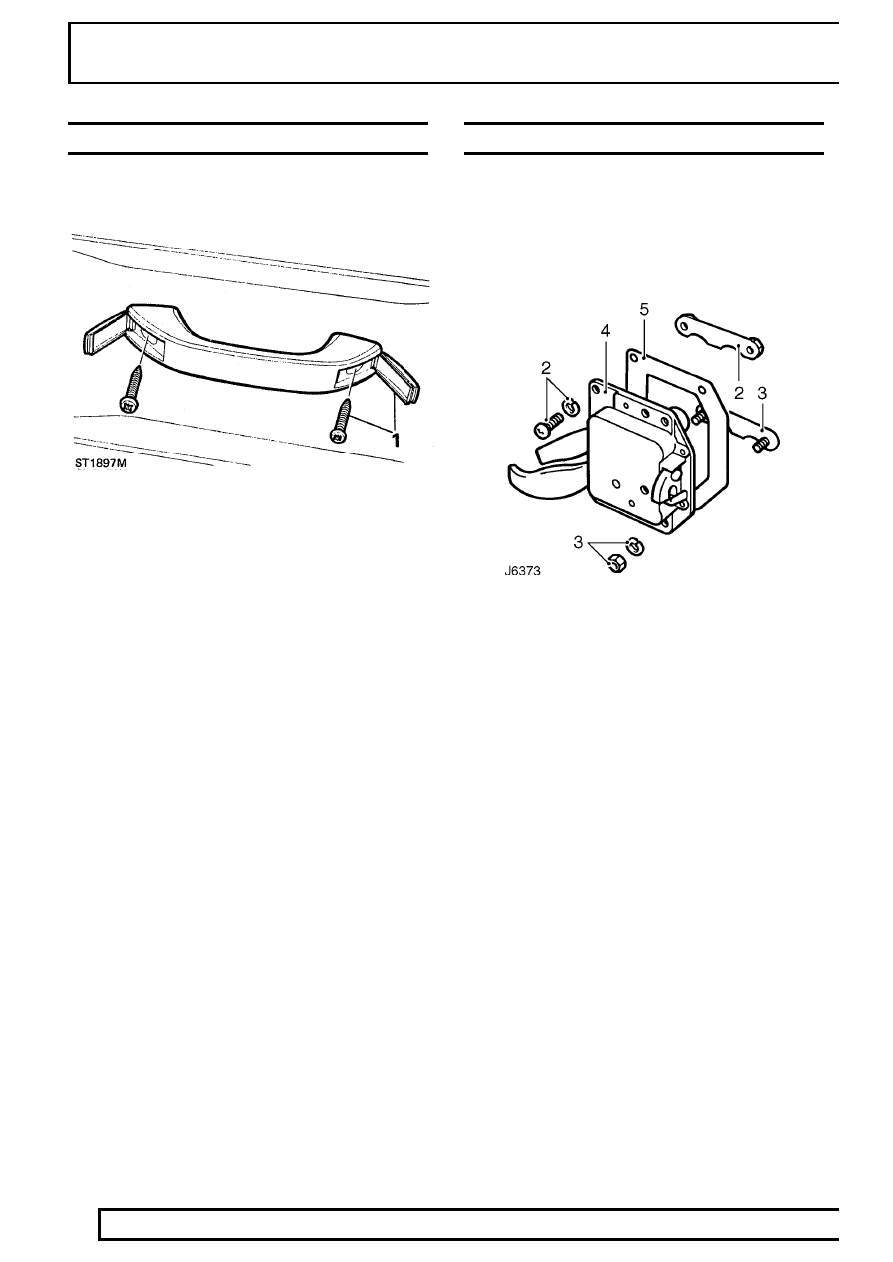

TRIM CASING - FRONT DOOR SOFT TOP

Service repair no - 76.34.01

Remove

1. Prise open 2 finishers and remove 2 screws

securing door pull.

2. Remove 13 screws securing door trim casing.
3. Release trim casing from door, disconnect wires

from speaker and withdraw casing from door
handle.

Refit

4. Ensure screw inserts are in door panel or use

new inserts. Ensure that anti-vibration pads are
in position on trim casing.

5. Position trim casing to door, connect speaker

wiring and engage door handle, align fixings in
door and secure with screws.

6. Fit door pull, secure with screws and insert

finishers.

FRONT DOOR LOCK - SOFT TOP

Service repair no - 76.37.12

Remove

1. Remove door casing.

See Trim casing - front

door soft top

2. Remove 2 screws, washers and nut retainer

securing top of lock to door.

3. Remove 2 nuts, washers and screw retainer

securing bottom of lock to door.

4. Withdraw lock complete from door panel.
5. Remove door lock gasket.
6. Clean sealant from retainer plates.
7. Insert key into barrel, depress lock barrel plunger

and withdraw lock barrel.

Refit

8. Fit new barrel into lock.
9. Apply sealant to lock retainer plates.

10. Fit lock to door with a NEW gasket.
11. Secure with retainer plates, screws, washers

and nuts.

12. Close door and check for correct latching with

striker.

13. Adjust striker as necessary.

See Adjustment,

Door lock striker - adjust

14. Refit door casing.

See Trim casing - front

door soft top

CHASSIS AND BODY

29

REPAIR

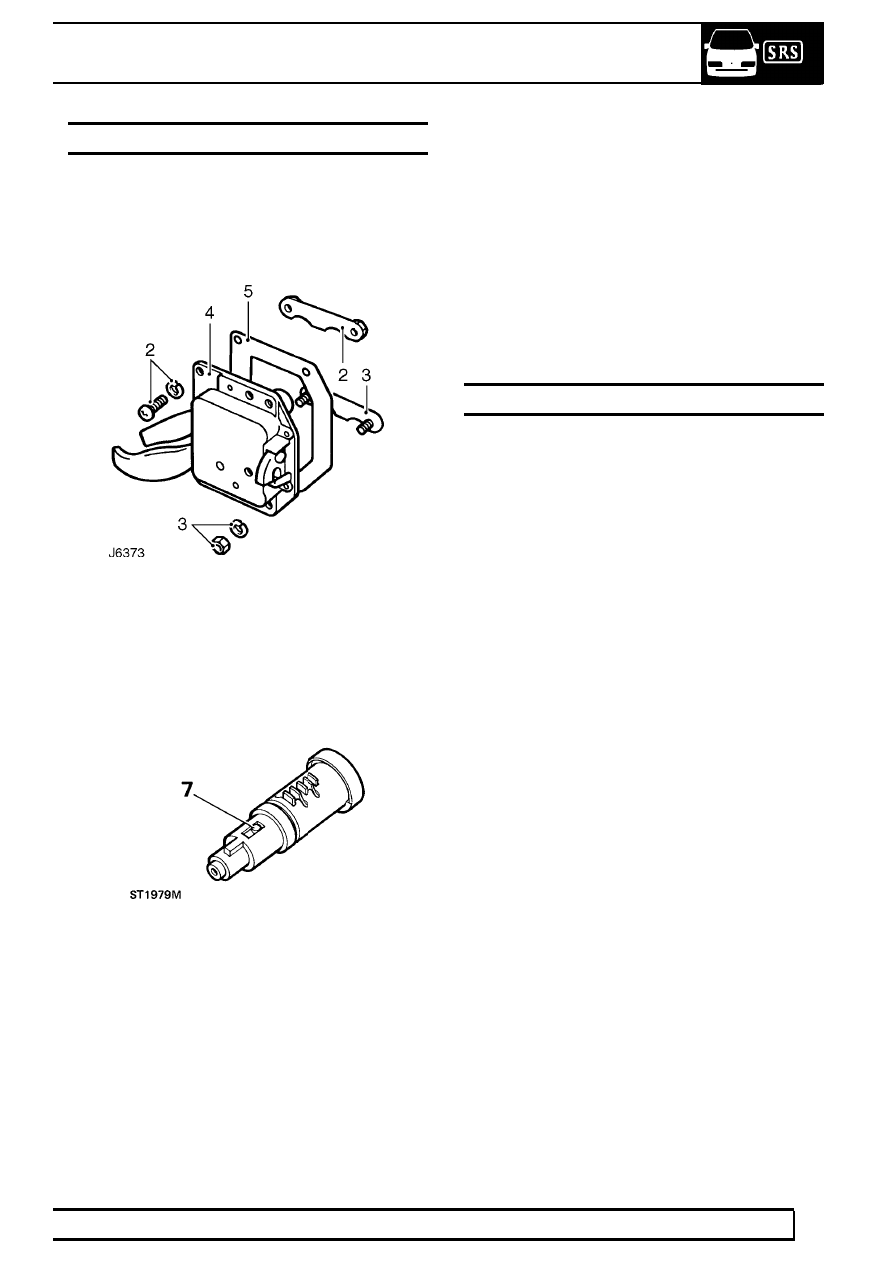

TAIL DOOR LOCK - SOFT TOP

Service repair no - 76.37.16

Remove

1. Open tail door.

2. Remove 2 screws, washers and nut retainer

securing top of lock to door.

3. Remove 2 nuts, washers and screw retainer

securing bottom of lock to door.

4. Withdraw lock assembly.
5. Remove door lock gasket.
6. Clean sealant from retainer plates.

7. Insert key into barrel, depress lock barrel plunger

and withdraw barrel from lock.

Refit

8. Fit new barrel into lock.
9. Apply sealant to lock retainer plates.

10. Fit lock to door with a NEW gasket.
11. Secure with retainer plates, screws, washers

and nuts.

12. Close door and check for correct latching with

striker.

13. Adjust striker as necessary.

See Adjustment,

tail door striker - adjust

PRIVATE LOCK - TAIL DOOR

Service repair no - 76.37.42

Remove

1. Remove tail door lock.

See Door lock - tail

door

2. Insert key in barrel.
3. Depress lock barrel plunger (seeST1979M).
4. Withdraw barrel from lock.

Refit

5. Reverse removal procedure.
6. Refit tail door lock.

See Door lock - tail door
